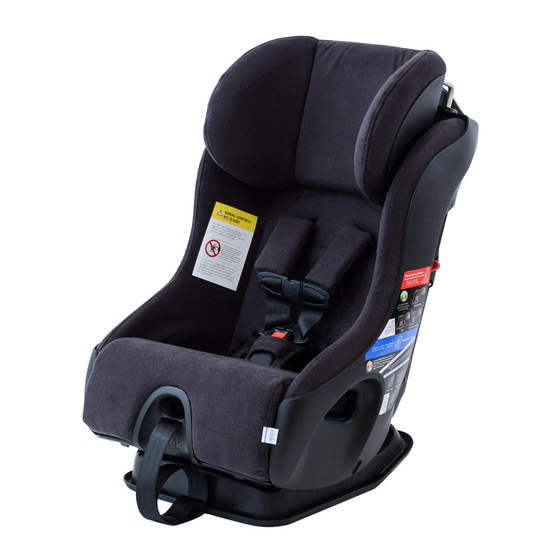

Clek Fllo Supplementary Instructions Manual

Inflatable vehicle belt
Hide thumbs Also See for Fllo:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Fllo Inflatable Belt
Supplementary Instructions

Table of Contents

Installing/Removing Rear-Facing Car Seat ............................................................. 1
Installing/Removing Forward-Facing Car Seat ........................................................ 8
® Clek and Fllo are registered trademarks of Clek Inc.
For a complete list of Clek Inc. trademarks please visit clekinc.com/trademarks.
January 2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fllo and is the answer not in the manual?

Questions and answers

Related Manuals for Clek Fllo

Summary of Contents for Clek Fllo

  • Page 1: Table Of Contents

    Installing Forward-Facing Car Seat With Inflatable Vehicle Belt ......8 Removing Forward-Facing Car Seat Installed With Inflatable Vehicle Belt ... 14 ® Clek and Fllo are registered trademarks of Clek Inc. For a complete list of Clek Inc. trademarks please visit clekinc.com/trademarks.

  • Page 2: Installing/Removing Rear-Facing Car Seat

    Vehicle Belt” section in your car seat manual. • Not all inflatable vehicle belts are safe for use with this car seat. Contact Clek Customer Service at 1-866-656-2462 to determine if the inflatable belts in your vehicle are approved for use with this car seat.
  • Page 3 Step 1 Prepare car seat for Rear-Facing Installation: • Rotate Recline Foot to Rear-Facing position by pulling on edge of Recline Foot and rotating it towards the front of the seat until it locks in to position, as shown in Figure 1. •...

  • Page 4: Step

    Step 3 If the vehicle seat back is adjustable, make sure the seat back is locked in a more upright position. Refer to vehicle owner’s manual for recommended seat back angle. DO NOT install or use this car seat while the vehicle seat back is excessively reclined, as shown in Figure 2.

  • Page 5: Figure

    Step 5 Position the seat so that the Rear-Facing Level Reference Line appropriate for the child’s weight is parallel with the ground as shown in Figure 5. • If using with an infant under 10 kg (22lb), position the seat with the more reclined Reference Line (top line) parallel to the ground.
  • Page 6 Step 7 Switch the the lap portion of the lap/shoulder belt to the automatic locking mode by pulling the lap portion of the lap/shoulder belt all the way out by holding the webbing and pulling upwards, as shown in your vehicle manual. Step 8 Tighten vehicle belt to secure the car seat •...
  • Page 7 Step 9 Check for secure installation. Gripping car seat at top of armrests, pull car seat front to back and left to right to check for secure installation as shown in Figure 8. Vehicle belt MUST stay tight and child restraint should not move more than 2.5 cm (1 in.) in any direction.

  • Page 8: Removing Rear-Facing Car Seat Installed With Inflatable Vehicle Belt

    Removing Rear-Facing Car Seat Installed With Inflatable Vehicle Belt Step 1 Unbuckle vehicle belt. • Pressing down in center of car seat to reduce tension on vehicle belt will make it easier to unbuckle vehicle belt as shown in Figure 10. Step 2 Figure 10 Remove Seat Cushion, see “Removing/...

  • Page 9: Installing/Removing Forward-Facing Car Seat

    Vehicle Belt” section in your car seat manual. • Not all inflatable vehicle belts are safe for use with this car seat. Contact Clek Customer Service at 1-866-656-2462 to determine if the inflatable belts in your vehicle are approved for use with this car seat.
  • Page 10 WARNING — DEATH or SERIOUS INJURY can occur (continued) • ALWAYS secure the Top Tether. • This car seat must be held tight at all times by the lap portion of the lap/shoulder belt. − Refer to the vehicle owner’s manual for information regarding car seat installation and inflatable vehicle belt use with a car seat.
  • Page 11 Step 2 Select a Forward-Facing vehicle seating location which has a vehicle belt which can be used with this seat and a top tether anchor point as shown in Figure 12. Figure 12 Step 3 If the vehicle seat back is adjustable, make sure the seat back is locked in a more upright position.
  • Page 12 Step 5 Place car seat Forward-Facing in the vehicle seat location selected, and route vehicle belt through the Forward-Facing Belt Path. Take care not to put vehicle belt between Harness and back of seat, and buckle vehicle belt, as shown in Figure 15. •...
  • Page 13 Step 8 Center car seat in the vehicle seating position chosen, and tighten vehicle belt to secure the car seat. • Press down in center of car seat to depress the vehicle cushion and pull down on lap portion of inflatable vehicle belt to remove excess slack, as shown in Figure 17 Figure 17.
  • Page 14 Step 10 Attach Tether Hook to vehicle top tether anchor as shown in Figure 20 or Figure 21 and pull firmly on free end of strap until Top Tether is snug. Refer to vehicle owner’s manual for recommended Top Tether routing and identification of top tether anchor point.

  • Page 15: Removing Forward-Facing Car Seat Installed With Inflatable Vehicle Belt

    Removing Forward-Facing Car Seat Installed With Inflatable Vehicle Belt Step 1 Loosen Top Tether by pressing and holding Tether Adjuster while pulling strap as shown in Figure 23. Step 2 Remove Tether Hook from vehicle tether Figure 23 anchor. • Pull in and hold retention spring on Tether Hook, then remove hook from tether anchor as shown in Figure 24 and 25.
  • Page 16 Step 4 Remove this car seat from vehicle. Step 5 Store the Top Tether, see “Top Tether Storage” in your car seat manual.
  • Page 17 Keep this Instruction Manual for future use. Store with car seat manual in Shoulder Harness Access Panel on back of this car seat. FL16US 2016 Fllo Instruction Manual This car seat is designed for use either Rear-Facing or Forward-Facing by children who meet all of the following requirements: WARNING •...
