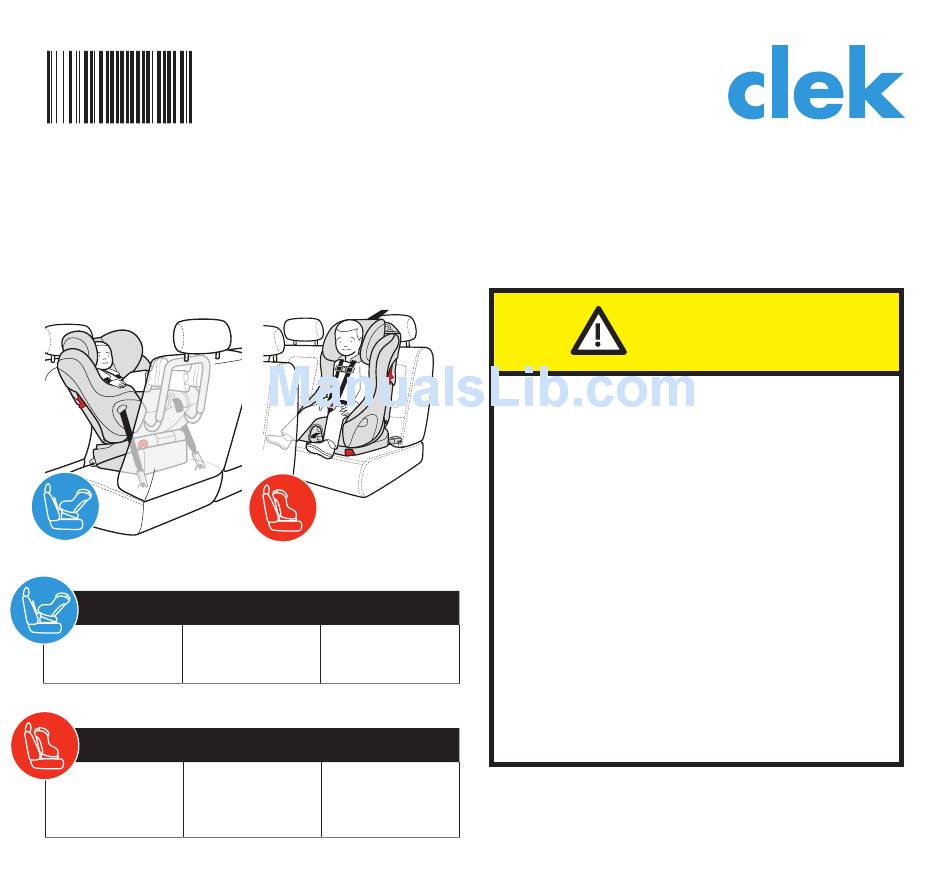

2017 Foonf Instruction Manual
This car seat is designed for use either Rear-Facing or Forward-Facing by children who meet
all of the following requirements:
HEIGHT
WEIGHT
25 – 43 in.
14 – 50 lb
64 – 110 cm
6.4 – 22.7 kg
HEIGHT
WEIGHT
30 – 49 in.
22 – 65 lb
76 – 124 cm
10 – 29.5 kg
C01-0602-F2-US
AGE
Able to sit
upright alone
AGE
2+ years
recommended
(1 year min.)
WARNING
• Read and understand product
labels and all instructions in
this manual and in your vehicle
owner's manual before installing
or using this car seat.
• Failure to properly install or
use this car seat or follow these
warnings and those on this car
seat's labels can result in serious
injury or death to the child
in a sharp turn, sudden stop
or crash.
July 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foonf 2017 and is the answer not in the manual?

Questions and answers

Related Manuals for Clek Foonf 2017

Summary of Contents for Clek Foonf 2017

  • Page 1 FO17US 2017 Foonf Instruction Manual This car seat is designed for use either Rear-Facing or Forward-Facing by children who meet all of the following requirements: WARNING • Read and understand product labels and all instructions in this manual and in your vehicle owner’s manual before installing or using this car seat.

  • Page 2: When Using This Car Seat In Rear-Facing Mode

    Lap Belt only shoulder LATCH 14 - 25 lb For concerns related to parts or the use and maintenance of this product, please contact us at: Clek Inc. Attn: Customer Service 226 Lesmill Road Toronto, Ontario Canada M3B 2T5 www.clekinc.com...

  • Page 3: When Using This Car Seat In Forward-Facing Mode

    When Using This Car Seat in Forward-Facing Mode ALLOWABLE CHILD AGE ALLOWABLE SHOULDER CHILD CHILD CROTCH BUCKLE INSTALLATION (MIN RECLINE HARNESS WEIGHT HEIGHT POSITION METHOD REQUIREMENTS) POSITIONS POSITION Lap Belt + 2 only Top Tether 22 - 65 lb Lap and Shoulder Belt + Top Tether 2+ years...

  • Page 4: Table Of Contents

    Shoulder Harness Unthreading .............. 31 Shoulder Harness Rethreading ............... 32 To Shorten The Shoulder Harness Webbing ..........33 ® Clek and Clek logos and Foonf are registered trademarks of Clek Inc. For a complete list of Clek Inc. trademarks please visit www.clekinc.com/trademarks.
  • Page 5 Installing/Removing Rear-Facing Car Seat ............35 Installing Rear-Facing Car Seat With LATCH ..........37 Removing Rear-Facing Car Seat Installed With LATCH ........44 Installing Rear-Facing Car Seat With Vehicle Belt ........... 46 Removing Rear-Facing Car Seat Installed With Vehicle Belt ......52 Installing/Removing Forward-Facing Car Seat ............

  • Page 6: Car Seat Features

    Car Seat Features – Front Seat Cushion Shoulder Harness Slots Shoulder Harness Covers Shoulder Harness Straps Chest Clip Buckle Tongues Buckle Crotch Strap Buckle Pad 10 Harness Adjuster 11 Harness Adjuster Strap 12 Recline Handle 13 Rigid LATCH Release Handles 14 Rigid LATCH Adjustment Handle 15 Rear-Facing Belt Path 16 Headrest...
  • Page 7 FO17US 2017 Foonf Instruction Manual This car seat is designed for use either Rear-Facing or Forward-Facing by children who meet all of the following requirements: WARNING • Read and understand product labels and all instructions in this manual and in your vehicle Car Seat Features –...

  • Page 8: Registration & Recall Information

    Registration & Recall Information WARNING • Child restraints could be recalled for safety reasons. You must register this restraint (car seat) to be reached in a recall. FOONF Model Name: _____________________________________________________________________ Serial Number: ___________________________________________________________________ Manufactured In: __________________________________________________________________ (yyyy/mm/dd) Date of Purchase: __________________________________________________________________...

  • Page 9: Registering Your Car Seat

    Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available, and the restraint’s model number and manufacturing date to: Clek Inc. 226 Lesmill Road Toronto, Ontario, Canada M3B 2T5 or call 1-866-656-2462 or register online at http://www.clekinc.com/register...

  • Page 10: Warnings

    Warnings WARNING — DEATH or SERIOUS INJURY can occur Failure to properly install or use this car seat or follow these warnings and instructions and those on this car seat’s labels can result in serious injury or death of the child in a sharp turn, sudden stop or crash. •...

  • Page 11: Buckle

    WARNING — DEATH or SERIOUS INJURY can occur (continued) • NEVER use this car seat with children not able to sit upright alone. Their head may fall forward, which could restrict their ability to breathe. • Discontinue Rear-Facing use when: –...
  • Page 12 WARNING — DEATH or SERIOUS INJURY can occur (continued) • NEVER use this child restraint Rear-Facing without the Rear-Facing Base and Anti-Rebound Bar. • NEVER secure car seat into vehicle with a belt around the base. Belt must ALWAYS be routed through the correct Belt Path in the seat for the mode of use (denoted by blue markings for Rear-Facing and red markings for Forward-Facing).
  • Page 13 WARNING — DEATH or SERIOUS INJURY can occur (continued) • Rigid LATCH Connectors and Top Tether and vehicle belt can be used in combination up to 65 lb (29.5 kg) in Forward-Facing Mode only. • NEVER use this car seat, when installed with Rigid LATCH, while the Yellow and Black Rigid LATCH Label is visible unless the Top Tether is attached as instructed in this manual.
  • Page 14 • Do not use accessories or parts with this car seat other than those provided by Clek Inc. Use of accessories or parts from other manufacturers could alter the performance of this car seat. • Do not attempt to make repairs to or otherwise modify or tamper with this car seat.

  • Page 15: Certification

    Certification • This child restraint system conforms to all applicable Federal Motor Vehicle Safety Standards. • This restraint is certified for use in Motor Vehicles and Aircraft. Child Size Limitations and Checklist for Proper Use WARNING • Use only in a Rear-Facing position when using this car seat with an infant less than one year old and weighing less than 22 lb (10 kg).

  • Page 16: When Using This Car Seat In Rear-Facing Mode

    American Academy of Pediatrics (AAP) Recommendation The AAP advises, and some states require, parents to keep their toddlers in Rear-Facing car seats until age 2, or until they reach the maximum height and weight for their seat. When Using This Car Seat in Rear-Facing Mode P All infants less than one year old or 22 lb (10 kg) must be Rear-Facing.

  • Page 17: Crotch Strap

    P The top of the child’s head must be at least 1 in. (2.5 cm) below the top of the car seat’s 1 in. Headrest, as shown in Figure 1. NOTE: If the top of the child’s head is less than 1 in.

  • Page 18: When Using This Car Seat In Forward-Facing Mode

    When Using This Car Seat in Forward-Facing Mode P Child’s weight is between 22 and 65 lb (10 and 29.5 kg). P Child’s height is between 30 and 49 in. (76 and 124 cm). P Child is at least 1 year of age. P Car seat is securely installed in a rear vehicle seating position using either the rigid LATCH Connectors and the Top...
  • Page 19 P The tops of the child’s ears must be below the top of the car seat’s Headrest, as shown in Figure 3. NOTE: If the tops of the child’s ears are above the top of this car seat’s Headrest in the highest adjustment position, your child is too large for this car seat.
  • Page 20 P The Crotch Strap must be through the outer Crotch Strap Slot and adjusted to the longer Crotch Strap length, with the following exception: – If installing with a vehicle belt without the Top Tether, and with children under 40lb (18.1 kg), the Crotch Strap must be through the inner Crotch Strap Slot.

  • Page 21: Vehicle Information

    Vehicle Information Vehicle Child Restraint Anchorage System (LATCH) • LATCH stands for Lower Anchors and Tethers for Children. This term refers to the anchors built into a vehicle for attaching child restraints and consists of two lower anchors at the crease between the vehicle seat back and vehicle seat cushion and a top tether anchor behind the vehicle seat as shown in Figure 5.

  • Page 22: Vehicle Seat Location Requirements

    Vehicle Seat Location Requirements WARNING • According to accident statistics, children 12 and under are safer when properly restrained in rear vehicle seating positions, rather than front seating positions. • Before using this car seat, reference your vehicle owner’s manual for: –...
  • Page 23 WARNING — DEATH or SERIOUS INJURY can occur • Do not use this child restraint Rear-Facing in a front vehicle seat location with an air bag. Child’s head WARNING / AVERTENCIA/ MISE EN GARDE and neck may be seriously injured when an inflating air bag hits back of child restraint.

  • Page 24: Vehicle Belt Requirements

    • This car seat may not be compatible with every inflatable lap-shoulder belt. Contact Clek Customer Service at 1-866-656-2462 for more information. – If installing this car seat using LATCH in a seating position equipped with an inflatable vehicle belt, do not buckle the vehicle belt behind this car seat.

  • Page 25: Vehicle Belt Systems

    • Inflatable vehicle belt – lap/shoulder belt with a built-in airbag. – This car seat may not be compatible with every inflatable lap-shoulder belt. Contact Clek Customer Service at 1-866-656-2462 for more information. Figure 10 • Buckle/Lap Belt Anchor Forward of Seat Bight – lap belt or...
  • Page 26 • Retractable Lap Belts – Lap belt is mounted on a retractor which automatically pulls the lap belt back in when released, as shown in Figure 12. – If this type of lap belt is equipped with an Emergency Locking Retractor (ELR) it should NEVER be used with this car seat.
  • Page 27 • Lap/Shoulder belts with a sliding latchplate – Shoulder belt is mounted on a retractor which automatically pulls the shoulder belt back in when released as shown in Figure 15. Latchplate slides freely along the webbing of the vehicle belt as shown in Figure 16. –...

  • Page 28: Adjusting Car Seat To Fit Your Child

    Adjusting Car Seat to Fit Your Child WARNING — DEATH or SERIOUS INJURY can occur • NEVER use this car seat without the Headrest. IMPORTANT: This Car Seat is shipped without the Headrest attached. The Headrest must be installed on the seat prior to use. Installing Headrest Step 1 Locate the Troubleshooting Tool on the...
  • Page 29 Step 2 Use Troubleshooting Tool to install Headrest: • From back of car seat, place the Headrest support rods into the Headrest Guides on top of the seat back. • Place the metal pin located on the end of the Troubleshooting Tool into the pinhole on the Headrest guide located on the right side of the seat (when facing the back of the seat) (1).

  • Page 30: Adjusting Headrest

    Adjusting Headrest Step 1 Press the button on the Headrest Adjuster on the right-hand side of the seat (when facing front of seat) (1) and raise or lower the Headrest into the desired position (2) as shown in Figure 19. Figure 19 Step 2 Check for proper adjustment of Headrest.

  • Page 31: Crotch Strap Adjustment

    Crotch Strap Adjustment Step 1 Remove the Seat Cushion. See “Removing/ Figure 94 Figure 94a Installing Seat Cushion” on page 83. Figure 93 Step 2 Check position of Crotch Strap: Rear-Facing: Adjust the Crotch Strap to the inner Crotch Strap Slot as shown in Figure 22a.
  • Page 32 Figure 93 Figure 93 Figure 93 Figure 93 Figure 93 Figure 93 • Slide the Crotch Strap into the other Crotch Strap Slot as shown in Figure 24, ensuring that the red release button on the buckle faces out of the seat as shown in Figure 25.

  • Page 33: Shoulder Harness Adjustment

    Shoulder Harness Adjustment WARNING — DEATH or SERIOUS INJURY can occur • To prevent loose Harness and risk of ejection in a crash: – Loops at the end of the Shoulder Harness Straps must be properly attached to the Metal Harness Plate. •...

  • Page 34: Shoulder Harness Unthreading

    Rear-Facing: Choose the Shoulder Harness Slots at or just below and closest to the shoulders of your child as shown in Figure 30. Forward-Facing: Choose the Shoulder Harness Slots at or just above and closest to the shoulders of your child as shown in Figure 31.

  • Page 35: Shoulder Harness Rethreading

    Step 4 Remove Shoulder Harness Access Panel from back of car seat: • Twist the Access Panel Lock counter- clockwise and pull to remove as shown Figure 33 in Figure 33. Step 5 Remove loops at ends of Shoulder Harness Straps from Metal Harness Plate by sliding strap out through slot in Metal Harness Plate as shown in Figure 34.

  • Page 36: To Shorten The Shoulder Harness Webbing

    Step 2 Route Shoulder Harness Straps under bottom of seat back cover (1) as shown in Figure 36. Figure 36 Step 3 Attach the Metal Harness Plate to the loop closer to the end of the Shoulder Harness Strap by sliding Harness Strap into slot in Metal Harness Plate as shown in Figure 37.
  • Page 37 Check that both Shoulder Harness Straps are attached to the Metal Harness Plate on the same loop while ensuring that each Shoulder Harness Strap is completely inside the slot in Metal Harness Plate as shown in Figure 39. Figure 39 Step 4 Reattach Shoulder Harness Access Panel to back of car seat:...

  • Page 38: Installing/Removing Rear-Facing Car Seat

    Installing/Removing Rear-Facing Car Seat WARNING — DEATH or SERIOUS INJURY can occur • NEVER use this car seat Rear-Facing in a vehicle front seating location with an air bag. • Rear-Facing LATCH Belt or vehicle belt must be routed through Rear-Facing Belt Path when using car seat Rear-Facing.
  • Page 39 WARNING — DEATH or SERIOUS INJURY can occur (continued) • To avoid injury this car seat must be installed by an adult. • NEVER leave this car seat unsecured in your vehicle. This car seat must remain secured even when not in use. In a sharp turn, crash or sudden stop, an unsecured car seat can be thrown around and could severely injure vehicle occupants.

  • Page 40: Installing Rear-Facing Car Seat With Latch

    Installing Rear-Facing Car Seat With LATCH WARNING — DEATH or SERIOUS INJURY can occur • Only use the car seat LATCH system in vehicle seating locations designated by the vehicle manufacturer for use with LATCH and that have a standard anchor spacing of 11 in. (280 mm). •...

  • Page 41: Recline Handle

    Step 1 Prepare car seat for Rear-Facing Installation: • Fully recline car seat to Recline Position 3 by pulling Recline Handle out and rotating car seat back as shown in Figure 41. Figure 41 • Install Rear-Facing Base to bottom of seat.
  • Page 42 Step 3 If the vehicle seat back is adjustable, make sure the seat back is locked in a more upright position. Refer to vehicle owner’s manual for recommended seat back angle. DO NOT install or use this car seat while the vehicle seat back is excessively reclined, as shown in Figure 43.
  • Page 43 Step 6 Route the Rear-Facing LATCH Belt through the Rear-Facing Belt Path, as shown in Figure 46 taking care that there are no twists in the LATCH Belt. Figure 46 Figure 19 Step 7 Center the Rear-Facing LATCH Belt in the Rear-Facing Belt Path and place it under both forward Belt Tabs as shown in Figure 47.
  • Page 44 Step 9 Secure Rear-Facing LATCH Connectors to the vehicle LATCH lower anchors. For each LATCH Connector: • Position red release button of Rear- Facing LATCH Connector facing away from car seat. • Align LATCH Connector with the vehicle LATCH lower anchor and press the LATCH Connector against the LATCH Figure 49 lower anchor until you hear the LATCH...
  • Page 45 Step 11 Tighten Rear-Facing LATCH Belt to secure the car seat. • Press down in center of car seat to depress the vehicle seat cushion and pull free end of Rear-Facing LATCH Belt to tighten as shown in Figure 51. Figure 51 •...
  • Page 46 Step 14 Verify that the Rear-Facing Level Reference Line appropriate for the child’s weight is parallel to the ground as shown in Figure 54. If not, go back to Step 10 adjust the recline level and try installing again, or move the seat to a different vehicle seating position.

  • Page 47: Removing Rear-Facing Car Seat Installed With Latch

    Removing Rear-Facing Car Seat Installed With LATCH Step 1 Loosen Rear-Facing LATCH Belt by pressing the adjuster button on each Rear-Facing LATCH Belt adjuster and pulling out on Rear- Facing LATCH Belt as shown in Figure 55. • Pressing down in center of car seat to reduce tension on Rear-Facing LATCH Belt will make it easier to loosen Rear- Facing LATCH Belt.
  • Page 48 Step 4 Remove Rear-Facing LATCH Connectors from vehicle lower anchors. • Press and hold red release button while pulling Rear-Facing LATCH Connector as shown in Figure 57. • Repeat to remove Rear-Facing LATCH Connector on opposite side. Figure 57 Step 5 Remove this car seat from vehicle.

  • Page 49: Installing Rear-Facing Car Seat With Vehicle Belt

    Installing Rear-Facing Car Seat With Vehicle Belt WARNING — DEATH or SERIOUS INJURY can occur • Not all vehicle belts are safe for use with this car seat. Read the vehicle belt requirements section in this manual and your vehicle owner’s manual. Step 1 Prepare car seat for Rear-Facing Installation: •...
  • Page 50 Step 2 Select a forward-facing vehicle seating location which has a vehicle belt which can be used with this car seat. Step 3 If the vehicle seat back is adjustable, make sure the seat back is locked in a more upright position.
  • Page 51 Step 5 Open both Rear-Facing Belt Lock-offs as shown in Figure 61. Check that both the top and bottom portions of each Rear-Facing Lock-off are clear of the Rear-Facing Belt Path. Figure 61 Step 6 Position the seat so that the Rear-Facing Level Reference Line appropriate for the child’s weight is parallel with the ground as shown in Figure 62.
  • Page 52 Step 7 Route vehicle belt through the Rear-Facing Belt Path and under both forward Belt Tabs, and buckle vehicle belt, as shown in Figure 63. Check that Crotch Strap is not under the vehicle belt. Figure 63 Step 8 Tighten vehicle belt to secure the car seat •...
  • Page 53 • While holding the vehicle belt tight, close both Rear-Facing Belt Lock-offs as shown in Figure 66. Check that the entire lap/shoulder belt (both the lap and shoulder portions of the belt) or lap belt (for lap-only belt installation) is under both Rear-Facing Belt Lock-offs and under both forward Belt Tabs.
  • Page 54 Step 10 Verify that the Rear-Facing Level Reference Line appropriate for the child’s weight is parallel to the ground as shown in Figure 68. If not, go back to Step 6, adjust the recline level and try installing again, or move the seat to a different vehicle seating position.

  • Page 55: Removing Rear-Facing Car Seat Installed With Vehicle Belt

    Removing Rear-Facing Car Seat Installed With Vehicle Belt Step 1 Unbuckle vehicle belt. • Pressing down in center of car seat to reduce tension on vehicle belt will make it easier to unbuckle vehicle belt as shown in Figure 69. Step 2 Figure 69 Remove Seat Cushion, see “Removing/...

  • Page 56: Installing/Removing Forward-Facing Car Seat

    Installing/Removing Forward-Facing Car Seat WARNING — DEATH or SERIOUS INJURY can occur • All children less than one year old and 22 lb (10 kg) must use this car seat Rear-Facing. Serious injury or death can result if infant faces front of vehicle.

  • Page 57: Installing Forward-Facing Car Seat With Latch

    Installing Forward-Facing Car Seat With LATCH WARNING — DEATH or SERIOUS INJURY can occur • NEVER leave this car seat unsecured in your vehicle. This car seat must remain secured even when not in use. In a sharp turn, crash or sudden stop, an unsecured car seat can be thrown around and could severely injure vehicle occupants.
  • Page 58 WARNING — DEATH or SERIOUS INJURY can occur (continued) • Do NOT install by this method for a child weighing more than 35 lb (15.9 kg). LATCH • For children over 35 lb (15.9 kg), LATCH and Vehicle Belt can be used in combination up to 65 lb (29.5 kg) in Forward-Facing Lap/Shoulder...
  • Page 59 Step 1 Prepare car seat for Forward-Facing Installation: • If Rear-Facing Base or Anti-Rebound Bar is attached, remove it now, see “Installing/Removing Rear-Facing Base” on page 82 and “Installing/Removing Anti-Rebound Bar” on page 85. Step 2 Select a Forward-Facing vehicle seating location which has LATCH.
  • Page 60 Step 4 Adjust car seat to Recline Position 1 or 2 by pulling recline handle out and rotating car seat as shown in Figure 74. IMPORTANT: Never use recline position 1 when installed with LATCH, Forward-Facing, Figure 74 and without the Top Tether. Step 5 Pull Rigid LATCH Connectors to the fully extended position as shown in Figure 75.
  • Page 61 Step 6 Remove Tether Hook from its storage location on back of car seat. See “Top Tether Storage” on page 89. • Lengthen Top Tether belt by pressing and holding Tether Adjuster while pulling strap as shown in Figure 76. •...
  • Page 62 Secure car seat with vehicle belt: • Route vehicle belt through the Forward- Facing Belt Path, taking care not to put vehicle belt between Harness and back of seat, and buckle vehicle belt, as shown in Figure 79. Figure 79 •...
  • Page 63 LATCH lower anchors, you can still use this seat. See “Installing Forward-Facing Car Seat With Vehicle Belt” on page 66 of this manual. Please notify Clek Customer Service if the Rigid LATCH Connectors fail to latch by calling 1-866-656-2462.
  • Page 64 Step 10 Adjust seat to fit snugly against the vehicle seat back as shown in Figure 83. • Pull and hold Rigid LATCH Adjustment Handle. • Push car seat firmly into vehicle seat back. Figure 83 • Release Rigid LATCH Adjustment Handle.
  • Page 65 Step 11 Check fit against the vehicle seat back. If the back of this car seat cannot be adjusted to be in contact with the vehicle seat back as shown in Figure 86, try changing the recline position of this car seat, verify that the vehicle seat back is in a more upright position and re-adjust.
  • Page 66 Step 12 Attach Tether Hook to vehicle top tether anchor as shown in Figure 88a or Figure 88b and pull firmly on free end of strap until Top Tether is snug. Refer to vehicle owner’s manual for recommended Top Tether routing and identification of top tether anchor point.

  • Page 67: Removing Forward-Facing Car Seat Installed With Latch

    Removing Forward-Facing Car Seat Installed With LATCH Step 1 Loosen Top Tether belt by pressing and holding Tether Adjuster while pulling strap as shown in Figure 90. Step 2 Figure 90 Remove Tether Hook from vehicle tether anchor. • Pull in and hold retention spring on Tether Hook, then remove Tether Hook from tether anchor as shown in Figure 91a and Figure 91b.
  • Page 68 Step 4 Pull Rigid LATCH Connectors to the fully extended position as shown in Figure 93. • Pull and hold Rigid LATCH Adjustment Handle. • Grasp the seat and slide it out until it stops. • Release Rigid LATCH Adjustment Handle. Figure 93 Step 5 Pull the red Rigid LATCH Release Handles,...

  • Page 69: Installing Forward-Facing Car Seat With Vehicle Belt

    Installing Forward-Facing Car Seat With Vehicle Belt WARNING — DEATH or SERIOUS INJURY can occur • Vehicle belt must be routed through Forward-Facing Belt Path when using car seat Forward-Facing. • Forward-Facing Belt Lock-off must be used when installing with lap/shoulder belt.
  • Page 70 Step 1 Prepare car seat for Forward-Facing Installation: • If Rear-Facing Base or Anti-Rebound Bar is attached, remove it now, see “Installing/ Removing Rear-Facing Base” on page 82, and “Installing/Removing Anti-Rebound Bar” on page 85. Step 2 Select a Forward-Facing vehicle seating location which has a vehicle belt which can be used with this seat and a top tether anchor point.
  • Page 71 Step 4 Adjust car seat to the correct recline position for the installation method selected by pulling recline handle out and rotating car seat as shown in Figure 96. Figure 96 See the Forward-Facing Recline Position Chart below for correct recline position selection. VEHICLE BELT RECLINE LAP &...
  • Page 72 Step 5 Remove Tether Hook from its storage location on back of car seat. See “Top Tether Storage“ on page 89. • Lengthen Top Tether belt by pressing and holding Tether Adjuster while pulling strap as shown in Figure 97. •...
  • Page 73 Step 7 Route vehicle belt through the Forward- Facing Belt Path, taking care not to put vehicle belt between Harness and back of seat, and buckle vehicle belt, as shown in Figure 99. Step 8 Figure 99 If installing with a lap/shoulder belt, open the Forward-Facing Belt Lock-off on the same side of the seat as the vehicle shoulder belt anchor point.
  • Page 74 Step 10 Tighten vehicle belt to secure the car seat. • Press down in center of car seat to depress the vehicle cushion and pull free end lap belt only or shoulder portion of lap/shoulder belt to tighten as shown in Figure 103 (lap belt only) or Figure 104 (lap/shoulder belt).
  • Page 75 Step 11 Attach Tether Hook to vehicle top tether anchor as shown in Figure 106 or Figure 107 and pull firmly on free end of strap until Top Tether is snug. Refer to vehicle owner’s manual for recommended Top Tether routing and identification of top tether anchor point Figure 106 Figure 107...

  • Page 76: Removing Forward-Facing Car Seat Installed With Vehicle Belt

    Removing Forward-Facing Car Seat Installed With Vehicle Belt Step 1 Loosen Top Tether by pressing and holding Tether Adjuster while pulling strap as shown in Figure 109. Step 2 Figure 109 Remove Tether Hook from vehicle tether anchor. • Pull in and hold retention spring on Tether Hook, then remove Tether Hook from tether anchor as shown in Figure 110.
  • Page 77 Step 4 Open Forward-Facing Belt Lock-off as shown in Figure 112. Remove vehicle belt from Forward-Facing Belt Path. Step 5 Figure 112 Remove this car seat from vehicle. Step 6 Store the Top Tether, see “Top Tether Storage” on page 89.

  • Page 78: Securing Your Child In Car Seat

    Securing Your Child in Car Seat WARNING — DEATH or SERIOUS INJURY can occur • Check that Harness fits child snugly each time they are buckled into seat. • To avoid injury, child must be secured by an adult. NEVER allow the child to buckle themselves in this car seat.
  • Page 79 Step1 Loosen Harness: • While lifting up on Harness Adjuster Tab, pull out on Shoulder Harness Straps as shown in Figure 113. Step 2 Place child in car seat with their back Figure 113 flat against the Seat Back as shown in Figure 114.
  • Page 80 Step 5 Check position of Shoulder Harness. Rear-Facing: The Shoulder Harness Straps must be through Shoulder Harness Slots at or below and closest to the child’s shoulders, as shown in Figure 116. Forward-Facing: The Shoulder Figure 116 Harness Straps must be through Shoulder Harness Slots at or just above and closest to the shoulders of your child as shown in Figure 117.
  • Page 81 Step 6 Check Position of Headrest: The bottom of the Headrest must ALWAYS be at or above the Harness Slots in use. 1 in. Rear-Facing: The top of the child’s head must be at least 1 in. (2.5 cm) below the top of the car seat’s Headrest, as shown in Figure 118.
  • Page 82 Figure 94 Figure 94a Figure 93 Step 7 Check position of Crotch Strap: Rear-Facing: The Crotch Strap should be positioned in the inner Crotch Strap Slot as shown in Figure 120. Figure 95 Figure 96 Forward-Facing: The Crotch Strap Figure 120 Figure 94 Figure 94a must be adjusted to the longer Crotch...
  • Page 83 Step 9 Pull Harness Adjuster Strap to snugly adjust Harness Straps as shown in Figure 123. • Check that Harness Straps are snug on shoulder and thighs. • A snug Harness should not allow any slack. It lies in a relatively straight line without sagging.

  • Page 84: Removing Your Child From Car Seat

    Removing Your Child From Car Seat Step 1 Separate Chest Clip by squeezing release tabs together (1) and pulling Chest Clip apart (2) as shown in Figure 125. Figure 125 Step 2 Unbuckle Harness by pressing red release button on Buckle as shown in Figure 126. Step 3 Loosen the Harness and remove child’s arms from Harness and remove them from...

  • Page 85: Operation And Adjustments

    Operations and Adjustments Installing/Removing Rear-Facing Base TO INSTALL REAR-FACING BASE Step 1 Place the car seat on a clean, stable surface with the inside of the seat facing down. Step 2 Line the Rear-Facing Base Retention Hooks Figure 127 up with the openings in the bottom of the car seat, as shown in Figure 127.

  • Page 86: Removing/Installing Seat Cushion

    STEP 1 STEP 2 TO REMOVE REAR-FACING BASE Step 1 Place the car seat on a clean, stable surface with the inside of the seat facing down. Step 2 Pull Rear-Facing Base Release Lever away from the car seat and move the Rear-Facing Base up to release it as shown in Figure 129.
  • Page 87 TO REMOVE SEAT CUSHION Step 1 If Buckle Pad is installed, grasp top of Buckle Pad and pull up to remove from Buckle. Unfasten the locking tabs at the lower front edge of the Seat Cushion. Step 2 Grasp Seat Cushion at the bottom front edge, then lift and pull forward as shown in Figure 130.

  • Page 88: Installing/Removing Anti-Rebound Bar

    Installing/Removing Anti-Rebound Bar TO INSTALL ANTI-REBOUND BAR Step 1 With Rear-Facing Base installed, fully recline the seat to Recline Position 3 by pulling Recline Handle out and rotating car seat back as shown in Figure 132. Step 2 Figure 132 Remove Seat Cushion, see “Removing/ Installing Seat Cushion”...
  • Page 89 Step 4 Hold the Anti-Rebound Bar in place and insert Locking Pins into the holes in the seat and through the Anti-Rebound Bar as shown in Figure 134. Check that each Locking Pin is securely installed through both sides of the Anti-Rebound Bar and that the Locking Pin Clips are through the Locking Pins.

  • Page 90: Rear-Facing Latch Storage

    Step 3 Keep Locking Pins and Locking Pin Clips with Anti-Rebound Bar for storage. Step 4 Place LATCH Connectors back into their storage location, see “Rear-Facing LATCH Storage” on page 87. Install the Seat Cushion, see “Removing/Installing Seat Cushion” on page 83. Rear-Facing LATCH Storage REMOVAL OF LATCH FROM STORAGE Step 1...
  • Page 91 STORAGE OF REAR-FACING LATCH Step 1 Remove the Seat Cushion, see “Removing/ Installing Seat Cushion” on page 83. Step 2 Insert the Rear-Facing LATCH Connectors, with the slots in the end oriented toward the outside of the seat, into the openings at the front of the seat bottom.

  • Page 92: Forward-Facing Rigid Latch Storage

    Forward-Facing Rigid LATCH Storage To store the Rigid LATCH Connectors, pull and hold the Rigid LATCH Adjustment Handle while pulling the Rigid LATCH Connectors into the seat until they stop as shown in Figure 140. Figure 140 Top Tether Storage Removal: Remove Instruction Manual and Tether belt from back of seat.

  • Page 93: Instruction Manual Storage

    IMPORTANT: The Rear-Facing Base and Anti-Rebound Bar must be used when installing this car seat Rear-Facing in an aircraft. NOTE: If it is necessary to check your seat, it must be packed in a Clek Weelee Travel Bag (sold separately). Damage may result from checking your seat without proper packaging.

  • Page 94: Care And Cleaning

    Care and Cleaning Removing/Installing Seat Cushion Cover TO REMOVE SEAT CUSHION COVER Step 1 Remove the Seat Cushion from the Seat, see “Removing/Installing Seat Cushion” on page 83. Step 2 Figure 144 Turn Seat Cushion over to locate the Seat Cushion Cover attachments, as shown in Figure 144.
  • Page 95 TO INSTALL SEAT CUSHION COVER Step 1 Place Seat Cushion Cover on a flat surface with Seat Cushion Cover attachments facing up, as shown in Figure 147. Step 2 Figure 147 Place Seat Cushion onto Seat Cushion Cover, aligning the Seat Cushion with the Seat Cushion Cover attachments.

  • Page 96: Car Seat Cleaning

    SEAT BACK COVER REMOVAL/INSTALLATION Removal of the seat back cover is not recommended unless necessary due to heavy soiling which cannot be removed by surface washing. For instructions on removal and installation of the seat back cover go to: http://clekinc.com/pdfs/FoonfFlloCoverInstructions.11.16.2016.pdf Car Seat Cleaning FABRIC CARE INSTRUCTIONS Step 1...

  • Page 97: Recycling Your Car Seat

    BUCKLE WASHING INSTRUCTIONS Buckle may be rinsed under warm water. Do not use detergents or lubricants. RECYCLING YOUR CAR SEAT For instructions on how to recycle your Clek Foonf child seat, please visit: http://www.clekinc.com/recycle/ Troubleshooting For instructions on troubleshooting your Clek Foonf child seat, please visit http://www.clekinc.com/support/foonf...

  • Page 98: Warranty

    (1) year from the date of original purchase (the “Warranty Period”). During the Warranty Period, Clek Inc. will, at its option, repair or replace this product if it is found by the manufacturer to be defective in material or workmanship. Clek Inc. reserves the right to discontinue or change parts, fabrics, models, or products, or to substitute this product with a comparable model or product.
  • Page 99 Neither Clek Inc. nor the dealer selling this product has authorized any person to create for it any other warranty, obligation, or liability in connection with this product.
  • Page 100 Keep this Instruction Manual for future use. Store in Shoulder Harness Access Panel on back of this car seat. www.clekinc.com Clek Inc. 226 Lesmill Road Toronto, Ontario Canada M3B 2T5 1-866-656-2462...
