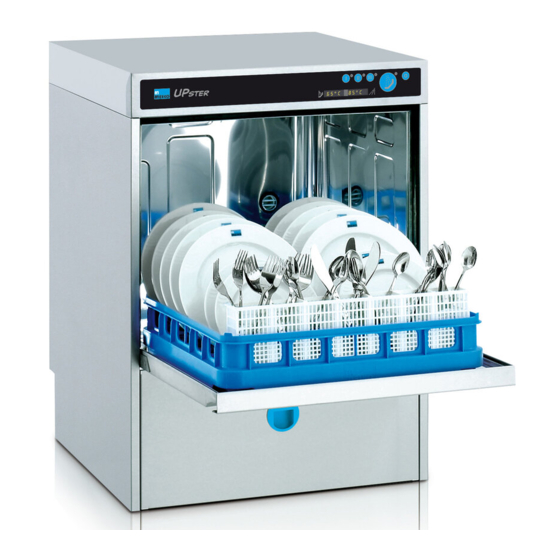

Meiko UPster U 500 M2 Operating Instructions Manual

Glass- and dishwasher
Hide thumbs

Advertisement

Table of Contents

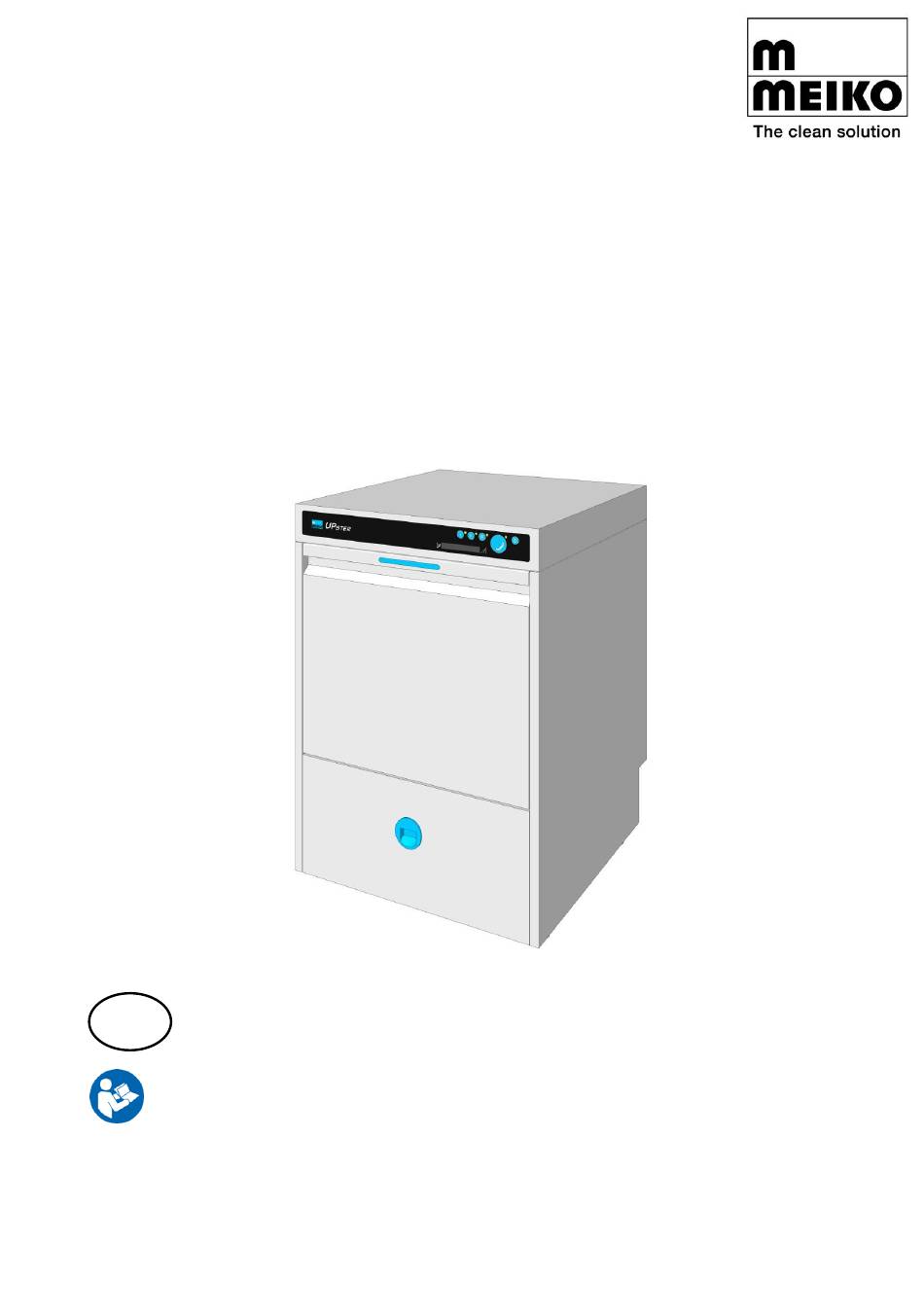

UPster U 500 M2
Glass- and dishwasher
Operating instructions
EN
Read operating instructions before using the machine!
test
9760465 / Valid from: 2018-02 / Update: 2021-03
www.meiko.info

Advertisement

Table of Contents
loading

Related Manuals for Meiko UPster U 500 M2

Summary of Contents for Meiko UPster U 500 M2

  • Page 1 UPster U 500 M2 Glass- and dishwasher Operating instructions Read operating instructions before using the machine! test 9760465 / Valid from: 2018-02 / Update: 2021-03 www.meiko.info...

  • Page 2: Table Of Contents

    Translation of the "original operating instructions" Contents NOTES ON THE OPERATING INSTRUCTIONS ............4 Product identification Delivery contents Related documents LIABILITY AND WARRANTY..................5 SAFETY ........................6 Symbol explanation 3.1.1 Notes in the instructions 3.1.2 Safety symbols in the instructions Requirements for the personnel Residual risks Intended use...
  • Page 3 UPster U 500 M 2 Check prerequisites for commissioning Perform commissioning OPERATION/USE ....................... 29 Membrane key pad Prepare dishwasher 8.2.1 Putting the machine into operation Washing 8.3.1 Putting away washware 8.3.2 Select wash programme 8.3.3 Start wash cycle 8.3.4 Emptying the washware Shutting down the dishwasher Fill consumables 8.5.1...

  • Page 4: Notes On The Operating Instructions

    Dear customer, We are delighted about the confidence you have shown in our products. It is very important to us that you should enjoy using and benefit from MEIKO prod- ucts and that they should make your work easier. The operating instructions help familiarise the operator of this dishwashing machine with its installation, modes of operation, use, safety instructions and servicing.

  • Page 5: Delivery Contents

    Service instructions Liability and warranty All of MEIKO’s obligations arise from the relevant purchase contract, which also con- tains the entire and only valid guarantee provisions. These contractual guarantee provisions shall be neither extended nor restricted as a result of any explanations given in the instructions.

  • Page 6: Safety

    Safety Symbol explanation 3.1.1 Notes in the instructions In these operating instructions, important notes for safety are specially marked with symbols. Please always observe these notes to avoid accidents and damages to the system. Warnings Danger Short description of the danger: The signal word DANGER designates an immediately threatening danger.

  • Page 7: Safety Symbols In The Instructions

    3.1.2 Safety symbols in the instructions The following note and danger symbols are used both in the document and on the machine. Observe these symbols and signs on the machine to avoid personal injury and material damage! The symbols have the following meanings: Symbol Meaning Warning of hazardous areas...

  • Page 8: Requirements For The Personnel

    Requirements for the personnel Commissioning, instructions, repairs, maintenance, assembly and installation of or on MEIKO machines must only be carried out/authorised by MEIKO-authorised ser- vice partners. During operation it must be ensured that: • Only adequately trained and instructed personnel are allowed to work on the machine.
  • Page 9 Residual risks Phase Activity Nature of the hazard Avoidance measure • Load-bearing capacity of the forklift truck must be adequate for the weight of the machine Loading and unloading Crushing/impact • with forklift truck Please note the machine's centre of gravity •...
  • Page 10 Phase Activity Nature of the hazard Avoidance measure • Slipping Use non-slip floor coverings • If necessary, allow washware to cool down Loading and unloading • If necessary, allow machine compo- the dishwashing ma- nents to cool down before touching Scalding chine •...
  • Page 11 The washware must be suitable for dishwashing machines. If there is any doubt, a consultation (size, version, basic suitability for dishwashing machine, etc) can be carried out with MEIKO to confirm suitability (info@meiko-global.com). The following applications are expressly not intended: •...
  • Page 12 • Only appropriately qualified and authorised personnel operate, maintain and repair the dishwashing machine. • No one sits or stands on the open door. • Staff are regularly trained in all questions relating to occupational safety and environmental protection and are familiar with the operating instructions and, in particular, the safety information that they contain.
  • Page 13 • Do not confuse detergent and rinse aid. • Ensure that the suction connections for the dishwashing machine are correctly connected to the canisters. Information on the use of descaling agents Residue from descaling agents can cause damage to the plastic components and sealing materials in the machine.
  • Page 14 Product description Functional description The UPster U 500 M2 is a commercial glass and dishwasher with a square rack. The dishwasher has one wash and one final rinse cycle. A temperature regulator maintains the set wash temperature of between 58-60 °C. A rotary pump circulates the water from the wash tank into the wash nozzles.
  • Page 15 Interior view 1 Operating panel 2 Rack runner 3 Salt container (option) 4 Wash arm (final rinse system) 5 Blue retaining screw for wash arm 6 Wash arm (cleaning system) 7 Suction strainer 8 Front panel with handle (for service purposes) Type label The rating plate is located on the left side or right side in the lower rear section of the dishwasher.
  • Page 16 GiO MODULE The module works according to the principle of reverse osmosis. Drinking water is pressed by a pump through a semi-permeable membrane. The membrane lets only water molecules through. The hardness components and salts (lime scale, etc.) con- tained in the water are held back. The clean water (permeate) is brought to the dish- washing machine;...
  • Page 17 The correct dosage is achieved when the water drips evenly from the washware and depends on the available water quality on-site. This setting is made during commis- sioning by an service technician authorised by MEIKO or the chemical supplier. Change dosing quantity, see chapter “Dosing system level” on page 46.
  • Page 18 The water softener is preset to 30° dH at the factory. This value is adapted to the actual water hardness during commissioning. Additionally, this parameter has to be changed by a service technician (MEIKO-authorised) if the water hardness changes. 9760465...
  • Page 19 Make sure that the dishes and glassware used are suitable for the high stress placed on them. MEIKO offers two types of machine with thermal disinfection for institutions with ad- ditional hygiene requirements. Both versions have greater heating performance in the wash tank than standard machines.
  • Page 20 The display shows the current A value. Thermolabel control In a way which is similar to A control, machines with Thermolabel control have a disinfection process which uses moist heat. The dishwasher heats the rinse water to a higher temperature in order to eliminate germs. The efficacy of the disinfection can be tested using a measurement strip, the Thermolabel.
  • Page 21 Technical data Recess dimensions When installing the dishwasher in a counter, recess dimensions must be observed. The dishwasher does not need to be fixed in the counter. Furniture in the vicinity of the dishwasher must be suitable for commercial use and resistant to steam.
  • Page 22 825–850 855–880 945–970 975–1000 610–620 610–620 MEIKO has created a dimensional drawing that shows machine dimensions as well as connection and consumption values. Further data should be taken from the MEIKO dimensional drawing. Net weights Versions Weight approx. UPster U 500 M2...
  • Page 23 Check the machine for transportation damage. Note If there is any suspicion of transportation damage, the shipping company and MEIKO must be informed immediately in writing. Photograph any damaged parts and send the pictures to MEIKO. 6.1.2 Requirements for the installation area The dishwashing machine is only frost-proof in as-delivered state or if equipped with special features (optional: frost removal).
  • Page 24 6.1.4 Requirements for the fresh water connection Fresh water connections and their components must be carried out in accord- ance with local regulations, e.g. EN 1717/DIN 1988-100. The fresh water must be of the same quality as drinking water in microbiological terms. This also applies to processed water.
  • Page 25 Danger of death by electric shock: contact with live electrical parts can lead to seri- ous injury or death. Who may connect it? The dishwashing machine must be connected by a (MEIKO authorised) electrician in accordance with the locally applicable norms and regulations. Local earth wire system The electrical safety of this machine is only ensured if it is connected to a properly installed protective conductor system.
  • Page 26 Local fuse protection The machine must be fused appropriately for the rated current shown on the de- scriptive plaque. The electrical connection must be fused as a separately fused cir- cuit (final circuit). Take note of the connection variant. The requirements for limiting voltage changes, fluctuations and flicker in accordance with DIN EN 61000-3-11 for the dishwashers H 500 M2 and U 500 M2 are fulfilled if the network has a current-carrying capacity of ≥...
  • Page 27 Perform assembly Warning Danger of injury due to machine tipping If machine is freestanding and not secured, it could fall over and cause crushing. • If machine if freestanding, it must be secured long term to prevent tipping. • Wear protective gloves and safety shoes. Beware Improper fresh water connection Backsiphonage of non drinking water into the water supply system...
  • Page 28 Check prerequisites for commissioning Caution Material damage due to steam escape Small quantities of steam may escape through the dishwashing machine's door area. It is possible that adjacent furniture can swell up. • Protect adjacent furniture from swelling up. • If possible, avoid installing the machine in an area close to sensitive furniture.
  • Page 29 Operation/use Membrane key pad The dishwasher is equipped with a membrane key pad. For dishwashers with Ac- tiveClean, it includes 5 operating keys and 6 control lights. Without ActiveClean, there are 2 fewer control lights. A display reports the current temperatures of the wash and rinse water and displays information messages and error codes, if appli- cable.
  • Page 30 Prepare dishwasher Warning Risk of injury from contact with chemicals • Observe the safety data sheets and dosing recommendations of the chemical manufacturers. • Use eye protection. • Wear protective gloves. • Do not mix different chemical products. System operators must be very familiar with the Operating Instructions of the dish- washing machine.
  • Page 31 8.2.1 Putting the machine into operation The dishwasher is closed and does not have a rack inside. 1. Press on/off key. The dishwasher is filling and heating up. During this time, the control light flashes over the selected wash programme key. The time required for the machine to be ready to operate depends on the temperature of the water supply and the installed boiler or tank heating capacity.
  • Page 32 8.3.2 Select wash programme 1. Press the desired wash programme key. The control light of the selected wash programme key is lit. UPster U 500 M2 Wash pro- Meaning Washware gramme Short Lightly soiled washware Normal Normally soiled washware Heavily soiled washware...
  • Page 33 Setpoint wash cycle time Setpoint boiler temperature Washing Total [°C] Standard CW-FR TD 80°C Standard CW-FR TD 80°C Standard CW-FR TD 80°C 45–50 Standard: U 500 M2, U 500 G M2 without cold water rinsing, U 500 M2/U 500G M2 with thermal disinfection (A0 30 and thermolabel) CW-FR: U 500G M2 with cold water final rinse TD 80°C: U 500 M2/U 500G M2 with thermal disinfection >...
  • Page 34 8.3.3 Start wash cycle 1. Clear the washware (removing any large food residues, napkins, tooth picks, lemon peel etc.). 2. Put the washware into the rack. 3. Open door. 4. Insert the rack into the dishwasher. 5. Ensure that the correct programme has been selected, see chapter “Select wash programme”...
  • Page 35 8.3.4 Emptying the washware Beware Danger of burns and scalding due to hot rinse water, washware and machine parts Contact with hot rinse water, washware and machine parts can result in burns/scalding of the skin. • Wear protective gloves if necessary. •...
  • Page 36 1. Open front panel by lifting slightly on the handle (1). Dosing recommendation 2. Pour the appropriate chemical for dosing into a measuring cup. Maximum filling quantity UPster U 500 M2 Detergent 1000 ml Rinse aid 150 ml 3.
  • Page 37 A canister is empty. 1. Remove the suction lance from the empty canister and insert it into a full canis- ter. 2. If necessary, ventilate the pipelines, see page 44. 8.5.3 Fill salt container Caution Damage to water softener if salt container is not filled Fill empty salt container promptly if salt container control light is red! If the capacity of the installed water softener is largely exhausted, the red control light above the symbol for the salt container lights up.
  • Page 38 Regeneration of the built-in water softener The ActiveClean water softener automatically regenerates itself without interven- tion by the operator. The control light shows the ongoing regeneration (duration: approx. 8 minutes). The dishwasher can be used for a programme run as normal. If a second pro- gramme run is started during the regeneration time, the wash time is lengthened until regeneration is completed.
  • Page 39 Malfunctions If the described operational problems occur repeatedly, the cause must be identified. Occasional malfunctions Malfunction Possible cause Remedy No water present Open the shut-off valve Dishwashing machine Dirt trap clogged Clean the dirt trap doesn't fill up Door open Close door No water present Open the shut-off valve...
  • Page 40 • No intervention by the operator is Factory setting param- • necessary Switch supply voltage on/off eter list • Message disappears after 5 min. • The set operating hours • Possible to continue working Maintenance neces- (P 122) or batch number sary •...
  • Page 41 Description Possible cause Measures / remedial action • Boiler heating defective/melting beads, heating element • • Temperature sensor defective, in- Not possible to continue Boiler temperature not reached correct installation position working after max. heat time (P310) • • Boiler protection defective, output Call a service technician! switch triggered •...
  • Page 42 Description Possible cause Measures / remedial action • Feeding water pressure too low • Inlet filter soiled • Rinse nozzles dirty • Check water supply • Air trap dirty • Check feed hose Number of boiler fills insufficient • Condensate in level pipe •...
  • Page 43 1. Press and hold the on/off key for approximately three seconds. 2. Enter the service code for the required authorisation level. After entry of the correct code, the desired authorisation level (1, 4) is displayed in the left field on the first digital position. If the entry is false, the message Info 122 appears.
  • Page 44 8.10.1 View parameters 1.Switch to security authorisation level 1 Service level (10000), see chapter “Change authorisation level” on page 42. 2. Choose the entry 1–1. 3. Confirm the selection. The first parameter is displayed. 4. Scroll through and view the parameters with the wash programme keys. The service level can be departed with the on/off key.
  • Page 45 8.10.3 Start regeneration manually 1.Switch to security authorisation level 1 Service level (10001), see chapter “Change authorisation level” on page 42. 2. Choose the entry 1–4. 3. Confirm the selection. Regeneration is started. The service level can be departed with the on/off key. 8.10.4 Replace counter for partial desalination cartridge (optional) For dishwashers with a partial desalination cartridge and activated end-of-service indicator, the counter must be reset after changing the partial desalination car-...
  • Page 46 8.11 Dosing system level 1. Switch to authorisation level 4, Dosing technology level (40000 or 40044), see page 42. The parameters relevant for the dosing technology are displayed and can be changed. Code display Meaning Adjusting range P104 Rinse aid dosing quantity 0.10 - 1.00 ml/L P105 Detergent dosing quantity...
  • Page 47 Warning Danger of injury from entering a danger zone Unauthorised persons might be in or enter the danger zone during transport, as- sembly, commissioning, maintenance and repair work. This can lead to injuries. • Only permit qualified persons to perform work at the machine. •...
  • Page 48 Maintenance table Note Maintenance work must only be carried out by MEIKO authorised staff! Maintenance work Maintenance Visual inspection requirement 1. Error memory Check error memory for unusual events using M-Commander 2.7 annually 2. Pumps Check pumps for leaks and any visible damage...
  • Page 49 Options ActiveClean water softener (if applicable) Check water hardness setting annually Check the seal on the lid of the salt container annually Start and check the regeneration process manually annually Integrated reverse osmosis system (if applicable) Visually check whole system for leaks annually every six Prefilter change standard membrane (<...
  • Page 50 2. Remove tank cover sieve, filter, wash systems top and bottom. All parts to be cleaned are blue or have a blue handle. 3. Remove all food residues sticking to the tank, the tank heater and the filters us- ing a brush. 4.
  • Page 51 De-scaling Warning Danger of injury from contact with acids Descaling agents can cause damage to health if they come into contact with skin or eyes or are swallowed. • Use eye protection. • Wear protective gloves. • Contact a physician immediately if chemicals or water containing chemicals (rinse water) are swallowed.
  • Page 52 10.1 Disposal of packaging materials All the packaging materials are recyclable. The following materials are used: – Square timber frame – Plastic sheeting (PE film) – Cardboard packaging (for protecting edges) – Packaging strap (steel strip) – Packaging strap (plastic (PP)) Note The square timber frame consists of untreated raw pine / spruce.
