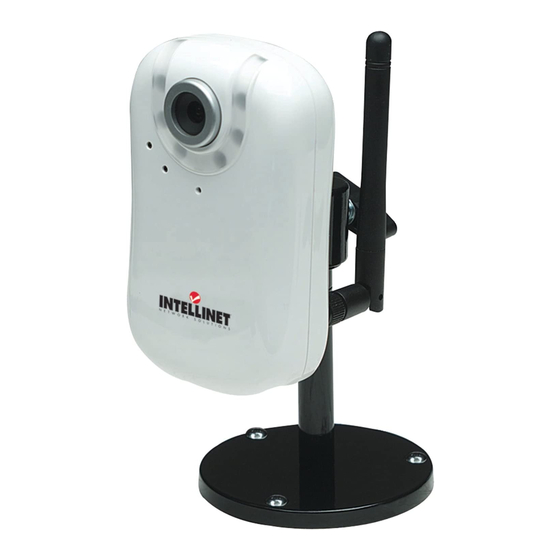

Intellinet NSC15-WG Quick Install Manual
  1. Manuals
  2. Brands
  3. Intellinet Manuals
  4. Security Camera
  5. NSC15-WG
  6. Quick install manual

Intellinet NSC15-WG Quick Install Manual

Hide thumbs Also See for NSC15-WG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
NSC15-WG
NetWork
Camera
quiCk
iNStall
Guide
Model 550901
INT-550901-QIG-0609-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSC15-WG and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet NSC15-WG

Summary of Contents for Intellinet NSC15-WG

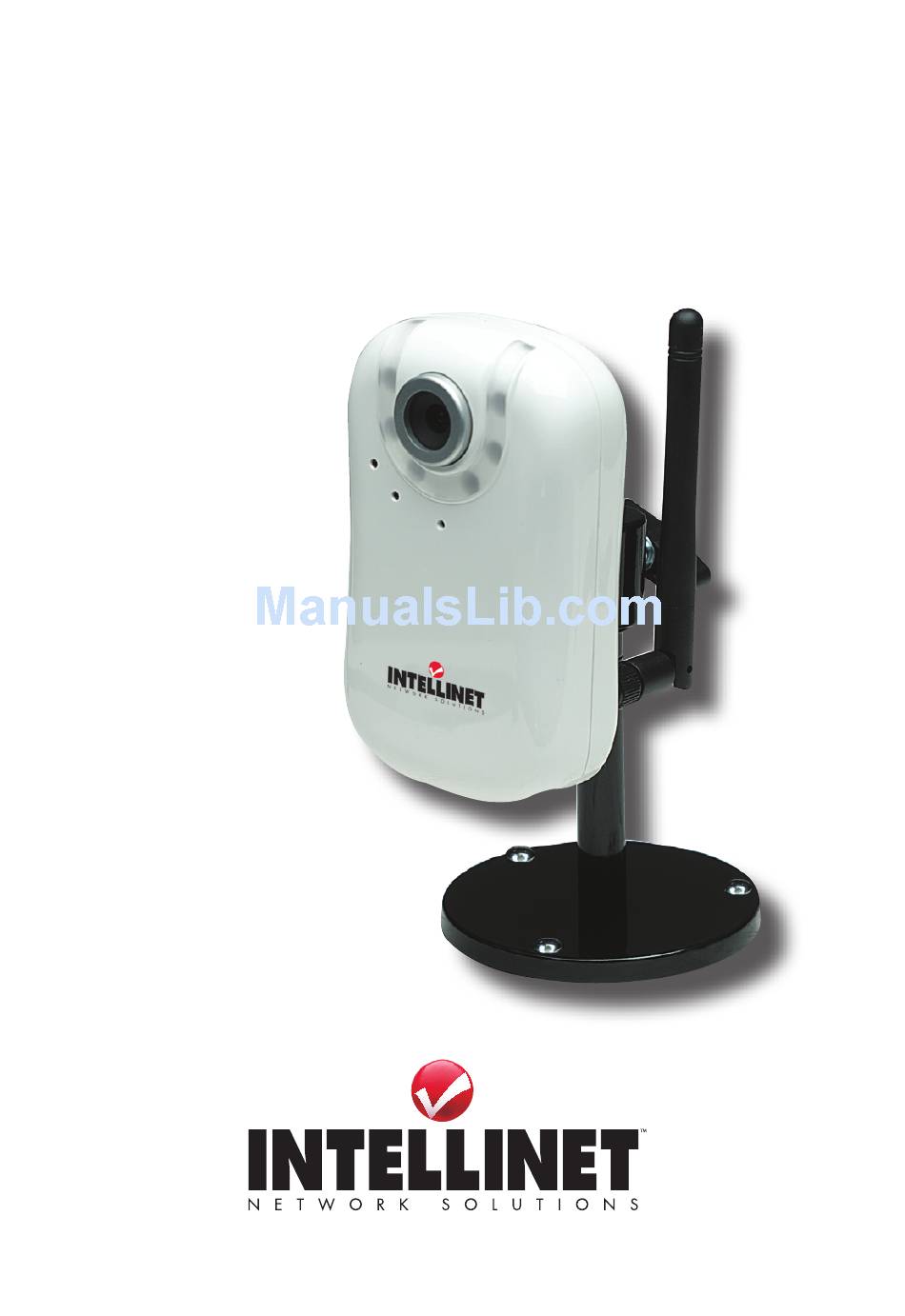

  • Page 1 NSC15-WG NetWork Camera quiCk iNStall Guide Model 550901 INT-550901-QIG-0609-01...
  • Page 3 1) on the CD enclosed with this product; 2) on the Web site listed below; or 3) in some cases, printed and enclosed with this product. Contact your INTELLINET NETWORK SOLUTIONS dealer with comments or questions, or visit www.intellinet-network.com for information on the latest software and...

  • Page 4: Regulatory Statements

    reGulatory StatemeNtS EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. This device is a 2.4 GHz wideband transmission system (transceiver) intended for use in all EU member states and EFTA countries, except in France and Italy, where restrictive use applies. In Italy, the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications...

  • Page 5: Safety Precautions

    interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IEEE 802.11b or 802.11g operation of this product in the U.S.
  • Page 6 hardWare Camera Focus Adjustment Ring Wireless Antenna 6 Night-Vision LEDs Network LED Power LED Built-in Microphone SPKR DC 5V RESET Focus Adjustment Ring — Lets you manually set the best image quality. Wireless Antenna — Connects the camera to the wireless network. Night-Vision LEDs —...

  • Page 7: Mounting Bracket

    Mounting Bracket For positioning the camera on a vertical surface (such as a wall or post) or horizontal surface (such as a ceiling or overhead beam): 1. Attach the base of the mounting bracket to the flat surface using the three included screws.

  • Page 8: Installation

    SoftWare Installation 1. With your computer on, insert the included software CD in the CD-ROM drive. The setup screen will display automatically. 2. From the IP Camera Installation Menu, select “Intelligent IP Installer” and follow the subsequent on-screen instructions. Accessing the Camera Using Intelligent IP Installer 1.
  • Page 9 • On the browser’s Internet Properties screen, go to the Privacy tab and confirm that the “Turn on Pop-up Blocker” option is deselected.
  • Page 10 Both defaults are “admin.” Click “OK.” 4. If you’re accessing the NSC15-WG Network Camera for the first time, an information bar will appear below the address bar with the message “This website wants to install the following add-on..” Click the information bar, then select “Install ActiveX Control.”...
  • Page 11 5. When the Security Warning displays, click “Install.” IC INTRACOM USA 6. When live video displays, the procedure is complete. Changing the Web Interface to Your Preferred Language 1. From the IP Camera Installation Menu, select “Language Packs.” NOTE: An alternative path is to go to the camera’s Setting screen, then →...
  • Page 12 Viewing Camera Images through a Mobile/Cell Phone There are three ways you can view your NSC15-WG Network Camera images by using a mobile/cell phone: • For 3G mobile/cell phone viewing, enter “rtsp://<IP>:<PORT>/video. 3gp” into your 3G Web browser, where <IP> is the IP address of your camera and <PORT>...
  • Page 13 2. In the two “Password” fields, enter a password. 3. For “IP Notification,” select “On” to enable IP notification to the users. 4. For “Privacy Option,” select “On” to create an allow list. 5. Use your existing account to log in to MSN Messenger. 6.

  • Page 14: Accessing The Internet

    Accessing the Internet Internet connectivity for the NSC15-WG Network Camera can be established by inputting the camera’s IP information in the Information section. Go to the camera’s Setting screen, then → Basic → Network →...
  • Page 15 PPPoE. upnp Connectivity Internet connectivity for the NSC15-WG Network Camera can also be established if your router is UPnP (Universal Plug and Play) enabled. The camera is automatically detected and added to “My Network Places”...
  • Page 16 If your router is not a UPnP Internet gateway device, set up Port Forwarding or Port Mapping (as in the example shown below). NOTE: Home routers manufactured before 2006 and Enterprise and SMB routers don’t support the UPnP IGD function.

  • Page 17: Wireless Configuration

    WireleSS CoNfiGuratioN The wireless network for the NSC15-WG Network Camera needs to be set up using a cable network connection. Once the camera is set up, the wireless function can work without the cable network connection. 1. Make your network connection. (See the Hardware section.) 2.
  • Page 18 6. Select both “Obtain an IP address automatically (DHCP)” and “Obtain DNS server address automatically.” NOTE: If using a fixed IP address, you can select “Use the following IP address” and “Use the following DNS server address” and fill in the corresponding text fields accordingly.
  • Page 20 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
