  • Page 1 Network Mini Dome Camera Hardware Installation Guide...
  • Page 2: Package Contents

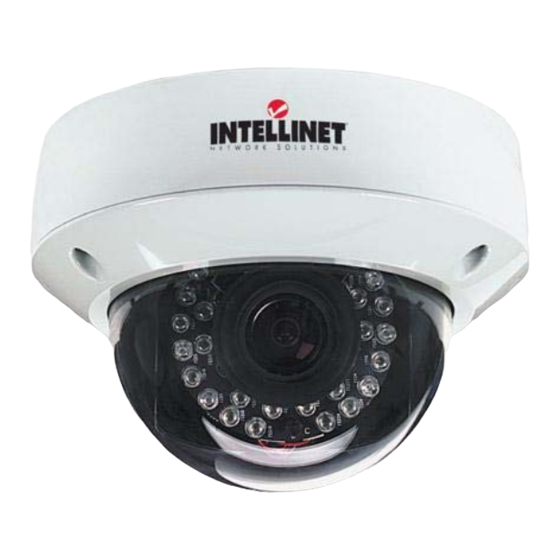

    Package Contents Dome Camera IDC-757IR Outdoor Megapixel Night-Vision Network Dome Camera Quick Installation Guide Brief product information and quick installation Software CD IP Surveillance Software Intelligent IP Installer User Manuals Language Packs Accessories 6 pin terminal cable for DI/DO and audio...
  • Page 3: Factory Reset

    Routing hole Mounting hole External I/O connector Focus Adjustment Ring Ethernet / PoE Connector 180° mark MicroSD/SDHC Reset Button Power LED Indicator Network LED Indicator Factory Reset Reset: With the camera turned on, press the reset button briefly to reboot the camera, or hold the reset button for 10 seconds to set all settings back to factory default values.
  • Page 4: I/O Terminal Block

    I/O Terminal Block The Intellinet Network Camera provides an external I/O terminal block which is used to connect input / output devices such as alarms or sensors. The pin definitions are described below Definition Description Max. V/A Ground 5V DC + 5V DC 0.5W Unbalanced, 1.4Vp-p, 1Vrms, terminal block...
  • Page 5: Led Indicators

    LED Indicators Color Indication Network Blue Network activity is indicated by a flashing blue LED. Steady red during booting up process Blue Turns blue upon completion of start-up Power Purple Flashing during firmware upgrade Unlit Off when press reset button is pressed Hardware Installation 1) To open the camera housing use one hand to hold top cover and another hand to push against the bottom of the camera housing.
  • Page 6 3) Attached the drill template to the wall. Drill three holes into the wall (two for screws and one for the connection cable if you want to route cables through conduit hole). Then push the supplied plastic anchors into the screw holes and secure the plate with supplied screws.
  • Page 7: Lens Adjustment

    Lens Adjustment Tilt 79° Rotate 360° WARNING:   DO NOT rotate the lens more than 360 degrees. Doing so will damage the camera lens module. Pan 344°...
  • Page 8: Cable Connections

    Cable Connections Power over Ethernet (PoE) Using a standard RJ-45 network cable, connect the dome camera to a IEEE802.3af/at compliant PoE switch or PoE injector. RJ-45 Cable Due to the very compact housing dimensions, using a network cable with a molded boot is not advisable. There is not enough room to connect the RJ45 connector to the socket without bending the cable, which will likely short the lifespan.
  • Page 9 INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective...
