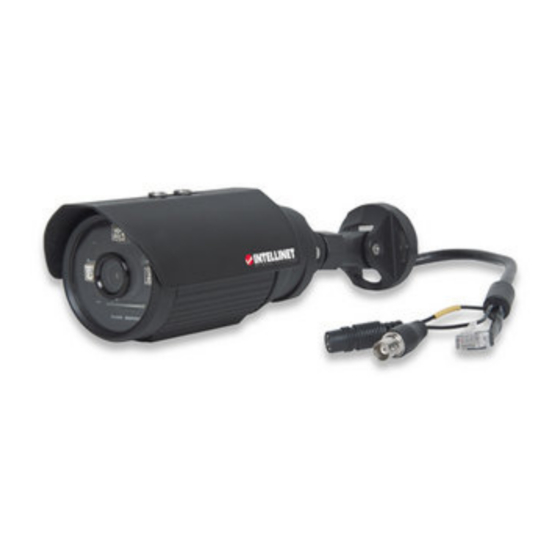

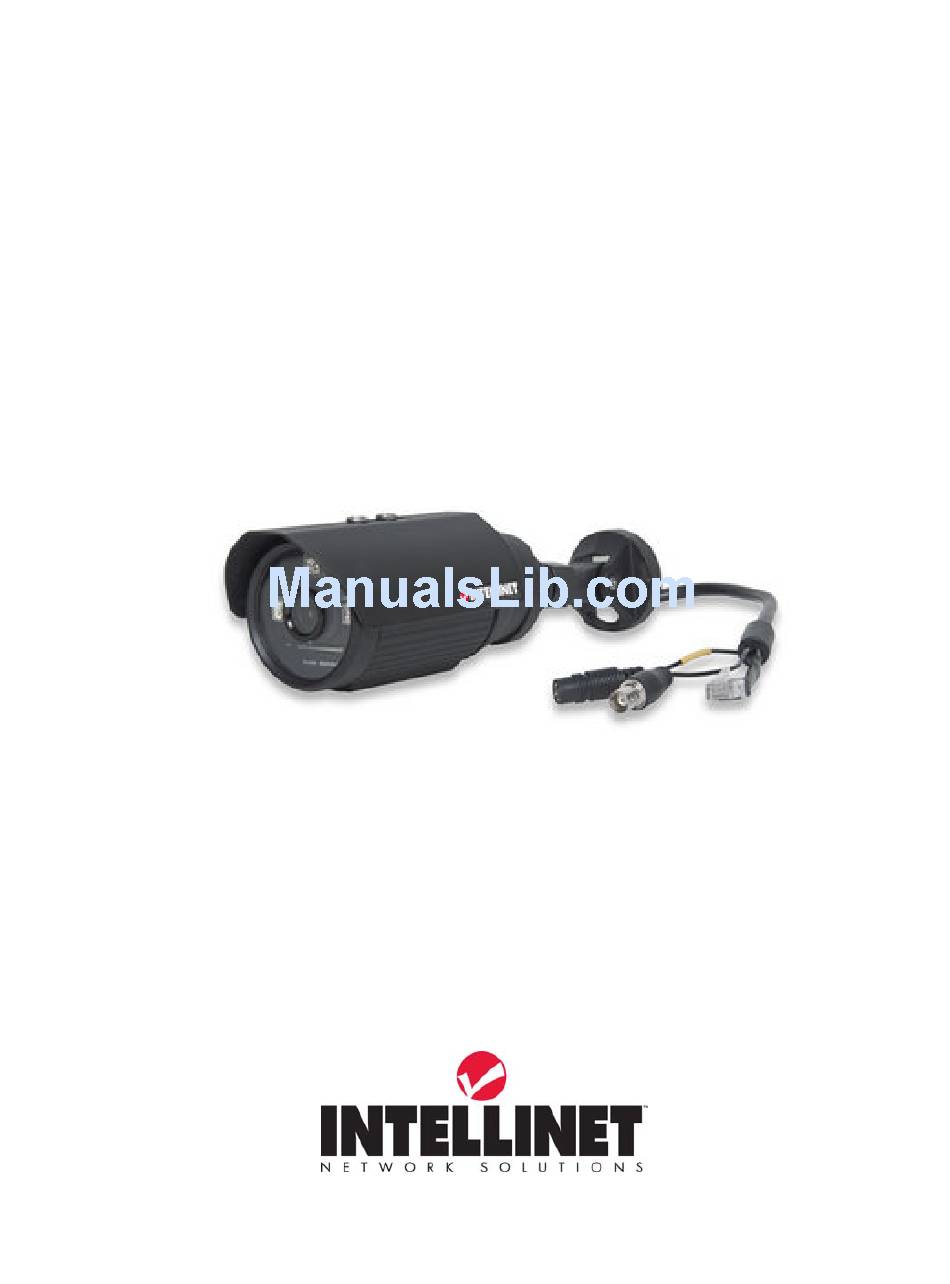

- Page 1 IBC-607IR / IBC-637IR Network Bullet Camera Hardware Installation Guide...
-
Page 2: Package Contents
Package Contents Camera Network Bullet Camera Quick Installation Guide Brief product information and quick installation Software CD IP Surveillance Software Intelligent IP Installer User Manuals Language Packs Accessories (1) Three-axis wall/ ceiling mounting bracket (2) Screws and anchors for wall or ceiling mounting (3) Sun Shield (4) Screws for sun shield... -
Page 3: Hardware Description
Hardware Description Indication Steady red during boot up process. Power Steady blue after boot sequence has completed. Flashing purple during firmware upgrade. Network Flash yellow while Network activity. Steady yellow means MicroSD card ready. MicroSD Card Flash yellow while accessing MicroSD card. -
Page 4: Factory Reset
Factory Reset Reset: With the camera turned on, press the reset button briefly to reboot the camera, or hold the reset button for 10 seconds to set all settings back to factory default values. Hardware Installation 1. Use the two supplied screws to fix the base plate to a flat surface. 2. - Page 5 5. Connect the camera via PoE Using a standard RJ-45 network cable, connect the bullet camera to an IEEE802.3af/at compliant PoE switch or PoE injector. 6. Connect the camera without PoE 1. Connect the power adaptor to the dome camera 2.
- Page 6 INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective...
