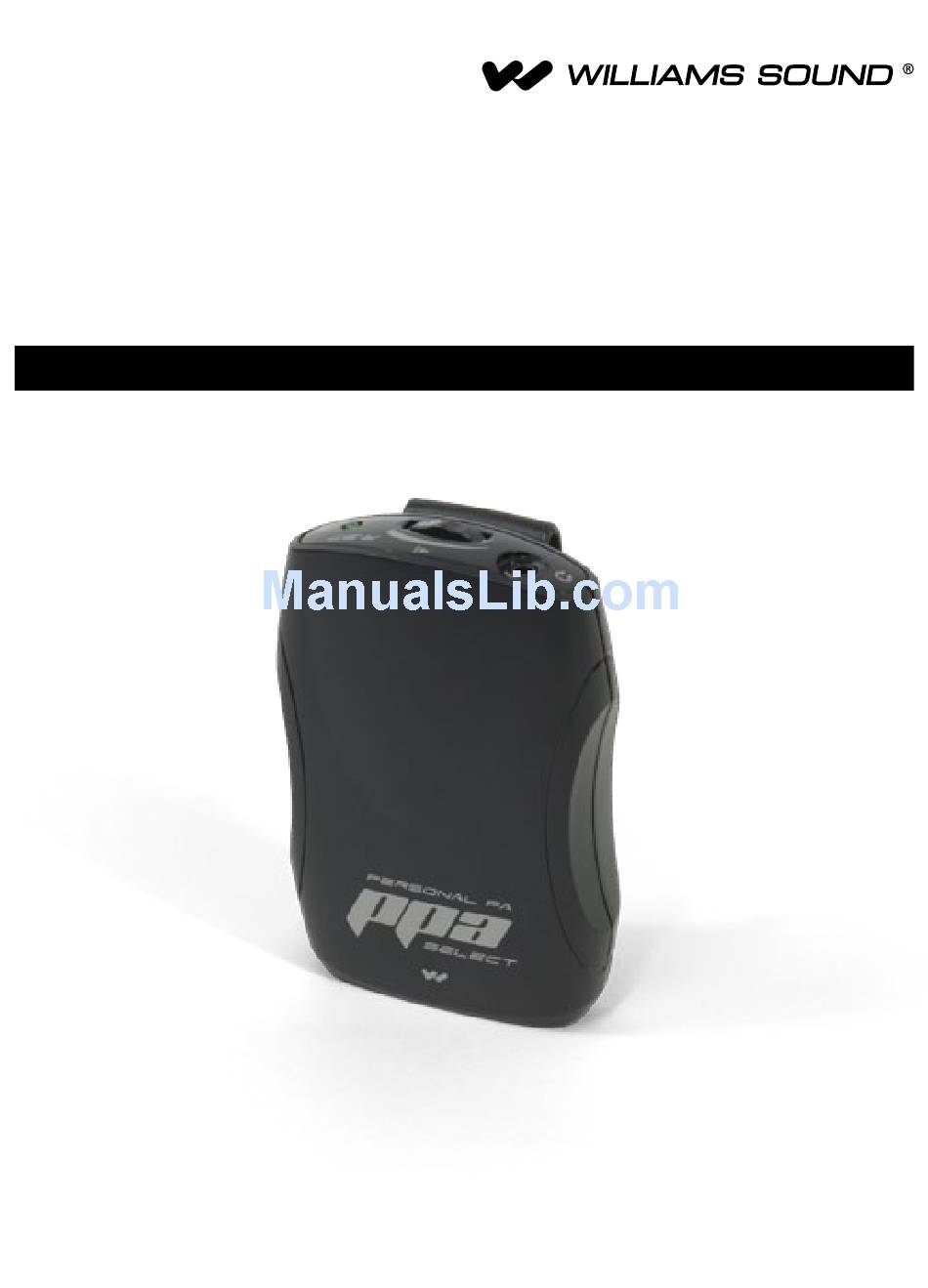

- Page 1 PPA R37 PPA Select Receiver Instructions For Use and Care MAN154C...
-
Page 2: Operating Instructions
Operating Instructions 1. Open battery compartment door on back of receiver by pressing the tab down. 2. If using rechargeable NiMH batteries, slide the Alkaline/ NiMH switch to the NiMH position. Default setting is Alkaline for non-rechargeable batteries. See Figure 1. Figure 1: Battery selection switch Channel CHANNEL... -
Page 3: Select Channel
· If multiple transmitter channels are being used, press the Channel Seek button until you locate the desired channel. · Receiver will retain the channel setting when the unit is turned off. Figure 2: PPA R37 Controls ON/OFF, VOLUME EARPHONE JACK CONTROL SWITCH "ON"/ LOW BATTERY/... - Page 4 The green LED light is used to indicate: Power, Lock or Unlock Channel status, low batteries, or absence of a transmitter. Refer to flash codes chart below. PPA R37 LED Flash Codes LIGHT CODE INDICATES DESCRIPTION Press “Seek” remains...
- Page 5 To Install: Position the belt clip on the rear of the PPA R37 receiver as shown in Figure 3A. Turn the belt clip 180° left or right as shown in Figure 3B. The belt clip is now installed and ready for use.
-
Page 6: Customer Service
Pack the system carefully and send it to: Williams Sound Attn: Repair Dept. 10300 Valley View Rd. Eden Prairie, MN 55344 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 Printed in the USA www.williamssound.com ©2012 Williams Sound, LLC MAN154C... -
Page 7: Lifetime Plus Limited Warranty
Effective January 1, 2012, Williams Sound warrants the Personal PA® FM Listening transmitters and receivers (models PPA T35, PPA T27, PPA T36, PPA R37, and PPA R35-8) against defects in materials and workmanship under normal use and conditions for the useful lifetime of the product from date of purchase. -
Page 8: Safety Information
Safety Information HEARING SAFETY CAUTION! This product is designed to amplify sounds to a high volume. To protect your hearing and the hearing of others: 1. Make sure the unit is OFF or the volume is turned down before putting on the earphones. 2. -
Page 9: Recycling Instructions
Take batteries to a retail or community recycling location. Battery Information The PPA R37 uses 2 AA batteries. We commend using Williams Sound Alkaline batteries (BAT 001) or rechargeable batteries (BAT 026) for longer battery life than other brand batteries. -
Page 10: System Specifications
System Specifications PPA Select (PPA R37) Receiver Dimensions: 4.1" H x 2.85" W x 1.38" D (104 mm x 72 mm x 35 mm) Weight: 4.6 oz (130 g) with batteries, 2.6 oz w/o batteries (73g) Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx.
Need help?
Do you have a question about the PPA R37 and is the answer not in the manual?
Questions and answers
how do u find the right channel for listeng on device ppa r 37
To find the right channel on the Williams Sound PPA R37 device, follow these steps:
1. Turn on the device using the on/off volume control knob. A green light will indicate that it is on.
2. Check if the channel is correct—the factory usually sets the transmitter and receiver to the same channel.
3. Use the Channel Seek button to tune into the correct frequency. The device allows access to 17 wide-band frequencies in the 72-76 MHz range.
4. Once the desired channel is found, use the Channel Lock feature to keep it in place and prevent accidental changes.
This process ensures clear and stable audio reception.
