- Page 1 ® ersonal uide ysTeM Wireless, Portable FM Listening System Transmitter Model PPA T36 Optional Receiver Models PPA R37, PPA R35-8 MAN 158A...
-
Page 2: Table Of Contents
ANuAL uidE ONTENTS System Components System Overview Safety Information Recycling Instructions Operating Instructions PPA T36 Transmitter PPA R37 Receiver PPA R35-8 Receiver Belt Clip Removal/Installation Battery Information Optional Battery Chargers Hints for Using the System In Case Of Difficulty Warranty... -
Page 3: System Components
The Personal PA® Tour Guide System is a portable, high-performance, wireless listening sys- tem. It is composed of a PPA T36 Transmitter, microphone, and optional PPA R37 or R35-8 receivers equipped with headphones or earphones. The system allows one-way transmission of a tour guide’s voice to group members using an FM radio signal. -
Page 4: Safety Information
ECyCLiNG NSTRuCTiONS Help Williams Sound protect the environment! Please take the time to dispose of your equip- ment properly. Product Recycling Instructions: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center;... -

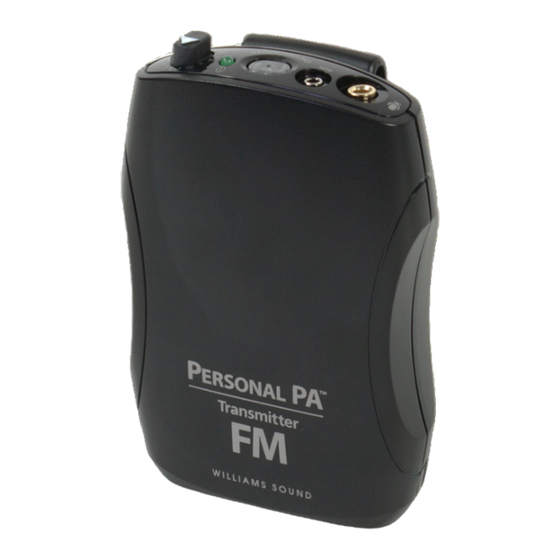

Page 5: Ppa T36 Transmitter
T36 T SiNG THE RANSMiTTER 1. Make sure there are two alkaline or rechargeable AA batteries in the transmitter. If batter- ies are not installed, see Battery Information on page 11. 2. Plug the microphone cord into the “Mic Jack” on top of the transmitter (FIG. 2). FiG 2: T36 T Auxiliary Power On/Off/Mute... - Page 6 T36 T SiNG THE RANSMiTTER CONT ONTROL The gain control can be used to adjust the volume level on both the microphone and auxiliary input. To adjust the volume level, open the battery door and locate the Gain Control (FIG. 4). Use the sup- plied plastic screwdriver and rotate to increase “+”...
-
Page 7: Ppa R37 Receiver
ECEivER 1. Insert two (2) AA batteries ensuring correct polarity. If rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH switch inside the battery compartment is set to NiMH before charging. See FIG 6. -
Page 8: Ppa R35-8 Receiver
If stereo headphones are used, sound will be heard only in one side. Williams Sound evaluates each earphone and headphone used with the PPA R35-8 receiver; we can only assure optimum performance when Williams Sound earphones and headphones are used. -
Page 9: Belt Clip Removal/Installation
EMOvAL NSTALLATiON NSTALL Position the belt clip on the rear of the transmitter or receiver unit as shown in FIG. 9A. Turn the belt clip 180º left or right as shown in FIG. 9B. The belt clip is now installed and ready for use. -
Page 10: Battery Information
Model Battery Type Battery Life Low Battery Indicator Alkaline AA batteries (BAT 001) 30 hours Power LED flashes PPA T36 Rechargeable AA NiMH (BAT 026) 20 hours Alkaline AA batteries (BAT 001) 50 hours Power LED flashes PPA R37 Rechargeable AA NiMH (BAT 026) -
Page 11: Optional Battery Chargers
PTiONAL ATTERy HARGERS : 11A: CHG 3512 / 3512 PRO M uLTi HARGER TFP 037 DC Power Connection : 11B: CHG 3502 d HARGER CHG 3502 Rear View Charging Receiver or Transmitter LED Indicator TFP 041 DC Power Connection For more information on available chargers, visit www.williamssound.com or call +1 952 943 2252. -
Page 12: Hints For Using The System
iPS FOR SiNG THE ySTEM The nominal operating distance between the transmitter and receiver is about 46 meters (150 feet). The operating range will vary in different buildings and surroundings. In some locations, the signal may momentarily disappear. This is called a “drop-out” and is due to reflection and cancellation of the radio signal. -
Page 13: In Case Of Difficulty
7. If you are still hearing interference on the receivers, turn the transmitter off and listen with a receiver. If you hear the interference with the transmitter off, you need to change to a clear channel (see pages 8-9). Call your Williams Sound representative at 1-800-843- 3544 or +1 952 943 2252 for details. -
Page 14: Warranty
ARRANTy Williams Sound products are engineered, designed, and manufactured under carefully con- trolled conditions to provide you with many years of reliable service. Williams Sound war- rants the Personal PA® Tour Guide System against defects in materials and workmanship for five (5) years. -
Page 15: System Specifications
PECiFiCATiONS PPA T36 RANSMiTTER OdEL Dimensions: 4.1” L x 2.8” W x 1.1” T (104 mm x 71 mm x 28 mm) Weight: 2.9 oz (82 g), no batteries Color: Black, shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx. - Page 16 Warranty: Five Years, Parts and Labor. 90 days on cords, earphones, headphones, batteries, and other accessories *DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE. Note: Specifications subject to change without notice. ©2011 Williams Sound, LLC MAN 158A...
