M
ANUAL AND
HEARING HELPER
Wireless, Portable FM Listening System
Model TGS PRO 720
Transmitter Model PFM T32 or T31
Receiver Model PPA R35
MAN 122C
®
U
G
SER
Tour Guide System
UIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TGS PRO 720 and is the answer not in the manual?

Questions and answers

Summary of Contents for Williams Sound TGS PRO 720

  • Page 1 ® ANUAL AND UIDE HEARING HELPER Tour Guide System ™ Wireless, Portable FM Listening System Model TGS PRO 720 Transmitter Model PFM T32 or T31 Receiver Model PPA R35 MAN 122C...
  • Page 2: Table Of Contents

    HEARING HELPER ™ FM T TGS PRO 720 UIDE YSTEM ODEL & U NSTALLATION UIDE ANUAL Contents Page YSTEM VERVIEW YSTEM OMPONENTS ICROPHONES & E EADPHONES ARPHONES AFETY NFORMATION ECYCLING NSTRUCTIONS PERATING NSTRUCTIONS PFM T32 T RANSMITTER PFM T31 T...
  • Page 3: System Overview

    A neckloop telecoil coupler allows the system to be used with telecoil (T-Switch) equipped hearing aids, at somewhat reduced range. If you have problems with the HEARING HELPER ™ Tour Guide System, don’t hesitate to call Williams Sound at 1-800-843-3544. ®...
  • Page 4: System Components

    YSTEM OMPONENTS Body Pack Transmitter (PFM T32 or T31) with (2) AA batteries (BAT 001) Noise-cancelling headband microphone (MIC 086) (10) Receivers (PPA R35) w/batteries (BAT 001) Instruction Manual (MAN 122) System carry case (CCS 030 S) PFM T32 T31 T RANSMITTER The PFM Transmitter is a battery-powered body-pack model used with a microphone to pick up the tour guide's voice.
  • Page 5: Earphones

    The stylish HED 026 rear-wear headphone offers excellent sound quality; it rests comfortably over the ears and wraps around the back of the head for a less obtrusive, relaxed fit. For order information, contact Williams Sound at 1-800-843-3544. . 2: E...
  • Page 6: Safety Information

    ATTERY AFETY AND ISPOSAL Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling for Customers in the European Union: Please do NOT dispose of your Williams Sound equipment in the household trash.
  • Page 7 PFM T32 T SING RANSMITTER 1. Install two (2) AA batteries. If you’re using rechargeable batteries, they must be charged before using. 2. Plug the microphone cord into the “Mic” jack on top of the transmitter. 3: T32 T IGURE 3.
  • Page 8 PFM T32 F HANGING THE REQUENCY . 4: PFM T32 F REQUENCY HANGE By default, the T32’s frequency is to set 75.7 MHz (Channel G). If you experience FM interference, or if you need to match a receiver’s frequency, it may be necessary to adjust the frequency on the T32. Instructions: 1.
  • Page 9: Pfm T32 Transmitter

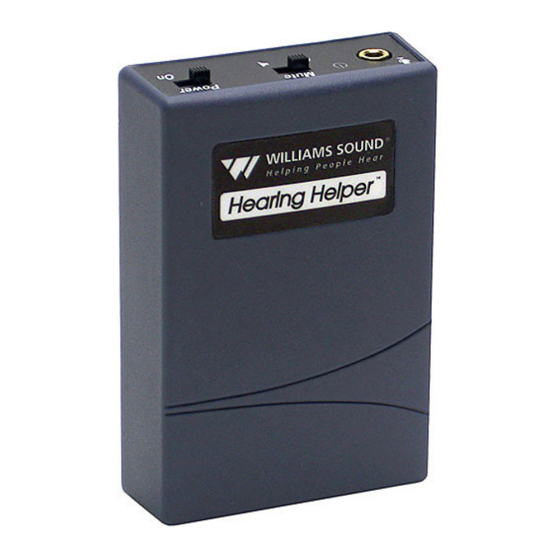

    PFM T32 DVANCED EATURES ON THE Gain Control Adjustment . 5: T32 A If necessary, the microphone gain control on the T32 DVANCED EATURES can be increased or decreased to meet the demands of specific listening applications. Instructions: 1. Open the battery compartment using a coin in the slot in the bottom of the transmitter.
  • Page 10: Pfm T31 Transmitter

    “Off” position. . 6: PFM T31 T RANSMITTER On/Off Switch Williams Sound FM Mic Jack Mic Mute Switch Note On The Transmitter Antenna: The microphone cord is the transmitting antenna. Do not bunch up the cord, wrap it tightly around your body, or wrap it around the transmitter.
  • Page 11 PFM T31 F HANGING THE REQUENCY . 7: PFM T31 F REQUENCY HANGE Frequency Switches Switch Settings 72.1 DN UP DN UP DN DN DN DN 72.3 DN UP DN UP UP DN DN DN 1 2 3 4 5 6 7 8 72.5 DN UP DN UP DN DN UP DN 72.6...
  • Page 12 PPA R35 R SING THE ECEIVER Note: Rechargeable batteries are shipped in a discharged state and must be charged overnight before using. 1. Make sure there are two charged AA batteries in the Receiver. If batteries are not installed, see Battery Information on page 15.
  • Page 13 PPA R35 NSTALLATION FOR NSTALL Position the belt clip on the rear of the R-35 receiver as shown in Figure 9a. Turn the belt clip 180º left or right as shown in Figure 9b. The belt clip is now installed and ready for use. EMOVE Turn the belt clip 180º...
  • Page 14: Ppa R35 Receiver

    NiMH R-35 Most Williams Sound single channel Receivers are set at the factory to 72.9 MHz. The Receiver must be tuned with a weak and somewhat noisy signal. If tuned too close to the transmitter, with a strong signal, the most accurate tuning of the receiver is not possible.
  • Page 15: Battery

    Transmitter or 12 hours in the T31 Transmitter. The batteries will last approximately 100 hours in the PPA R35 Receiver. If the sound becomes weak or distorted, replace the batteries. Do not leave dead batteries in the receivers. Battery corrosion is not covered by the Williams Sound five year warranty.
  • Page 16: Chargers

    The batteries may heat up and burst, causing possible injury and damage to the equipment. Avoid shorting the plus and minus battery terminals together with metal objects. Battery damage and burns can result! Use only Williams Sound supplied chargers and batteries. ®...
  • Page 17 CHG 3512 B SING PTIONAL ATTERY HARGER TO CHARGE PPA R35 R ECEIVER Before inserting the PPA R35 receivers into the charger, be sure that each receiver has NiMH batteries installed. Also, check to make sure the switch setting in the PPA R35 battery compartment indicates the “NiMH”...
  • Page 18: Hints For Using The System

    INTS FOR SING THE YSTEM Normal operating distance between the transmitter and receiver is about 30 meters. The operating range will vary in different buildings and surroundings. In some locations, the signal may momentarily disappear. This is called a “drop-out” and is due to reflection and cancellation of the radio signal.
  • Page 19: I N Case O F Difficulty

    Call your Williams Sound at 1-800-843-3544 for details. OTICE Williams Sound Corp. assumes no liability for improper use or operation of this equipment. The user is cautioned to operate the volume controls at the lowest acceptable level, and in a manner that will not cause damage to hearing.
  • Page 20: Limited Warranty

    LIMITED WARRANTY Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the HEARING HELPER ™ Tour Guide System against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace the HEARING HELPER ™...
  • Page 21: Warranty

    YSTEM PECIFICATIONS FM T PFM T32 RANSMITTER ODEL Dimensions: 3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm) Weight: 4.4 oz (125 g) with battery Color: Royal blue, shatter-resistant polypropylene Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx.
  • Page 22 PPA R35 ECEIVER ODEL Dimensions: 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm) Weight: 4.5 oz (127 g) Color: Gray Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 100 hours battery life Two (2) AA rechargeable NiMH batteries (BAT 026), 1400 mAh, approx 56 hours battery life Current Consumption:...
  • Page 24 ® 10321 West 70th St., Eden Prairie, MN 55344 U.S.A. © 2006, Williams Sound Corp. MAN 122C 800.843.3544 | 952.943.2252 | FAX: 952.943.2174 www.williamssound.com...
