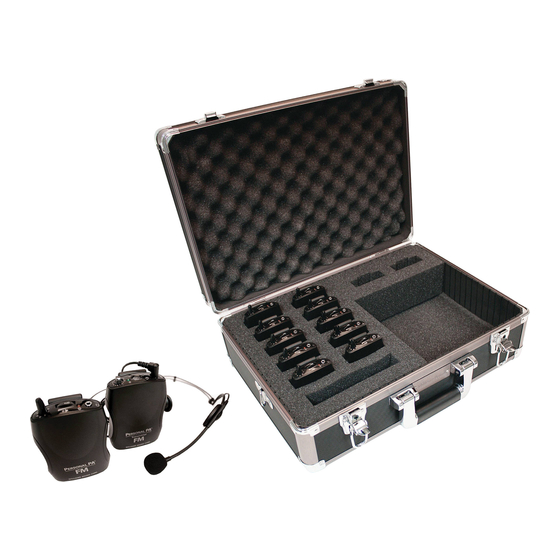

- Page 1 Personal PA Tour Guide System ® Wireless, Portable FM Listening System Manual and User Guide Transmitter Model PPA T36 Optional Receiver Models PPA R37, PPA R35-8 TGS PRO 737 TGS PRO MULTI MAN 158C...
-
Page 2: Table Of Contents
PERSONAL PA Tour Guide System ® PERSONAL PA FM Tour Guide System ® TGS PRO 737, TGS PRO MULTI Manual & User Guide Contents System Components ................................. 3 System Overview ................................3 Safety Information ................................4 Recycling Instructions ..............................4 Operating Instructions PPA T36 Transmitter ..............................5-6... -
Page 3: System Components
To avoid difficulties, please read through these instructions as you begin to use the system. Then save them for questions that arise as you continue to use your system. If you have problems with the Personal PA Tour Guide System, don’t hesitate to call Williams Sound at 1-800-843-3544 or +1 ® 952 943 2252. -
Page 4: Safety Information
Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling Instructions: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center; OR, return the product to the factory for proper disposal. -
Page 5: Operating Instructions Ppa T36 Transmitter
PERSONAL PA Tour Guide System ® Using the T36 Transmitter 1. Make sure there are two alkaline or rechargeable AA batteries in the transmitter. If batteries are not installed, see Battery Information on page 11. 2. Plug the microphone cord into the “Mic Jack” on top of the transmitter (Figure 2). Figure 2: T36 Top View ON/OFF, VOLUME CONTROL SWITCH... -
Page 6: Gain Control
PERSONAL PA Tour Guide System ® Using the T36 Transmitter, cont. Gain Control The gain control can be used to adjust the volume level on both the microphone and auxiliary input. To adjust the volume level, open the battery door and locate the Gain Control (Figure 4). Use the supplied plastic screwdriver and rotate to increase “+”... -
Page 7: Ppa R37 Receiver
1. Insert two (2) AA batteries ensuring correct polarity. If rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH switch inside the battery compartment is set to NiMH before charging. -
Page 8: Ppa R35-8 Receiver
Plug the earphone into the “Headphone/Earphone” jack on the top of the unit. Only monophonic earphones and headphones will operate properly. If stereo headphones are used, sound will be heard only in one side. Williams Sound evaluates each earphone and headphone used with the PPA R35-8 receiver; we can only assure optimum performance when Williams Sound earphones and headphones are used. -
Page 9: Belt Clip Removal/Installation
PERSONAL PA Tour Guide System ® Belt Clip Removal/Installation To Install: Position the belt clip on the rear of the transmitter or receiver unit as shown in Figure 9. Turn the belt clip 180º left or right as shown in Figure 9B. The belt clip is now installed and ready for use. To Remove: Turn the belt clip 180º... -
Page 10: Battery Information
These batteries may heat up and explode, causing possible injury and damage to the equipment. Avoid short- ing the plus and minus battery terminals together with metal objects. Battery damage and burns can result! Use only Williams Sound supplied chargers and rechargeable batteries! MAN 158C... -
Page 11: Optional Battery Chargers
PERSONAL PA Tour Guide System ® Optional Battery Chargers Fig: 11A: CHG 3512 / 3512 PRO Multi-Charger RECEIVER OR CHG 3512 REAR VIEW TRANSMITTER DC POWER CHARGING INDICATOR A124 Fig: 11B: CHG 3502 Dual-Bay Charger RECEIVER OR TRANSMITTER CHARGING INDICATOR CHG 3502 REAR VIEW For more information on available chargers, visit www.williamssound.com or call +1 952 943 2252. -
Page 12: Hints For Using The System
7. If you are still hearing interference on the receivers, turn the transmitter off and listen with a receiver. If you hear the interference with the transmitter off, you need to change to a clear channel (see pages 8-9). Call your Williams Sound representative at 1-800-843-3544 or +1 952 943 2252 for details. -
Page 13: Warranty
Williams Sound is not liable for consequential damages due to any failure of equipment to perform as intended. Williams Sound shall bear no responsibility or obligation with respect to the manner of use of any equipment sold by it. -
Page 14: System Specifications
PERSONAL PA Tour Guide System ® System Specifications Transmitter, Model PPA T36 Dimensions: 4.1” L x 2.8” W x 1.1” H (104 mm x 71 mm x 28 mm) Weight: 2.6 oz (74 g), no batteries Color: Black, shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx. - Page 15 PERSONAL PA Tour Guide System ® PPA Select Receiver (Model PPA R37) ™ Dimensions: 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries Color: Black Battery Type: (2) AA Alkaline or 2 x AA NiMH Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx.
- Page 16 *DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO “AUDITORY ASSISTANCE.” NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2012 Williams Sound, LLC • All Rights Reserved MAN 158C...
