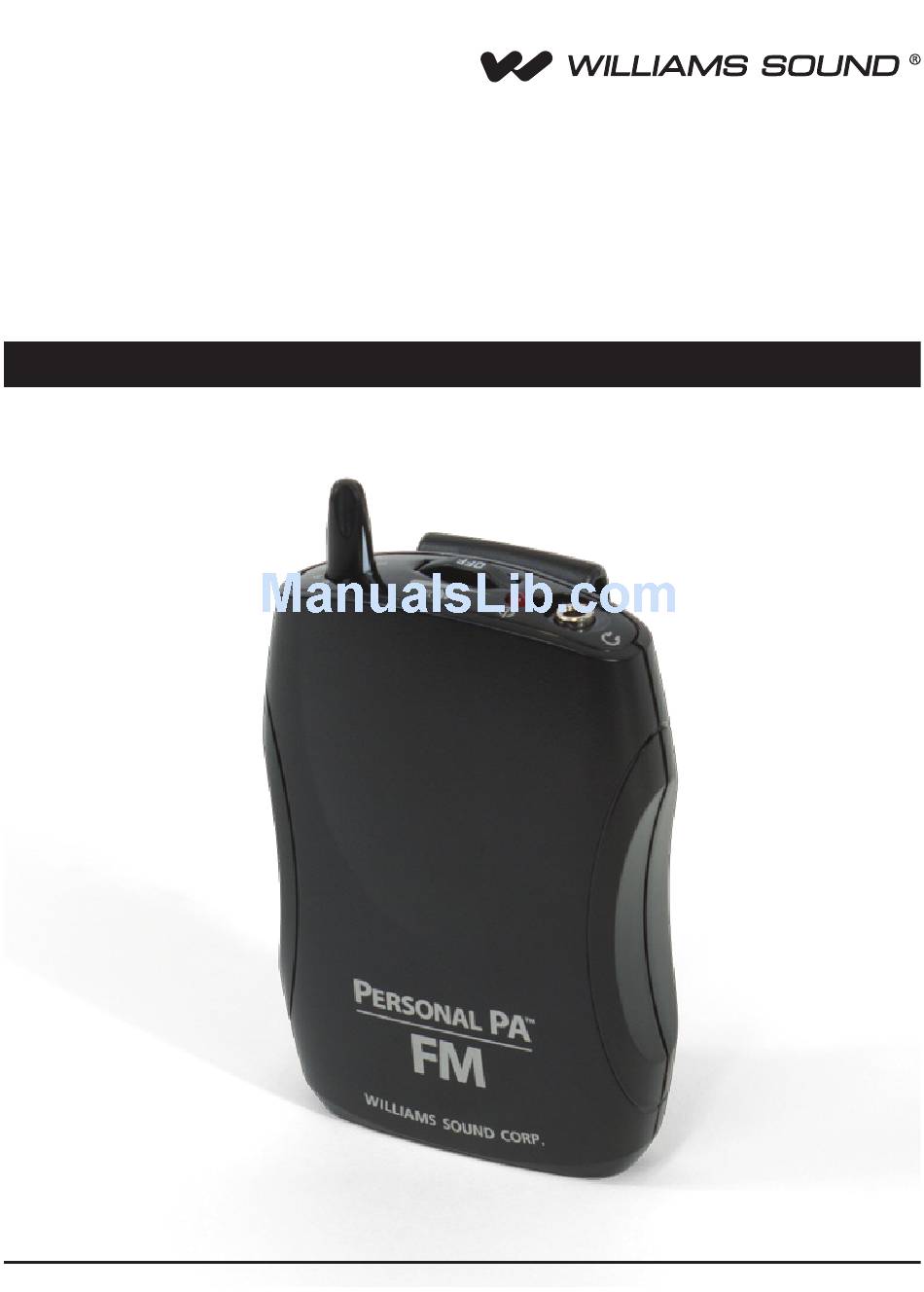

PPA R35-8
®
Personal PA
FM 8-channel Receiver
USER MANUAL
MAN 117K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPA R35-8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Williams Sound PPA R35-8

  • Page 1 PPA R35-8 ® Personal PA FM 8-channel Receiver USER MANUAL MAN 117K...
  • Page 2: Operating Instructions

    Operating Instructions 1. Install AA batteries: Open the battery compartment by lifting the tab on the back of the receiver with your finger. To remove depleted batteries, pull up on the fabric strip. IMPORTANT: If Alkaline (non-rechargeable) batteries are being installed, slide the battery selection switch in the battery compartment to the “Alkaline”...
  • Page 3 Figure 2: R35-8 Controls CHANNEL HEADPHONE SELECTOR JACK KNOB ON/OFF, VOLUME "ON"/LOW CONTROL SWITCH BATTERY INDICATOR A131 2. Plug the earphone or headphone into the headphone jack on the receiver’s control panel. 3. Turn the receiver on by rotating the volume control knob. The ON indicator should illuminate RED.
  • Page 4: Belt Clip Installation

    Belt Clip Installation For hands free operation of the R35-8 receiver, use the provided belt clip to secure the unit on your belt, pocket or pants. To Install: Position the belt clip on the rear of the R35-8 receiver as shown in Figure 3. Turn the belt clip 180° left or right as shown in Figure 4.
  • Page 5 Battery & Earpad Care The PPA R35-8 Receiver can use two (2) disposable AA batteries (BAT 001-2), or two (2) AA rechargeable batteries (BAT 026-2). Note: The BAT 026-2 provides longer life than other rechargeables. Do not substitute other rechargeable batteries and chargers.
  • Page 6: Customer Service

    Pack the system carefully and send it to: Williams Sound Attn: Repair Dept. 10300 Valley View Rd. Eden Prairie, MN 55344 ©2013 Williams Sound, LLC 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 MAN 117K www.williamssound.com...
  • Page 7: System Specifications

    System Specifications Personal PA R35-8 Receiver ® Dimensions: 4.5” H x 2.85 W x 1.2” D (115 mm x 72 mm x 30 mm) Weight: 4.6 oz (130 g) Color: Black Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001- 2), approx.
  • Page 8: Warranty

    Warranty Lifetime PLUS Limited Warranty. 90 days on cords, earphones, headphones, rechargeable batteries, and other accessories. For Complete Warranty Statement go to: www.williamssound.com/warranty-statement Note: The R35-8 is NOT field-tuneable. The eight channels have been carefully selected to inhibit inter-modulation interference. Channel frequencies are 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, and 75.9 MHz.
  • Page 9: Hearing Safety

    Recycling Instructions Product Recycling Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to a electronics recycling center; OR, return the product to the factory for proper disposal.
  • Page 10 Battery Safety & Disposal CAUTION! Do not attempt to recharge disposable batteries, which may explode, release dangerous chemicals, cause burns, or other serious harm to the user or product. Medical Device Safety CAUTION! Before using this product with an implantable or other medical device, consult your physician or the manufac- turer of your implantable or other medical device.
