Summary of Contents for Williams Sound PPA T45NET

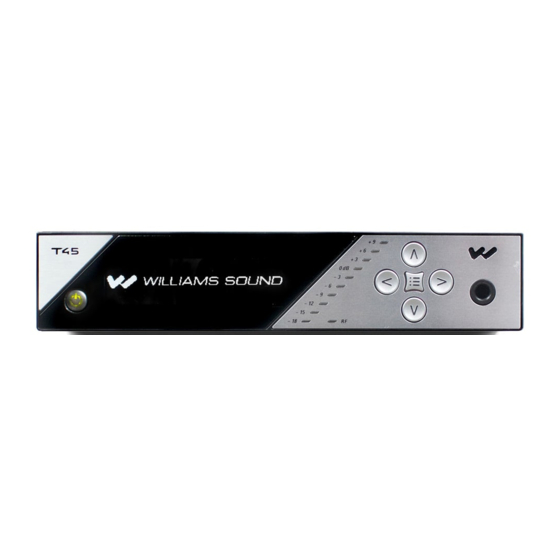

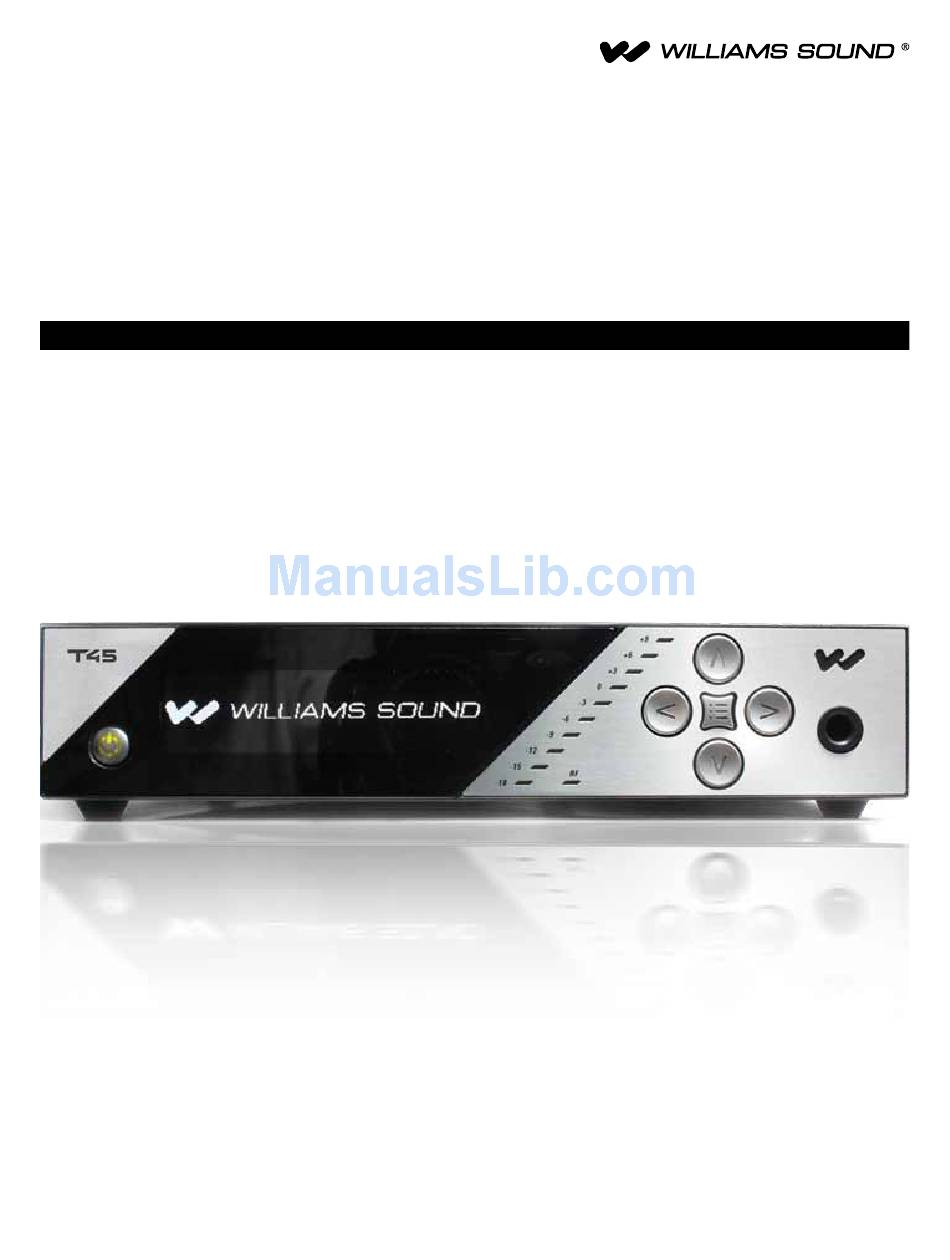

- Page 1 PPA T45NET / T45 Personal PA DSP FM Wideband Transmitter ® USER Manual Transmitter Models PPA T45NET and PPA T45 Optional Receiver Models PPA R38, PPA R37, PPA R35-8, PPA R1600 MAN 176B PRINTED IN THE U.S.A.
-
Page 2: Table Of Contents
Personal PA DSP FM Wideband Transmitter ® PPA T45NET / T45 Personal PA DSP FM Wideband Transmitter User Manual Contents System Connection Overview ............................4 Wiring and Connections ..............................5-8 Power Supply Connection for US Applications ......................... 5 Audio Source Connections ............................... 5 Multi-Channel Sources .............................. - Page 3 ® 3c. Screen Time-Out ............................... 20 3d. Transmitter Description ............................. 20 3e. Restore Defaults ..............................21 4. ADD-ON MODULE (PPA T45NET only) ......................22-23 4a. Status ................................22 4b. Security ................................22 4c. IP Address Mode .............................. 22 4d. IP Address ................................ 23 Network Setup for Hard-wired Ethernet Devices (Laptop or Desktop PC) ............
-
Page 4: System Connection Overview
Two models are available - one with Ethernet control (PPA T45NET) and one without Ethernet control (PPA T45). Ethernet control allows the transmitter settings to be changed over a network with hard-wired or wireless devices (Figure 1). -
Page 5: Wiring And Connections
Personal PA DSP FM Wideband Transmitter ® Wiring and Connections T45 Rear Figure 2: PPA T45NET Rear View williamssound.com Analog Digital 24VDC 0.75A Audio Audio — unbal — phantom Line / Mic In Line Out AES / EBU In S/PDIF In RF 75 Ant... -
Page 6: Multi-Channel Sources
By constructing a simple resistive mixer, stereo (or 3 channel) sources can be connected to the T45. Additional channels can be accommodated by adding a resistor for each source. Necessary resistors can be obtained from Williams Sound (Part Number RFC 472) or from any local electronics parts supplier. See Figure 3. -
Page 7: Avoiding Hum In The Audio (As A Result Of A Ground Loop)
A hum created by a ground loop can often be eliminated by connecting a capacitor in series with the audio line shield to the transmitter’s ground. This method also maintains good RF shielding. Determining the effectiveness of this method for your installation usually requires some experimentation. Necessary capacitors can be obtained from Williams Sound or from any electronic parts supplier. See Figure 4. -
Page 8: Connecting The T45 To Other Devices
The Remote Antenna Connection can be used to connect a remote antenna to the T45 when the whip antenna won’t be used (as in the case of rack-mounting). See the Williams Sound Antenna Guide for a full range of antenna and mounting options. It is recommended to use RG-6 Quad-Shielded coaxial cable for best sheilding against RF interference. -
Page 9: Controls And Features
This shows current operation settings and is also used with the menu control buttons for configuring the T45. Each time the power of the unit is turned on, the OLED Display shows a “Williams Sound” start-up screen (Figure 8). After seven seconds, the “RF”... -
Page 10: Headphone Jack
Personal PA DSP FM Wideband Transmitter ® • The Down “v” button navigates downward in the menu or decreases a setting (i.e. if adjusting Headphone Volume, decreases the volume). • The Left “<” button backs out of the menu one step at a time (see the menu tree). •... -
Page 11: Quick Setup Instructions
“<” and “>” to change channels. (Figure 7) 11. Listen with an FM receiver (see pages 20-21 for compatible Williams Sound receivers). Install the batteries, plug in the earphone, turn on the receiver, choose the correct channel and walk around the listening area. The signal should be clear and quite loud when the volume is turned up. -
Page 12: Front Screen Menu Tree (Quick Reference)
Personal PA DSP FM Wideband Transmitter ® Front Screen Menu Tree (Quick Reference) The default “MAIN INFO SCREEN” shows important overall system settings (see Figure 8). The menu screens are used to configure the T45 (Figures 10,11,12). To enter the menu, push the “Menu” button. Then use the Forward “>” and Down “v” buttons to navigate deeper into the menu. - Page 13 Personal PA DSP FM Wideband Transmitter ® Figure 11: Front-screen Menu Tree (continued) RF SETTINGS RF CHANNEL CH 1 - CH 17 RF OUTPUT POWER FULL MEDIUM RF TIME-OUT 30 MIN 4 HR ALWAYS ON PREFERENCES DISPLAY MODE FREQUENCY CHANNEL NUMBER CHANNEL MODE 17-CHANNEL 8-CHANNEL...
-
Page 14: Front Screen Menu Tree (Detailed Instructions)
DSP FM Wideband Transmitter ® Figure 12: Front-screen Menu Tree (continued) The Add-on module applies to the PPA T45NET model only. In the PPA T45 model, the first screen in the “Add-On Module” menu will display “No Module Detected”. ADD-ON MODULE STATUS? “Net Activity:Detected”... -
Page 15: High Pass Filter
Personal PA DSP FM Wideband Transmitter ® By default, the T45 is shipped in the Music mode. For music, concerts, and other applications where the highest audio quality is desirable, Music is the recommended mode of operation. For hearing assistance applications, or applications where the message is critical for listening, Hearing Assist is the recommended mode of operation. -
Page 16: 1B. Audio Source
Personal PA DSP FM Wideband Transmitter ® 4. Press the “>” button to access the Audio Presets. The current preset will be shown in the selection box. 5. Press the “v” button until “CUSTOM” is displayed in the selection box. 6. -
Page 17: 1C. Audio Input Gain
Personal PA DSP FM Wideband Transmitter ® 1c. Audio Input Gain The Audio Input Gain adjusts the incoming audio level into the T45. This adjustment only affects analog audio; it does not affect digital audio. Changes to the input level will affect the level indicated by the front panel LED’s when audio is present. To adjust the audio input level: 1. -
Page 18: Rf Settings
Personal PA DSP FM Wideband Transmitter ® 2. RF SETTINGS The RF Settings provide the ability to change the broadcasting Channel, RF Output Power level, and the RF time-out delay. 2a. Channel (or Frequency) The Channel setting allows the channel number or corresponding frequency to be selected. Note: this depends on what display mode the transmitter is in (see Step 3a). -
Page 19: 2C. Rf Time-Out
Personal PA DSP FM Wideband Transmitter ® To change the RF Output Power: 1. Press the Menu button. The display will show “AUDIO SETTINGS” in the selection box. 2. Press the “v” button to display “RF SETTINGS”. 3. Press the “>” button. “RF CHANNEL” will be displayed in the selection box. 4. -
Page 20: 3B. Channel Mode
The Description field allows the user to easily identify the transmitter. This typically comes into play when multiple transmitters are being used. The description appears on the front main info screen, and also on the web page (PPA T45NET only). In a rack, all the user has to do is activate the main info screen with a touch of any button on the front, and the description is displayed as one of the fields on the main info screen. -
Page 21: 3E. Restore Defaults
Personal PA DSP FM Wideband Transmitter ® To change the Description: 1. Press the Menu button. The display will show “AUDIO SETTINGS” in the selection box. 2. Press the “v” button repeatedly until “PREFERENCES” is displayed in the selection box. 3. -
Page 22: Add-On Module (Ppa T45Net Only)
4. ADD-ON MODULE (PPA T45NET only) The Add-On Module Settings show up in the menu only if the optional ethernet module is installed (PPA T45NET only). This menu provides the ability to view the Status of the add-on module, change the IP Address, change the IP Address Mode and set the Security Password. -
Page 23: 4D. Ip Address
Personal PA DSP FM Wideband Transmitter ® 7. When the mode has been chosen, press the Menu button to exit the menu and return to the main info screen. 8. If “DHCP” was chosen in step 7, the transmitter will need to be rebooted in order to get a new IP Address. The transmitter should have power removed and reapplied to reboot. -
Page 24: Network Setup For Hard-Wired Ethernet Devices (Laptop Or Desktop Pc)
(Laptop or Desktop PC) The PPA T45NET provides a web interface (set of web pages) to manage the transmitter settings. These web pages can be accessed over an ethernet network, either hard-wired (through a laptop or desktop PC) or wireless (through an iPad, Android tablet, or smart phone). - Page 25 Personal PA DSP FM Wideband Transmitter ® b. Open a web browser on the Laptop or Desktop PC. c. In the address bar, type in the address of the T45 (from the TCPIP Discoverer Tool) and hit “Enter”. d. When you connect to the T45, you should see the Login Page (see Figure 17). 6.
-
Page 26: Network Setup For Wireless Devices (Ipad, Android Tablet, Or Smart Phone)
(iPad, Android Tablet, or Smart Phone) The PPA T45NET provides a web interface (set of web pages) to manage the transmitter settings. These web pages can be accessed over an ethernet network, either hard-wired (through a laptop or desktop PC) or wireless (through an iPad, Android tablet, or smart phone). - Page 27 Personal PA DSP FM Wideband Transmitter ® d. Enter the Router Wi-Fi password you got from step 1. e. The wireless device should now indicate that you are “connected” to the router. f. Exit all the way out of the settings back to the home screen on the wireless device. 6.
-
Page 28: Web Control Interface
Web Control Interface The PPA T45NET provides a web interface (set of web pages) to manage the transmitter settings. These web pages can be accessed over an Ethernet network, either hard-wired or wireless, with most internet browsers. All transmitter settings can be accessed and changed through the front panel controls - and/or this web interface. - Page 29 Personal PA DSP FM Wideband Transmitter ® Figure 19: Web Interface - Audio Settings Page Audio Input Level (update speed may vary, and will be delayed when compared with the front panel LEDs) Audio Input Gain Adjust Audio Input Jack Select (includes Tone Generator as a selection) Audio Configuration Presets...
- Page 30 Personal PA DSP FM Wideband Transmitter ® Figure 21: Web Interface - Network Settings Page IP Address Mode Static IP Address Entry Apply changes button Figure 22: Web Interface - Admin Page A421 New Password entry Transmitter Description entry (appears on Home Page) Lock Settings Remote Reboot...
-
Page 31: Safety Information, Recycling Instructions
Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to a electronics recycling center; OR return the product to the factory for proper disposal. -
Page 32: Wideband Fm Receivers (Model Selection Is Optional)
1. Insert two (2) AA batteries ensuring correct polarity. If rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH switch inside the battery compartment is set to NiMH before charging. -
Page 33: Receiver Model Ppa R37
1. Insert two (2) AA batteries ensuring correct polarity. If rechargeable NiMH batteries are to be used with the receiver and a Williams Sound charger, make sure the Alkaline/NiMH switch inside the battery compartment is set to NiMH before charging. -
Page 34: Receiver Model Ppa R35-8
If stereo headphones are used, sound will be heard only in one side. The PPA R38 will work properly with stereo or mono headphones. Williams Sound evaluates each earphone and headphone used with the PPA R38, PPA R37 and... -
Page 35: Belt Clip Installation (All Receiver Models)
Personal PA DSP FM Wideband Transmitter ® Belt Clip Installation (All Receiver Models) To Install: Position the belt clip on the rear of the PPA R37, PPA R35-8, or PPA R38 receivers as shown in Figure 16. Turn the belt clip 180º left or right as shown in Figure 19. -
Page 36: Suggestions For Receiver Management
If the receiver sound becomes weak or distorted, replace the battery. The indicator light may remain on, even with a battery that is weak. Do not leave dead batteries in the receivers. The chart below shows typical battery life with Williams Sound’s 72-76 MHz... -
Page 37: Troubleshooting
• Check to see if the Audio Input level is set too high. If the “input overload” is illuminated, then the audio level needs to be adjusted. See page 10. • Check for ground loops or noise on the input signal. See page 9 for more information. Call your Authorized Williams Sound dealer or representative. - Page 38 6. Make sensitive equipment more immune to RFI/EMI. The manufacturers of your audio equipment may offer application notes for this purpose. Williams Sound offers a document giving suggestions for improving RF immunity in existing audio equipment (Technical Bulletin: Buzz Or Hum In The Sound System, FRM 531).
-
Page 39: Remote Control Is Not Working Over Wi-Fi
IP structure, and also does not conflict with any other device IP addresses on the network. 13. If you have tried all of these steps and still can’t connect, call Williams Sound for additional troubleshooting help. Note... -
Page 40: Remote Control Is Not Working Over Hard-Wired Ethernet Network
IP structure, and also does not conflict with any other device IP addresses on the network. 14. If you have tried all of these steps and still can’t connect, call Williams Sound for additional troubleshooting help. Note that Wlliams Sound cannot help in all cases, as there are many variables within networks. -
Page 41: System Specifications
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA T45 Transmitter Dimensions: 8.45” W x 8.25” D x 1.72”H (21.5 cm x 21 cm x 4.4 cm) Weight: Transmitter: 3.0 lbs (1.36 kg) Shipping Weight: 4.50 lbs (2.04 kg) (Transmitter, Power Supply, Antenna and packaging) Color: Black/Silver with black legends on the front, white legends on the back Rack Mount:... - Page 42 1/4” TRS stereo jack, mono signal, 15.7 mW, maximum in 33 Ω (level adjustable in menu 0 to -40 dB in 2 dB steps) Line Output: RCA jack (black), -10 dBV (.32 VRMS). Output impedance 100 Ω. Ethernet: RJ-45 on back of unit (PPA T45NET only) Approvals: FCC, RoHS2, WEEE, Industry Canada Warranty:...
-
Page 43: Ppa R38 Receiver
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA R38 Receiver Dimensions: 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries Color: Black/Silver. Black ABS Plastic case with Aluminum faceplate. Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable Battery Life:... -
Page 44: Ppa R35-8 Receiver
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA R35-8 Receiver Dimensions: 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries Color: Black Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hours battery life or Two (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx 32 hours battery life Current Consumption: Nominal 40 mA Operating Freq: 72-76 MHz, 8 channels: 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, or 75.9 MHz. -
Page 45: Ppa R37 Receiver
Personal PA DSP FM Wideband Transmitter ® System Specifications PPA R37 Receiver Dimensions: 4.1” x 2.85” x 1.38” (104 x 72 x 35mm) Weight: 4.6 oz (130 g) with batteries. 2.6 oz (73 g) without batteries Color: Black Battery Type: 2 AA Alkaline or 2 AA NiMH Battery Life: Two AA non-rechargeable alkaline batteries (BAT 001), approx. -
Page 46: Lifetime Plus Limited Warranty
Williams Sound shall not be liable to any person or entity for any medical expenses or any direct, incidental or consequential damages caused by any use, defect, failure or malfunctioning of the product, whether a claim for such damages is based upon warranty, contract, tort or otherwise, the sole remedy for any defect, failure or malfunction of the products is replacement of the product. - Page 47 Personal PA DSP FM Wideband Transmitter ® Notes...
- Page 48 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2013 Williams Sound, LLC • All Rights Reserved MAN 176B...
