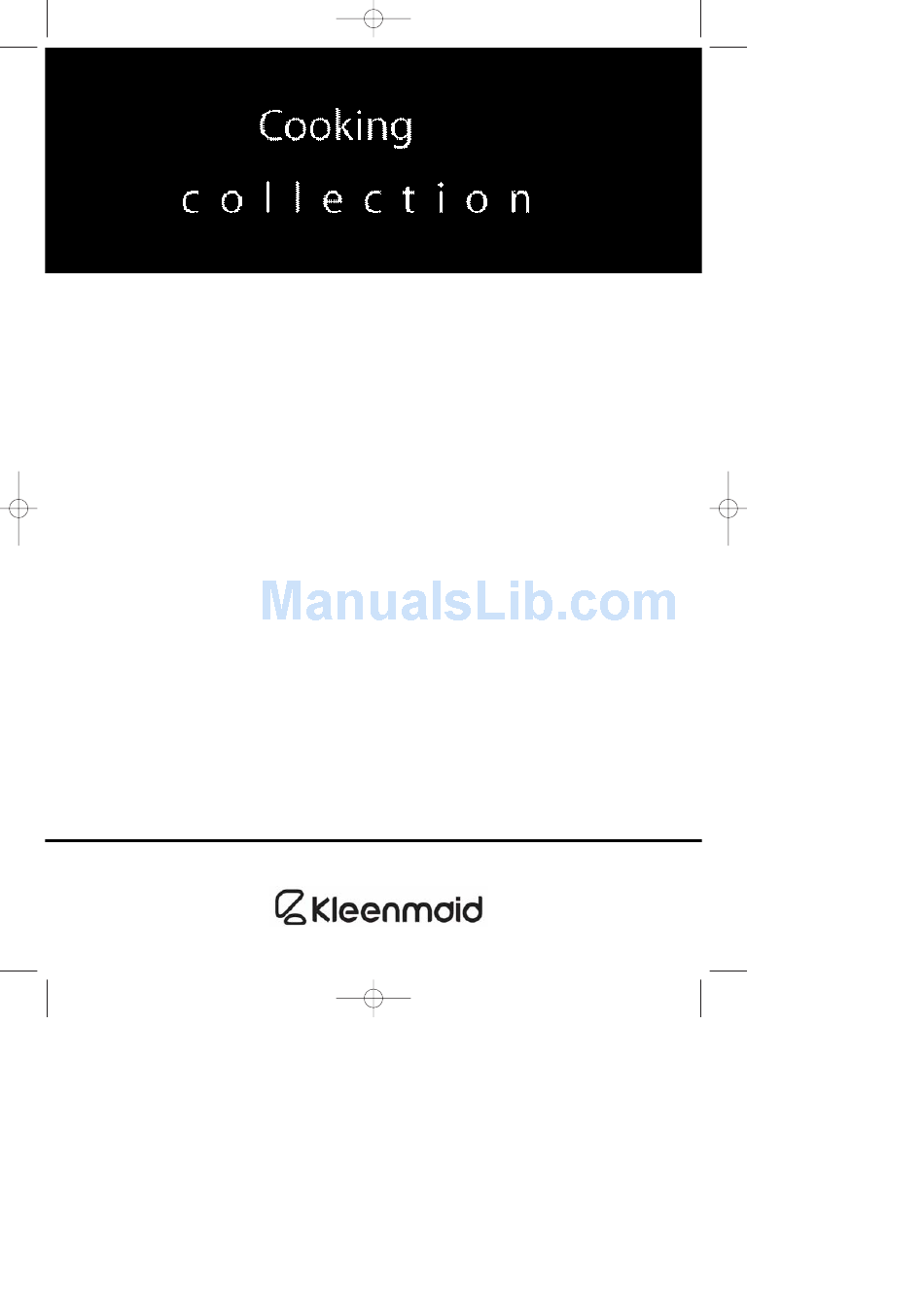

- Page 1 Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 1 Instructions for fitting and using your induction Warranty Details I I C C K K 6 6 6 6 X X - - 600 mm Induction Cooktop I I C C K K 8 8 0 0 X X - - 800 mm Induction Cooktop I I C C K K 9 9 0 0 X X - - 900 mm Induction Cooktop...
- Page 2 Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 2 ongratulations on the purchase of your new appliance. This appliance has been designed and manufactured to give you years of reliable performance. For best results, carefully read the instructions on how to install your new appliance. Correct installation will avoid delays and unnecessary service calls.
-
Page 3: Table Of Contents
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 3 TABLE OF CONTENTS Safety Guidelines ____________________________________________________ • Description of Your Appliance _________________________________________ • Environmental Protection _____________________________________________ • 1 / INSTALLING YOUR APPLIANCE Proper positioning ___________________________________________________ • Building in __________________________________________________________ • Hook-up ___________________________________________________________ • 2 / USING YOUR APPLIANCE Description of the top _________________________________________________ •... -
Page 4: Safety Guidelines
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 4 • • SAFETY GUIDELINES Electrical Danger Ensure that the power cables of any We have designed this cooking hob for use by electrical appliances plugged in close to private persons in their homes. the hob are not in contact with the cooking These cooking hobs are meant to be used zones. -
Page 5: Description Of Your Appliance
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 5 DESCRIPTION OF YOUR APPLIANCE • • Air intake Air outlet Vitroceramic glass Power cord • • ENVIRONMENTAL PROTECTION The packing materials can be recycled. Dispose of them in containers provided for this purpose based on their individual recycling sym- bols. -
Page 6: Installing Your Appliance
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 6 1 1 / INSTALLING YOUR APPLIANCE 5 5 2 2 6 6 0 0 / / 7 7 9 9 / / 9 9 4 4 6 6 . . 4 4 4 4 9 9 5 5 6 6 / / 7 7 5 5 / / 9 9 0 0 •... - Page 7 50mm below hob. according to these speci.cations (this is not • Cooktop must be isolated from under- supplied by Kleenmaid). bench area. Heat Shield edges to be sealed to surrounding surfaces W W A A R R N N I I N N G G : : T T h h e e i i n n d d u u c c t t i i o o n n c c o o o o k k t t o o p p c c a a n n n n o o t t b b e e i i n n s s t t a a l l l l e e d d a a b b o o v v e e a a f f r r i i d d g g e e , , d d i i s s h h w w a a s s h h e e r r o o r r w w a a s s - - •...
- Page 8 90 cm Induction Hob Power Connection (before April 2006) 23 March 2006...
- Page 9 90 cm Induction Hob Power Connection (after April 2006) 23 March 2006...
- Page 10 90 cm Induction Hob Power Connection (after April 2006) 23 March 2006...
-
Page 11: Hook-Up
09:34 Page 8 1 1 / INSTALLING YOUR APPLIANCE • • HOOK-UP ICK66X-ICK80X These hobs must be connected to the power grid via an electrical outlet that complies with EIC publication 60083 or an all-pole cut-off device that complies with installation regula- •... - Page 12 Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 9 1 1 / INSTALLING YOUR APPLIANCE HOOK-UP ICK90X • • The appliance is to be installed in compliance When power is first supplied to your hob, or with the current Australian Electrical Stan- after an extended power outage, an indicator dards.
-
Page 13: Description Of The Top
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 10 2 2 / USING YOUR APPLIANCE DESCRIPTION OF THE TOP • • Ø 18 cm Ø 21 cm 50 W - 2800 W 50 W - 3100 W I I C C K K 6 6 6 6 X X Ø... -
Page 14: Cookware For Induction
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 11 2 2 / USING YOUR APPLIANCE COOKWARE FOR INDUCTION WHICH COOKING ZONE • • • • SHOULD YOU USE BASED ON • • The induction principle YOUR COOKWARE? Cooking Cookware to use zone 1 1 6 6 c c m m 1 1 0 0 . -
Page 15: Description Of Control Panel
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 12 2 2 / USING YOUR APPLIANCE SETTING THE TIMER DESCRIPTION OF THE CONTROL • • • • PANEL The timer functions when the cooking zone in question is in use. To turn on the timer, press the - or + timer touch controls. -
Page 16: Safeties During Operation
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 13 2 2 / USING YOUR APPLIANCE SAFETY DURING OPERATION •Protection against overflows • • •Residual heat The hob may shut down (with After intensive use, the cooking zone that you the adjacent symbol in the have just used can remain hot for several min- display) automatically in any utes. -
Page 17: Daily Care Of Your Appliance
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 14 3 3 / DAILY CARE OF YOUR APPLIANCE • • PROTECTING YOUR APPLIANCE Do not store cleaning products or flammable products in the cabinet underneath your Avoid hard shocks from cookware: cooking hob. The vitroceramic glass worktop is very sturdy;... -
Page 18: Special Messages, Difficulties
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 15 4 4 / SPECIAL MESSAGES, DIFFICULTIES •During initial use YOU OBSERVE THAT: POSSIBLE CAUSES: WHAT SHOULD YOU DO: An indicator light appears. Working normally. Nothing. Your installation blows a fuse. Verify the connections. The electrical hook-up of your See the "Hook-Up"... -
Page 19: Cooking Chart
Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 16 6 6 / COOKING CHART COOKING CHART • • F F R R Y Y C C O O O O K K / / B B R R O O W W N N C C O O O O K K / / S S I I M M M M E E R R K K E E E E P P W W A A R R M M... - Page 20 Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 17 N N O O T T E E S S ..............................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 21 Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 18 N N O O T T E E S S ..............................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 22 Kleenmaid appliance, we guarantee that any fault caused by faulty material or workmans- hip becoming apparent will be rectified free of charge for parts and labour, provided that all service is performed during normal working hours by Kleenmaid or their designated Agents.
- Page 23 Copie de 99636771_EN_A.qxd 20/05/05 09:34 Page 20 Other products available in the Kleenmaid Range of appliances Washers Dryers Dishwashers Ovens Cooktops Outdoor Cooking Centres Built In Espresso Coffee Machines Rangehoods Freestanding Ranges Sinks Waste Disposals Taps Cookware Refrigerators Freezers Wine Cellars...
