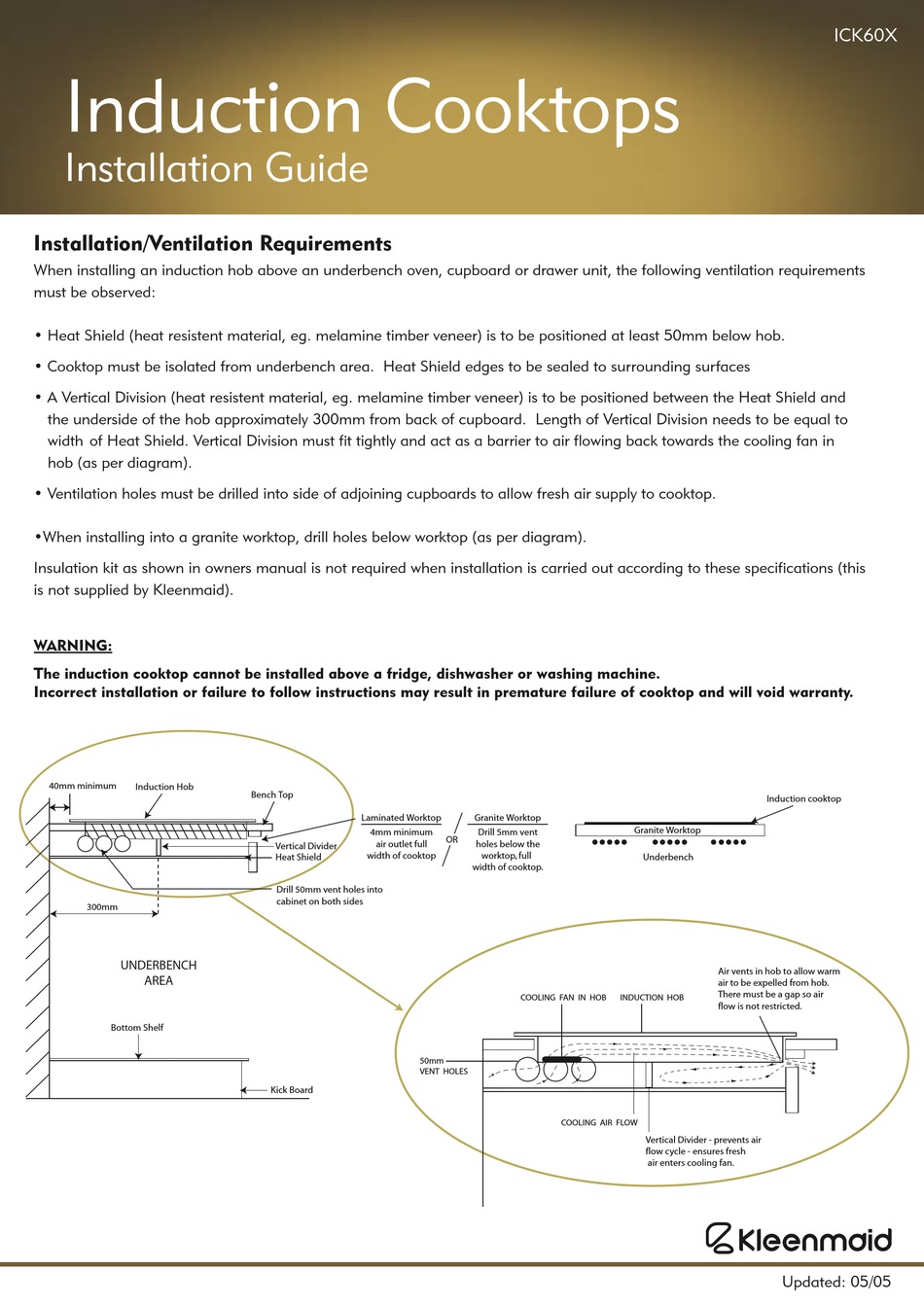

Kleenmaid ICK60X Installation Manual

Induction Cooktops

Installation Guide

Installation/Ventilation Requirements

When installing an induction hob above an underbench oven, cupboard or drawer unit, the following ventilation requirements

must be observed:

• Heat Shield (heat resistent material, eg. melamine timber veneer) is to be positioned at least 50mm below hob.

• Cooktop must be isolated from underbench area. Heat Shield edges to be sealed to surrounding surfaces

• A Vertical Division (heat resistent material, eg. melamine timber veneer) is to be positioned between the Heat Shield and

the underside of the hob approximately 300mm from back of cupboard. Length of Vertical Division needs to be equal to

width of Heat Shield. Vertical Division must ﬁt tightly and act as a barrier to air ﬂowing back towards the cooling fan in

hob (as per diagram).

• Ventilation holes must be drilled into side of adjoining cupboards to allow fresh air supply to cooktop.

•When installing into a granite worktop, drill holes below worktop (as per diagram).

Insulation kit as shown in owners manual is not required when installation is carried out according to these speciﬁcations (this

is not supplied by Kleenmaid).

WARNING:

The induction cooktop cannot be installed above a fridge, dishwasher or washing machine.

Incorrect installation or failure to follow instructions may result in premature failure of cooktop and will void warranty.

��

Updated: 05/05

ICK60X
