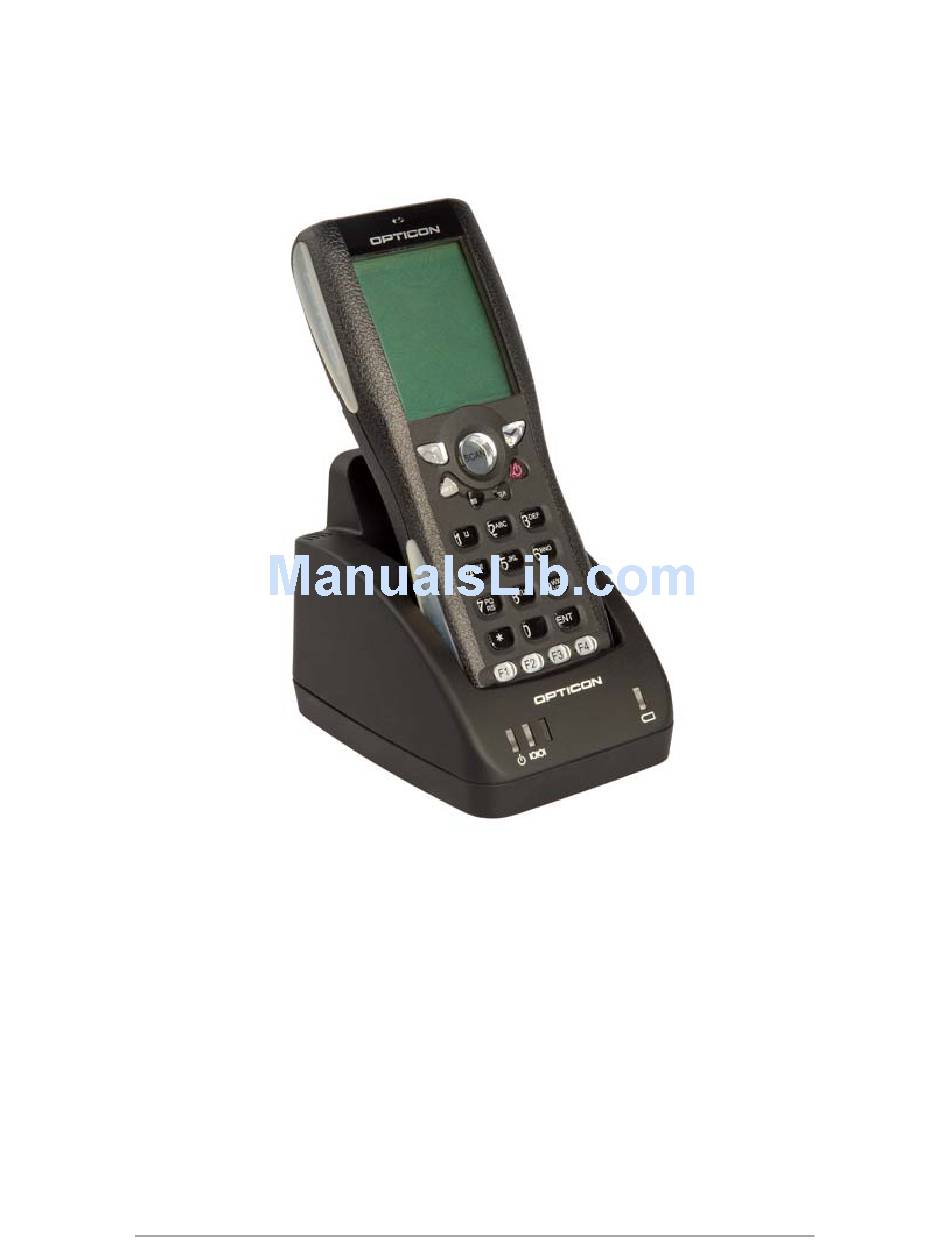

- Page 1 Graphical Demo Application Manual Version XFA30920 for OPH1000 (For Operating System versions XBAV0104 or higher) OPH1000 OPTICON RAPHICAL PPLICATION FOR...
- Page 2 Opticon will not be liable for modifications that are made by the customer. Opticon does not warrant that the software is free of errors, or that it will meet any user’s particular standards, requirements, or needs. Opticon will in no event be liable for any direct, indirect or incidental damages arising out of use of this software.
-
Page 3: Table Of Contents
ABLE OF CONTENTS Table of contents ABLE OF CONTENTS TRUCTURE Scan Labels Scroll data Transmit Data Delete Database System Menu Version ATA FORMAT OPH1000 OPTICON RAPHICAL PPLICATION FOR... -
Page 4: Keys
GRAPHICAL DEMO APPLICATION - PAGE 4 Keys The OPH1000 has full alphanumeric keypad with some additional control keys including the following: The Q1 key (Up key) or left key (with shift) The Trigger key. The Q2 key (Down key) or right key (with shift) -
Page 5: The Menu Structure
ENT or (Trigger) button. Direct selection of the menu is also possible by pressing the numeric equivalent of the menu item. Below is the schematic representation of the OPH1000 menu. • 1 Scan Labels •... -
Page 6: Scan Labels
(0). To make a negative value positive, repeat the same process. To enter the input press the (ENT) or (Trigger) keys. If the Total + Add quantity is 0 (zero) the record is deleted from the database. OPH1000 OPTICON RAPHICAL PPLICATION FOR... -
Page 7: Scroll Data
After entering the quantity the application returns to the scan barcode screen. Scroll data This option allows you to scroll through the database of stored codes. To navigate through the inputted data use the (Q1) and (Q2) keys. OPH1000 OPTICON RAPHICAL PPLICATION FOR... -
Page 8: Transmit Data
Stopbits: Default = 1 When the transmit data message appears on the display put the OPH1000 in the cradle. You must run an application to receive the data on the PC Following a transmission, a message appears to inform you whether is was successful or not. -
Page 9: Delete Database
GRAPHICAL DEMO APPLICATION - PAGE 9 Delete Database You may select this menu item if you wish to delete the entire database from the OPH1000 You are then asked to confirm your choice. You can now press (ENT) to delete the database or (CLR) to cancel and return to the previous screen. -
Page 10: System Menu
The navigation of this menu behaves the same as the main menu. The system menu consist of 6 items: • Com Port • Protocol • Display • Barcodes • Memory • Drive When the (CLR) button is selected, the application returns to the main menu. OPH1000 OPTICON RAPHICAL PPLICATION FOR... - Page 11 4. Databits 5. Stopbits The Port setting controls how you connect your device to the PC. The OPH1000 supports two methods including IrDA and Cradle. The default setting is Cradle. The Baudrate menu allows you to select a baudrate from a set of standards.
- Page 12 You can choose from: 1. 7 2. 8 (Default) The Stopbits menu allows you to select the number of stopbits your code uses. You may choose from: 1. 1 (Default) 2. 2 OPH1000 OPTICON RAPHICAL PPLICATION FOR...
- Page 13 Unchecked = protocol disabled By selecting a new protocol the previous selected protocol is disabled. The Display menu allows you to change the contrast of the OPH1000 display You may use the (Q1) key to make the screen darker and the (Q2) to make the screen lighter.
- Page 14 (Default) • Code 11 • Korean Post • RSS-14 • RSS-Limited • RSS-Expanded • PDF417 (Default) • MicroPDF417 (Default) • All Add-Ons By enabling all Add-Ons the add-ons for all supported barcode types are enabled. OPH1000 OPTICON RAPHICAL PPLICATION FOR...
- Page 15 RAM disk is almost full, data is stored. RAM disk is full, data is not stored. The Drive menu allows you to select the default drive for file storage. You may choose between the following: 1. Internal RAM (Default) 2. Memory Card OPH1000 OPTICON RAPHICAL PPLICATION FOR...
-
Page 16: Version
GRAPHICAL DEMO APPLICATION - PAGE 16 Version The version menu allows you to view the current software version. The software version of this application. OPH1000 OPTICON RAPHICAL PPLICATION FOR... -
Page 17: Data Format
<Date stamp: 10 characters, format DD/MM/YYYY> The record fields are separated by a comma and all records end with a <CR><LF> character. A complete record looks like this: <Barcode>,<Quantity>,<Time>,<Date><CR><LF> The maximum of 999999 records can be stored on this terminal. OPH1000 OPTICON RAPHICAL PPLICATION FOR... - Page 18 GRAPHICAL DEMO APPLICATION - PAGE 18 OPH1000 OPTICON RAPHICAL PPLICATION FOR...
