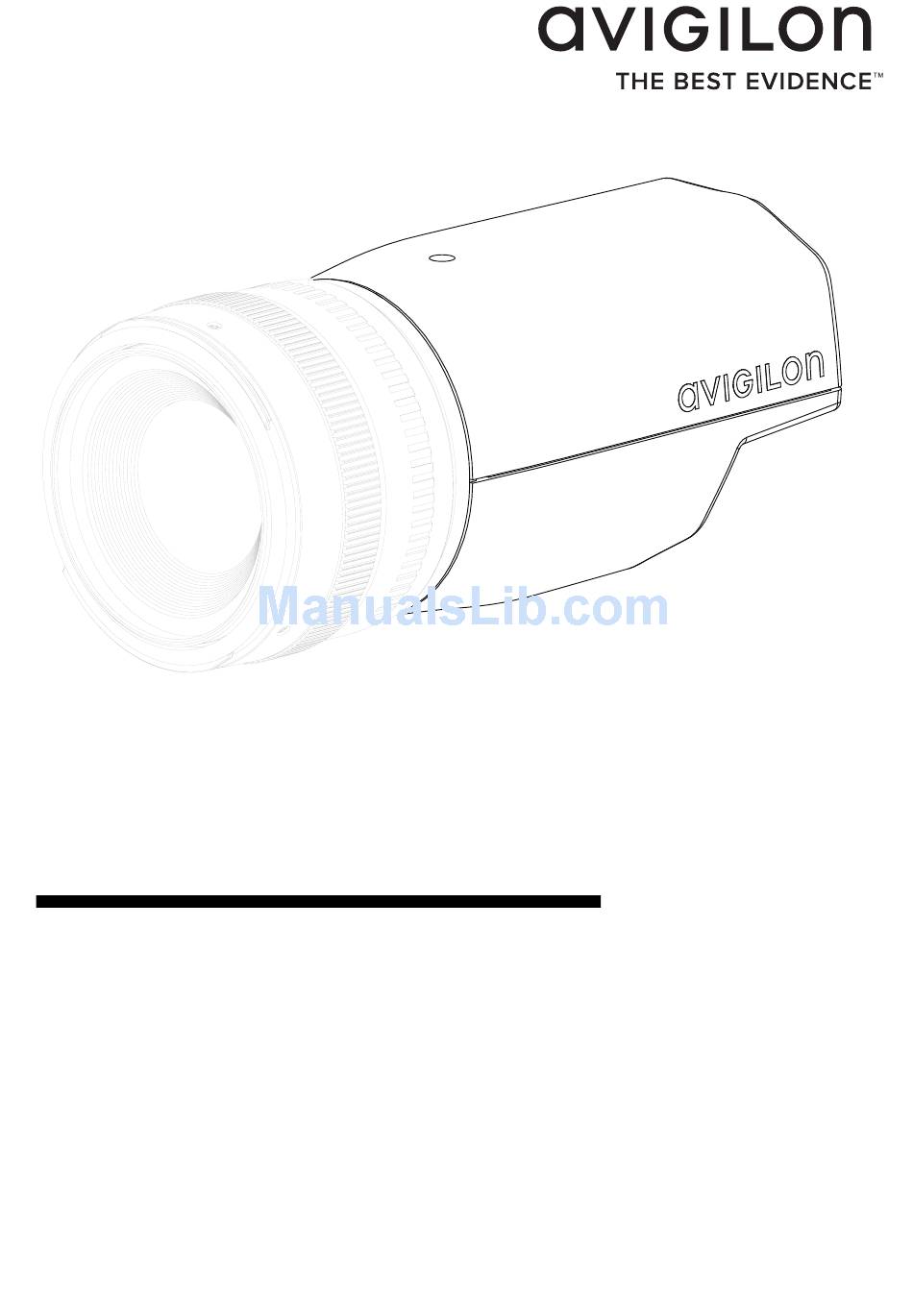

Page 1: Installation Guide
Installation Guide Avigilon High Definition Professional IP Camera Models: 16L-H4PRO-B, 12L-H4PRO-B and 8L-H4PRO-B 920-0078A-Rev1... -
Page 3: Important Safety Information
Do not expose to rain or moisture. • For indoor use only. If used outdoors, an approved outdoor mounting adapter or enclosure is required. Consult with Avigilon for more information. • Installation must be performed by qualified personnel only, and must conform to all local codes. - Page 4 • Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated. • Do not connect directly to mains power for any reason.
-
Page 5: Regulatory Notices
Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. -
Page 6: Legal Notices
The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be... -
Page 7: Table Of Contents
Table of Contents Overview ........1 Front View ........1 Rear View . -
Page 9: Overview
Overview Front View Lens Release Button Lens Mount EF-S mount index EF mount index Feature Description Lens Mount Accepts EF and EF-S lenses. Lens Release Releases the lens that is mounted on the camera. Button EF-S mount A white mark on the lens mount to help you align index an EF-S lens to the camera. -
Page 10: Rear View
Rear View Camera Mounts (top and bottom) Connector Block SD Card Slot Power Connector Block Ethernet Port Serial Number Link LED Connection Status LED Audio I/O Connector Feature Description Camera Mounts Provides mounting points for the camera. Mounts accept 1/4”-20 UNC bolts commonly found on tripods and mounting brackets. -
Page 11: Installation
— for connecting power when not using Power over Ethernet. • Mounting bracket, enclosure or tripod. Camera Package Contents Ensure the package contains the following: • Avigilon High Definition IP Camera • Power terminal block • Dust cap • I/O terminal block Installation Steps Complete the following procedures to install the camera. -
Page 12: Mounting The Lens
To avoid poor image quality caused by incorrect lens selection, only use lenses that are recommended by Avigilon for use with this camera model. For a list of lenses recommended for use with this camera model, contact your Avigilon dealer or representative. -
Page 13: Mounting The Camera
Caution — • Never touch the image sensor or any glass elements inside the lens mount. Only clean the image sensor with the recommended cleaning tools. See Cleaning for more information. • Do not allow dust, moisture or any other foreign debris to enter the lens mount. -
Page 14: Connecting Cables
Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper operation, complete the following: If there are external input or output devices that need to be connected to the camera (for example: door contacts, relays, etc), connect the devices to the camera I/O Terminals. -
Page 15: Accessing The Live Video Stream
NOTE: The default camera username is admin and the default password is admin. Aiming and Focusing the Camera Use the Avigilon Camera Installation Tool or camera web interface to aim and focus the camera. Consult the software user guide for more information. -
Page 16: (Optional) Configuring Onboard Storage
If the lens has an auto focus (AF) mode, set the lens switch to the AF position to allow the camera web interface or Avigilon Camera Installation Tool to control the camera’s focus. In the Image and Display settings page, use the Auto Focus button to focus the lens. -
Page 17: For More Information
Additional information about setting up and using the device is available in the following guides: Avigilon Camera Installation Tool User Guide • • Avigilon Control Center Client User Guide • Avigilon High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/ support-and-downloads. -
Page 18: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. -
Page 19: Connecting To External Devices
Connecting to External Devices External devices are connected to the camera through the I/O terminal. The pinout for the I/O terminal is shown in the following table and diagram. Table: External I/O Connector Description Ground RS-485B RS-485A Relay input Relay output +5 VDC, 200 mA max. -
Page 20: Connecting To Microphones And Speakers
Connecting to Microphones and Speakers The camera can be connected to an external microphone and speaker through the audio connector. The connector is a mini-jack (3.5 mm), and the pinout for it is shown in the following diagram. NOTE: The camera only supports line level mono audio input. Audio OUT Audio IN Figure: Mini-jack audio connector. -
Page 21: Led Indicators
LED Indicators Once the camera is connected to the network, the Connection Status LED will display the camera’s progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Table:LED Indicators Connection Connection Description State Status LED Obtaining IP... -
Page 22: Reset To Factory Default Settings
Reset to Factory Default Settings If the camera no longer functions as expected, you can choose to restore the camera to its factory default settings. Use the firmware revert button to reset the camera. Firmware Revert Button Figure: The firmware revert microswitch on the rear of the camera. Disconnect power from the camera. -
Page 23: Setting The Ip Address Through The Arp/Ping Method
Setting the IP Address Through the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. Open a Command Prompt window and enter the following commands: arp -s <New Camera IP Address>... -
Page 24: Cleaning
Follow the cleaning instructions provided by the manufacturer. Avigilon recommends using the Type 2 Sensor Swab™ and Eclipse® cleaning solution made by Photographic Solutions, Inc. For a worldwide list of dealers, visit the Photographic Solutions, Inc. website at www.photosol.com. -
Page 25: Body
Body Use a dry or lightly dampened cloth to clean the camera body. Caution — Do not use strong or abrasive detergents when cleaning the camera body. -
Page 26: Specifications
Specifications Camera Audio Input/Output Line level, mini-jack (3.5 mm) Onboard Storage SD/SDHC/SDXC slot - minimum class 6; class 10, 64GB or better recommended Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log Protocols IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP... -
Page 27: Limited Warranty & Technical Support
This warranty states Avigilon’s entire liability and your exclusive remedy against Avigilon for any failure of this product to operate properly. In no event shall Avigilon be liable for any indirect, incidental, special,...
