Installation Guide

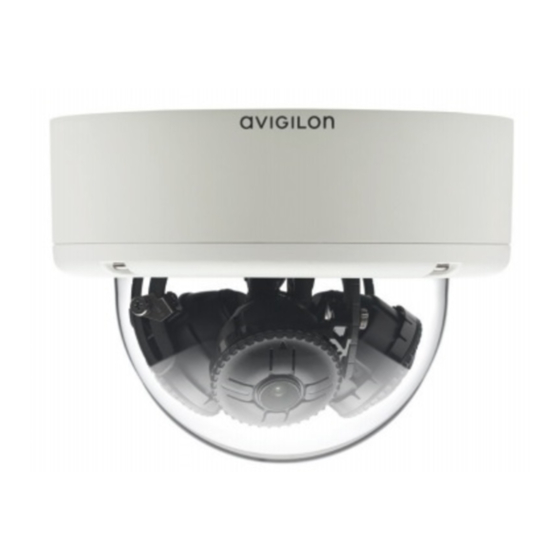

Avigilon™ HD Multisensor Dome Camera Models:
12W-H3-4MH-DO1 and 9W-H3-3MH-DO1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12W-H3-4MH-DO1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avigilon 12W-H3-4MH-DO1

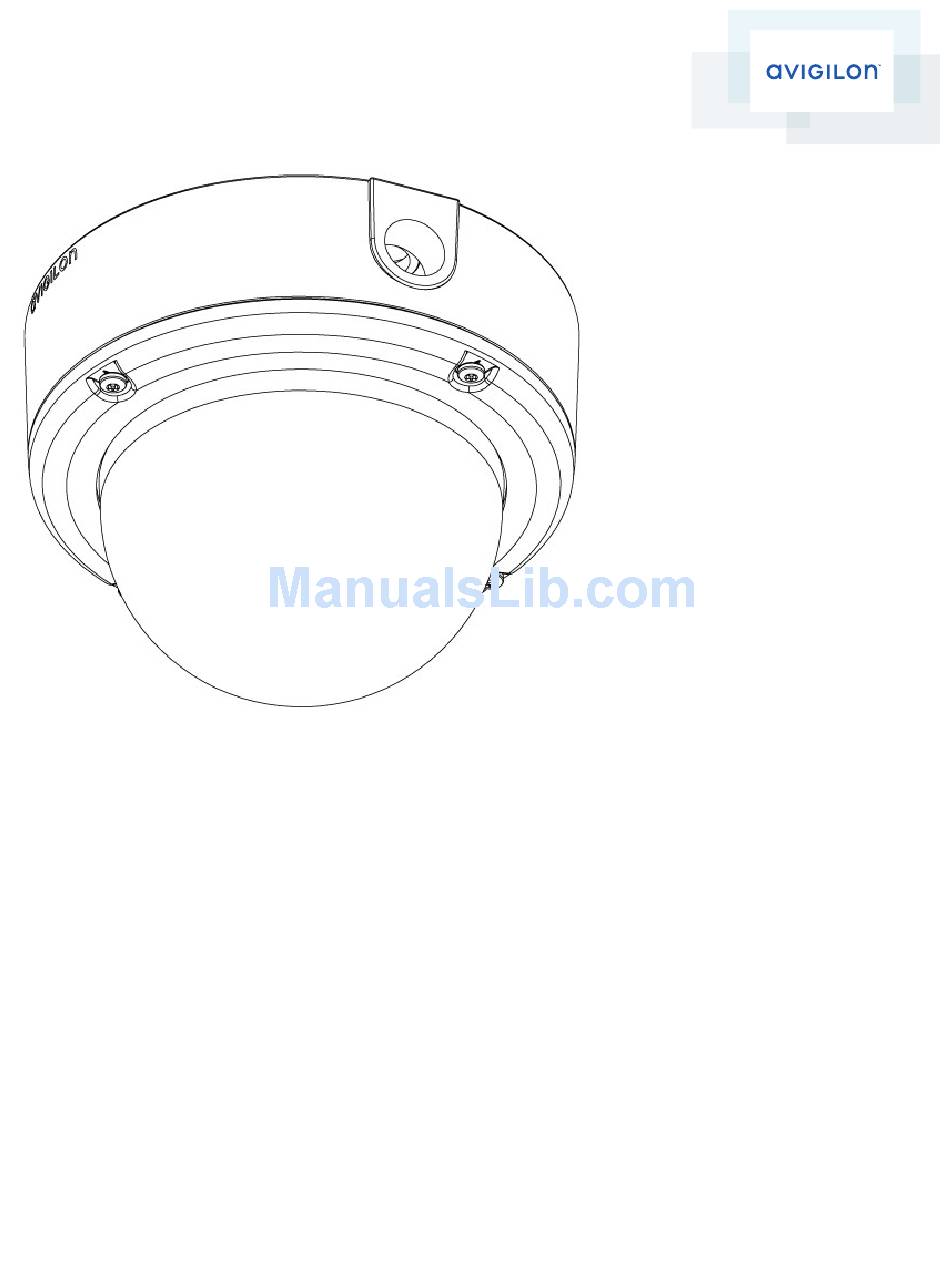

  • Page 1: Installation Guide

    Installation Guide Avigilon™ HD Multisensor Dome Camera Models: 12W-H3-4MH-DO1 and 9W-H3-3MH-DO1...
  • Page 2: Important Safety Information

    Power over Ethernet (PoE) IEEE802.3at Type 2 compliant Power Sourcing Equipment (PSE) rated 50-57 VDC, 25.5 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
  • Page 3: Regulatory Notices

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
  • Page 4 Legal Notices © 2015 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors. AVIGILON and the Avigilon logo are registered and/or unregistered trademarks of Avigilon Corporation in Canada and other jurisdictions worldwide.
  • Page 5: Table Of Contents

    Table of Contents Overview Base View Camera View Installation Camera Package Contents Precautions for Installing Near Salt Water Installation Steps Preparing the Camera for Installation Mounting the Base Connecting Cables (Optional) Configuring Onboard Storage Installing the Camera Module Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera Installing the Dome Cover...
  • Page 6: Overview

    Overview Base View 1. Mounting Holes Mounting points for the camera. 2. I/O Connector Block Provides connections to external input/output devices. Overview...
  • Page 7 3. Cable Retaining Eyelet Small tab to hold wrapped cables in place. 4. Cable Entry Hole An entry hole for network, power and I/O cables. 5. Power Connector Block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available.
  • Page 8: Camera View

    Camera View 1. Serial Number Tag Product serial number and part number label. 2. Configuration Ethernet Port A secondary Ethernet port for configuring the camera. Does not accept PoE. 3. Link LED Indicates if there is an active connection in the Ethernet port. 4.
  • Page 9: Installation

    Follow these precautions to avoid camera issues when installing in a salt heavy environment: Use mounting accessories offered by Avigilon. All Avigilon accessories are tested to work with Avigilon cameras in the rated environments.
  • Page 10: Preparing The Camera For Installation

    Installing the Camera Module Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera Installing the Dome Cover CAUTION — The dome camera must be mounted as instructed below or problems with moisture may arise and will not be covered by the dome camera warranty. Preparing the Camera for Installation NOTE: Be careful not to scratch the dome bubble.
  • Page 11: (Optional) Configuring Onboard Storage

    1. If an external microphone or speaker is required, connect the devices to the audio connector. 2. Connect a network cable to the camera’s Ethernet Port (RJ-45 connector). a. Loosen the cable retaining eyelet and rotate it out of the cable track. b.
  • Page 12 The SD card can only be inserted in the orientation shown on the camera. 2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. (Optional) Configuring Onboard Storage...
  • Page 13: Installing The Camera Module

    Installing the Camera Module 1. Attach the safety lanyard from the base to the anchor on the camera module. 2. Align the arrow on the base with the arrow on the camera module. The arrows must be aligned or the camera will not fit properly into the base.
  • Page 14: Assigning An Ip Address

    ARP/Ping method. For more information, see Setting the IP Address Using the ARP/Ping Method on page 17 Network Video Management software application (for example, Avigilon™ Control Center). NOTE: The default camera username is admin and the default password is admin. Assigning an IP Address...
  • Page 15: Accessing The Live Video Stream

    Live video stream can be viewed using one of the following methods: Web browser interface: http://<IP address>/ Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin.
  • Page 16: Installing The Dome Cover

    For More Information Additional information about setting up and using the device is available in the following guides: Avigilon™ Control Center Client User Guide Avigilon™ High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/support-and-downloads...
  • Page 17: Cable Connections

    Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the device needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The device can be powered from 24 V DC or 24 V AC.
  • Page 18: Connecting To Microphone And Speakers

    1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA.
  • Page 19 1. Audio IN 2. Audio OUT 3. GND 4. GND Connecting to Microphone and Speakers...
  • Page 20: Led Indicators

    LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address.
  • Page 21: Resetting To Factory Default Settings

    Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. NOTE: Be careful not to scratch the dome bubble. Figure 1: The firmware revert button.
  • Page 22: Setting The Ip Address Using The Arp/Ping Method

    Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a.
  • Page 23: Cleaning

    Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints Use a microfiber cloth or non-abrasive fabric to dry the dome bubble.
  • Page 24: Specifications

    Specifications Camera 12W-H3-4MH-DO1 – 4 x 3MP 2.8-8 mm, F1.3, P-iris Lens 9W-H3-3MH-DO1 – 3 x 3MP 2.8-8 mm, F1.3, P-iris Audio Input/Output Line level input and output Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network...
  • Page 25 Environmental -40 °C to +50 °C (-40 °F to 122 °F) with external power or IEEE 802.3at Type 2 PoE Plus Operating Temperature -20 °C to +50 °C (-4 °F to 122 °F) with IEEE 802.3af Class 3 PoE power Storage -10 °C to +70 °C (14 °F to 158 °F) Temperature...
  • Page 26: Limited Warranty & Technical Support

    Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.

This manual is also suitable for:

9w-h3-3mh-do1
