Page 1: Installation Guide

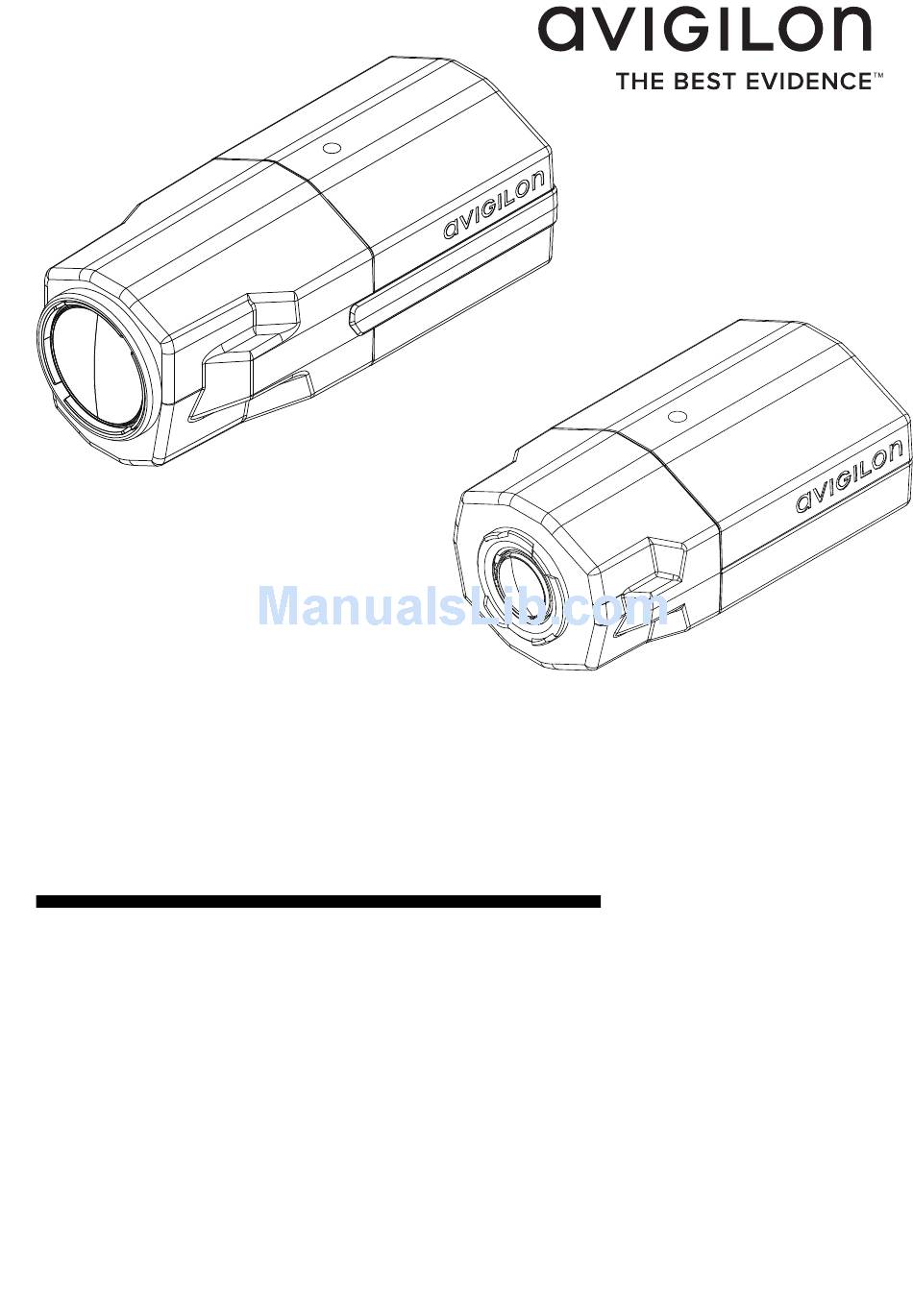

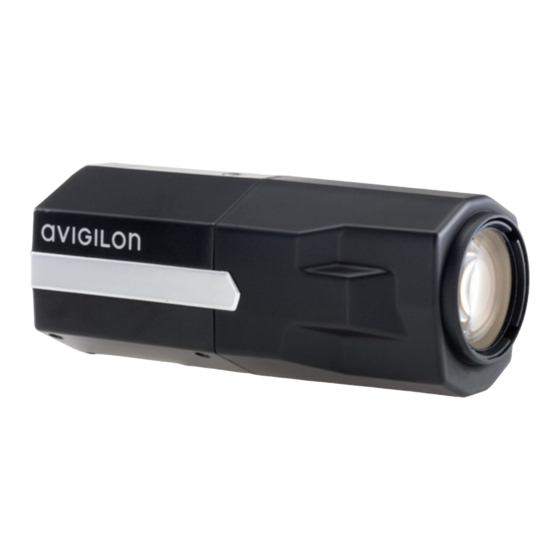

Installation Guide Avigilon High Definition H.264 IP Camera Models: 1.0-H3-B1, 1.0-H3-B2, 1.0-H3-B3, 1.3L-H3-B2, 2.0-H3-B1, 2.0-H3-B2, 2.0-H3-B3, 3.0W-H3-B2, 3.0W-H3-B3, 5.0-H3-B2 and 5.0-H3-B3 920-0079A-Rev1... -
Page 3: Important Safety Information
Do not expose to rain or moisture. • For indoor use only. If used outdoors, an approved outdoor mounting adapter or enclosure is required. Consult with Avigilon for more information. • Installation must be performed by qualified personnel only, and must conform to all local codes. - Page 4 • Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated. • Do not connect directly to mains power for any reason.
-
Page 5: Regulatory Notices
Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. - Page 6 European Union: This symbol means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human...
- Page 7 The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be...
-
Page 9: Table Of Contents
Table of Contents Overview ........1 Front View ........1 Rear View . -
Page 11: Overview
Overview Front View Camera Mount (Top and Bottom) Camera Mount Serial (Top and Bottom) Number Tag Serial Number Tag Feature Description Camera Mounts Mounting points for the camera. Mounts accept ¼” - 20 UNC bolts commonly found on mounting brackets. Serial Number Tag Product serial number and part number label. -
Page 12: Rear View
Rear View I/O Terminals Audio/Video Connector Link LED Connection Status LED Power Connector Block Ethernet Port SD Card Slot Feature Description I/O Terminals Provides connections to external input/output devices. Audio/Video Accepts a mini-jack connector (3.5 mm). See the section about Connector connecting microphones and monitors for more information. -
Page 13: Installation
• Mounting bracket, enclosure or tripod. Camera Package Contents Ensure the package contains the following: • Avigilon High Definition IP Camera • Terminal block Installation Steps Complete the following procedures to install the camera. Mounting the Camera on page 3... -
Page 14: Connecting Cables
Warning — Use only UL-listed mounting bracket suitable for the mounting surface and minimum 0.7 kg (1.5 lb) weight. Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. To connect the cables required for proper operation, complete the following: If there are external input or output devices that need to be connected to the camera (for example: door contacts,... -
Page 15: Assigning An Ip Address
NOTE: The default camera username is admin and the default password is admin. Aiming and Focusing the Camera Use the Avigilon Camera Installation Tool or camera web browser interface to aim and focus the camera. Consult the software user guide for more information. -
Page 16: (Optional) Configuring Onboard Storage
(Optional) Configuring Onboard Storage To use the camera’s onboard storage feature, you must insert an SD card into the SD card slot. Avigilon offers a line of SD cards that have been fully tested with this camera to ensure optimal SD card performance. -
Page 17: For More Information
Additional information about setting up and using the device is available in the following guides: Avigilon Camera Installation Tool User Guide • • Avigilon Control Center Client User Guide • Avigilon High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/ support-and-downloads. -
Page 18: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. -
Page 19: Connecting To External Devices
Connecting to External Devices External devices are connected to the camera through the I/O terminal. The pinout for the I/O terminal is shown in the following table and diagram. Table:External I/O Terminals Function Description Ground Ground Input To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. -
Page 20: Connecting To Microphones, Speakers And Video Monitors
When the camera flicker control is set to 60 Hz, the video output signal is NTSC. When the flicker control is set to 50 Hz, the video output signal is PAL. Use the Avigilon Camera Installation Tool to configure the camera’s flicker control in the Image and Display setup. -
Page 21: Led Indicators
LED Indicators Once the camera is connected to the network, the Connection Status LED will display the camera’s progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Table:LED Indicators Connection Connection Description State Status LED Obtaining IP... -
Page 22: Reset To Factory Default Settings
Reset to Factory Default Settings If the camera no longer functions as expected, you can choose to restore the camera to its factory default settings. Use the firmware revert button to reset the camera. Firmware Revert Button Figure: The firmware revert microswitch on the rear of the camera. Disconnect power from the camera. -
Page 23: Setting The Ip Address Through The Arp/Ping
Setting the IP Address Through the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. Open a Command Prompt window and enter the following commands: arp -s <New Camera IP Address>... -
Page 24: Specifications
Specifications H3-B1 H3-B2 H3-B3 Camera Audio Input Line input, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) Lens 4.7-84.6mm, F1.6, auto iris 3-9mm, F1.2, P-Iris 9-22mm, F1.6, P-Iris Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network Network 100Base-TX... -
Page 25: Limited Warranty & Technical Support
