Installation Guide

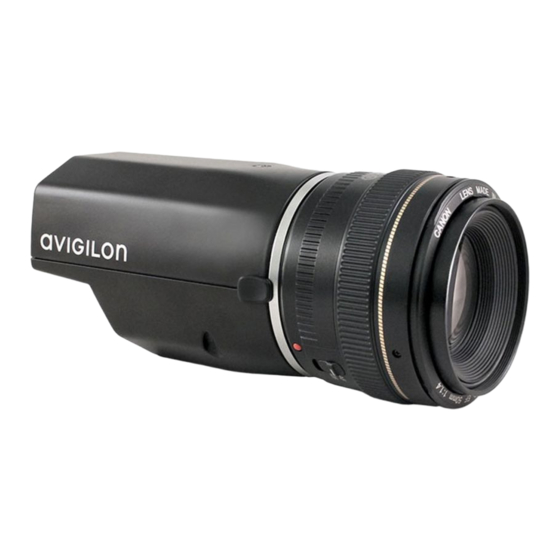

Avigilon™ High Definition Professional IP Camera Models:
30L-H4PRO-B, 24L-H4PRO-B, 16L-H4PRO-B, 12L-H4PRO-B and
8L-H4PRO-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30L-H4PRO-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Avigilon 30L-H4PRO-B

  • Page 1: Installation Guide

    Installation Guide Avigilon™ High Definition Professional IP Camera Models: 30L-H4PRO-B, 24L-H4PRO-B, 16L-H4PRO-B, 12L-H4PRO-B and 8L-H4PRO-B...
  • Page 2 Power Source” with output rated 12 VDC or 24 VAC, 13 W min. or Power over Ethernet (PoE), rated 48 VDC, 13 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
  • Page 3: Fcc Notice

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
  • Page 4: Legal Notices

    © 2014 - 2016, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. Other product names mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark.
  • Page 5: Table Of Contents

    Table of Contents Overview Front View Rear View Installation Required Tools and Materials Camera Package Contents Installation Steps Mounting the Lens Mounting the Camera Connecting Cables Assigning an IP Address Accessing the Live Video Stream Aiming and Focusing the Camera (Optional) Configuring Onboard Storage For More Information Cable Connections Connecting External Power...
  • Page 6: Overview

    3. EF-S mount index A white mark on the lens mount to help you align an EF-S lens to the camera. NOTE: This mark may appear on models 30L-H4PRO-B and 24L-H4PRO-B. EF-S lenses are not supported by these models. 4. EF mount index A red mark on the lens mount to help you align the EF lens to the camera.
  • Page 7: Rear View

    Rear View 1. Camera mounts Provides mounting points for the camera. Mounts accept 1/4”-20 UNC bolts commonly found on tripods and mounting brackets. 2. SD card slot Accepts an SD card for onboard storage. 3. Power connector block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available.
  • Page 8 Provides information about camera operation. For more information, see LED Indicators on page 10. 7. Audio I/O connector Accepts a mini-jack connector (3.5 mm). 8. Serial number tag Device information, product serial number and part number label. 9. I/O connector block Provides connections to external input/output devices.
  • Page 9: Installation

    Aiming and Focusing the Camera (Optional) Configuring Onboard Storage Mounting the Lens Models 30L-H4PRO-B and 24L-H4PRO-B may have both EF and EF-S indices on the lens mount. These models do not support EF-S lenses. Use only EF lenses with these camera models. Installation...
  • Page 10: Mounting The Camera

    To avoid poor image quality caused by incorrect lens selection, only use lenses that are recommended by Avigilon for use with this camera model. For a list of lenses recommended for use with this camera model, contact your Avigilon dealer or representative.
  • Page 11: Connecting Cables

    NOTE: The default camera username is admin and the default camera password is admin. Aiming and Focusing the Camera Use the Avigilon Camera Installation Tool or camera web interface to aim and focus the camera. Consult the software user guide for more information.
  • Page 12: (Optional) Configuring Onboard Storage

    2. If the lens has an auto focus (AF) mode, set the lens switch to the AF position to allow the camera web interface or Avigilon Camera Installation Tool to control the camera’s focus. a. Click Auto Focus to focus the lens.
  • Page 13: Cable Connections

    Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The power consumption information is listed in the product specifications.
  • Page 14: Connecting To Microphone And Speakers

    Figure 1: Example application. 1. Ground 2. RS-485B 3. RS-485A 4. Relay input 5. Relay output 6. +5 VDC, 200 mA max. output for relay drive 0 — External device * — Relay ** — Switch NOTE: The 5 V connection can be used to energize a relay coil with up to 200 mA. If more than 200 mA is required, an external power supply up to 25 VDC at 120 mA can be used.
  • Page 15: Led Indicators

    LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address.
  • Page 16: Resetting To Factory Default Settings

    Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. The firmware revert button is shown in the following diagram: Figure 2: The firmware revert button on the rear of the camera.
  • Page 17: Setting The Ip Address Using The Arp/Ping Method

    Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a.
  • Page 18: Cleaning

    Cleaning Image Sensor The image sensor is protected from contamination by protective glass. However, the protective glass can be contaminated by dust and other debris. To clean the protective glass, perform the following steps: 1. Remove the lens or dust cap. 2.
  • Page 19: Body

    Body Use a dry or lightly dampened cloth to clean the camera body. CAUTION — Do not use strong or abrasive detergents when cleaning the camera body. Body...
  • Page 20: Specifications

    Dimensions L x W x H 109 mm x 73 mm x 68 mm ( 4.3” x 2.9” x 2.7” ) 0.37 kg (0.8 lbs) (8L-H4PRO-B, 12L-H4PRO-B, and 16L-H4PRO-B) Weight 0.39 kg (0.85 lbs) (24L-H4PRO-B and 30L-H4PRO-B) Camera Mount ¼”-20 UNC (top and bottom)
  • Page 21 UL 60950-1 CSA 60950-1 Safety EN 60950-1 IEC/EN 60590-1 FCC Part 15 Subpart B Class B EN 55022 Class B IC ICES-003 Class B Electromagnetic EN 61000-6-3 Emissions EN 61000-3-2 EN 61000-3-3 KN 22 EN 55024 Electromagnetic EN 61000-6-1 Immunity KN 24 Specifications...
  • Page 22: Limited Warranty And Technical Support

    Limited Warranty and Technical Support Avigilon warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.

This manual is also suitable for:

24l-h4pro-b16l-h4pro-b12l-h4pro-b8l-h4pro-b
