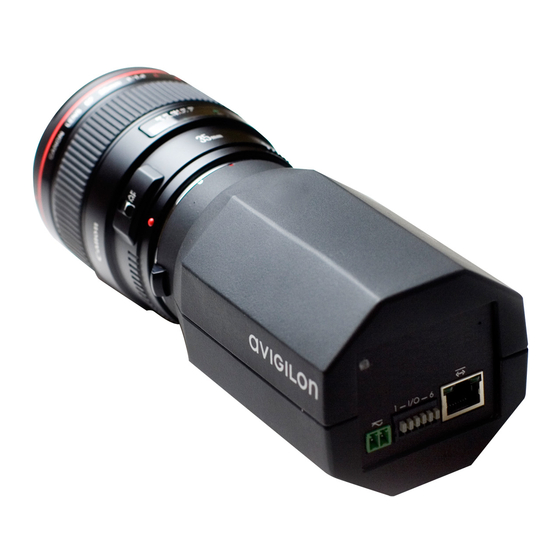

Page 1 * lens sold separately Operating and Installation Instructions Avigilon High Definition Professional IP Camera Models 16MP-HD-PRO-C, 16MP-HD-PRO-M, 11MP-HD-PRO-C, 11MP-HD-PRO-M, 4.2MP-HD-PRO-C, 4.2MP-HD-PRO-M, 4.2MP-HD-PRO-M, 2.0MP-HD-PRO-C, and 2.0MP-HD-PRO-M Avigilon Corporation Vancouver, BC Canada, V6H 4E4 604.629.5182 604.629.5183 avigilon.com...
Page 2 This page is intentionally left blank.
Page 3: Table Of Contents
Contents Important Safety Information Regulatory Notices FCC Notice Disposal and Recycling Information Other Notices Compilation and Publication Notice Intellectual Property Notice Overview Rear View Front View Installation Installation Steps Package Contents Required Tools and Materials Mounting the Lens Mounting the Camera Connecting Power Aiming and Focusing the Camera Connecting the Camera to a Network Video Recorder (NVR)
Page 4: Important Safety Information
Important Safety Information This manual provides installation and operation information and precautions for the use of this equipment. Incorrect installation could cause an unexpected fault. Before installing this equipment read this manual carefully. Please provide this manual to the owner of the equip- ment for future use.
Page 5 • Do not use strong or abrasive detergents when cleaning the camera body. • Use only lenses and accessories recommended by Avigilon. • Avoid leaving the image sensor exposed for extended periods of time. Always cover the image sensor with either a lens or a dust cap.
Page 6: Regulatory Notices
Changes or modifications made to this equipment not expressly approved by Avigilon Corpo- ration or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines.
Page 7: Other Notices
License and eCos source code are available to the public at http://www.avigilon.com/ ecoslicense. Avigilon reserves all rights to all software not covered under the eCos license. This includes all portions of software that were not distributed to Avigilon as part of the eCos operating system.
Page 8: Overview
“Connecting the Camera to a Network Video Recorder” sec- tion for more information on the Connection Status LED. It can be turned off during operation for covert installations. See the Avigilon Control Center software documentation for details on how to turn off the camera’s LEDs. Ethernet Port Provides connection to NVR for communication and image data transmission.
Page 9: Front View
Front View Camera Mounts (top and bottom) Lens Release Button Lens Mount Feature Description Lens Mount Accepts Canon® EF and EF-S lenses. Lens Release Button Releases lenses that are mounted to the camera. Camera Mounts Provide mounting points for the camera. Mounts accept 1/4”-20 UNC bolts commonly found on tripods and mounting brackets.
Page 10: Installation
To avoid poor image quality caused by incorrect lens selection, use only lenses that are recommended by Avigilon for use with this camera model. For a list of lenses recommended for use with this camera model, contact your Avigilon dealer or representative.
Page 11: Mounting The Camera
To detach a lens, complete the following steps: While pressing the lens release button, turn the lens counterclockwise until it stops. Remove the lens from the camera. Immediately mount another lens or a dust cap on the lens mount to prevent contamina- tion.
Page 12 To connect power to the camera, complete the following steps: Remove the terminal block from the camera. Remove the insulation from ¼” (6 mm) of the power wires. Be careful not to nick or dam- age the wire. Using a small slotted (5/64” or 2 mm blade width) screwdriver to loosen and tighten the terminals, insert the two power wires into the two terminals.
Page 13: Aiming And Focusing The Camera
Focus and field of view (if the lens is a zoom lens) can be adjusted by turning the appropriate ring on the lens. See the lens and accompanying instructions for details. The iris is con- trolled by the camera. The iris can be opened for focusing using the Avigilon Control Center software.
Page 14: Ip Address Selection
When the camera’s IP address is set using Zeroconf, its IP address is in the 169.254.* sub- net. The camera can be set to a static IP address from the Avigilon Control Center software. Con- sult the software user guide for details.
Page 15: Advanced Features
Advanced Features Upgrading the Firmware The camera’s firmware can be field-upgraded via the Avigilon Control Center software. Con- sult the software user guide for details on how to perform a firmware upgrade. It is possible for the camera’s firmware to become corrupted during an upgrade (for instance, if power is lost during the upgrade process).
Page 16: Connecting To External Devices
Connecting to External Devices The camera can be connected to external devices through the I/O terminal on the rear of the camera. The pinout for the I/O terminal is shown in the table below. Consult the software user guide for details on how configure the I/O. Table: External I/O Terminals Pin Function Description...
Page 17: Cleaning
To clean the protective glass, follow the instructions provided by the manufacturer of the swab and solution. Avigilon recommends using a Type 2 Sensor Swab™ and Eclipse® cleaning solution made by Photographic Solutions, Inc. For a world- wide list of dealers visit the Photographic Solutions, Inc.
Page 18: Specifications
Specifications Network Network 100BASE-TX Cabling Type CAT5 Connector RJ-45 Security Protocol UDP, TCP, SOAP, DHCP, Zeroconf Mechanical Dimensions (LxWxH) 120 mm x 79 mm x 74 mm 4.7” x 3.1” x 2.9” Weight 1.15 kg (2.5 lbs) without lens Camera Mount 1/4”...
Page 19: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufac- turer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
Page 20: Notes
Notes...
