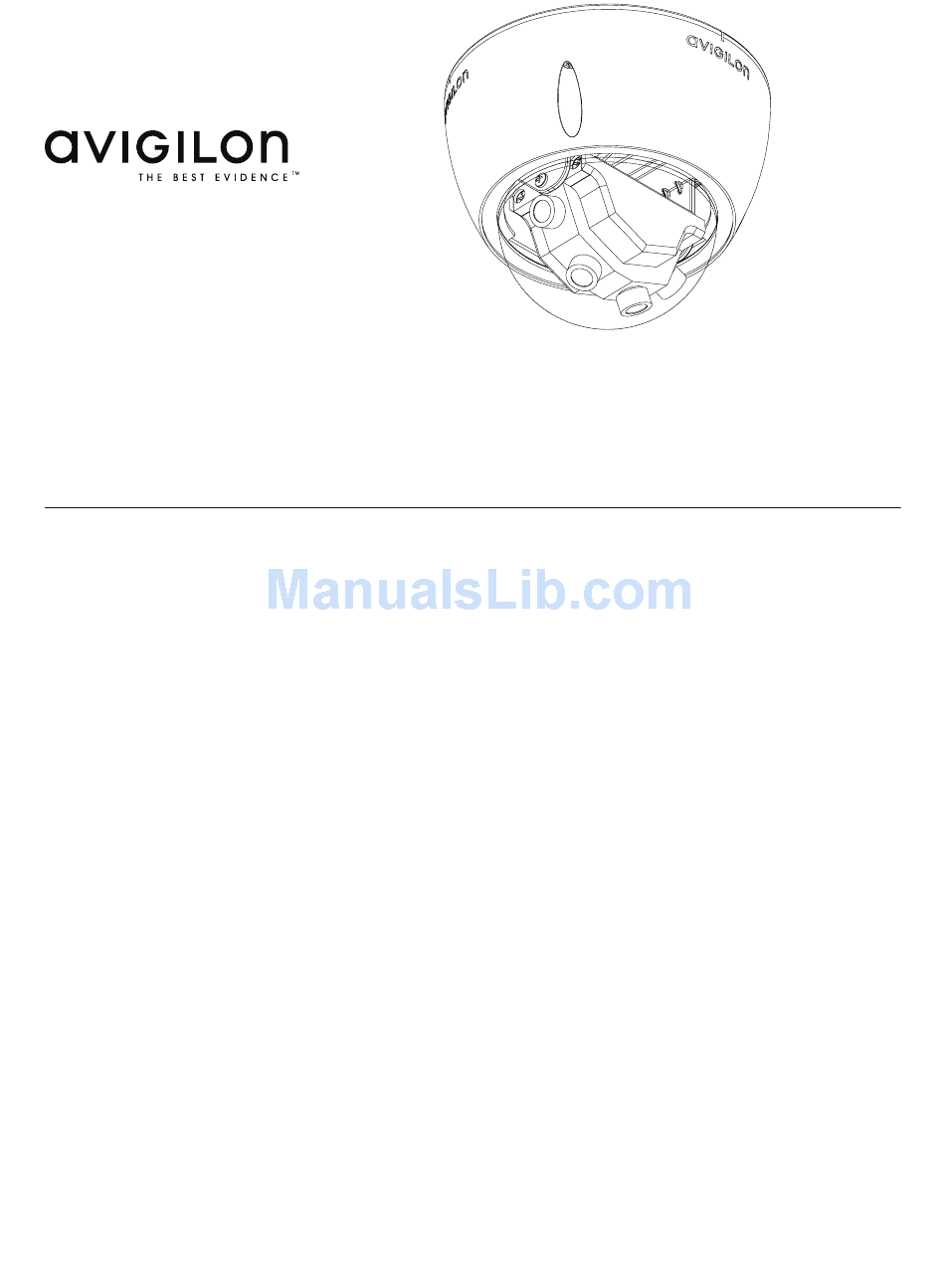

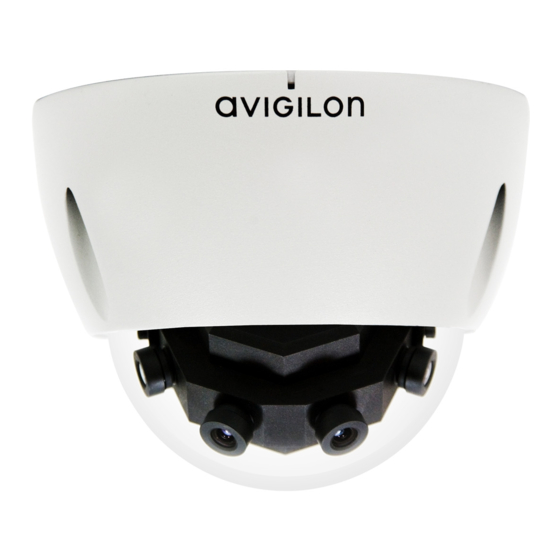

Page 1 Operating and Installation Instructions Avigilon Panoramic High Definition IP Dome Camera Model 8.0MP-HD-DOME-180 Avigilon Corporation Vancouver Canada 604.629.5182 604.629.5183 avigilon.com...
Page 2 This page is intentionally left blank.
Page 3: Table Of Contents
Contents Important Safety Information Regulatory Notices FCC Notice Disposal and Recycling Information Other Notices Compilation and Publication Notice Intellectual Property Notice Overview Cover View Bottom View Front View Rear View Heater View Installation Installation Steps Package Contents Required Tools and Materials Removing the Dome Cover Mounting the Dome Camera Connecting Power...
Page 4: Important Safety Information
Do not expose the camera to rain or moisture. • This camera is designed for indoor use only. For outdoor use, the camera must be installed with an Avigilon DOME-OD-BASE or DOME-OD-PEND outdoor mount. • Installation of this camera must be performed by qualified personnel only and conform to all local codes.
Page 5 • Do not use strong or abrasive detergents when cleaning the camera body. • Use only lenses and accessories recommended by Avigilon. • Avoid leaving the image sensor exposed for extended periods of time. Always cover the image sensor with either a lens or a dust cap.
Page 6: Regulatory Notices
Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines.
Page 7: Other Notices
License and eCos source code are available to the public at http://www.avigilon.com/ ecoslicense. Avigilon reserves all rights to all software not covered under the eCos license. This includes all portions of software that were not distributed to Avigilon as part of the eCos operating system.
Page 8: Overview
Overview Cover View Tamper Proof Screws Dome Cover Feature Description Dome Cover Vandal proof dome cover constructed out of aluminum with a polycarbonate bubble. Tamper Proof Screws Torx tamper-proof captive screws used to fix the dome cover to the base.
Page 9: Bottom View
Bottom View Cable Entry Hole Dome Mounting Slot Dome Mounting Slot Dome Mounting Slot Serial Number Tag Feature Description Cable Entry Hole Entry hole for all network, power and I/O cables. Dome Mounting Slot Mounting points for the dome camera. Serial Number Tag Serial and part numbers for the dome camera.
Page 10: Front View
Front View Feature Symbol Description Ethernet Port Accepts an Ethernet connection to a network. NVR communication and image data transmission occurs over this connection. Provides power to camera when connected to a network that provides Power over Ethernet. The Ethernet Port has two status lights indicating link (left) and activity (right).
Page 11: Rear View
Video Recorder” section for more information on the Connection Status LED. It can be turned off during operation for covert installations. See the Avigilon Control Center software documentation for details on how to turn off the camera’s LEDs. Image Rotation Switch...
Page 12: Heater View
Heater View Feature Symbol Description Heater Provides heat for the camera to extend the operating temperature range. The heater is not included in all models.
Page 13: Installation
Check the package contents against the list below. Remove dome cover. Mount the dome camera. Connect power. Aim the camera. Connect the camera to Avigilon Control Center software. Package Contents The package contains the following: • Avigilon Panoramic High Definition IP Dome Camera •...
Page 14: Mounting The Dome Camera
Warning – Use only UL listed mounting bracket suitable for the mounting surface and minimum 0.53 kg (1.2 lbs) weight, plus the weight of attached lens. Caution – This camera is designed for indoor use only. For outdoor use, an Avigilon outdoor mounting accessory must be used.
Page 15: Connecting Power
Connecting Power If the dome camera will be connected to a network that supplies Power over Ethernet, then the steps in this section are not necessary. If Power over Ethernet is not available, the camera needs to be powered via the removable terminal block on the side of the camera. The camera can be powered from 24 VAC or 12 VDC.
Page 16: Aiming The Dome Camera
Important: To avoid networking problems, use only network switches recommended by Avigilon. Connect the dome camera to the same network as the NVR running the Avigilon Control Center software. The camera will automatically obtain an IP address and will be detected by the software.
Page 17: Ip Address Selection
When the camera’s IP address is set using Zeroconf, its IP address is in the 169.254.* subnet. The camera can be set to a static IP address from the Avigilon Control Center software. Consult the software user guide for details.
Page 18: Advanced Features
Advanced Features Upgrading the Firmware The dome camera’s firmware can be field-upgraded via the Avigilon Control Center software. Consult the software user guide for details on how firmware upgrades are performed. It is possible for the dome camera’s firmware to become corrupted during an upgrade (for instance, if power is lost during the upgrade process).
Page 19: Connecting To External Devices
Connecting to External Devices The dome camera can be connected to external devices through the I/O terminal. The pinout for the I/O terminal is shown in the table below. Consult the software user guide for details on how configure the I/O. Table: External I/O Terminals Pin Function Description...
Page 20: Connecting To Microphones
Connecting to Microphones The dome camera can be connected to an external microphone through the audio connector. The audio connector is a 3.5 mm (1/8”) input for a mono microphone, or a line-in mono signal. The left channel of the stereo signal is used. Consult the software user guide for details on how configure the audio input.
Page 21: Specifications
Specifications Network Network 100BASE-TX Cabling Type CAT5 Connector RJ-45 Security Protocol UDP, TCP, SOAP, DHCP, Zeroconf Mechanical Dimensions (∅xH) 150 mm x 120 mm 5.9” x 4.7” Weight 0.91 kg (2.0 lbs) without lens Dome Bubble Polycarbonate, clear Body Aluminum Housing Surface mount, vandal resistant Finish...
Page 22: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
Page 23: Notes
Notes...
Page 27 This page is intentionally left blank.
