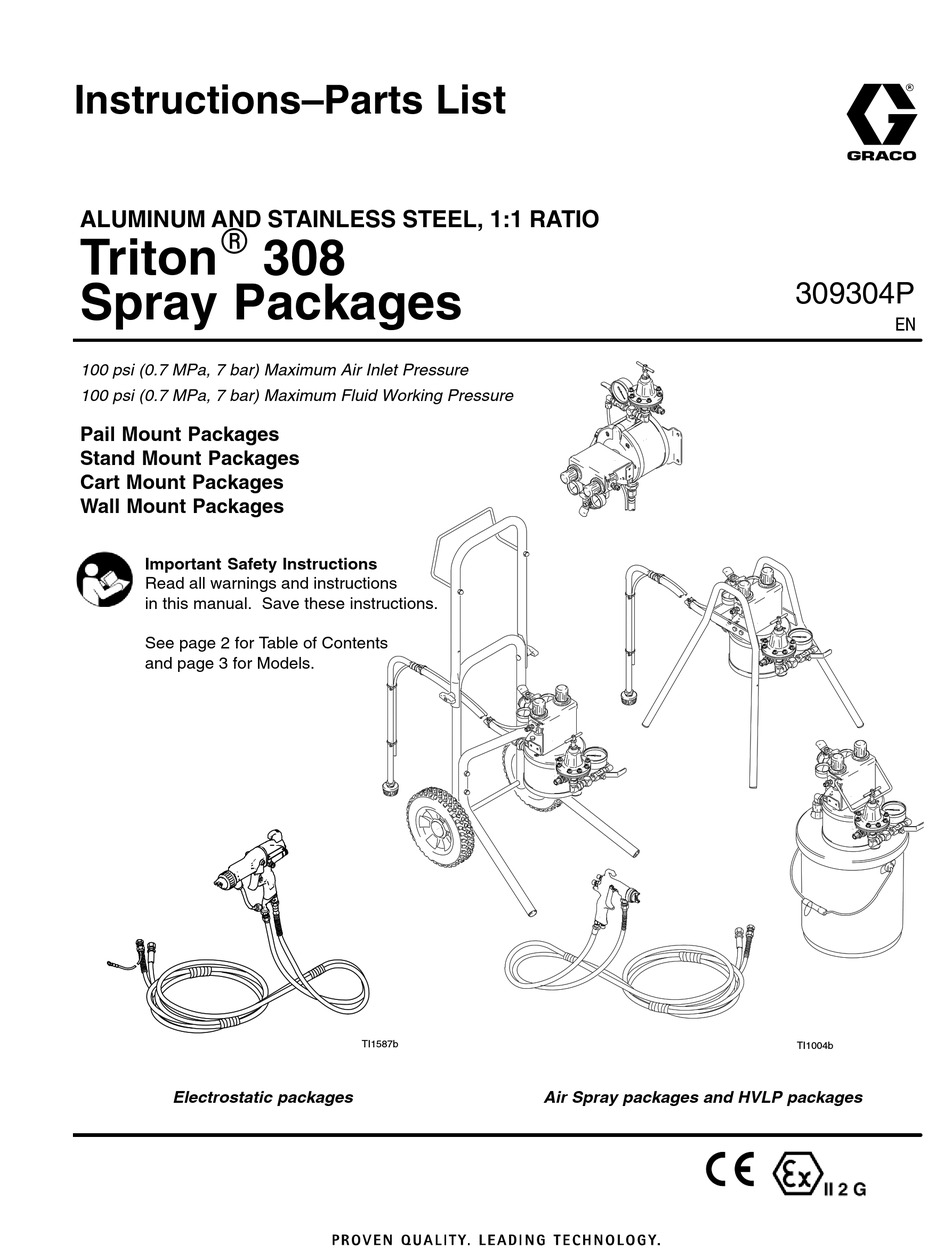

Instructions–Parts List
ALUMINUM AND STAINLESS STEEL, 1:1 RATIO
R
Triton
Spray Packages
100 psi (0.7 MPa, 7 bar) Maximum Air Inlet Pressure
100 psi (0.7 MPa, 7 bar) Maximum Fluid Working Pressure
Pail Mount Packages
Stand Mount Packages
Cart Mount Packages
Wall Mount Packages
Important Safety Instructions
Read all warnings and instructions
in this manual. Save these instructions.
See page 2 for Table of Contents
and page 3 for Models.
Electrostatic packages
308
TI1587b
Air Spray packages and HVLP packages
309304P
EN
TI1004b
Advertisement
Table of Contents
Related Manuals for Graco Pail Mount Packages
Summary of Contents for Graco Pail Mount Packages
- Page 1 Triton 309304P Spray Packages 100 psi (0.7 MPa, 7 bar) Maximum Air Inlet Pressure 100 psi (0.7 MPa, 7 bar) Maximum Fluid Working Pressure Pail Mount Packages Stand Mount Packages Cart Mount Packages Wall Mount Packages Important Safety Instructions Read all warnings and instructions in this manual.
-
Page 2: Table Of Contents
..........Graco Standard Warranty . -
Page 3: Models
Models Spray Package Description Pail Mount, Stand Mount, Cart Mount, Wall Mount, Series Series Series Series Aluminum Pump, 233466, 233473, 233480, 233487, No Gun Stainless Steel Pump, 233467, 233474, 233481, 233488, No Gun Aluminum Pump, 233468, 233475, 233482, 233489, AirPro Conventional Gun Stainless Steel Pump, 233469, 233476,... -
Page 4: Warnings
Symbols Warning Symbol Caution Symbol CAUTION WARNING WARNING This symbol alerts you to the possibility of damage to This symbol alerts you to the possibility of serious or destruction of equipment if you do not follow the injury or death if you do not follow the instructions. corresponding instructions. - Page 5 D This equipment is for professional use only. D Read all the instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor.
-
Page 6: Component Identification
Component Identification Stand Mount HVLP Spray Package Shown TRITON 1:1 Pump Bleed-type master air valve Air supply line (not supplied) Air line filter (not supplied) Air line shutoff valve (not supplied) Pump air regulator G Gun air regulator Fluid pressure regulator (HVLP and electrostatic packages only) Drain/circulation valve Drain tube... -
Page 7: Installation
D Ventilate the spray booth. warnings. General Information WARNING D Always use Genuine Graco Parts and Accessories, To prevent hazardous concentrations of toxic available from your Graco distributor. If you supply and/or flammable vapors, spray only in a properly your own accessories, be sure they are adequately ventilated spray booth. - Page 8 Installation Pump Outlet Fluid Filter Accessories Gun Inlet Filter To install a fluid filter on the pump outlet, order a filter To install a filter between the hose and gun inlet, order (AA), swivel (BB), and nipple (CC). Refer to Table 1 for Filter 915921, 100 mesh, 500 psi, sst, 3/8 npsm (m x f).
- Page 9 Installation Wall Mount Packages Suction Kit Accessories NOTE: Refer to Fig. 3 and to the Wall Mounting Tem- Suction kits are available for the wall mount packages, plate on page 21. as an accessory. The kits must be ordered separately. Refer to Table 2 for information.
- Page 10 Installation Grounding Flush Pump Before First Use The pump was tested in lightweight oil. If the test solution could contaminate the fluid you are pumping, WARNING flush the pump thoroughly with a compatible solvent. Refer to the Operation Manual 309305 for flushing To reduce the risk of static sparking, the entire instructions.
-
Page 11: Maintenance
Maintenance See the separate component instruction manuals for individual component maintenance procedures. Daily Maintenance Flushing the System Flush the system at the following times: Check the hoses, tubes, and couplings daily. Tighten all fluid connections before each use. D Before the first-time use D When changing colors D Before fluid can dry or settle out in a dormant system... -
Page 12: Pail Mount
Parts Pail Mount Packages (see model descriptions on page 3) Models 233466, 233467, 233468, 233469, 233470, 233471, 234911, 234912, 233741, 233742, 289642, 289643, 289644, 289645, 289646, 289647, and 289648. Items 56–59 are used on Models 233470, 233471, 233741, 233742, 234911, 234912, 289642, 289643, 289645, 289646, and 289648 only. - Page 13 Parts Pail Mount Packages (see model numbers on page 12) Ref. Ref. Part No. Description Qty. Part No. Description Qty. 288931 GUN, AirPro Conventional; 233500 PUMP, diaphragm; aluminum; for 233468, 233469; for 233466, 233468, 233470, 233741, see manual 312414 233742 288938 GUN, AirPro HVLP spray;...
-
Page 14: Stand Mount
Parts Stand Mount Packages (see model descriptions on page 3) Models 233473, 233474, 233475, 233476, 233477, 233478, 234913, 234914, 233743, 233744, and 289649 Items 56–59 are used on Models 233477, 233478, 233743, 233744, 234913, 234914, and 289649 only. 12 (Ref) 16 (Ref) ti1010b 309304... - Page 15 Parts Stand Mount Packages (see model numbers on page 14) Ref. Ref. Part No. Description Qty. Part No. Description Qty. 233500 PUMP, diaphragm; aluminum; 288931 GUN, AirPro Conventional; for 233473, 233475, 233477, 233743, for 233475, 233476; 233744 see manual 312414 233501 PUMP, diaphragm;...
-
Page 16: Cart Mount
Parts Cart Mount Packages (see model descriptions on page 3) Models 233480, 233481, 233482, 233483, 233484, 233485, 234915, 234916, 233746, 233747, 289632, 289633, 289634, 289635, 289636, 289637, 289638, 289639, 289640, and 289641 Items 56–59 are used on Models 233484, 233485, 233746, 233747, 234915, 234916, 289632, 289633, 289635, 289636, 289638, 289639, and 289641only. - Page 17 Parts Cart Mount Packages (see model numbers on page 16) Ref. Ref. Part No. Description Qty. Part No. Description Qty. 233500 PUMP, diaphragm; aluminum; For guns 288938, 288945, 244399, 288969, 288972, for 233480, 233482, 233484, 233746, 288966, 289110, 289111, and 289109 see manual 233747 312414 233501...
-
Page 18: Wall Mount
Parts Wall Mount Packages (see model descriptions on page 3) Models 233487, 233488, 233489, 233490, 233491, 233492, 234917, 234918, 233748, 233749, 289622, 289623, 289624, 289625, 289626, 289627, 289628, 289629, 289630, and 289631 Items 56–59 are used on Models 233491, 233492, 233748, 233749, 234917, 234918, 289622, 289623, 289625, 289626, 289628, 289629, and 289631 only. - Page 19 Parts Wall Mount Packages (see model numbers on page 18) Ref. Ref. Part No. Description Qty. Part No. Description Qty. 233500 PUMP, diaphragm; aluminum; For guns 288931, 288945, 288945, 288969, 288972, for 233487, 233489, 233491, 233748, 288966, 289110, 289111, and 289109 see manual 233749 312414 288969...
-
Page 20: Technical Data
Pail cover, aluminum packages Zinc-plated carbon steel (cst) Pail cover, stainless steel packages Stainless steel (sst) Weight (without hoses or gun): Pail mount packages Aluminum: 22 lb (10 kg) Stainless Steel: 28 lb (12.7 kg) Stand mount packages Aluminum: 20 lb (9.1 kg) Stainless Steel: 27 lb (12.3 kg) -
Page 21: Wall Mounting Template
Wall Mounting Template Use this drawing as a template to drill mounting holes in the wall. Verify that the dimensions are exact and the hole locations are level before drilling the holes. Drill four 0.38 in. (9.6 mm) diameter mounting holes 7.00 in. -
Page 22: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of thirty-six months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
