OPERATION /
/
1:1 RATIO
TRITON
Spray Packages /
List of Models, page 2 /
100 psi (7 bar, 0.7 MPa) Maximum Working Pressure
Related manuals
. . . . . . .
309304,
Parts
. . . . . . .
309303,
Pump
. . . . . . .
312414, 307912,
Gun
IMPORTANT WARNINGS AND
INFORMATION.
Read and keep for reference.
INSTRUCTIONS
R
/
/
/
/
/
/
/
/
3Z9305G

Advertisement

Table of Contents
loading

Related Manuals for Graco TRITON 233466

Summary of Contents for Graco TRITON 233466

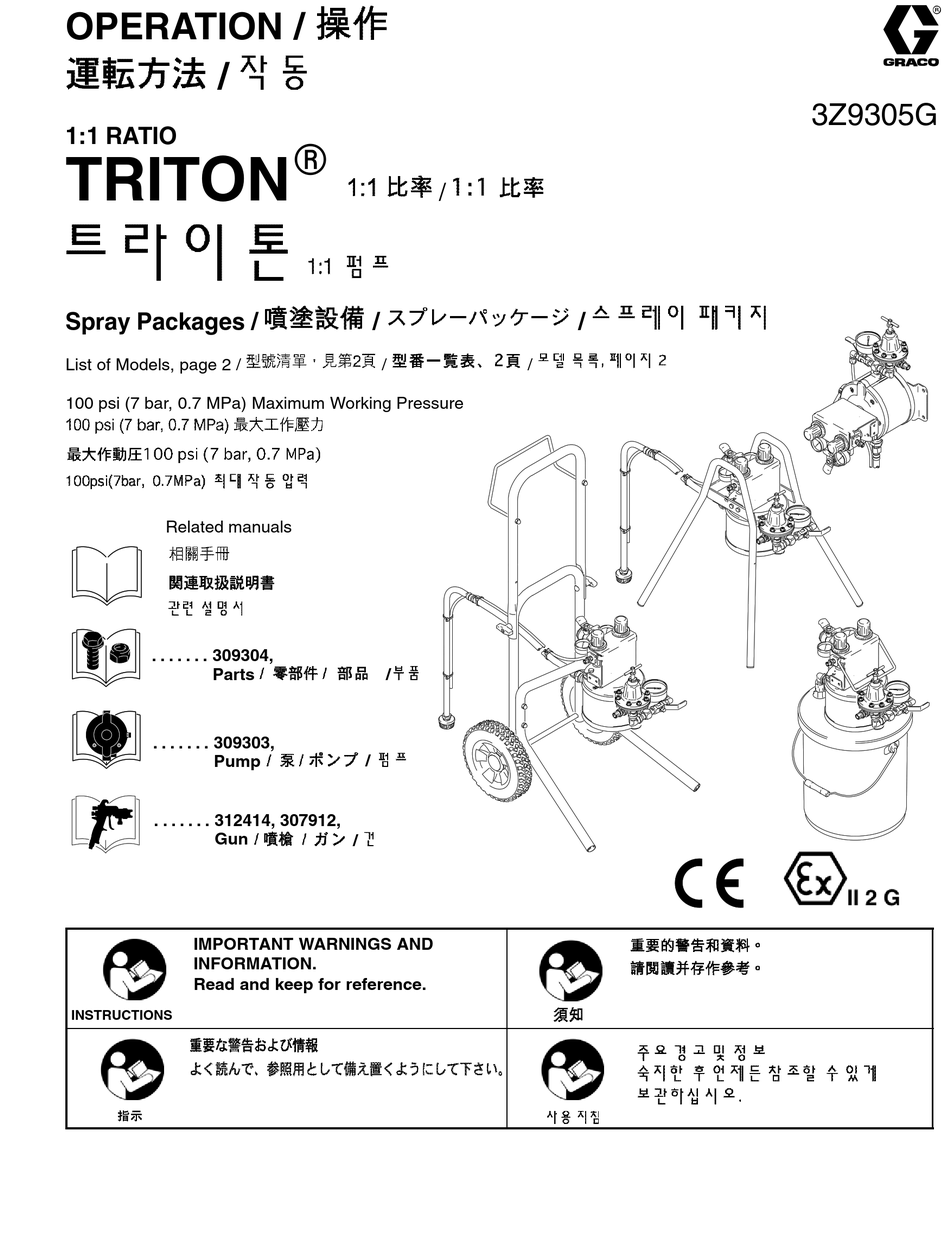

  • Page 1 OPERATION / 3Z9305G 1:1 RATIO TRITON Spray Packages / List of Models, page 2 / 100 psi (7 bar, 0.7 MPa) Maximum Working Pressure Related manuals ..309304, Parts ..309303, Pump .

  • Page 2: List Of Models

    List of Models / Spray Package Description Pail Mount Stand Mount Cart Mount Wall Mount Aluminum Pump, No Gun 233466 233473 233480 233487 Stainless Steel Pump, No Gun 233467 233474 233481 233488 Aluminum Pump, Air Spray Gun 233468 233475 233482 233489 Stainless Steel Pump, Air Spray Gun 233469...
  • Page 3 List of Models / Stainless Steel Pump, AirPro HVLP Waterborne 289632 289622 AirPro HVLP , AirPro HVLP , AirPro HVLP Stainless Steel Pump, AirPro Compliant Waterborne 289633 289623 AirPro , AirPro , AirPro Stainless Steel Pump, AirPro Conventional Water- 289634 289624 borne Gun AirPro...
  • Page 4 3Z9305...
  • Page 5 Symbols / When you see a symbol in the manual, for example , refer to the WARNINGS (pages 5–7). WARNING PRESSURIZED FLUID HAZARD Spray from the gun, hose leaks, or ruptured components can splash fluid in the eyes or on the skin and cause serious injury. Follow the Pressure Relief Procedure (page 7) when you stop spraying and before cleaning, checking, or servicing the equipment.
  • Page 6 WARNING EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture, mal- function, or start unexpectedly and result in a serious injury. Read all instruction manuals, tags, and labels before operating the equipment. Do not exceed the maximum working pressure of the lowest rated system component.

  • Page 7: Fire And Explosion Hazard

    WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition and result in fire or explosion and serious injury. Ground the equipment, the object being sprayed, and all other electrically conductive objects in the spray area. See Grounding (page 13).
  • Page 8 Overview / SHUT OFF OPEN Pump Air Regulator Bleed-Type Air Valve Gun Air Regulator Drain/Circulation Valve Fluid Pressure Regulator (HVLP and Electrostatic Models only) OPEN SHUT OFF 3Z9305...

  • Page 9: Pressure Relief

    Pressure Relief Follow steps 1–4 when you stop spraying and before cleaning, checking, or servicing the equipment. Shut off the bleed-type air valve..307912 Electrostatic Guns Only: Turn the ES ON–OFF Lever to OFF. 3Z9305...
  • Page 10 Pressure Relief Hold the gun firmly against a grounded metal pail and trigger the gun. Place the drain tube in a waste pail. Open the drain/circulation valve. WASTE 3Z9305...
  • Page 11 Setup / Before using the equipment for the first time, follow Tools Required: steps 1–9. D Two adjustable wrenches D Two 5 gallon metal pails D Grounding wires and clamps for pails Connect the air hose to the gun air regulator. Connect the air hose to the gun.
  • Page 12 Setup / Connect the fluid hose to the gun. Tighten securely. Ground the sprayer (page 13). Connect the main air supply to the bleed-type air valve. Flush (page 14). FLUSH WASTE Prime (page 17). WASTE PAINT Spray (page 20). 3Z9305...
  • Page 13 Grounding / Read Fire and Explosion Hazard (page 7). For electrostatic guns only, read and follow all grounding instructions in the gun manual 309291, 309292. Connect the ground wire clamp to a true earth ground. Ground the object being sprayed, fluid supply container, and all other equipment in the spray area.
  • Page 14 Flush / Follow steps 1–10 when using for the first-time, changing colors, before fluid can dry or settle out, and before storing the system. Relieve pressure (page 7). Remove the air cap. Clean separately..312414, 307912 Place the suction tube in solvent.
  • Page 15 Flush / Put the drain tube in a grounded waste pail. Open the drain/circulation valve. WASTE Open the bleed-type air valve. Open the pump air regulator until the pump starts. When clean solvent flows without air from the drain tube, shut off the drain/circulation valve.
  • Page 16 Flush / Flush the hose and gun..312414, 307912 WASTE Remove the suction tube from the solvent. Continue to spray until all solvent is out of the gun. WASTE FLUSH Relieve pressure (page 7). WASTE 3Z9305...
  • Page 17 Prime / Follow steps 1–10 to prime the sprayer. Shut off both air regulators and the bleed-type air valve. Shut off the fluid regulator, if present. Install the air cap..312414, 307912 Place the suction tube in the fluid. PAINT 3Z9305...
  • Page 18 Prime / Put the drain tube in a grounded waste pail. Open the drain/circulation valve. WASTE Open the bleed-type air valve. Open the pump air regulator until the pump starts. When fluid flows without air from the drain tube, shut off the drain/circulation valve. The pump will stop under pressure. WASTE 3Z9305...
  • Page 19 Prime / Adjust the fluid pressure regulator, if present. Hold the gun firmly against a grounded ..312414, 307912 metal pail and trigger the gun until fluid flow is steady. Release the trigger. The equipment is ready to spray. 3Z9305...
  • Page 20 Spraying / Adjust fluid flow using the pump air regulator or the fluid pressure regulator, if present. Adjust fluid pressure so stream from gun travels 6–8 in. straight before falling off. 6–8 in. (152–203 mm) 3Z9305...
  • Page 21 Spraying / Adjust the gun air regulator to achieve proper spray gun atomization. Test the spray pattern. Read the fluid ..312414, 307912 manufacturer’s recommendations. Adjust as necessary. 3Z9305...
  • Page 22 Shutdown / Follow steps 1–2 at the end of the workshift and before checking, adjusting, cleaning, or repairing the sprayer. Flush (page 14). FLUSH Relieve pressure (page 7). 3Z9305...

  • Page 23: Maintenance

    Maintenance / Daily / Flush (page 14). FLUSH ..312414, 307912 Clean the air cap and fluid nozzle. Clean the suction tube and inlet strainer, using a compatible solvent. Clean the outside of the sprayer, using a soft cloth and compatible solvent.
  • Page 24 Maintenance / Daily / Check the hoses, tubes, and couplings daily. Tighten all fluid connections before each use. Weekly / Clean the accessory air filter (not supplied) in your main air line. 3Z9305...

  • Page 25: Troubleshooting

    Troubleshooting / Relieve pressure before servicing (page 7). PROBLEM / SOLUTION / CAUSE / Pump will not run, or stops. Air line valve shut off. Open valve. Inadequate air supply, or clogged/ Increase air supply. Do not exceed restricted air line. maximum air inlet pressure.
  • Page 26 Troubleshooting / SOLUTION / PROBLEM / CAUSE / Pump runs sluggishly. Worn or damaged spool o-rings. Service pump. Pump runs erratically. Clogged suction line or inlet strainer. Clear. Sticking or leaking check valves. Service pump. Pump runs too fast. Exhausted fluid supply. Refill fluid supply and prime sprayer.
  • Page 27 Troubleshooting / SOLUTION / PROBLEM / CAUSE / Air bubbles in fluid. Loose suction line. Tighten. Use a compatible liquid thread sealant or PTFE tape on connections. Ruptured diaphragm. Service pump. Poor finish or irregular pattern. Incorrect fluid or air pressure at gun. See gun manual;...

  • Page 28: Technical Data

    Technical Data / Category / Data / Maximum fluid working pressure 100 psi (0.7 MPa, 7 bar) Maximum incoming air pressure 100 psi (0.7 MPa, 7 bar) Operating temperature range 50–176_ F (10–80_ C) Sound power level* at 70 psi (0.48 MPa, 4.8 bar) and 115 cycles/min 68 dB(A) Sound pressure level at 70 psi (0.48 MPa, 4.8 bar) and 115 cycles/min 81.5 dB(A)

  • Page 29: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

  • Page 30: Graco Phone Number

    All written and visual data contained in this document reflect the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. This manual contains English, Chinese, Japanese and Korean. MM 309305...
