Graco X5 Owner's Manual

Trueairless electric airless sprayer
Hide thumbs Also See for X5:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , Manual
FIRE AND EXPLOSION HAZARD
X5/X7 Models:
•
Use only non-flammable or water-based materials, or non-flammable paint thinners. Do not use
materials having flash points lower than 100° F (38° C). This includes, but is not limited to, acetone,
xylene, toluene, or naphtha. For more information about your material, request Safety Data Sheet
(SDS) from the supplier.
•
Spraying flammable or combustible materials in a factory or fixed location must comply with NFPA
33 and OSHA 1910.94(c) requirements in the USA and with all similar local regulations in other
countries.
Not approved for use in explosive atmospheres or hazardous locations.
For portable airless spraying of architectural paints and coatings.

Important Safety Instructions

Read all warnings and instructions in this manual, related manuals, and on the unit.
Be familiar with the controls and the proper usage of the equipment. Save these
instructions.
3A3208B
EN

Advertisement

Table of Contents
loading

Related Manuals for Graco X5

Summary of Contents for Graco X5

  • Page 1: Important Safety Instructions

    3A3208B FIRE AND EXPLOSION HAZARD X5/X7 Models: • Use only non-flammable or water-based materials, or non-flammable paint thinners. Do not use materials having flash points lower than 100° F (38° C). This includes, but is not limited to, acetone, xylene, toluene, or naphtha. For more information about your material, request Safety Data Sheet (SDS) from the supplier.

  • Page 2: Before You Spray

    Review Warnings for Important Safety Information Important! Read carefully and practice good safety habits. Review Manual & Watch Videos Scan QR code for Operational Video or go to magnum.graco.com/magop Related Manuals Gun: 312830 (SG) ProXChange™ Pump: 3A3172 (ProX only) Models 3000 psi (207 bar, 20.7 MPa) Maximum Working Pressure...

  • Page 3: Table Of Contents

    X5: 262800, 17K437 Stand Sprayer Parts ........

  • Page 4: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.

  • Page 5: Fire And Explosion Hazard

    Use Graco conductive or grounded high-pressure airless paint sprayer hoses. •...
  • Page 6 • Check hoses and parts for signs of damage. Replace any damaged hoses or parts. • This system is capable of producing 3000 psi. Use Graco replacement parts or accessories that are rated a minimum of 3000 psi. • Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.
  • Page 7 Warnings PRESSURIZED ALUMINUM PARTS HAZARD Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage. • Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.

  • Page 8: Know Your Sprayer

    Know Your Sprayer Know Your Sprayer X5 Stand Models ti28222a M Gun Fluid Filter (inside handle) PushPrime™ Button Pump Prime/Spray Valve Pump Fluid Outlet Fitting (airless Pressure Control Knob hose connection) ON/OFF Switch Airless Hose Suction Tube Inlet Strainer Drain Tube (with diffuser)
  • Page 9 Know Your Sprayer X7 Cart Model ti28223a M Gun Fluid Filter (inside handle) PushPrime™ Button Pump Prime/Spray Valve Pump Fluid Outlet Fitting (airless Pressure Control Knob hose connection) ON/OFF Switch Airless Hose Suction Tube Pail Hanger Drain Tube (with diffuser) Inlet Strainer Airless Spray Gun Power Cord...
  • Page 10 Know Your Sprayer ProX Stand Models ti27116a Pump Fluid Outlet Fitting (airless PushPrime™ Button hose connection) Prime/Spray Valve Airless Hose Pressure Control Knob InstaClean™ Fluid Filter (inside fluid ON/OFF Switch outlet) Suction Tube Inlet Strainer Drain Tube (with diffuser) Power Cord Airless Spray Gun Easy Access Door Reversible Spray Tip...
  • Page 11 Know Your Sprayer ProX Cart Models ti27117a Pump Fluid Outlet Fitting (airless PushPrime Button hose connection) Prime/Spray Valve Airless Hose Pressure Control Knob InstaClean Fluid Filter (inside fluid ON/OFF Switch outlet) Suction Tube Pail Hanger Drain Tube (with diffuser) Inlet Strainer Airless Spray Gun Power Cord Reversible Spray Tip...

  • Page 12: Setup

    When unpacking sprayer for the first time or after long term storage perform setup procedure. Assemble Your Sprayer Connect Graco airless hose to fluid outlet. Use wrench to tighten securely. ti25197a Turn pressure control knob all the way left (counter-clockwise) to lowest set- ting.

  • Page 13: Start Up

    Start Up Start Up ti25198b Turn pressure control knob to lowest setting. Pressure Relief Procedure Follow the Pressure Relief Procedure whenever you see this symbol. This equipment stays pressurized until ti27493a pressure is manually relieved. To help Put drain tube into a waste pail and turn prevent serious injury from pressurized Prime/Spray valve in PRIME position fluid, such as skin injection or splashed...
  • Page 14 Start Up If you suspect the spray tip or hose is Turn Prime/Spray valve down to clogged or that pressure has not been PRIME position. fully relieved: VERY SLOWLY loosen the tip guard retaining nut or the hose end coupling to relieve pressure gradually.
  • Page 15 Start Up 11. When sprayer starts pumping, flushing NOTE: Some fluids may prime faster if solvent and air bubbles will be purged the ON/OFF Switch is momentarily from system. Allow fluid to flow out of turned off so the pump can slow and drain tube, into waste pail, for 30 to 60 stop.

  • Page 16: How To Spray

    How to Spray How to Spray ti27143a Spray Tip Installation Spray tip must be pushed all the To prevent spray tip leaks make certain spray way into the tip guard. Turn spray tip tip and tip guard are installed properly. to push down.

  • Page 17: Adjust Pressure Control

    Maximum tip hole sizes supported by the sprayer: – X5: 0.015 in. (0.38 mm) – X7: 0.017 in. (0.43 mm) – ProX17: 0.017 in. (0.43 mm) – ProX19: 0.019 in. (0.48 mm) – ProX21: 0.021 in. (0.53 mm)

  • Page 18: Clear Tip Clog

    How to Spray Triggering Gun • Material may need to be thinned. If material needs to be thinned follow Pull trigger after starting stroke. Release manufacturer’s recommendations. trigger before end of stroke. Gun must be Clear Tip Clog moving when trigger is pulled and released. In the event that particles or debris clog the spray tip, this sprayer is designed with a reversible spray tip that quickly and easily...

  • Page 19: Cleanup

    Cleanup Cleanup Cleaning the sprayer after each use results in Place empty waste and flushing fluid a trouble free start up the next time the pails side by side. sprayer is used. Place suction tube in flushing fluid. Use water for water based paint and mineral spirits or compatible oil-based flushing solvent for oil-based paint.
  • Page 20 Cleanup 11. Turn ON/OFF switch to OFF position. 16. Turn Prime/Spray valve down to PRIME position. NOTE: Step 12 is for returning paint in hose to paint pail. One 50 ft (15 m) hose holds 17. Turn ON/OFF switch to OFF position. approximately 1 quart (1 liter) of paint.
  • Page 21 Cleanup Turn pressure control knob to the 11. Turn ON/OFF switch to ON position. Prime/Clean setting. 12. Open Power Flush attachment valve. 13. Circulate water through sprayer, into waste pail, for 20 seconds. 14. Turn ON/OFF switch to OFF position. NOTE: Step 15 is for returning paint in hose to paint pail.
  • Page 22 Cleanup Install closed (square) end of InstaClean Fluid Filter (C) in sprayer. Screw outlet fitting (B) into sprayer. Tighten outlet fitting and reconnect hose (A) to sprayer. Use two wrench to tighten ti25196b securely. 19. Turn Prime/Spray valve down to PRIME position.

  • Page 23: Storage

    Storage Storage With proper storage, the sprayer will be ready Engage trigger lock. to use the next time it is needed. ti25196b Leave gun attached to hose. Remove tip and guard and clean with Short Term Storage water or flushing fluid and a brush. Wipe paint off outside of gun using a (up to 2 days) soft cloth moistened with water or flush-...
  • Page 24 Storage Turn Prime/Spray valve down to Leave gun attached to hose. PRIME position. Remove tip and guard and clean with water or flushing fluid and a brush. 10. Wipe paint off outside of gun using a soft cloth moistened with water or flush- ing fluid.

  • Page 25: Reference

    Reference Reference Understanding Tip Number The last three digits of tip number (i.e.: Spray Tip Selection 221413) contain information about hole size and fan width on surface when gun is held 12 in. (30.5 cm) from surface being sprayed. Selecting Tip Size First digit when doubled Spray tips come in a variety of hole sizes for 413 tip has...

  • Page 26: Cleaning Fluid Compatibility

    Instructions (Oil-Based materials), page Instructions (Oil-Based 26, when using oil-based materials. See ProX17 and ProX19 parts list, page 41 or 45. materials) The X5 and X7 must not be used with lacquers. Cleaning Fluid Compatibility The equipment must be grounded to reduce the risk of static sparking and electric shock.
  • Page 27 Reference Always ground a metal pail: connect a To maintain ground continuity when ground wire to the pail. Clamp one end to the sprayer is flushed or pressure is relieved: pail and the other end to a true earth ground hold metal part of spray gun firmly to the side such as a water pipe.
  • Page 28 Reference Quick Reference Page Name Description • Prime/Spray Valve In PRIME position directs fluid to drain tube. • In SPRAY position directs pressurized fluid to paint hose. • Automatically relieves system pressure in over- pressure situations. PushPrime Button Taps the inlet ball when pushed to loosen it. Pressure Control Knob Increases (clockwise) and decreases (counter-clockwise) fluid pressure in pump, hose,...

  • Page 29: Maintenance

    Replace if worn or damaged. Always replace inlet and outlet valves every second time the pump kit is replaced. • See ProXChange Pump (ProX only), page 48 or consult a Graco/M AGNUM authorized retailer, distributor, or ser- vice center. ti27463a •...
  • Page 30 Maintenance Inlet Valve Removal Slide pump assembly off the mounting pins. An integrated tool is included in the frame to remove the inlet valve assembly from the pump. If you suspect that the inlet valve is clogged or stuck, remove the valve assembly and clean or replace.
  • Page 31 Maintenance Pump Installation Push on pump rod to slide pump assembly back on to mounting pins. Slide pump assembly onto the mounting Swing easy access door closed while pins. pushing the entire door towards the inlet end of the pump. ti27036a Move pump rod up or down until cap is level with the opening in the yoke.

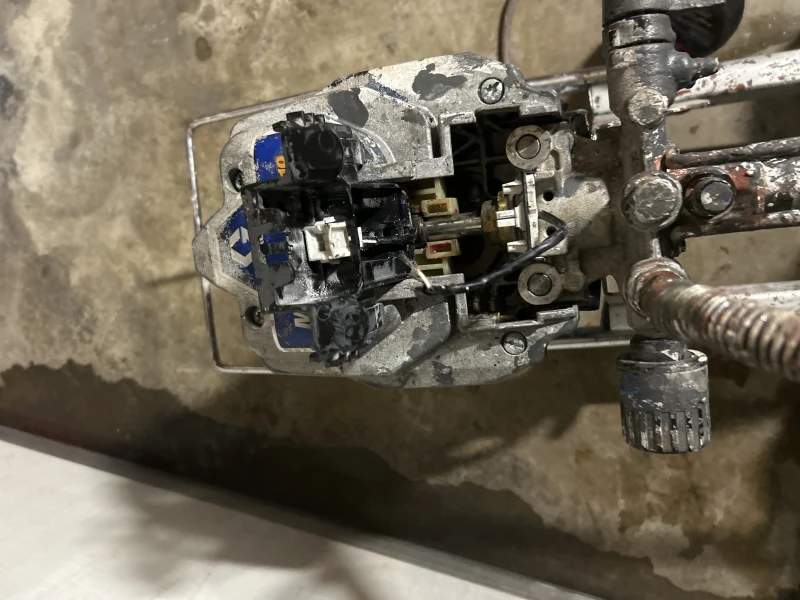

  • Page 32: Troubleshooting

    If not frozen, check for hardened paint in pump. If paint has hardened in pump. See page 29. If motor does not turn with pump removed, consult a Graco/ Magnum authorized retailer, distributor, or service center. Motor or control is damaged.
  • Page 33 Suction tube is leaking. Inspect suction tube connection for cracks or vacuum leaks. Outlet valve check ball is stuck. Unscrew outlet valve, remove, and clean assembly. Prime/Spray valve is worn or Take sprayer to Graco/MAGNUM obstructed with debris. authorized service center. 3A3208B...
  • Page 34 Troubleshooting Problem Cause Solution Pump is primed, but can not achieve Spray tip may be partially clogged. Clear spray tip clog. See page 18. good spray pattern. Reversible spray tip is in UNCLOG Rotate arrow-shaped handle on spray position. tip so it points forward to SPRAY position.
  • Page 35 Choose spray tip with narrower fan. Make sure gun is close enough to surface. Fan pattern varies dramatically while Pressure control switch is worn and Take sprayer to Graco/M AGNUM spraying. causing excessive pressure variation. authorized service center. Cannot trigger spray gun.

  • Page 36: X5: 262800, 17K437 Stand Sprayer Parts

    X5: 262800, 17K437 Stand Sprayer Parts X5: 262800, 17K437 Stand Sprayer Parts ti28224a Ref. Torque 20-25 in-lb (2.3-2.8 N•m) 26-32 in-lb (2.9-3.6 N•m) 25-35 in-lb (2.8-4.0 N•m) 80-90 in-lb (9.0-10.0 N•m) 12-16 in-lb (1.4-1.8 N•m) 36-42 in-lb (4.0-4.7 N•m) 3A3208B...
  • Page 37 X5: 262800, 17K437 Stand Sprayer Parts 262800, 17K437 Stand Sprayer Parts List Ref. Part Description Qty. Ref. Part Description Qty. 29b 103338 O-RING 17L079 KIT, pump includes 4, 29c 123849 SPRING, inlet 8, 17, 29, 33, 48 288716 KIT, strainer...

  • Page 38: X7: 262805 Cart Sprayer Parts

    X7: 262805 Cart Sprayer Parts X7: 262805 Cart Sprayer Parts ti28225a Ref. Torque 20-25 in-lb (2.3-2.8 N•m) 45-55 in-lb (5.0-6.2 N•m) 25-35 in-lb (2.8-4.0 N•m) 80-90 in-lb (9.0-10.0 N•m) 12-16 in-lb (1.4-1.8 N•m) 36-42 in-lb (4.0-4.7 N•m) 3A3208B...
  • Page 39 X7: 262805 Cart Sprayer Parts 262805 Cart Sprayer Parts List Ref. Part Description Qty. Ref. Part Description Qty. 116295 CLAMP, tube 17L079 KIT, pump includes 4, 195400 CLIP, spring 8, 17, 29, 33, 48 16E844 KIT, pump, inlet valve 16E835 KIT, drive (includes 29a, 29b, 112689...

  • Page 40: Prox17: 17G177, 17K438, Prox19: 17G179 Stand Sprayer Parts

    ProX17: 17G177, 17K438, ProX19: 17G179 ProX17: 17G177, 17K438, ProX19: 17G179 Stand Sprayer Parts Ref. Torque 140-160 in-lb (16-18 N•m) 30-35 in-lb (3.5-4.0 N•m) 110-120 in-lb (12-14 N•m) 45-55 in-lb (5-6 N•m) See page 48. ti27198a 3A3208B...
  • Page 41 ProX17: 17G177, 17K438, ProX19: 17G179 17G177, 17K438, 17G179 Stand Sprayer Parts List Ref. Part Description Qty. Ref. Part Description Qty. 17J031 ProX17 KIT, repair, motor, 17J033 ProX19 120V includes 1a 17K285 ProX17 247340 HOSE, cpld, 1/4 in. x 50 ft 17F756 ProX19 GUN, spray, SG3...

  • Page 42: Prox21: 17G181 Stand Sprayer Parts

    ProX21: 17G181 Stand Sprayer Parts ProX21: 17G181 Stand Sprayer Parts Ref. Torque 140-160 in-lb (16-18 N•m) 30-35 in-lb (3.5-4.0 N•m) 110-120 in-lb (12-14 N•m) See page ti27243a 3A3208B...
  • Page 43 ProX21: 17G181 Stand Sprayer Parts 17G181 Stand Sprayer Parts List Part Description Ref. Qty. Part Description Ref. Qty. 17J035 LABEL, front, ProX21 17K684 MOTOR, 120V 247340 HOSE, cpld, 1/4 in. x 50 16X980 17J869 KIT, gear and yoke 243012 GUN, spray,SG3 17J173 CORD, power 17J870...

  • Page 44: Prox17: 17G178, Prox19: 17G180, 17K439 Cart Sprayer Parts

    ProX17: 17G178, ProX19: 17G180, 17K439 ProX17: 17G178, ProX19: 17G180, 17K439 Cart Sprayer Parts Ref. Torque 30-35 in-lb (3.5-4.0 N•m) 110-120 in-lb (12-14 N•m) 45-55 in-lb (5-6 N•m) See page 48. ti27244a 3A3208B...
  • Page 45 ProX17: 17G178, ProX19: 17G180, 17K439 17G178, 17G180, 17K439 Cart Sprayer Parts List Part Description Ref. Qty. Part Description Ref. Qty. 112612 CAP, hub MOTOR, 120V WHEEL includes 34 17K285 ProX17 24Y324 ProX17 17F756 ProX19 17K546 ProX19 287770 115480 KNOB, T-handle 17J863 KIT, gear and yoke 120689...

  • Page 46: Prox21: 17G182 Cart Sprayer Parts

    ProX21: 17G182 Cart Sprayer Parts ProX21: 17G182 Cart Sprayer Parts Ref. Torque 30-35 in-lb (3.5-4.0 N•m) 110-120 in-lb (12 -14 N•m) 13 56 10b 10 See page 48. ti27247a 3A3208B...
  • Page 47 ProX21: 17G182 Cart Sprayer Parts 17G182 Cart Sprayer Parts List Part Description Ref. Qty. Part Description Ref. Qty. 119452 CAP, hub 17K684 KIT, repair, motor, 120V 119451 WHEEL, includes 1a semi-pneumatic 16X980 FAN 15J790 HOOK, pail 17J869 KIT, gear and yoke 287489 HANDLE, assembly, 17J173...

  • Page 48: Proxchange Pump (Prox Only)

    ProXChange Pump (ProX only) ProXChange Pump (ProX only) Ref. Torque 140-160 in-lb (16-18 N•m) 30-35 in-lb (3.4-4.0 N•m) 30-35 ft-lb (40-48 N•m) 220-250 in-lb (25-28 N•m) 320-380 in-lb (36-43 N•m) ti27261a ti27261 3A3208B...

  • Page 49: Pump Parts List

    ProXChange Pump (ProX only) Pump Parts List Part Description Ref. Qty. Part Description Ref. Qty. 120776 PACKING, O-ring 17G447 HOUSING, pump 24Y327 KIT, repair outlet 17D364 GUIDE, ball includes 12,13 128336 SPRING, compression 17J880 KIT, outlet valve repair 105445 BALL, 0.5 in. includes 42 117501 SCREW, mach, slot...

  • Page 50: Wiring Diagram - 110/120V

    Wiring Diagram - 110/120V Wiring Diagram - 110/120V X5/X7: ON/OFF SWITCH BLACK WHITE GREEN BLACK PRESSURE SWITCH MOTOR BLACK ti14050a ProX: ti27233a 3A3208B...

  • Page 51: Technical Specifications

    ProX21 0.021 in. 0.53 mm Fluid Outlet npsm 1/4 in. 1/4 in. Generator Minimum 2500 W Power Requirements X5, X7 110–120V, 9 A, 1Ø ProX17, ProX19 110–120V, 8 A, 1Ø ProX21 110–120V, 12 A, 1Ø Dimensions Height 17.9 in. 45.5 cm 37.0 in.
  • Page 52 Technical Specifications Metric Width 12.4 in. 31.5 cm 15.3 in. 38.9 cm ProX17, ProX19 Stand 13.2 in. 33.5 cm ProX21 Stand 13.5 in. 34.3 cm ProX17, ProX19 Cart 17.2 in. 43.7 cm ProX21 Cart 20.6 in. 52.3 cm Weight 16.5 lb. 7.5 kg 26.5 lb.

  • Page 53: Notes

    Notes Notes 3A3208B...

  • Page 54: Notes

    Notes Notes 3A3208B...

  • Page 55: Graco Standard Warranty

    Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts.

  • Page 56: Graco Information

    For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/patents. TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor. All written and visual data contained in this document reflects the latest product information available at the time of publication.
