Graco Performance Series Instructions And Parts List

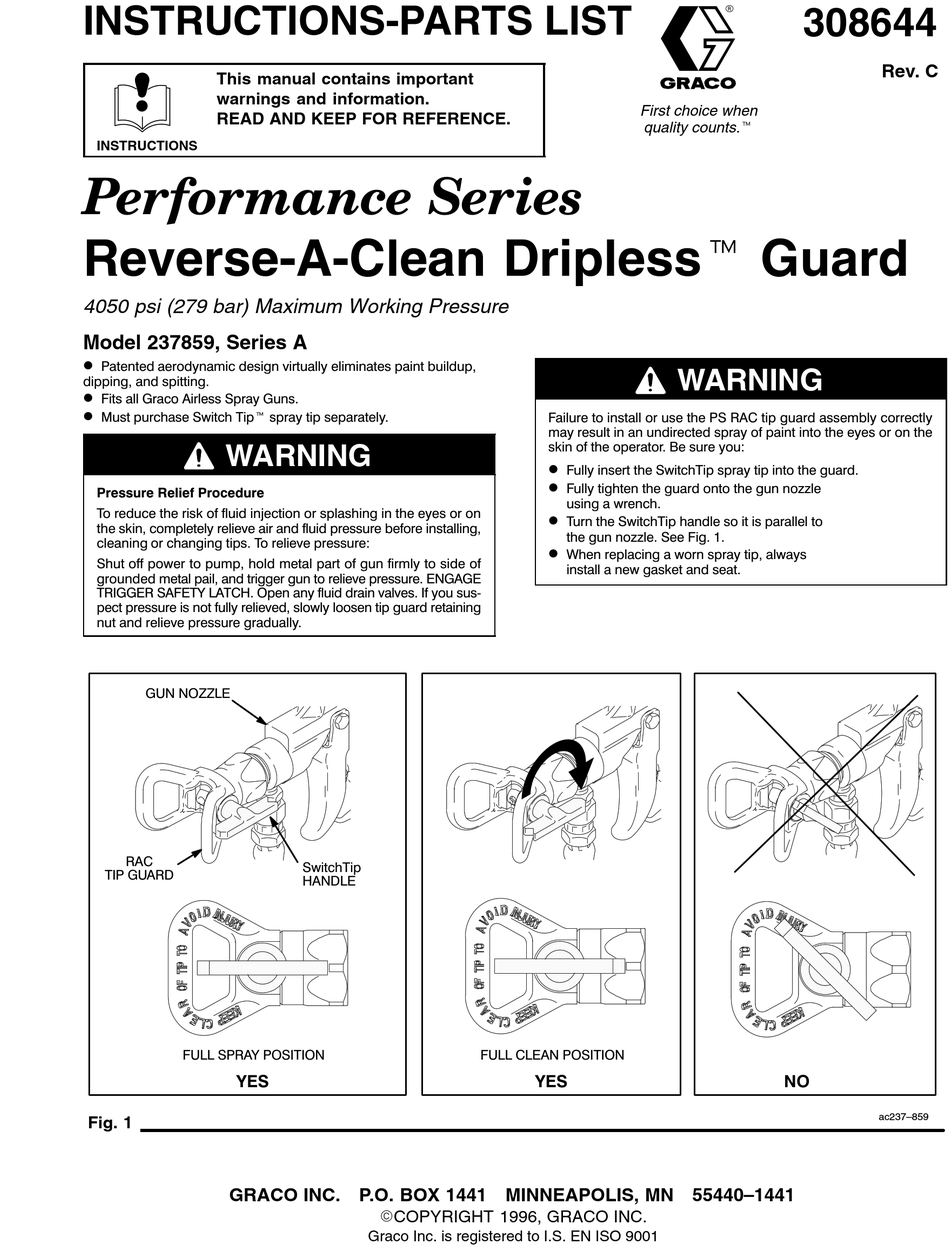

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Performance Series
Reverse-A-Clean Driplesst Guard
4050 psi (279 bar) Maximum Working Pressure
Model 237859, Series A
D
Patented aerodynamic design virtually eliminates paint buildup,
dipping, and spitting.
D
Fits all Graco Airless Spray Guns.
D
Must purchase Switch Tipt spray tip separately.
WARNING
Pressure Relief Procedure
To reduce the risk of fluid injection or splashing in the eyes or on
the skin, completely relieve air and fluid pressure before installing,
cleaning or changing tips. To relieve pressure:
Shut off power to pump, hold metal part of gun firmly to side of
grounded metal pail, and trigger gun to relieve pressure. ENGAGE
TRIGGER SAFETY LATCH. Open any fluid drain valves. If you sus
pect pressure is not fully relieved, slowly loosen tip guard retaining
nut and relieve pressure gradually.
GUN NOZZLE
RAC
TIP GUARD
FULL SPRAY POSITION
YES
Fig. 1
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
SwitchTip
HANDLE
FULL CLEAN POSITION
ECOPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.t
WARNING
Failure to install or use the PS RAC tip guard assembly correctly
may result in an undirected spray of paint into the eyes or on the
skin of the operator. Be sure you:
D
Fully insert the SwitchTip spray tip into the guard.
D
Fully tighten the guard onto the gun nozzle
using a wrench.
D
Turn the SwitchTip handle so it is parallel to
the gun nozzle. See Fig. 1.
D
When replacing a worn spray tip, always
install a new gasket and seat.
YES
308644
Rev. C
NO
ac237–859
