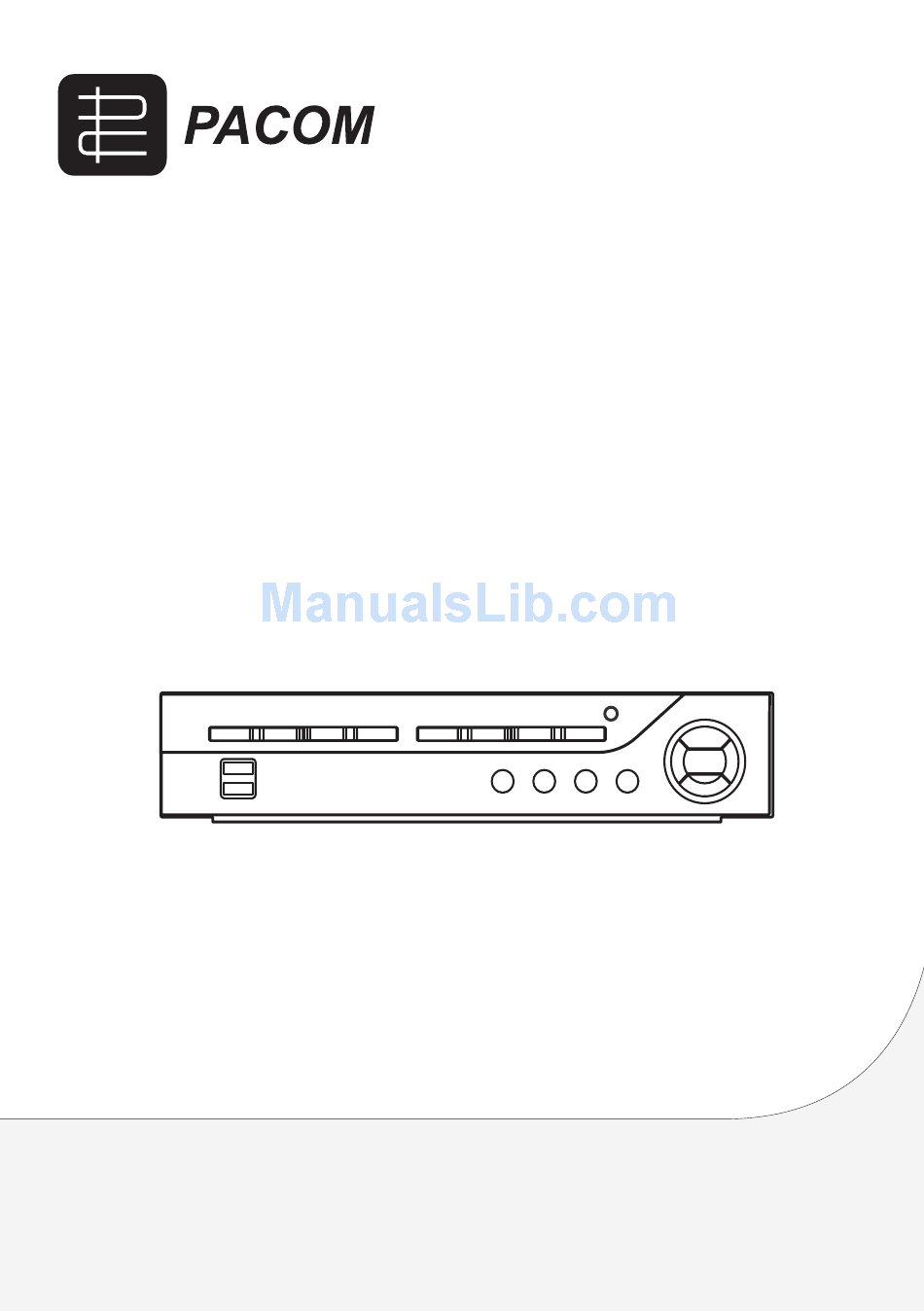

Page 1: Digital Video Recorder
PDR960H-4E (S84678) 4 Channel Digital Video Recorder PDR960H-8E (S84679) 8 Channel Digital Video Recorder Digital Video Recorder User Manual... -
Page 3: Compliance Notice Of Fcc
Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Important Safeguards
User’s Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2. -
Page 5: Table Of Contents
Digital Video Recorder Table of Contents Chapter 1 — Introduction ......................1 Feature ..........................1 Technical Overview ......................1 Chapter 2 — Installation ......................3 Package Contents ........................ 3 Required Installation Tools ....................3 Video Input ........................3 Audio In/Out ........................4 Alarm Input/Output ...................... - Page 6 User’s Manual Setup Screen ........................12 System Setup ........................13 General .......................... 13 Date/Time ........................20 User ..........................22 Storage .......................... 24 System Event ......................... 25 Recording Setup ........................ 26 General .......................... 26 Schedule ........................27 Pre-Event ........................29 Event Setup ........................30 Motion ..........................
- Page 7 Digital Video Recorder Panic Recording ......................59 Recording Audio ........................ 60 Playing Recorded Video ..................... 60 Searching Video ......................... 61 Search Menu ......................... 61 Event Log Search ......................63 Record Table Search ..................... 65 Motion Search ........................ 66 Text-In Search ....................... 68 Bookmarks ........................
- Page 8 User’s Manual Figure 21: Event – Text-In setup screen....................33 Figure 22: Camera – General setup screen.................... 35 Figure 23: Camera – PTZ setup screen....................36 Figure 24: Device – Audio setup screen....................37 Figure 25: Device – Alarm-Out setup screen..................37 Figure 26: Device –...
-
Page 9: Chapter 1 - Introduction
Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for four or eight camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 4 or 8 Composite Video Input Connectors ... -
Page 10: Figure 1: Typical Dvr Installation
User’s Manual Figure 1: Typical DVR installation. NOTE: This manual covers the 4- and 8-channel digital video recorders. The DVRs are identical except for the number of cameras and alarms that can be connected and the number of cameras that can be displayed. For simplicity, the illustrations and descriptions in this manual refer to the 8-camera model. -
Page 11: Chapter 2 - Installation
Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following: Digital Video Recorder Power Adaptor and Power Cord User’s Manual (This Document) RAS Software CD and User’s Manual Infrared Remote Control Required Installation Tools No special tools are required to install the DVR. -
Page 12: Audio In/Out
User’s Manual Audio In/Out Your DVR can record audio from up to four sources. Connect the audio sources to Audio In 1, Audio In 2, Audio In 3 and Audio In 4 as needed using RCA jacks. Connect Audio Out to your amplifier. NOTE: It is the user’s responsibility to determine if local laws and regulations permit recording audio. -
Page 13: Network Port
Digital Video Recorder Connector Pin Outs: Master Unit Slave Unit → → → → → → NOTE: Refer to the following for pin-out details for the 9-pin connector of the slave unit. RXD (Receive Data) Pin 2 TXD (Transmit Data) Pin 3 GND (Ground) Pin 5... - Page 14 User’s Manual WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE. DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET. THE POWER CORD HAS A GROUNDING PIN. IF YOUR POWER OUTLET DOES NOT HAVE A GROUNDING PIN RECEPTACLE, DO NOT MODIFY THE PLUG.
-
Page 15: Chapter 3 - Configuration
Digital Video Recorder Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3: 8-Channel DVR front panel. Camera Buttons HDD LED Alarm Out LED Arrow Buttons Play/Pause Button Menu Button PTZ/Zoom Button... -
Page 16: Arrow Buttons
User’s Manual Arrow Buttons These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value. These buttons are also used to control Pan and Tilt when in the PTZ mode. -
Page 17: Search Button
Digital Video Recorder Search Button Pressing the button enters the search mode, and pressing the button again exits the search mode. When SEARCH entering the search mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed. The screen displays when the DVR is in the Pause mode and the screen displays when the DVR is playing back video. -
Page 18: Id Button
User’s Manual ID Button If a DVR System ID is set to 0, the infrared remote control will control that DVR without any additional operations. (Refer to the System – General setup screen in this chapter for further information on setting the System ID.) If the system ID is 1 to 16, you must to press the button and then press the number button (1 to 16 (+10 &... -
Page 19: Layout Button
Digital Video Recorder Layout Button Pressing the button toggles between different display formats. The available formats are: 3x3, 1+7, 1+5, LAYOUT 2x2 and PIP. Zoom Button Pressing the button zooms the current image on the screen. A PIP with a rectangle temporarily displays showing ZOOM what area of the screen has been enlarged. -
Page 20: Setup Screen
User’s Manual After you are finished with any setup screen, you can highlight Save and press the button to save the changes and exit the screen. If you do not wish to save the changes, highlight Cancel and press the button to exit the screen. -
Page 21: System Setup
Digital Video Recorder Use the arrow keys to highlight the character you want in the name or title and press button. That character appears in the title bar and the cursor moves to the next position. Pressing toggles between the upper and lower case keyboards, backspaces, and deletes entered characters. - Page 22 User’s Manual Select the desired file and press the button. Highlighting the Install button and pressing the button will install the selected software package. Highlighting the Cancel button and pressing the button will close the window without upgrading the software. If the upgrade package file is not installed on the DVR properly, you will get an error message.
- Page 23 Digital Video Recorder To export the system log information, connect the USB device to the DVR. Highlight Export… and press the button. Highlight the box beside File name and press the button. A virtual keyboard allows you to enter the file name. Selecting Export will save the log information in .txt file format on the USB device.
- Page 24 User’s Manual Date/Time Setup Date: Set the system date and select the date format. Time: Set the system time and select the time format. Time Zone: Select your time zone. The Time Zone can be selected on the map. ...
- Page 25 Digital Video Recorder Record Video Quality Setup Select the desired video quality profile from: – Higher Video Quality Priority Profile – Standard Recording Profile – Longer Recording Time Priority Profile NOTE: The higher quality setting requires more storage space. The recording resolution will be set to Very High when selecting High Video Quality Priority Profile, High when selecting Standard Recording Profile, and Standard when selecting Longer Recording Time Priority Profile.
- Page 26 User’s Manual If you selected the Go to Network Setup, select the Next button to start the Network Setup Wizard. Internet Connection Select whether or not your DVR is connected to the Internet.
- Page 27 Digital Video Recorder LAN Setup Select between Auto Configuration and Manual Configuration for network configuration, and then select the Test button to test the network configuration you selected. NOTE: Selecting Auto Configuration allows the DVR to automatically obtain LAN parameters (IP address, Gateway, Subnet Mask and DNS Server address).
-
Page 28: Date/Time
User’s Manual Highlight System Shutdown and press the button. The Shutdown screen displays asking you to confirm whether or not you want to shut the system down. After selecting Shutdown and pressing the button, a screen will appear telling you when it is safe to disconnect power. Date/Time Figure 9: System –... - Page 29 Digital Video Recorder Highlight the box beside Automatic Sync. and press the button. This toggles between On and Off. Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the time server. Highlighting allows you to select your time server from a list of registered time servers.
-
Page 30: User
User’s Manual User Figure 10: System – User setup screen. The +/– column is used to collapse and expand user groups. If there is a + or – in this column, it indicates the item is a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all of the User Names within that group are displayed below the Group Name. - Page 31 Digital Video Recorder Highlighting the Authority box and pressing the button will toggle between all authority levels being turned On and Off. Highlighting the individual authority level boxes and pressing the button will toggle between that authority level being turned On and Off. The authority levels that can be turned On and Off are: ...
-
Page 32: Storage
User’s Manual Storage Figure 11: System – Storage setup screen. The information in the Type column describes the storage device. The capacity of the storage device is displayed in the Capacity column. The Format column displays whether the device is used for recording (Record) or not (Not Using). Not formatted indicates the device is not formatted. -
Page 33: System Event
Digital Video Recorder System Event Figure 12: System – System Event setup screen. The DVR can be configured to run self-diagnostics and report the results. Highlight the Settings box beside the desired event (System, Check Recording, Check Alarm-In, Disk Almost Full, Disk Bad, or Disk Temperature), and press the button. -
Page 34: Recording Setup
User’s Manual Highlight the Settings box beside Disk Temperature, and press the button. Select the temperature of hard disk drive at which you want the DVR to trigger an alert if the temperature exceeds the defined threshold. Refer to the hard disk drive manufacturer’s documentation for the correct temperature setting. -
Page 35: Schedule
Digital Video Recorder Highlight the slide bar beside Limit Time-Lapse Recording, and use the Left and Right arrow buttons to adjust the length of the maximum storage time for time-lapse recording from 1 to 99 days. The Limit Time-Lapse Recording feature will function when the storage device has enough space to record video data longer than the preset period. -
Page 36: Figure 15: Schedule - Settings (Advanced Mode) Setup Screen
User’s Manual Highlight the box under the Day heading and press the button to change the days that the scheduled recording will take place. Choose from: Sun, Mon, Tue, Wed, Thu, Fri, Sat, M~F, Hol and All. Highlight the box under the Range heading and press the button to change the time range that the scheduled recording will take place. -
Page 37: Pre-Event
Digital Video Recorder Highlight the box under the heading and press the button to delete the recording settings. You will be asked to confirm that you want to delete the settings. Highlight Default… and press the button. The Default screen appears. Highlighting boxes under ips and pressing the button allows you to set the images per second for Time and Event recording. -
Page 38: Event Setup
User’s Manual Event Setup Motion Figure 17: Event – Motion setup screen. Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Highlighting the box under the Sensitivity heading and pressing the button allows you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime independently. -
Page 39: Alarm-In
Digital Video Recorder You can adjust the minimum number of detection blocks that must be activated to trigger a motion alarm. Highlighting the box under the Min. Blocks heading and pressing the button allows you to adjust the minimum number of detection blocks for Daytime and Nighttime independently. -
Page 40: Video Loss
User’s Manual Video Loss Figure 19: Event – Video Loss setup screen. Highlighting the box under the Video Loss Interval heading allows you to set the duration of a signal loss before the DVR will report a Video Loss. The DVR will not consider any signal loss from a camera to be a Video Loss if the detected signal loss is shorter than the interval set on this screen. -
Page 41: Text-In
Digital Video Recorder The DVR checks to see if anything is blinding a camera. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive). NOTE: Video blind might NOT be detected for a camera with a very noisy image especially when set for low sensitivity values. - Page 42 User’s Manual Highlight the box beside Port, and press the button. Select from None, RS232, RS485, USB-Serial (1~8) and LAN (1~8). NOTE: If you have set the Port as None, you will not be able to make any changes to the screen. When using the USB to serial text-in device, do NOT remove the USB cable from the port while the system is running.
-
Page 43: Camera Setup
Digital Video Recorder Each input can be given a title. Highlight the desired Title box and press the button. A virtual keyboard appears allowing you to enter a title name. Highlight the box under the Actions and press the button. The DVR can be set to react to text input. Text input can be associated with cameras, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions. -
Page 44: Ptz
User’s Manual Figure 23: Camera – PTZ setup screen. NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485. Highlight the box in the Product column for the PTZ camera you wish to configure and press the button. -
Page 45: Device Setup
Digital Video Recorder Device Setup Audio Figure 24: Device – Audio setup screen. The DVR can record up to four audio inputs. Highlight the box beside the input and press the button. A list of cameras appears, and you can select which camera you want associated with that audio input. Highlight Enable Audio-Out and press the button. -
Page 46: Remote Control
User’s Manual You can add and edit alarm output schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes. -
Page 47: Network Setup
Digital Video Recorder Network Setup General Figure 27: Network – General setup screen. Highlight the first box beside Remote Watch – bps/ips. You can select the Transfer Speed from 50Kbps to 1Gbps. Highlight the second box beside Remote Watch – bps/ips. You can select the unit of measure for the transfer speed between: bps and ips. -
Page 48: Lan
User’s Manual NOTE: While the SSL function is enabled, the network transfer speed you selected may not be achieved. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Figure 28: Network – LAN setup screen. Highlight the box beside Type and press the button. - Page 49 Digital Video Recorder Highlight Use UPnP and press the button to toggle between On and Off. When it is On, port forwarding from the NAT (Network Address Translation) device to the DVR will be enabled automatically via UPnP (Universal Plug and Play) service.
-
Page 50: Fen
User’s Manual Figure 29: Network – FEN setup screen. Highlight Use FEN and press the button to toggle between On and Off. NOTE: FEN is the technology that automatically sets up your DVR to work seamlessly for remote viewing via your network internet connection. -
Page 51: Rtsp
Digital Video Recorder RTSP Figure 30: Network – RTSP setup screen. Highlight Enable RTSP (Real-Time Streaming Protocol) and press the button to toggle between On and Off. You will be able to change the settings if Enable RTSP is enabled. Highlight the box beside RTSP Port and press the button. -
Page 52: Webguard
User’s Manual WebGuard Figure 31: Network – WebGuard setup screen. Highlight Use WebGuard Service and press the button to toggle between On and Off. See Appendix – WebGuard for detailed descriptions of the WebGuard service. Highlight the box beside Port and press the button. -
Page 53: Notification Setup
Digital Video Recorder Highlight the box beside Password and press the button. A virtual keyboard appears allowing you to enter the password for VNC connection. NOTE: Up to three users at a time can access a DVR remotely via VNC service. When controlling the DVR remotely using a keyboard, shortcut keys perform the following functions as described below: Function... -
Page 54: Mail
User’s Manual Highlight the IP Address box that you want to change and press the button. Use the arrow buttons to enter the IP address of the computer you want contacted during an event. You can enter up to five IP addresses. Highlight the box beside Retry and enter the number of times you would like the DVR to try contacting the computer. - Page 55 Digital Video Recorder Highlight Use and press the button to toggle between On and Off. Assign the Recipient to a Group and enter the Recipient’s Display Name. Highlight the box beside Address and enter the recipient’s e-mail address and mail server provider. Highlighting allows you to select the mail server provider from a list of registered SMTP mail server...
-
Page 56: Sns
User’s Manual Figure 35: Notification – SNS setup screen. The DVR can be set up to post a message via SNS (Social Network Service) when an event occurs. You can add and edit the SNS account on this screen. The SNS account can be turned On or Off by highlighting the boxes under the No. -
Page 57: Display Setup
Digital Video Recorder You can add and edit notification schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes. -
Page 58: Main Monitor
User’s Manual Freeze & Sequence – The icon displays while in the Freeze mode, and the displays while in the Sequence mode. Screen Group – The number of screen group displays when the DVR is not in the 3x3 and 1+7 display modes of the 8-channel DVR, and 2x2 mode of the 4-channel DVR. - Page 59 Digital Video Recorder You can define the screen layout in a variety of formats and set the DVR to sequence through the different screen layouts (pages) so that all the cameras will be displayed. You can also set up the DVR to display one camera or a group of cameras all the time while cycling through the remaining cameras in a “cameo”...
- Page 60 User’s Manual...
-
Page 61: Chapter 4 - Operation
Digital Video Recorder Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video. -
Page 62: Live Monitoring Menu
User’s Manual Live Monitoring Menu Login/Logout Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User and enter the password to log into the system. Selecting (Logout) in the Live Monitoring menu displays the Logout screen asking you to confirm whether or not you want to log out the current user. -
Page 63: Camera Menu
Digital Video Recorder < Full Sequence > < Cameo Sequence > Selecting again in the Live Monitoring menu exits the Sequence mode. While in the Sequence mode, the icon displays in bottom-left corner if Sequence is selected in the Display setup screen (OSD tab). If all the cameras in a page are Off, or have lost video or are set to Covert (unless the user has authority to view covert cameras), that page will be excluded from the sequence. -
Page 64: Active Cameo Mode
User’s Manual Active Cameo Mode You can enter the Active Cameo mode by selecting Edit Group from the Live Monitoring – Camera menu or pressing and holding the (Play/Pause) button for three seconds or longer in any multi-view format. The yellow outline surrounding the video indicates the active cameo, and pressing the arrow buttons moves the active cameo. -
Page 65: Event Monitoring
Digital Video Recorder While in the PTZ mode, pressing the button and selecting (Advanced PTZ) in the menu MENU displaying at the top of the screen displays the Advanced PTZ menu. Set the feature you wish to control by selecting it from the menu. Refer to the camera manufacturer’s instructions for the proper settings. -
Page 66: Status Monitoring
User’s Manual Status Monitoring Selecting (Status) in the Live Monitoring menu or Search menu displays the Event Status screen. Figure 42: Event Status – Event Status screen. The Event Status screen displays the status of the DVR’s systems and inputs. Events will be highlighted, and related channels or events will flicker for five seconds when detected. -
Page 67: Recording Video
Digital Video Recorder Figure 43: Event Status – Storage screen. The Type column displays the type of storage device. The Disk Bad column displays the percentage of bad sectors. Not formatted indicates the device is not formatted. The Temperature column displays the temperature of the storage device. The S.M.A.R.T. -
Page 68: Recording Audio
User’s Manual Recording Audio If the DVR was set up to record audio, it will record audio from up to four inputs when video is recording. NOTE: Make certain you comply with all local and federal laws and regulations when recording audio. Playing Recorded Video If a user who has Search authority logs into the system, the user can view recorded image. -
Page 69: Searching Video
Digital Video Recorder You can use a mouse for convenient playback control. Position the mouse pointer on the playback screen, and the following Record Table Search (Compact View Mode) screen will display. The individual controls on the toolbar perform the following functions as described below: Go to the previous image Play/Pause Go to the next image... - Page 70 User’s Manual Move the cursor over the date and time and press the (Play/Pause) button. You can use the Left and Right arrow buttons to highlight the year, month, day, hours, minutes and seconds. Use the Up and Down arrow buttons to change to the date and time you want to search for video.
-
Page 71: Event Log Search
Digital Video Recorder Export A–B Clip-Copy: Selecting (Export) → A–B Clip-Copy will set the starting point of the video to be clip copied, icon displays at the bottom-left corner of the screen. Selecting A–B Clip-Copy again will set the ending and the point of the video to be clip copied and displays the Clip-Copy screen. - Page 72 User’s Manual NOTE: It is possible that no recorded image displays on the current screen. Change the screen mode to 3x3, for the 8-channel DVR and 2x2 for the 4-channel DVR. You will be able to easily see the camera have recorded video during target time.
-
Page 73: Record Table Search
Digital Video Recorder You can also toggle On and Off self-diagnostic System Events as part of your search. The choices are: Panic Record Check Recording Check Alarm-In Disk Almost Full Disk Bad Disk Temperature ... -
Page 74: Motion Search
User’s Manual NOTE: If the DVR has images recorded in more than one recording mode in the same time range, the recording status bar displays recording information in the following priority order: Panic Pre-Event Event Time. The color of the bar indicates different recording modes: Red for Panic, Yellow for Pre-Event, Purple for Event, and Blue for Time. - Page 75 Digital Video Recorder Highlighting Close and pressing the button will extract the video associated with the Motion event and display the first image of the event. Pressing the button will start playing the “event” video segment. Pressing SEARCH returns to live monitoring . You can also narrow your event search by selecting the Option…...
-
Page 76: Text-In Search
User’s Manual Text-In Search Figure 49: Text-In Search screen. The DVR maintains a log of each time there is Text Input. The Text-In Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. Pressing the (Play/Pause) button will extract the video associated with the Text Input and display the first image of the event. -
Page 77: Bookmarks
Digital Video Recorder Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting and pressing the button the bookmark list displays and the bookmark point you selected will be the starting date and time. -
Page 78: Clip-Copy
User’s Manual Use the arrow buttons to highlight the bookmark point for which you would like to see video. The selected bookmark will display on the screen by pressing the button. Clip-Copy Video clips can be copied on an external USB hard disk or flash drive. The copied video clips can be viewed on computers running Microsoft Windows 2000, XP, Vista or 7. -
Page 79: Print
Digital Video Recorder CAUTION: The USB device for clip copy must be FAT 16 or FAT32 format. The DVR automatically assigns a file name to the video clip. However, you can give the video clip file a different name. Highlight the box beside File Name and press the button. -
Page 80: Figure 52: Print Screen
User’s Manual Highlight the box beside Printer Model and press the button. Selecting PostScript Printer will print images on a PostScript™ printer connected to the DVR. Selecting File Printer will save the current image as a PDF file on an external USB hard disk drive or flash drive. NOTE: Images saved as PDF files can be printed on any printer connected to your PC. -
Page 81: Appendix
Digital Video Recorder Appendix USB Hard Disk Drive Preparation NOTE: The following description is for preparing a USB hard disk drive under Windows 2000. Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable. -
Page 82: Search Example Ii
User’s Manual Search Example II 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) 2.20 Fanta 2.20 | 1(s) 2.20 Hotdog 3.50 | 3(s) 10.50 Pepsi 1.95 | 1(s) 1.95 ================================================== total : $ 16.85 Thank you~~ In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored automatically), 28 (Qty) and 40 (amount) characters (including spaces) from the left, but the value of amount... -
Page 83: Webguard
Digital Video Recorder WebGuard WebGuard allows you to access a remote DVR, monitor live video images and search recorded video using Internet Explorer web browser anytime from virtually anywhere. Computer system requirements for using the WebGuard program are: ® ® ®... -
Page 84: Web Monitoring Mode
User’s Manual NOTE: There might be a problem with screen display or screen update due to low image transmission speed when using the Microsoft Windows Vista or higher operating system. In this situation, it is recommended that you disable the Auto Tuning capability of your computer. Run the Command Prompt with elevated administrator permissions (Go to the Start Menu ... -
Page 85: Web Search Mode
Digital Video Recorder ⑩ Click the to set up the image drawing mode, OSD display and beep on/off. You can adjust the display speed by changing the image drawing mode, select OSD information to be displayed on the screen, and turn the DVR’s internal buzzer on and off from a remote site. - Page 86 User’s Manual ④ The DVR information window displays the time information of recorded data on the remote DVR and login information of WebGuard. ⑤ Click the to blur, sharpen, equalize and interpolate playback images. Click the to zoom out or zoom in the recorded image. Click the to adjust the brightness of the recorded images.
-
Page 87: Time Overlap
Digital Video Recorder Time Overlap If the DVR’s time and date have been reset to a time that is earlier than the existing recorded video, it is possible for the DVR to have more than one video stream in the same time range. In this case, you can search overlapping video streams individually by selecting a specific segment. -
Page 88: System Log Notices
User’s Manual System Upgrade Related Clip Copy Related Description Description Remote network error. Bad sector. Remote upgrade is not authorized. No executable file. Saving remote package failed. Opening executable file failed. Remote upgrade is cancelled by the user. Writing executable file failed. USB device mounting failed. -
Page 89: Map Of Screens
Digital Video Recorder Map of Screens MENU SYSTEM General Date/Time User Storage System Event RECORD General Schedule Pre-Event EVENT Motion Alarm-In Video Loss Video Blind Text-In CAMERA General DEVICE Audio Alarm-Out Remote Control NETWORK General RTSP WebGuard NOTIFICATION Callback Mail Schedule DISPLAY Main Monitor... -
Page 90: Troubleshooting
User’s Manual Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Check camera video cable and connections. Check monitor video cable and connections. No Live Video Confirm that the camera has power. ... - Page 91 Digital Video Recorder CONNECTORS Video Input Composite: 4 or 8 BNC HDMI: 1 HDMI Monitor Output VGA: 1 VGA Audio In 4 RCA connector Audio Out 1 RCA connector Alarm Input/Output Terminal Blocks Ethernet Port RJ-45 RS232 Serial Port Two-connector terminal block RS485 Serial Port Two-connector terminal block IR Port...
