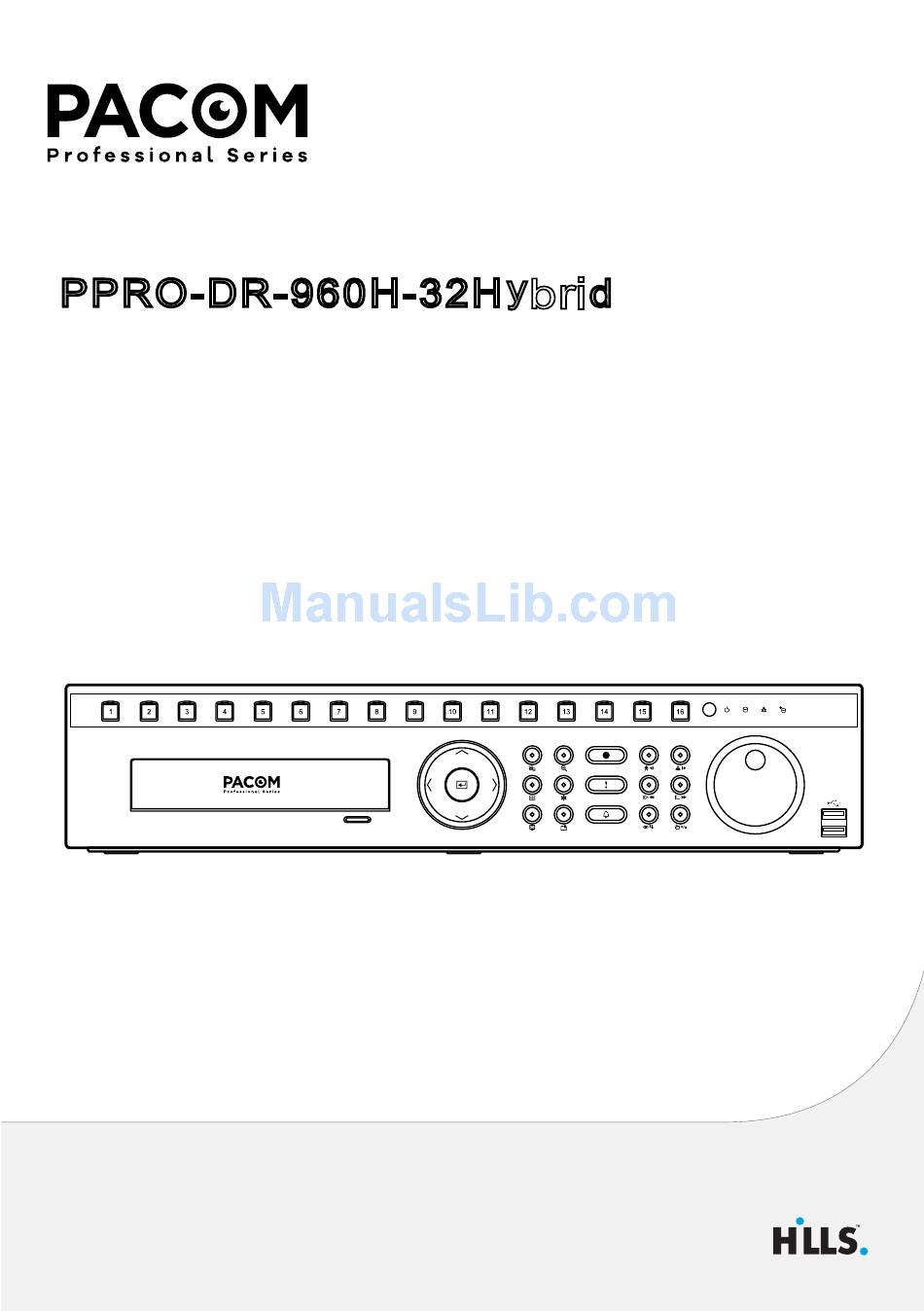

- Page 1 PPRO -DR-960H-32H y (S55942) 32 Channel Hybrid Network Video Recorder Hybrid Network Video Recorder Quick Guide...
-
Page 2: Safety Precautions
Safety Precautions Important Safeguards 13. Servicing Do not attempt to service this equipment yourself. Refer all servicing to 1. Read Instructions qualified service personnel. All the safety and operating instructions should be read before the 14. Damage requiring Service appliance is operated. Unplug this equipment from the wall outlet and refer servicing to qualified 2. -
Page 3: Fcc Compliance Statement
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Front Panel
Accessories Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included. Item Network Video Recorder Power Cable Quick Guide Rack-mount Kit Operation Manual and RASplusIP Program CD Optical USB Mouse IR Remote Control Multi audio cable Assembly Screws for Adding Hard Disk Drives SATA2 Cables... -
Page 5: Rear Panel
Rear Panel Video Input Video Loop Through Audio In Video In Port Network Port eSATA Ports RS-485 Port RS-232 Port Alarm Connection Ports HDMI Out Port VGA Out Port Audio Out Port Power In Port For more details on rear panel connections, refer to the operation manual. Connections on the Rear Panel Analog Camera... -
Page 6: Remote Control
Remote Control ID Button Display Button Sequence Buttons Freeze Button Alarm Button Camera Buttons Focus near/far Button Preset set/view Button Zoom in/out Button Menu Button PTZ Button Arrow Button Enter Button Zoom Button Panic Buttons Playback Buttons For more details on remote control buttons, refer to the operation manual. Getting Started Quick Setup Wizard ●... -
Page 7: Camera Registration
Device Scan Network Setup Wizard Click the “Scan” button and the Device Scan screen After exiting from Quick Wizard, the network with Network Wizard will start automatically. Some functions may not be supported for the third party cameras depending on their protocol and moel. ●... -
Page 8: Basic Feature
Basic Feature Login Configuring the NVR’s settings and accessing its searching and other functions require an authorized user login. Live Mode While in Live mode, right-click on the mouse and select Login and either press the SETUP button on Once Camera Registration is complete, the system will enter the remote control. -
Page 9: Installation
Selecting the Use DVRNS option on the login window All Channel Playback allows you to enter the NVR name registered to the FEN server instead of its IP address. You will be Press the Menu button while in Live mode. prompted to enter the FEN server’s address and port number under Setup. -
Page 10: Device Registration
On Microsoft ® Windows ® Vista or User • Default User ID is "admin" without a password. Account Control window may pop-up. • You can change User ID and Password in the User Click Allow and follow the instructions in menu. - Page 11 Recorded Video Playback Click Device Group on the Sites panel and click the bottom. Add Device Group window will appear. In the Site List, make sure that the device has been added to the device group. In the panel tabs, click on the Play tab. In the Site list, select a site you wish to connect to.
-
Page 12: Specifications
Specifications – Address, Watch Port, Search Port: Enter the device name used to register the device to FEN. If These product specifications may change without prior FEN feature is not enabled on the device, deselect notice. DVRNS checkbox and enter the device's IP address. - Page 13 Proudly distributed by...
