3.6.2 Network Configuration

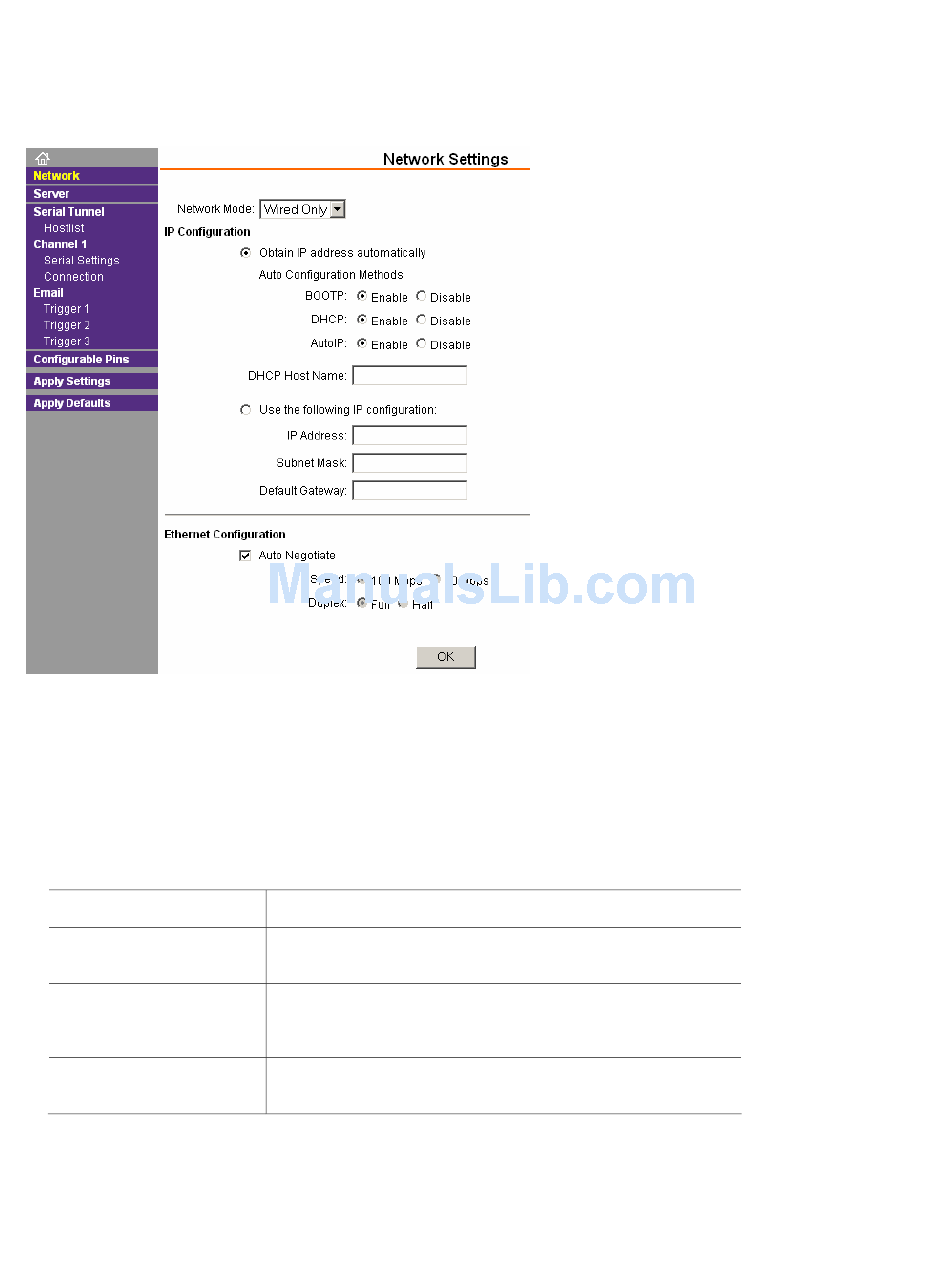

The unit's network values display when you select Network from the main menu. The following sections
describe the configurable parameters on the Network Settings page.
Note: If you used the Assign IP button on the Device Installer toolbar, the assigned IP address should appear in the
Network Settings web page.
Manually assign an IP address to the unit and enter related network settings.
To assign an IP address manually:
1. Select Use the following IP configuration.
2. Enter the following (as necessary):
IP Address
Subnet Mask
Default Gateway
Auto Negotiate
4. When you are finished, click the OK button.
5. On the main menu, click Apply Settings.
3-8
Assign IP address in decimal-dot notation. The IP address must be
set to a unique value in the network. Example: 172.20.206.150
A subnet mask defines the number of bits taken from the IP
address that are assigned for the host part. Example:
255.255.255.0
The gateway address, or router, allows communication to other
LAN segments. The gateway address should be the IP address of
the router connected to the same LAN segment as the unit. The
gateway address must be within the local network.
Set to Auto Negotiate. With this option, the Ehernet port auto-negotiates
the speed and duplex with the hardware endpoint to which it is
connected. This is the default.
