Overview

2.6 USB Interface

The table below lists the USB signals for the NETUSB. The USB cable is a Type A Male connector.
Note: The NETUSB MUST be connected to a HOST device.

Table 2 - USB Signals

Pin # Description
1 - RED
2 - WHITE
3 - GREEN
4 - BLACK GND (Ground)

2.7 OEM Module

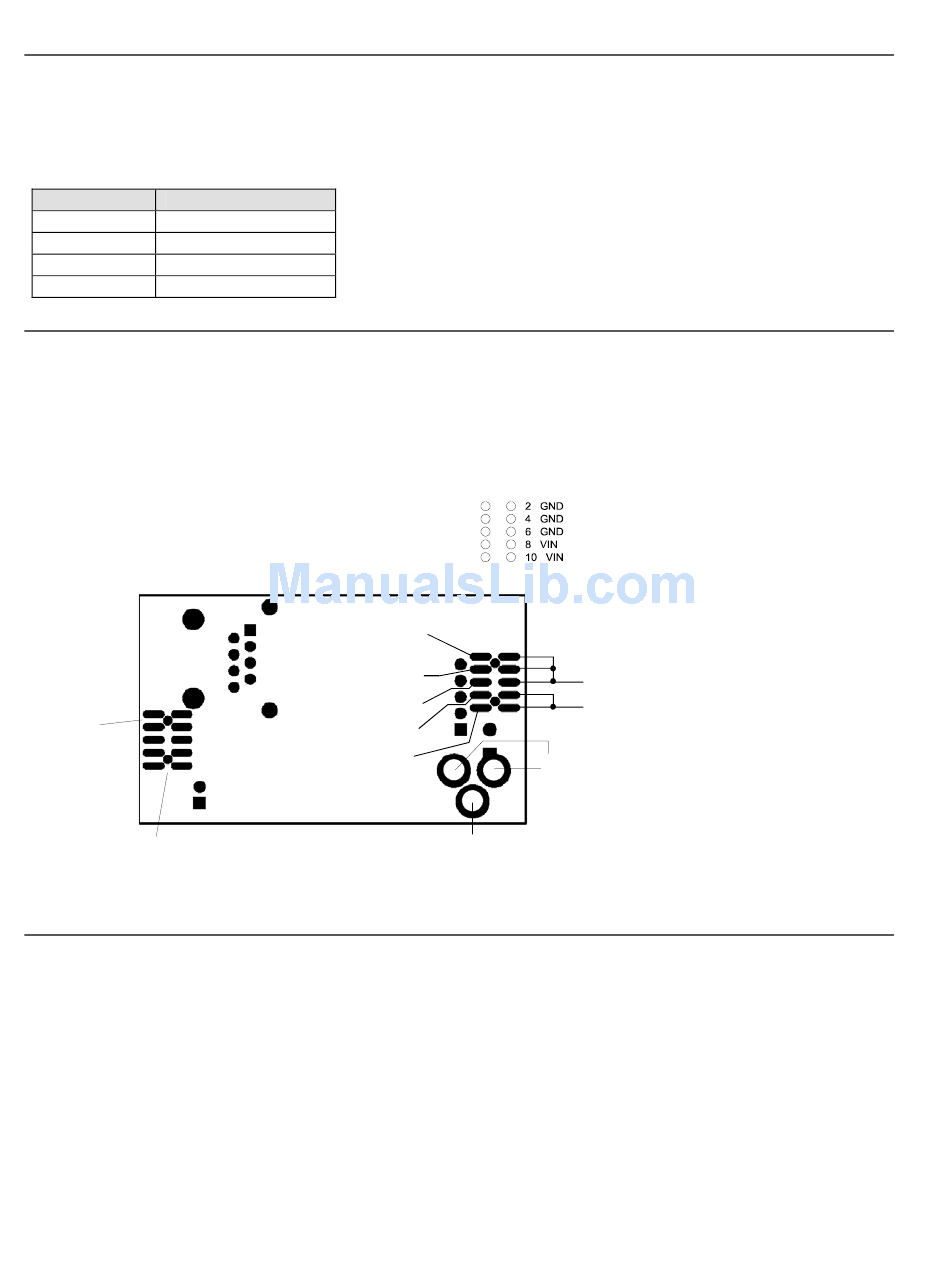

The NET232 circuit board can be supplied as an OEM module. The module has two headers that are used to
secure the module to a motherboard. One hole on the edge of the board can be used for mounting to a
standoff.
Note: OEM Modules must be ordered in quantities of 25 or more.
NO SIGNALS
ON THESE PINS
MOUNTING HEADER
HEADER, 10 POS 2MM VERT SMD
DIGI-KEY WM18652-ND
MATES WITH RECEPT 2MM 10 POS VERT
DIGI-KEY WM18676-ND

2.8 Power Supply

The NET232 can use any DC power source from 9VDC to 24VDC. A typical power cube sent with the unit
can supply 9VDC at 500 mA. However, there are other units that can be used as long as they are in the
range of 9-24VDC and supply the proper wattage. At 9VDC, the NET232 will draw approximately 110mA
(.99W) so a 2 Watt power source ( 9V at 200mA) should be adequate.
Note: Grid Connect can supply a special cable adapter to connect the NET232 to a USB jack for +5VDC power.
The NET232 power adapter is a 2.1mm, positive center power jack. The jack is equivalent to a CUI Inc. PJ-
002A power jack.
You can also order the NET232 with a Phoenix right angle power connector. The unit is supplied with a
mating Phoenix terminal block plug.
2-6
VBUS
D-
D+
GND
CTS OUT
RTS IN
TXD OUT
RXD IN
J4
GND 1
CTS OUT 3
RTS IN 5
TXD OUT 7
RXD IN 9
DO NOT USE THESE
HOLES FOR MOUNTING.
THEY HAVE POWER ON
THEM.
ONLY THIS HOLE
CAN BE USED FOR
MOUNTING
NET232/NETUSB User Guide
GND
VIN
