g. Fill the tank with the correct grade of
unleaded fuel to a level approximately half
way up the fuel filter. Pour the fuel into the
tank carefully and do not try to fill the tank
completely. Pour the petrol slowly to avoid
air traps during filling that could cause fuel
spillage.
h. Check the fuel tank cap, and replace as
soon as refuelling is completed. The cap
has a bayonet type connection. Check that it
is correctly installed and seated before slowly
turning on the fuel tap.
i. Check for any fuel leaks throughout
the fuel system. Do not attempt to start
the engine if a fuel leak is suspected. Any
detected leak must be repaired by a suitable
qualified technician.
j. Observe all national and/or local
regulations about the storage and use
of petroleum products. All local bye laws
should be observed.
SYMBOLS AND LABELS
Symbol Description
V Volts
A Amperes
Hz Hertz
Min -1 Speed
~ Alternating Current
n No Load Speed
o
Wear Safety
Goggles
Wear Ear Protection
Do Not Touch
Wear Dust Protection
Restriction
of Hazardous
Substances Directive
CE certification
Waste electrical and
electronic equipment
8 www.evolutionbuild.com

SPECIFICATION

Engine Specification - EVO200
Engine Brand: EVOLUTION
-----------------------------------------------------------------------
Engine Type: 4-Stroke (Single Cylinder)
-----------------------------------------------------------------------
Engine Displacement: 200cc
-----------------------------------------------------------------------
Engine Power: 6.5hp
-----------------------------------------------------------------------
Spark Plug Replacement: SINO F7TC
NGK BP6ES
CHAMPION N9YC
-----------------------------------------------------------------------
Spark Plug Gap: 0.8mm
-----------------------------------------------------------------------
Air Filter: Washable air filter element
-----------------------------------------------------------------------
Fuel Type: Standard Unleaded Petrol
-----------------------------------------------------------------------
Speed: 3150min (Factory set governed)
-1
-----------------------------------------------------------------------
Fuel Tank Capacity: 3.1 L
-----------------------------------------------------------------------
Starter: Recoil
-----------------------------------------------------------------------
Transmission: EVO-SYSTEM Technology
-----------------------------------------------------------------------
Oil Warning: Oil Low Sensor
-----------------------------------------------------------------------
Weight (Without Accessory): 29.1kg
-----------------------------------------------------------------------
Wheels: 200mm
Ø
-----------------------------------------------------------------------
Brake: Manual Foot Brake
Locking the Wheels
-----------------------------------------------------------------------
Frame: External tubular steel (1") frame
Deployable Accessory Frame
-----------------------------------------------------------------------
Handle: Fold-away

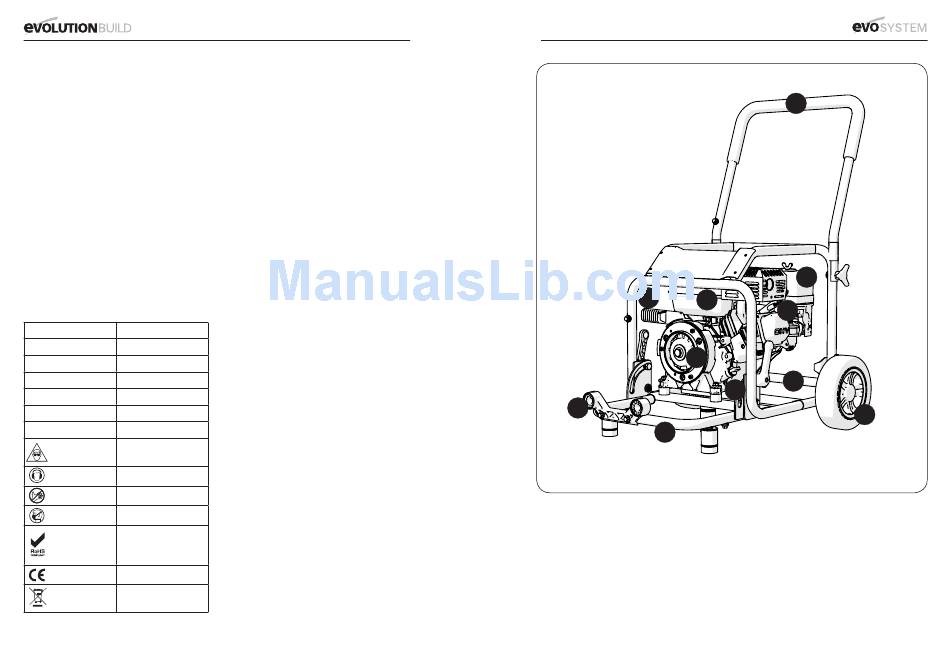

Machine Overview

1
2
5
8
9
1. 'Uni-Coupling' release lever
2. Fuel Tank
3. Air Filter Cover
4. Spark Plug
5. Evolution 'Uni-Coupling'
6. Oil Level/Filler Cap
www.evolutionbuild.com
11
3
4
7
6
10
7. Wheel Foot Brake
8. Accessory Mounting Sockets
9. Deployed Accessory Mounting Frame
10. Transportation Wheels
11. Transportation Handle
®
9
