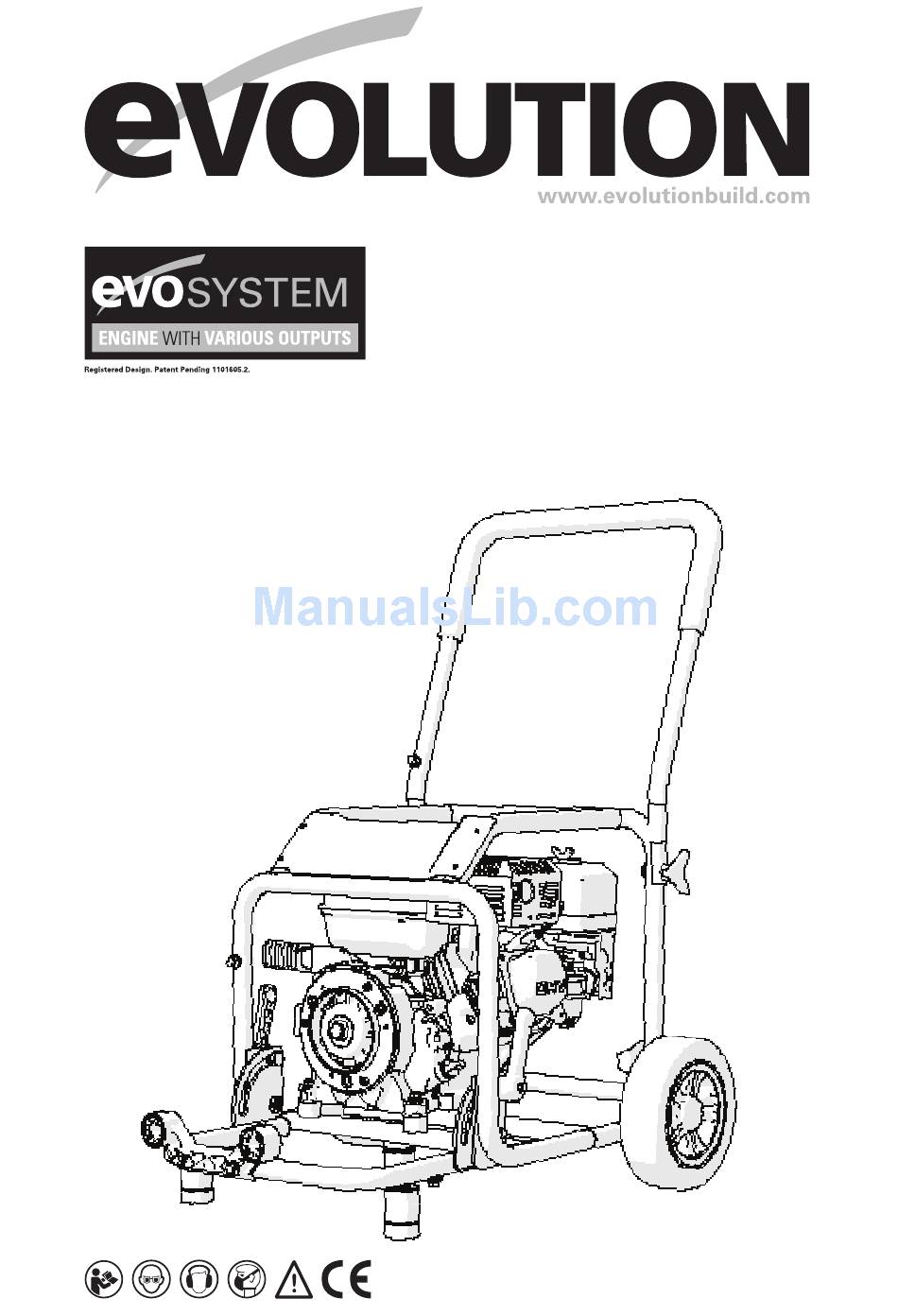

  • Page 1 ® ® evo200 engine ORIGINAL MANUAL Please read instructions before operating this tool...
  • Page 3 Download a FREE QR READER APP and scan the QR coDE (below). Instantly watch the HD Evo-System Video on your Smart Phone. Make sure the HD setting is on. If you don’t have a Smart Phone, you can also watch all Evolution’s videos online.

  • Page 4: Table Of Contents

    ® TABLE OF CONTENTS EC - DECLARATION OF CONFORMITY EC - Declaration of Conformity We, manufacturer and importer Important Information Evolution Power Tools Ltd. Venture One 12 Month Limited Warranty Sheffield S20 3FR General Safety Rules Declare that the product;...

  • Page 5: Important Information

    ® IMPORTANT or agent of Evolution Power Tools is authorised to make oral representations of fitness or to Please read these operating safety waive any of the foregoing terms of sale and instructions carefully and completely. For your none shall be binding on Evolution Power Tools.
  • Page 6 ® 4. Power tool use and care f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces a. Do not force the power tool. Use the correct the risk of electric shock.

  • Page 7: Engine

    When transporting the engine in a vehicle SAFETY INSTRUCTIONS ensure that the fuel tap is turned off. To FOR EVOLUTION ENGINE minimise the risk of fuel spillage the engine should be secured by ropes etc to the load area a.

  • Page 8: Symbols & Labels

    Check for any fuel leaks throughout the fuel SPECIFICATION system. Do not attempt to start the engine if a fuel leak is suspected. Any detected leak must be Engine Specification - EVO200 repaired by a suitable qualified technician. Engine Brand: EVOLUTION j.

  • Page 9: Machine Overview

    1. ‘Uni-Coupling’ release lever 7. Wheel Foot Brake 2. Fuel Tank 8. Accessory Mounting Sockets 3. Air Filter Cover 9. Deployed Accessory Mounting Frame 4. Spark Plug 10. Transportation Wheels 5. Evolution ‘Uni-Coupling’ 11. Transportation Handle 6. Oil Level/Filler Cap www.evolutionbuild.com...
  • Page 10 ® Machine Overview 1. Fuel Tank 6. Deployed Accessory Mounting Frame 2. Air Filter Cover 7. Transportation Wheels 3. Engine Switch 8. Wheel Foot Brake Handle 4. Recoil Starter 9. Fuel ‘ON/OFF’ Tap 5. Choke Control www.evolutionbuild.com...

  • Page 11: Assembly

    ® ASSEMBLY Your EVO-SYSTEM Engine needs some minor assembly and will need minimal operator adjustments to commission the machine. 1. Attaching the Transportation Handle The Transportation handle should be attached to the machines external tubular frame using the two ø8 mm coach bolts and plastic headed thumb nuts.
  • Page 12 ® 3. Attaching the 3 Support Feet Three support feet are provided. All three are the same and are inter-changeable with each other. Two of the support feet fit onto to the accessory mounting frame near the front corners. The third support foot fits onto a boss located under the front bottom cross member of the external frame.
  • Page 13 5. Connecting an accessory Your EVO-SYSTEM Engine has a unique coupling that enables a variety of Evolution accessories to be connected to and be driven by this machine. This coupling is engineered to very fine tolerances and must be kept clean and free from dirt, debris etc.

  • Page 14: Operation

    ® and the accessory will be made automatically. No component alignment or adjustments are necessary. • Be gentle and patient, the coupling is precisely engineered and no great force is required to connect the accessories. Once the operator has mastered the ‘technique’, accessory connection will become straight forward.
  • Page 15 ® 1. Starting your EVO-SYSTEM Engine Note: A visual safety check should be carried out before attempting to start the engine. Particularly check for any fuel or oil leaks, the integrity of accessory attachment and the stability of the machine. Rectify any faults found before attempting to operate the machine.
  • Page 16 • Allow the engine to come to a complete stop and turn the fuel tap to the ‘OFF’ position. (Fig. 16) 3. Transporting your Evolution Engine Although compact this machine is heavy. Enlist competent help if necessary when transporting this machine.

  • Page 17: Maintenance

    If in doubt have the machine serviced at an Evolution approved Service Centre. 1. Engine oil replacement Note: Engine oil is easier to replace when the engine has been run Fig 18 up to temperature and the oil is warm.
  • Page 18 ® WARNING: The engine should be cold before commencing the spark plug removal procedure. • Pull the HT lead from the spark plug. • Using the spark plug socket and ‘T-’bar (supplied) remove the spark plug. (Fig. 20) A serviceable spark plug in good condition should exhibit light tan deposits on the plug nose.
  • Page 19 ® 4. Fuel Tank Filler Filter Occasionally visually check the condition of the fuel tank filter (when refuelling is ideal). If there is any sign of deposit build up, remove the filter from the tank and clean. • Clean the filter with environmentally friendly water based degreasing agent and if necessary blow the fine mesh through with clean, dry compressed air.
  • Page 20 ® Note: The Plastic ring is not ‘handed’ and can fit onto the flange either way round. • Check the installation. 7. Uni-coupling Clutch Drive from the engine to the accessory is transmitted by a 12 toothed sprung loaded dog clutch coupling. This should be kept clean and the teeth regularly inspected for wear (preferably at every connection or disconnection).
  • Page 21 This procedure needs to be carried out carefully and a seperate instruction sheet is available from Rubber Visual Check www.evolutionpowertools.co.uk/evosystem.html. element If you do not feel confident, please contact the helpline for further help and advice. * Evolution’s internal test data. www.evolutionbuild.com...

  • Page 22: Environmental Protection

    ® CoNditioN PoSSibLe CAUSe ACtioN engine will not Fuel Starvation Replenish fuel in the fuel tank start/cuts out Accessory not connected or Carefully connect required not connected successfully accessory Low engine oil level causing Check and replenish engine oil safety shutdown Engine positioned on a slope Check oil level.
  • Page 23 ® Notes www.evolutionbuild.com...
  • Page 24 ®...

This manual is also suitable for:

Evo200
