Installing The Engine - Evolution EVOE10GX User Manual

Included Content
ENGINE
• Muffler (EVO10601)
• Muffler Screws & Gasket (EVO100E46A)
• Spark Plug (EVOG10350)
• Evolution/Spektrum
adapter cable (EVOA107)
• Med Gas Fuel Tubing (EVOA104)
• In-Line Fuel Filter (EVOA105)
• In-tank Felt Filter/Clunk (EVOA106)

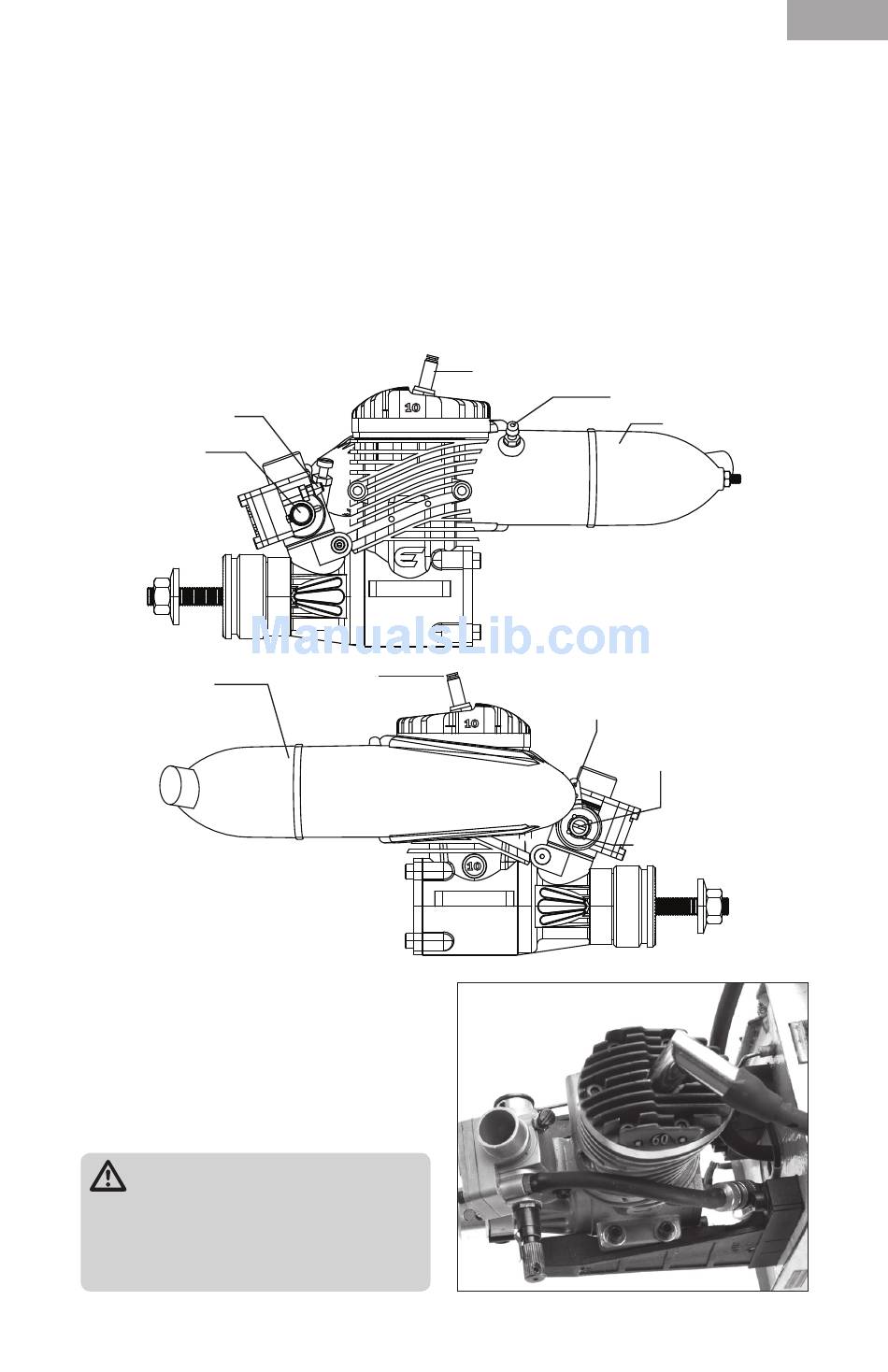

Fuel Nipple
High-Speed
Needle
Muffler

Installing the Engine

1. Secure the engine mount on the airplane
firewall. Tighten the engine mount screws
in the firewall.
2. Install the engine on the engine mount
according to the airplane manufacturer's
instructions.
WARNING: Tighten all engine
mounting screws before each flight. If
you do not tighten the engine
mounting screws, the screws may
vibrate loose and cause the engine to
separate from the fuselage.
Telemetry RPM
™
Spark Plug
OPTIONAL ITEMS
• Tachometer (HAN156)
• Propeller 10 x 6 (EVO10060) for break-in;
12 x 6 (EVO12060) for normal flight
• EVOM1 High Performance Tuned Muffler:
EVO46-60
Spark Plug
Muffler Nipple
Needle Limit Collar
Low-Speed Needle
Muffler
Throttle Arm
