Summary of Contents for Evolution 20GX2

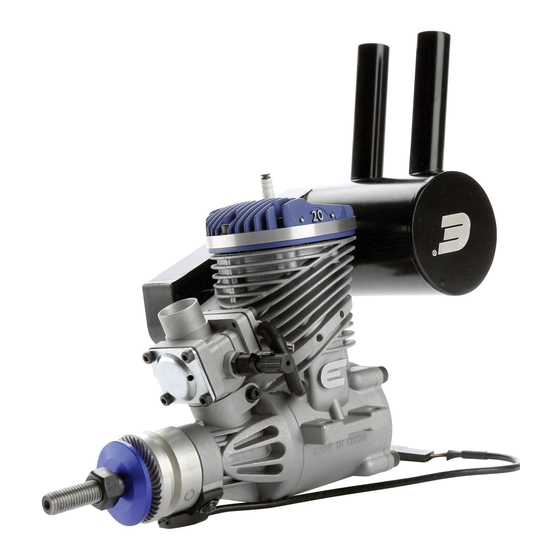

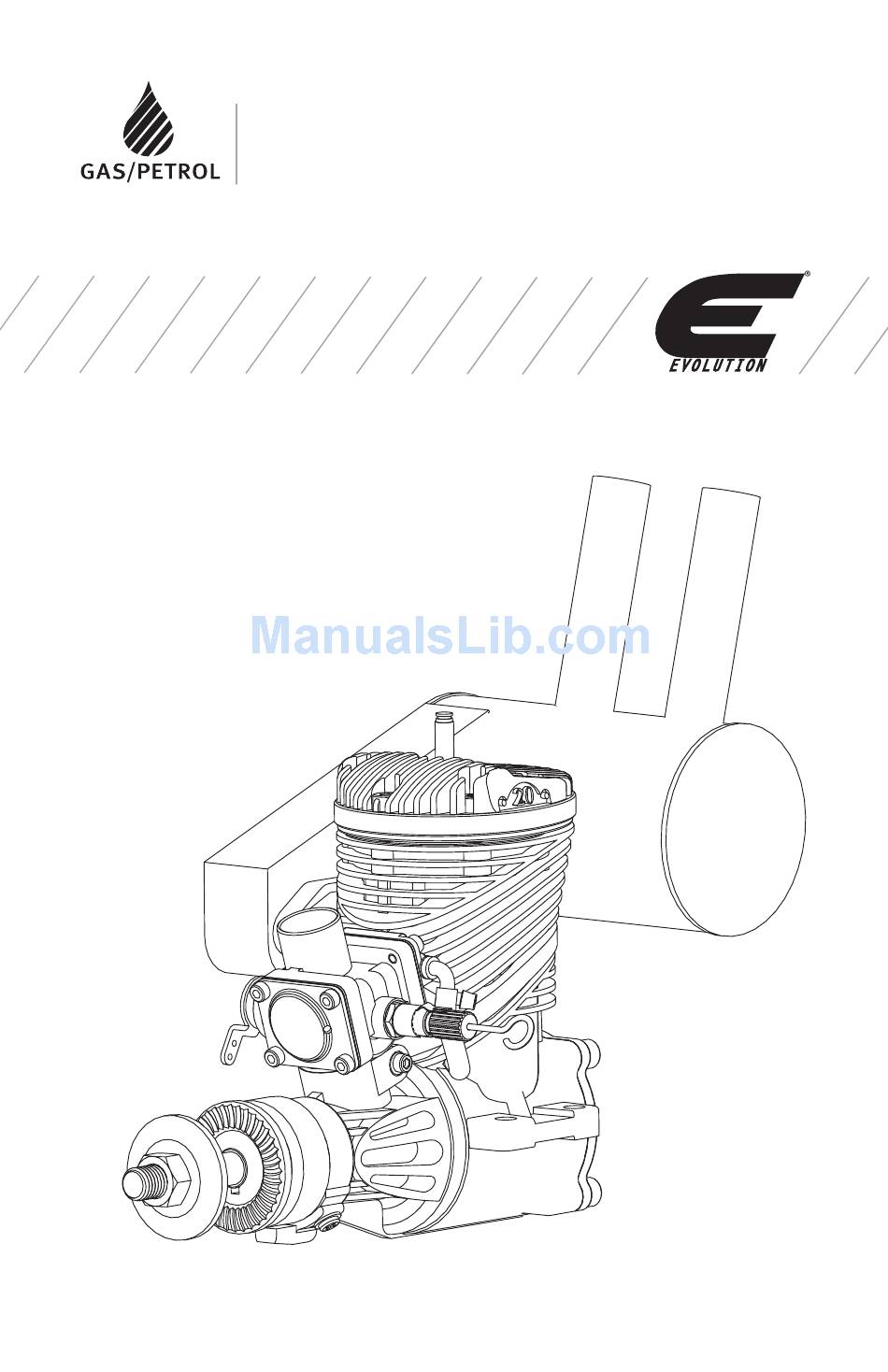

- Page 1 20GX2 Evolution Gas Engines ®...
-
Page 2: Safety Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. MEANING Of SpECIAl lANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. -
Page 3: Precautionary Guidelines
• Always perform a range check prior to flight. • Always use the throttle linkage to shut off the air or turn off the engine power switch to stop the engine. • Never use hands, fingers, or any other body part to stop the propeller. • Never throw any object into a propeller to stop it. - Page 4 ® block gas engine series. All of the Evolution brand gas engines are designed from the start to provide you with excellent performance at a fraction of your previous operating costs. We have painstakingly designed and tested each engine to ensure a hassle-free experience without giving away anything in expected performance or durability.
-
Page 5: Installing The Engine
APC15060 (APC16060) 15 x 6 propeller (break-in) (16 x 6 propeller (normal flight)) EVOA100 Optical Electronic Ignition Kill Switch EVOA102 (EVOA103) Medium Gas-FKM Fuel Tubing 1 meter (3 meters) EVOA112 Evolution 3 Wire Ignition/Receiver Switch EVOX1001Q Evolution Synthetic 2-Cycle Oil HAN155 Ultra Fuel Pump HAN156 Tachometer A. -
Page 6: Installing The Muffler
Installing the Muffler 1. Put a lock washer on each of the muffler screws. Push the muffler screws through the muffler. 2. Align the muffler gasket with the exhaust opening and the muffler mounting screws. 3. Tighten the muffler screws. IMpORTANT: Tighten the muffler screws after the first few tanks of fuel. -
Page 7: Attaching The Fuel Lines
Adjusting the Throttle Opening 1. Lower the throttle and center the throttle 4. Move the throttle stick and throttle trim. trim down to confirm the throttle closes. 2. Adjust the length of the throttle linkage until 5. If you reversed the throttle channel in your the throttle is open 1mm. - Page 8 Connecting the Electronic Ignition The Evolution Electronic Ignition Assembly is designed and engineered specifically for the small block engine series. It is smaller and lighter so it fits into tighter spaces of the airplanes the engines are designed to power. The battery voltage required is between 4.8V (4-cell Ni-MH pack) and 8.4V (2S Li-Po battery) and no voltage regulators are needed with any of these...
-
Page 9: Fuel Delivery System
Do not go leaner than a 20:1 gas/oil ratio We have tested our own Evolution 2-stroke oil, for the first gallon of fuel. After this you may Valvoline, Shell, RedLine and Husqvarna oils. -
Page 10: Engine Break-In
Engine Break-in Your new engine needs to be broken-in to ensure a long life of all the components. This engine features a piston ring design, which requires a specific break-in procedure to ensure a tight seal between the piston ring and liner. For this to be accomplished, this process requires repeated heating and cooling cycles, and must be done at a needle setting that is slightly rich of peak to ensure the ring expands and contracts. - Page 11 1. Make sure your ignition is off. engine for the first time. With the 20GX2 it is 2. Open the throttle fully, hold a finger over very important to allow the temperature to the carburetor intake and flip the propeller stabilize above 170°F (75°C) before making...
- Page 12 High-Speed Needle Adjustment Because of the small amount of fuel actually needed for this engine, needle adjustments need to be made in small increments. It may take 5 seconds or more before you will notice a running change in your engine after making it. Be patient. Use a tachometer, this is a very important part of properly setting your high-speed needle valve.
- Page 13 Low-Speed Needle Adjustment If you have properly set the idle needle, the low-speed setting should be within 1/16th of a turn from perfect. Remember we are talking about minute amounts of fuel going through the carburetor, any adjustments you now make to the idle needle should be very, very small. Take into consideration the length in service (e.g.
-
Page 14: Troubleshooting Guide
Team. Horizon has trained technicians who are expel all the excess fuel. qualified to answer your engine questions. 3. Replace the spark plug and try starting again. 20GX2 Evolution Engines Specifications 115.4mm 78.9mm 36.5mm 52.4mm 10.5mm M4 x 0.7... -
Page 15: Parts List
Parts List Description Part Cylinder Screw (6) EVO120123 Spark Plug EVOG10350 Cylinder Head EVOG20103 Cylinder Head Gasket (2) EVO120112 Cylinder EVOG20202 Piston Ring EVO120236 Ringed Piston EVOG20214R Piston Pin & Retainer EVO120213 Connecting Rod EVOG20204 Prop Washer & Nut EVO100228 Drive Washer EVOG20219 Spacer Washer... -
Page 16: Exploded View
Description Part Throttle Arm EVO46866 Throttle Barrel (B) EVOG15813B Low-Speed Adjustment EVOG15844 Main Carburetor Body (B) EVOG15827B Carburetor Barrel Retaining Bolt EVOG15825 Carburetor Pump Screws (4) EVOG15825B Exploded View 4, 29 28, 30 22, 35 31, 34 42,43 22, 26... - Page 17 2-YEAR LIMITED WARRANTY the Product immediately in new and unused condition to the place of purchase. What this Warranty Covers - Horizon Hobby, LLC law - These terms are governed by Illinois law (Horizon) warrants to the original purchaser that (without regard to conflict of law principals).
-
Page 18: Warranty And Service Contact Information
NOTICE: Do not ship lipo batteries to Horizon. service. Non-warranty service estimates will If you have any issue with a lipo battery, be billed a minimum of ½ hour of labor. In please contact the appropriate Horizon product addition you will be billed for return freight. Support office. -
Page 19: Compliance Information For The European Union
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2014060503 Product(s): 20GX2 Gas Engine Item Number(s): EVOE20GX2 The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European... - Page 20 © 2014 Horizon Hobby, LLC. Evolution, the Evolution logo, Hangar 9, DSMX and the Horizon Hobby logo are registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Tygon ® is a registered trademark of Saint-Gobain Performance Plastics Corporation.
