Summary of Contents for Evolution 26GT

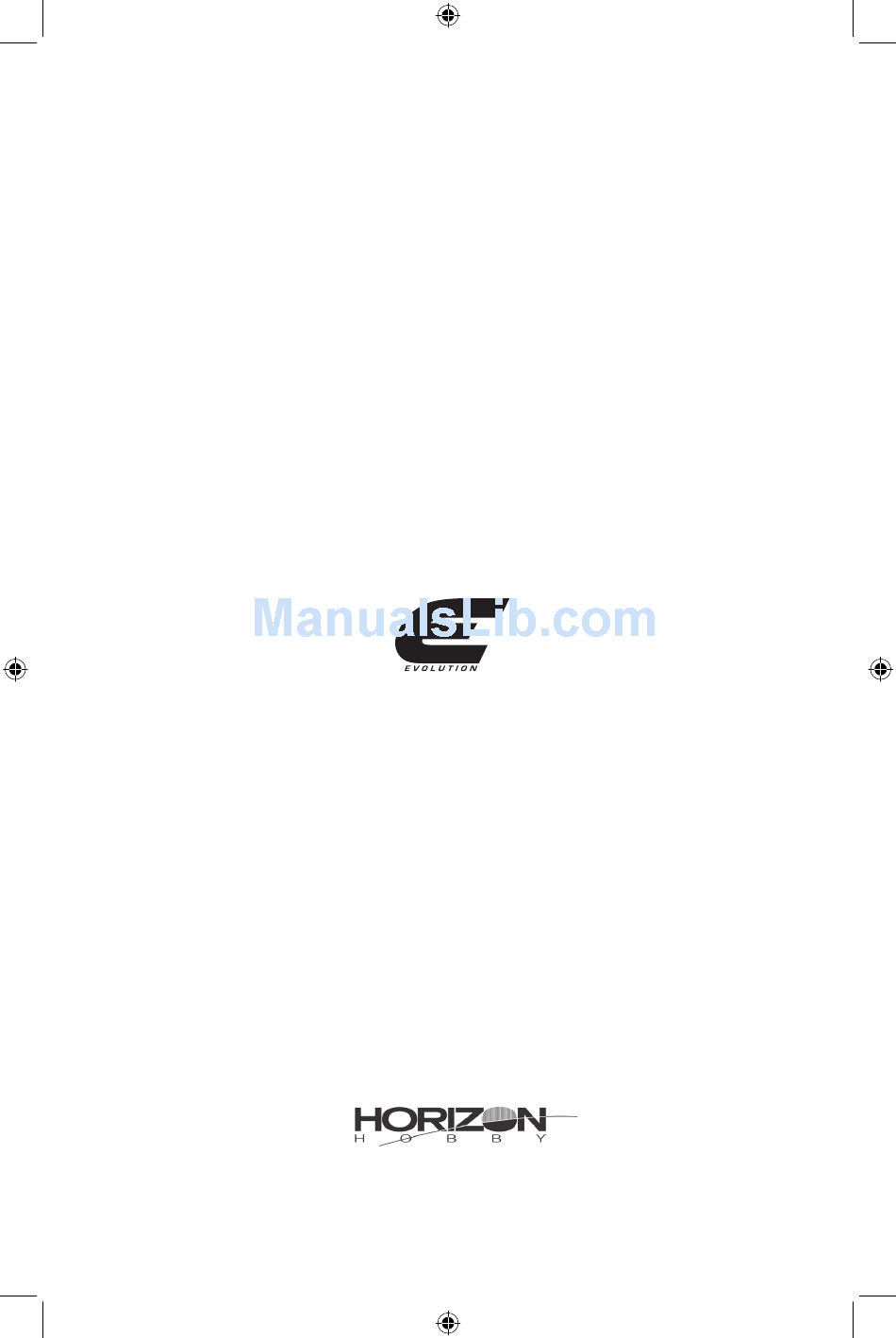

- Page 1 ™ © 2005 Manufactured exclusively for Horizon Hobby, Inc. www.horizonhobby.com 800-535-5551 7795...
- Page 2 Evolution Engines 26GT/35GT US ER GUIDE ™...
- Page 3 Evolution GT engine. Evolution engines are designed to be the most powerful in their class, extremely easy to start and operate, and provide years of enjoyable service. These engines incorporate many unique design features. Each feature is designed to ensure success with your new engine.
-
Page 4: Mounting The Engine
Use 8x32 screws recommend using propellers that allow the engine to (26GT) or 10x32 (35GT). If you decided to fasten the reach more than 9000 rpm on the ground. engine using a flexible motor mount, always choose parts with enough integrity and strength. -
Page 5: Starting The Engine
Starting the Engine Evolution Engines™ new carburetor comes Air Pressure Inlet adjusted to a basic setting. This setting should be Adjusting Needle L maintained during the initial break-in runs. Adjusting Needle H Before you first start the engine, make sure... -
Page 6: Troubleshooting Guide
Step III- If the engine accelerates correctly, according to the above test, set it at idle speed and accelerate to full speed. Repeat twice more. If the engine functions correctly, go to Step IV. If it cuts out, open the low speed needle by 5–10 minutes more. - Page 7 26GT/35GT Evolution Engine Specifications Evolution 26GT Bore 33mm Maximum power output** 3.8 HP/9000 rpm Stroke 30.1mm Maximum torque** 2.18ft-lb/8000 rpm 25.7cc/1.6 ci Fuel Displacement Unleaded gasoline Lubrication Weight of complete engine Oil w/gasoline without ignition* 936 g/2.06 lb in mixture 1:40 Weight of ignition unit 165 g/5.8 oz...
- Page 8 GT Evolution Engine Dimensions 26 GT 35 GT 26 GT M10x1 35 GT M10x1...
- Page 9 This is an indication that you should land your model as soon as practical 3. The electronic ignition system on the Evolution 26GT and the Evolution 35GT is designed to operate on 4.8 volts. The ignition system is not designed to use a 6-volt battery source.
- Page 10 Installation of the Ignition Unit Continued Installation of the Ignition Unit Technical data Battery Supply 4.8 Volts 600–1500mAh Current Consumption 90–120mAh at Idle 500mAh/9000 rpm Plug Voltage 18Kv Weight 160 g Dimension 55x50x25mm Sensor Magnet Space max. 0.5mm (.020”) Plug Spark Gap .7mm (.028”) Working Temperature -10 to 85 deg C...
-
Page 11: Part Number Description
26GT Part Number Description Part Number Description EVO30940101 Crankcase EVO30940951 Connecting Rod EVO30940202 Front Bearing EVO30941001 Crankshaft EVO30940203 Rear Bearing EVO30941101 Drive Washer EVO30940301 Rear Cover EVO30941102 Drive Washer’s Taper Key EVO30940302 Rear Cover Screws - Set EVO30941103 Propeller Nut EVO30940303 Rear Cover “O”- Ring... - Page 12 35GT Part Number Description Part Number Description EVO30980101 Crankcase EVO30980951 Connecting Rod EVO30980202 Front Bearing EVO30981001 Crankshaft EVO30980203 Rear Bearing EVO30981101 Drive Washer EVO30980301 Rear Cover EVO30941102 Drive Washer’s Taper Key EVO30980302 Rear Cover Screws - Set EVO30941103 Propeller Nut EVO30980303 Rear Cover “O”- Ring EVO30941104 Propeller Washer EVO30940304 Pressure Nipple...
