Installing The Engine - Evolution 20GX2 User Manual

Included Content
Engine
EVOA107 Evolution
EVOA121 Sintered Plastic Filter Clunk
EVOG10300 Ignition Unit
EVOG10350 Spark Plug
EVOG20601B Muffler
EVO110E100A Muffler Screws & Gasket
Optional Items
APC15060 (APC16060) 15 x 6 propeller (break-in) (16 x 6 propeller (normal flight))
EVOA100
EVOA102 (EVOA103)
EVOA112
EVOX1001Q
HAN155
HAN156
B
A

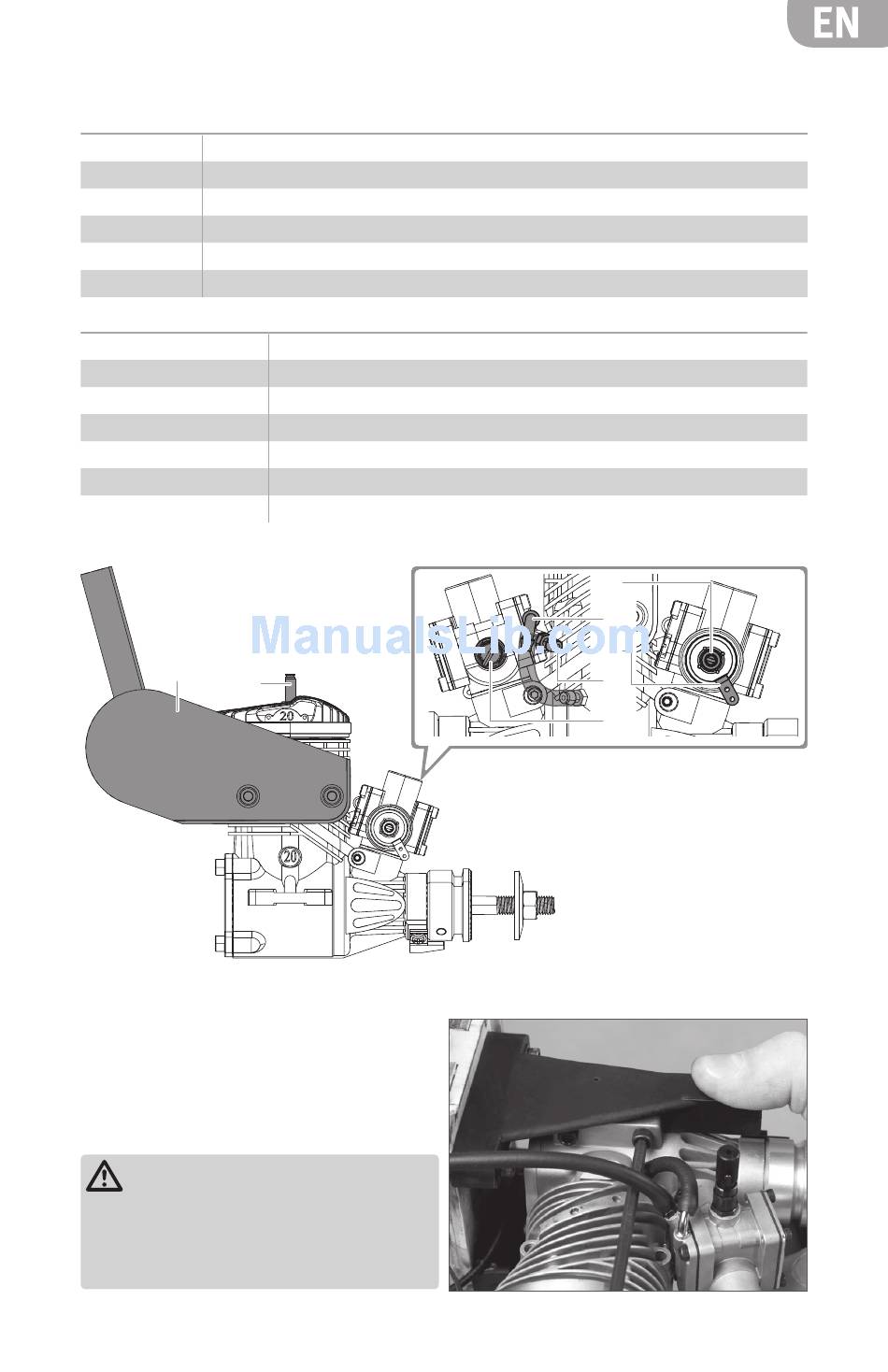

Installing the Engine

1. Secure the engine mount on the airplane
firewall. Tighten the engine mount screws in
the firewall.
2. Install the engine on the engine mount
according to the airplane manufacturer's
instructions.
WARNING: Tighten all engine mounting
screws before each flight. If you do not
tighten the engine mounting screws,
the screws may vibrate loose and cause
the engine to separate from the
fuselage.
/Spektrum Telemetry RPM Adapter Cable
® ™
Optical Electronic Ignition Kill Switch
Medium Gas-FKM Fuel Tubing 1 meter (3 meters)
Evolution 3 Wire Ignition/Receiver Switch
Evolution Synthetic 2-Cycle Oil
Ultra Fuel Pump
Tachometer
5
C
G
D
E
F
A. Spark Plug
B. Muffler
C. Low-speed Needle
D. Throttle Arm
E. Fuel Nipple
f. High-speed Needle
G. Crankcase Pressure Port
