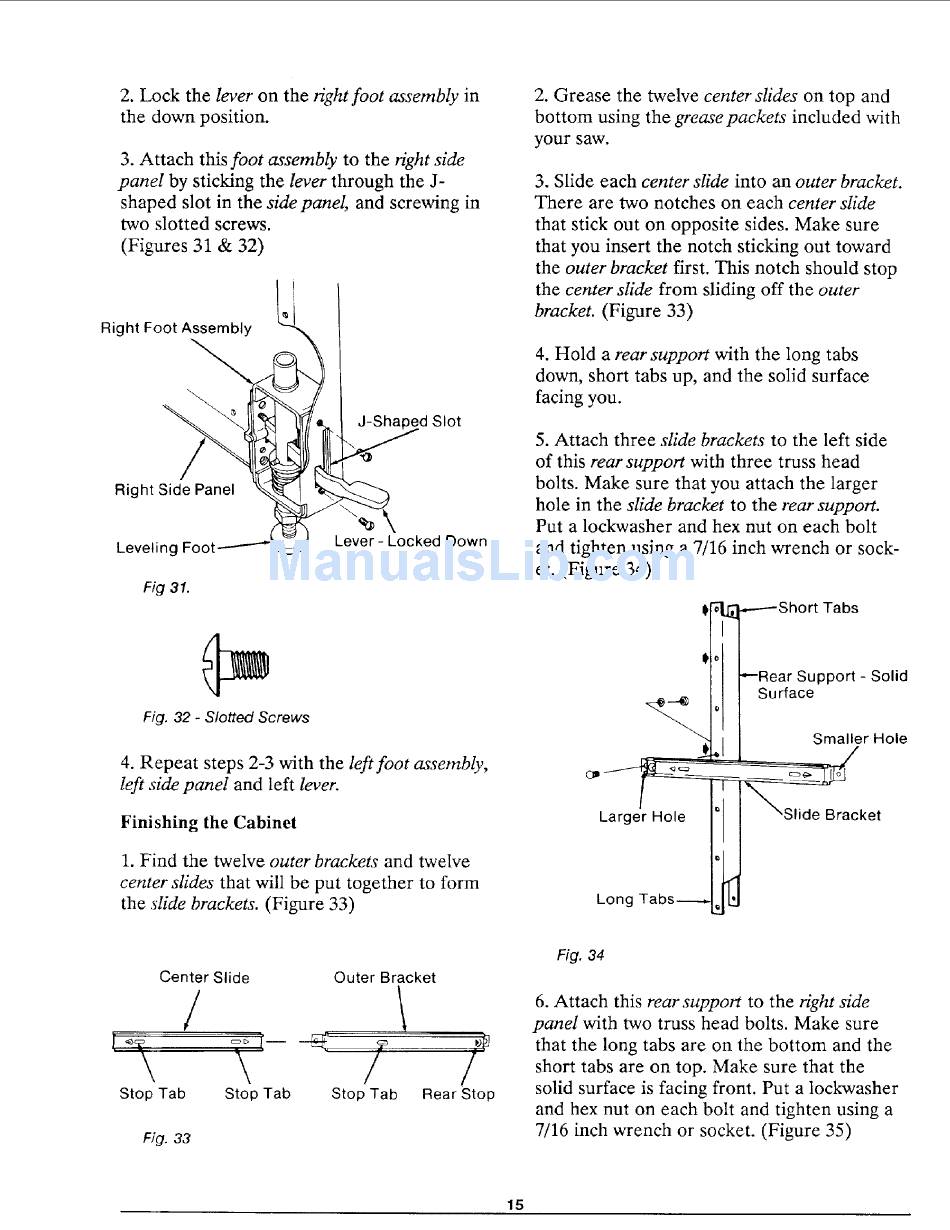

2. Lock the lever on the right foot assembly in
the down position.
3. Attach this foot assembly to the right side
panel by sticking the lever through the J-
shaped slot in the side panel, and screwing in
two slotted screws.
(Figures 31 & 32)
Right Foot Assembly
"_ J-Shaped Slot
Right Side Panel
Leveling Foot
Fig31.
Lever- Locked Down
Fig. 32 - Slotted Screws
4. Repeat steps 2-3 with the left foot assembly,
left side panel and left lever.
Finishing the Cabinet
1. Find the twelve outer brackets and twelve
center slides that will be put together to form
the slide brackets. (Figure 33)
2. Grease the twelve center slides on top and
bottom using the grease packets included with
your saw.
3. Slide each center slide into an outer bracket.
There are two notches on each center slide
that stick out on opposite sides. Make sure
that you insert the notch sticking out toward
the outer bracket first. This notch should stop
the center slide from sliding off the outer
bracket. (Figure 33)
4. Hold a rear support with the long tabs
down, short tabs up, and the solid surface
facing you.
5. Attach three slide brackets to the left side
of this rear support with three truss head
bolts. Make sure that you attach the larger
hole in the slide bracket to the rear support.
Put a lockwasher and hex nut on each bolt
and tighten using a 7/16 inch wrench or sock-
et. (Figure 34)
i[_ _-----Short Tabs
tl ---Rear Support- Solid
H S°r'a e
er Hole
acke,
Long Tabs--------, _]
Center Slide Outer Bracket
/
\ / /
Stop Tab Stop Tab Rear Stop
Stop Tab
Fig. 33
Fig. 34
6. Attach this rear support to the right side
panel with two truss head bolts. Make sure
that the long tabs are on the bottom and the
short tabs are on top. Make sure that the
solid surface is facing front. Put a lockwasher
and hex nut on each bolt and tighten using a
7/16 inch wrench or socket. (Figure 35)
