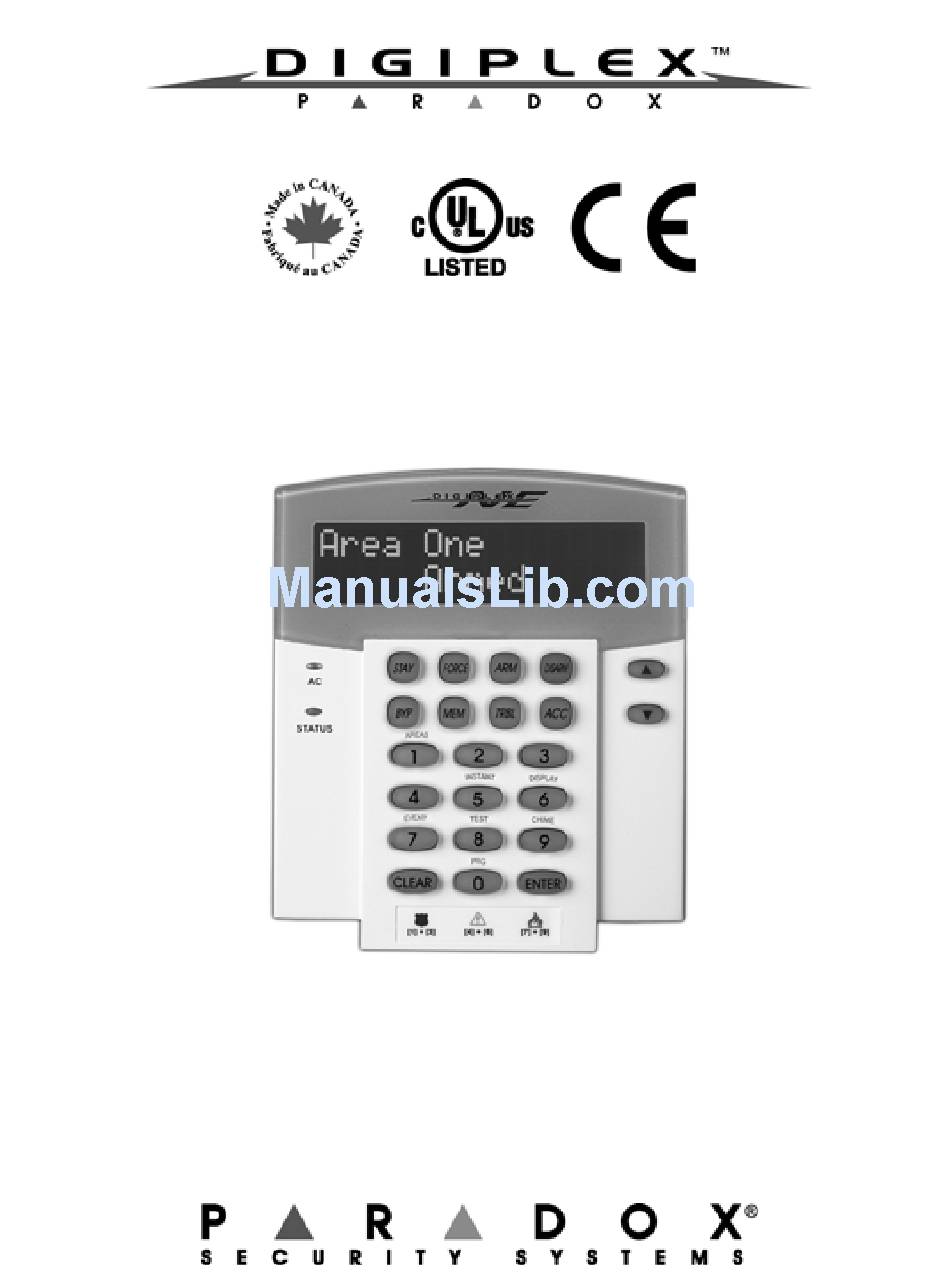

  • Page 1 LCD Keypad V2.0 DGP2-641BL Reference and Installation Manual...

  • Page 3: Table Of Contents

    Table of Contents Introduction............. 1 Specifications ............1 Installation............2 Connecting Keypad Zones ........2 Programmable Output ......... 3 Programming ..........4 Entering Module Programming Mode....4 Programming Methods ........5 Feature Select Programming........5 Decimal Programming ..........5 Module Broadcast ..........5 Memory Key ............
  • Page 4 Confidential Mode Timer ........10 Time Display Option .......... 10 Muting..............11 Beep on Exit Delay ..........11 Chime on Zone Closure........11 Beep on Trouble ..........12 Keypad Tamper Enable........12 Combus Voltmeter..........13 Programmable Output Options ....14 PGM State ............

  • Page 5: Introduction

    1.0 Introduction Thank you for choosing Paradox Security Systems. Digiplex security systems offer advanced technology and provide reliable security protection and powerful features that are easy to use. The elegant and user-friendly LCD Keypad allows easy access to the security system's functions and information at the touch of a button.

  • Page 6: Installation

    2.0 Installation The LCD keypad (DGP2-641BL) is connected to the control panel's combus in a star and/or daisy chain configuration. The 4- wire combus provides power and two-way communication between the control panel and all modules connected to it. Connect the four terminals labeled red, black, green and yellow of each keypad to the corresponding terminals on the control panel (refer to Figure 2.1 on page 3).

  • Page 7: Programmable Output

    2.2 Programmable Output Each keypad has one on-board PGM. A PGM is a programmable output that switches to its opposite state (i.e. a normally open PGM will close) when a specific event has occurred in the system (refer to section 5.0 on page 14). Upon activation, the PGM can provide 50mA to any device connected to it.

  • Page 8: Programming

    3.0 Programming To program the DGP2-641BL keypad, enter Module Programming Mode and then enter the desired section followed by the required data. When programming the keypad, use the keypad’s programming sheets (found in the Digiplex Modules’ Programming Guide) to keep track of which sections were programmed and how.

  • Page 9: Programming Methods

    serial number is located on the keypad's PC board or enter section [000] in Step 3 to view the keypad’s serial number. 3.2 Programming Methods The following methods can be used when programming the keypad: 3.2.1 Feature Select Programming Some sections are programmed by enabling or disabling options.

  • Page 10: Memory Key

    source’s data. If you want to program more than one keypad with the source’s data, enter the serial numbers of the keypads one at a time. 6. Once you have entered the serial numbers of the keypads you want to program, press the [ ] key.

  • Page 11: Copy The Keypad Contents To The Memory Key

    3.6 Copy the Keypad Contents to the Memory Key Section [520] 1. Insert the memory key onto the keypad’s connector labelled “ ” (refer to Figure 2.1 on page 3). Ensure that the write protect jumper is ON (refer to Figure 3.1). 2.

  • Page 12: System Options

    4.0 System Options 4.1 Partition Assignment Section [001]: Options [1] to [8] Each keypad in the system can be assigned to one or more partitions. In section [001], options [1] to [8] represent partitions 1 through 8 respectively. To assign the keypad to a partition, simply enable the option that corresponds to the desired partition.

  • Page 13: Display Entry Delay Timer

    4.4 Display Entry Delay Timer Section [003]: Option [3] Based on the user's needs, an Entry Delay Timer will be programmed to provide the user time to enter their user access code before the alarm is triggered. The Entry Delay Timer's countdown can be displayed on the LCD screen.

  • Page 14: Confidential Mode Timer

    Option [4] OFF = Normal Mode (default) Option [4] ON = Confidential Mode Option [5] OFF = LCD screen activated by entering an access code (default) Option [5] ON = LCD screen activated by pressing a button Figure 4.1: LCD Screen 4.6 Confidential Mode Timer Section [007] Section [007] determines the amount of time without action...

  • Page 15: Muting

    4.8 Muting Section [004]: Option [1] The keypad can be programmed not to emit audible sounds, including Chimed zones. During Muting, the keypad will only emit the Confirmation Beep, Rejection Beep, and beep when a button is pressed. Option [1] OFF = Audible sounds (default) Option [1] ON = Mute 4.9 Beep on Exit Delay Section [004]: Option [2]...

  • Page 16: Beep On Trouble

    4.11 Beep on Trouble Section [005]: Options [1] to [4] Potential troubles have been sorted into groups. With these options enabled, the keypad will emit an intermittent beep tone whenever a trouble condition from the Trouble Groups occurs in the system. The intermittent beep will remain activated until the user enters the Trouble Display or if the trouble is resolved.

  • Page 17: Combus Voltmeter

    Option [5] OFF = Keypad's tamper is disabled (default) Option [5] ON = Keypad's tamper is enabled 4.13 Combus Voltmeter The combus Voltmeter provides a real-time display of the voltage so you can verify if the bus is supplying sufficient power at the keypad’s location.

  • Page 18: Programmable Output Options

    5.0 Programmable Output Options 5.1 PGM State Section [006]: Option [1] The keypad's on-board PGM can be set as normally open or normally closed. When an open PGM is activated, it will close the circuit from ground and enable any devices connected to it. When a closed PGM is activated, it will open the circuit and disable any devices connected to it.

  • Page 19: Pgm Base Time

    5.3 PGM Base Time Section [006]: Option [3] If the keypad's on-board PGM is set in PGM Timed Mode (see section 5.2 on page 14) you must define whether the value programmed in section [008] is in minutes or seconds. Option [3] OFF = PGM Base Time is 1 second (default) Option [3] ON = PGM Base Time is 1 minute 5.4 PGM Override...

  • Page 20: Pgm Activation Event

    5.6 PGM Activation Event Sections [009] to [012] The PGM Activation Event determines which event will activate the keypad's on-board PGM output. The Event Group specifies the event, the Feature Group identifies the source, and the Start # and End # sets the range within the Feature Group. Use the PGM Programming Table in the Digiplex Modules’...

  • Page 21: Message Programming

    Guide for more details. Section [101] to [148] = “Zone 01” to “Zone 48” respectively Section [200] = “Paradox Security” Section [201] to [204] = “First Area”, “Second Area”, “Third Area”, and “Fourth Area” respectively Section [301] to [396] = “Code 01” to “Code 96” respectively After entering the section corresponding to the desired message, use the Message Programming Keys (refer to Table 6.1 on...

  • Page 22: Special Function Keys

    Table 6.1: Message Programming Keys Press Key Press Key Press Key Once Twice Three Times 6.1 Special Function Keys ] - Insert Space STAY Pressing the [ ] key inserts a blank space in the current STAY cursor position. ] - Delete FORCE Pressing the [ ] key will delete the character or blank space...
  • Page 23 ] - Lower Case / Upper Case Every time the [ ] key is pressed it will toggle the case setting from lower to upper case and vice versa. ] - Special Characters After pressing the [ ] key, the cursor will turn into a flashing black square.
  • Page 24 Table 6.2: Special Characters Catalog 20 Reference & Installation Manual...
  • Page 25 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
  • Page 26 Notes...
  • Page 28 1-866-912-0600 for French, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.ca. 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-2313 www.paradox.ca...
