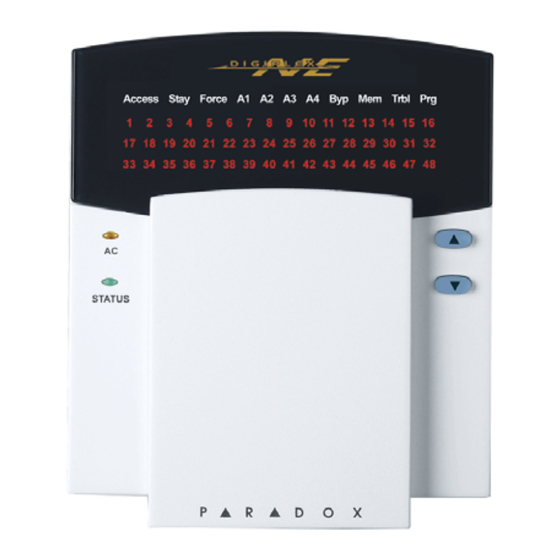

Paradox Digiplex DGP2-648 Installer's Manual

48-zone led keypad for dgp-848 & dgp-ne96 systems
Hide thumbs Also See for Digiplex DGP2-648:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
for DGP-848 & DGP-NE96 systems
48-Zone LED Keypad V1.0
Installer Guide
DGP2-648

Advertisement

Table of Contents
loading

Related Manuals for Paradox Digiplex DGP2-648

Summary of Contents for Paradox Digiplex DGP2-648

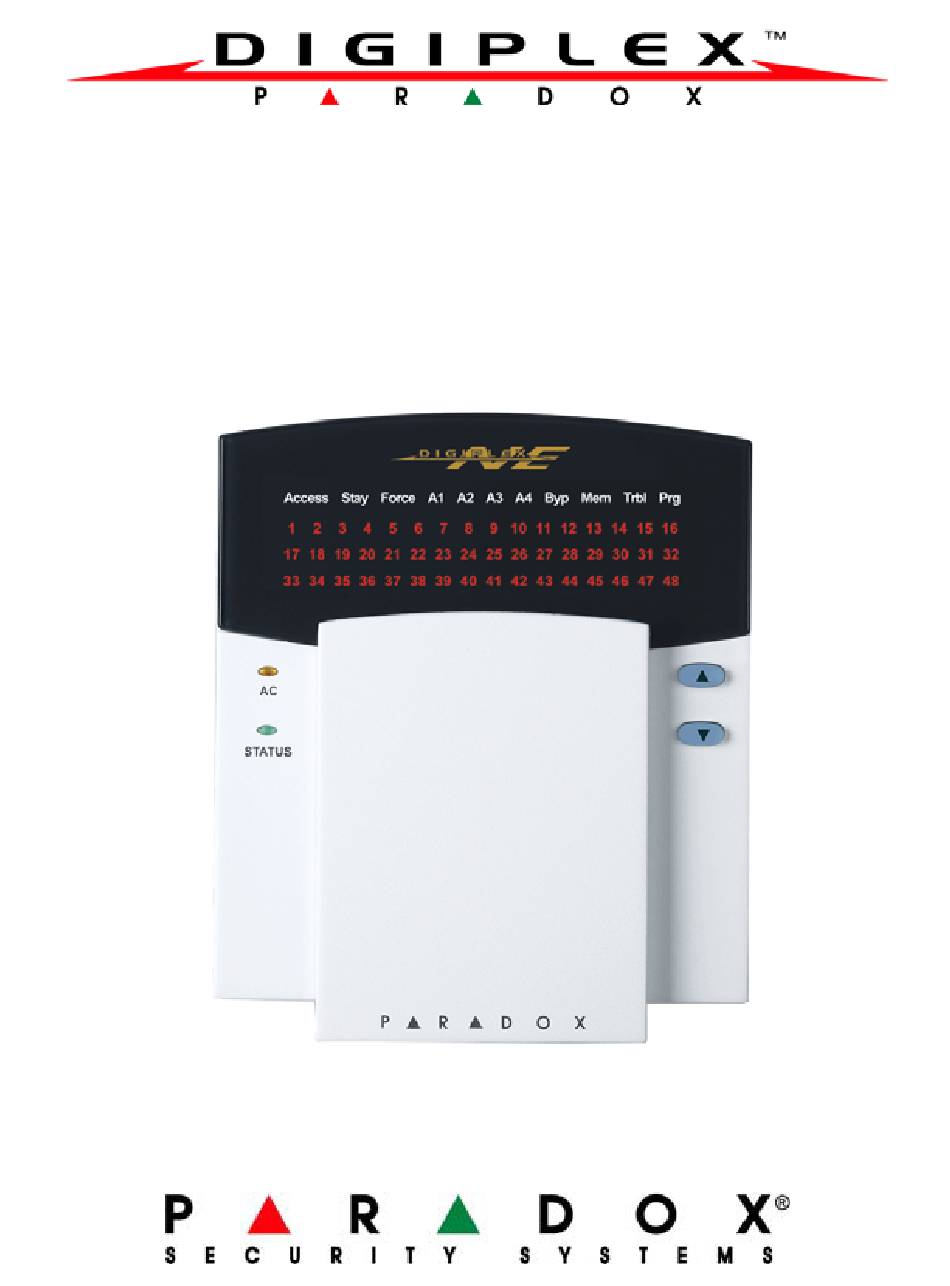

  • Page 1 for DGP-848 & DGP-NE96 systems 48-Zone LED Keypad V1.0 Installer Guide DGP2-648...

  • Page 3: Table Of Contents

    Table of Contents Introduction ................. 1 Specifications ................1 Installation ................2 Connecting the Keypad............2 Connecting the Keypad Zone........... 2 Programmable Output (PGM) ..........3 Programming............... 4 Winload Programming.............. 4 System Options..............5 Partition Display ............... 6 Zone Display ................7 Section Reset................

  • Page 5: Introduction

    1.0 Introduction Thank you for choosing Paradox Security Systems. Our advanced technology security systems provide you with reliable security protection and powerful features, which are easy to use. The DGP2-648 keypads allow easy access to the security system’s functions and its illuminating LEDs provide the system’s status at a glance.

  • Page 6: Installation

    2.0 Installation 2.1 Connecting the Keypad The LED keypad is connected to the control panel’s communication bus in a star and/or daisy chain configuration. The four-wire communication bus provides power and two-way communication between the control panel and all modules connected to it. Connect the four terminals labeled red, black, green and yellow of the keypad to the corresponding terminals on the control panel as shown in Figure 1 on page 3.

  • Page 7: Programmable Output

    the ATZ (zone doubling) feature enabled, the keypad supports only one detection device. Figure 1: Connecting Keypads and Keypad Zones Devices connected to a keypad’s input terminal must be assigned to a zone, keyswitch or virtual input in the control panel. In addition, the zone’s parameters must be defined.

  • Page 8: Programming

    3.0 Programming Program the LED keypad using any LCD keypad on the communication bus or using the Winload software. We strongly recommend you read this entire manual before you begin programming. This model does not support installer programming capabilities, therefore you cannot program other modules or the panel on the communication bus using this unit.

  • Page 9: System Options

    4.0 System Options Figure 2: Keypad Overview Partition Lights: (A1, A2, A3 and A4) ON = Partition armed OFF = Partition disarmed FLASH = Partition in alarm Action Lights: (Access, Stay, Force, Mem, Trbl and Prg) Lights will illuminate according to the status of the system.

  • Page 10: Partition Display

    4.1 Partition Display Section [001] to [008] You can program the LED keypad to display up to four partitions. Sections [001] to [008] correspond to partitions 1 to 8. The LED numbers A1 to A4 are assigned values 001 to 004 (see section 3). To assign a display number to a partition, choose a section number from [001] to [008] and assign it a value between 001 and 004 which represents LED numbers A1 to A4 respectively.

  • Page 11: Zone Display

    3) Enter [008] to select partition 8. 4) Enter value [003] to reassign display number A3 to partition 8. 5) Press the [ ] key to exit. CLEAR 4.2 Zone Display Section [101] To [196] You can program the keypad to display any zone from 1 to 96 up to a total of 48.

  • Page 12: Confidential Mode

    4.4 Confidential Mode Section [009] Option [1] The keypad will switch to Confidential Mode after a period of inactivity (default is 120 sec.) if option [1] is enabled. In Confidential Mode all LEDs will turn off until either a button is pressed or an access code is entered (see section 4.5).

  • Page 13: Muting

    4.7 Muting Section [009] Option [3] You can program the keypad not to emit audible sounds, including Chimed zones. During Muting, the keypad will only emit the Confirmation Beep, Rejection Beep and beep when users press a button. Option [3] OFF = Audible sounds (default). Option [3] ON = Mute.

  • Page 14: Keypad Anti-Tamper Enable

    the keypad will emit an intermittent beep whenever a trouble condition from the Trouble Groups occurs in the system. The intermittent beep will remain activated until the user enters the Trouble Display or if the trouble is resolved (see your control panel’s Reference & Installation Manual for details concerning Trouble Display).

  • Page 15: Pgm Programming

    5.0 PGM Programming 5.1 PGM State SECTION [011] OPTION [1] The keypad's on-board PGM can be set as normally open or normally closed. When an open PGM is activated, it will close the circuit to the ground and enable any devices connected to it. When a closed PGM is activated, it will open the circuit and disable any devices connected to it.

  • Page 16: Pgm Deactivation Event

    5.3 PGM Deactivation Event SECTION [018] to [021] Modules belonging to the DGP2 series are programmed using the PGM Programming table in the Digiplex/DigiplexNE Modules’ Programming Guide. If the PGM Deactivation Option is set to follow the PGM Deactivation Event, the PGM will return to its normal state when the event programmed in sections [018] to [021] occurs.

  • Page 17: Pgm Base Time

    5.5 PGM Base Time SECTION [011] Option [3] This option defines whether the value programmed in section [013] is in minutes or seconds. Option [3] OFF = PGM Base Time is 1 second (default). Option [3] ON = PGM Base Time is 1 minute. 5.6 PGM Timer SECTION [013] If the PGM Deactivation Mode is set to follow the PGM timer, the...

  • Page 18: List Of Sections

    6.0 List of Sections Section Description Data Default [001] __/__/__ 001 = (LED A1) ARTITION ISPLAYED ON [002] __/__/__ 002 = (LED A2) ARTITION ISPLAYED ON [003] __/__/__ 003 = (LED A3) ARTITION ISPLAYED ON [004] __/__/__ 004 = (LED A4) ARTITION ISPLAYED ON [005]...
  • Page 19 = Default SECTION [009]: Keypad Options Option Description ONFIDENTIAL NABLED ISABLED ONFIDENTIAL NTER RESS KEY UTING NABLED ISABLED EEP ON ELAY ISABLED NABLED HIME ON NABLED ISABLED LOSURE Section [010]: Beep on Trouble Option Description EEP ON YSTEM NABLED ISABLED ROUBLES LOCK EEP ON...
  • Page 20 = Default Section [011]: Keypad Tamper Enable Option Description PGM S N.C. N.O. TATE PGM D PGM T EACTIVATION IMER EACTIVATION VENT PGM B MINUTE SECOND EYPAD TAMPER NABLED ISABLED [8] N/A Section Description Default Data [012] __/__/__ (005-255) C ONFIDENTIAL IMER Section...
  • Page 21 Section Data Description Default [014] __/__/__ (000-255) A CTIVATION VENT (PGM E VENT [015] __/__/__ (000-255) A CTIVATION VENT EATURE ROUP [016] __/__/__ (000-255) A CTIVATION VENT (PGM START NUMBER [017] __/__/__ (000-255) A CTIVATION VENT (PGM END NUMBER [018] __/__/__ (000-255) D EACTIVATION VENT...
  • Page 22 Zone Zone Section Section Number Displayed Number Displayed [101] __/__/__ Z [115] __/__/__ Z [102] __/__/__ Z [116] __/__/__ Z [103] __/__/__ Z [117] __/__/__ Z [104] __/__/__ Z [118] __/__/__ Z [105] __/__/__ Z [119] __/__/__ Z [106] __/__/__ Z [120] __/__/__ Z [107]...
  • Page 23 Zone Zone Section Section Number Displayed Number Displayed [129] __/__/__ [151] __/__/__ [130] __/__/__ [152] __/__/__ [131] __/__/__ [153] __/__/__ [132] __/__/__ [154] __/__/__ [133] __/__/__ [155] __/__/__ [134] __/__/__ [156] __/__/__ [135] __/__/__ [157] __/__/__ [136] __/__/__ [158] __/__/__ [137] __/__/__ [159]...
  • Page 24 Zone Zone Section Section Number Displayed Number Displayed [173] __/__/__ [186] __/__/__ Z [174] __/__/__ [187] __/__/__ Z [175] __/__/__ [188] __/__/__ Z [176] __/__/__ [189] __/__/__ Z [177] __/__/__ [190] __/__/__ Z [178] __/__/__ [191] __/__/__ Z [179] __/__/__ [192] __/__/__ Z [180]...
  • Page 25 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
  • Page 26 Notes...
  • Page 28 EST. For technical support outside Canada and the U.S., call 00-1-450-491- 7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.ca. 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-2313 www.paradox.ca...
