Paradox DGP2-648 Manual

Paradox DGP2-648 Manual

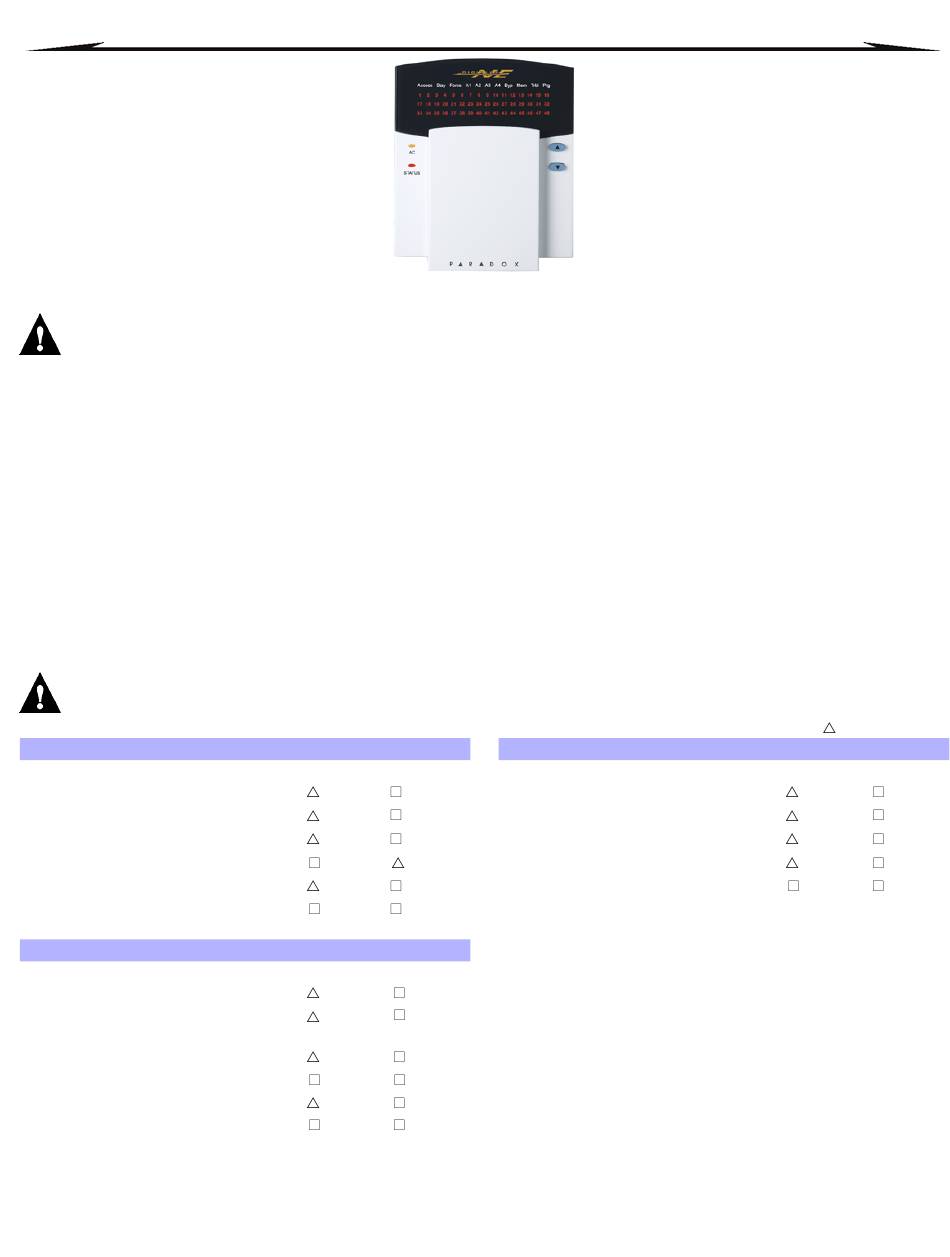

48-zone led keypad module
Hide thumbs Also See for DGP2-648:

Advertisement

Quick Links

Download this manual
This model does not support installer programming capabilities, therefore you cannot program other modules or the panel on the
combus using this unit.
Section
Data
[001]
__/__/__ (000 to 004)*
[002]
__/__/__ (000 to 004)*
[003]
__/__/__ (000 to 004)*
[004]
__/__/__ (000 to 004)*
[005]
__/__/__ (000 to 004)*
[006]
__/__/__ (000 to 004)*
[007]
__/__/__ (000 to 004)*
[008]
__/__/__ (000 to 004)*
*000=disabled; 001=A1; 002=A2; 003=A3; 004=A4.
Do not assign the same display number to more than one section. A maximum of 4 partitions can be displayed on the keypad.

SECTION [009] : Keypad Options

Option
[1]
Confidential Mode
[2]
Exit Confidential Mode
[3]
Muting
[4]
Beep on Exit Delay
[5]
Chime on Zone Closure
[6] to [8] Future Use
SECTION [011] : PGM & Keypad Tamper Options
Option
[1]
PGM State
[2]
PGM Deactivation Mode
[3]
PGM Base Time
[4]
Future Use
[5]
Keypad Tamper
[6] to [8] Future Use
48-Zone LED Keypad Module
OFF
ON
Disabled
Enabled
Press key
Enter code
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
N/A
N/A
OFF
ON
N.O.
N.C.
PGM Timer
Deactiva-
tion Event
1 second
1 minute
N/A
N/A
Disabled
Enabled
N/A
N/A
Digiplex & DigiplexNE - 1 - Modules Programming Guide
DGP2-648
Description
Partition 1 Display
Partition 2 Display
Partition 3 Display
Partition 4 Display
Partition 5 Display
Partition 6 Display
Partition 7 Display
Partition 8 Display

SECTION [010] : Beep on Trouble

Option
[1]
Beep on System Trouble/Clock Loss
[2]
Beep on Communicator Trouble
[3]
Beep on Module/Combus Trouble
[4]
Beep on Zone Trouble
[5] to [8] Future Use
Default
001 = (LED A1)
002 = (LED A2)
003 = (LED A3)
004 = (LED A4)
000
000
000
000
= Default Settings
OFF
ON
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
N/A
N/A
