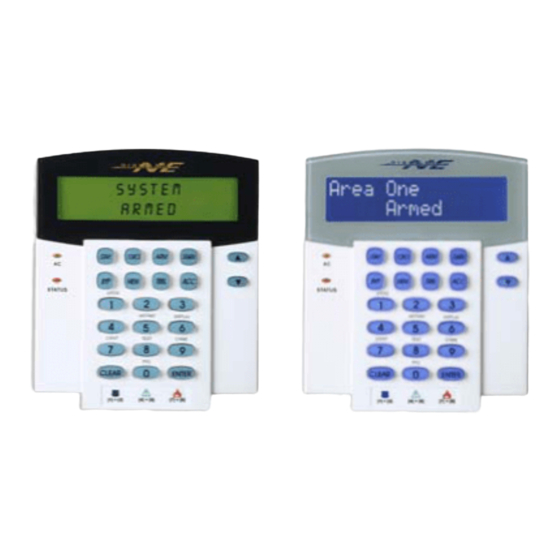

Paradox DGP2-641/BL Reference And Installation Manual
Lcd keypad v1.1
Hide thumbs
Also See for DGP2-641/BL:
- User manual (36 pages) ,
- Reference and installation manual (28 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Paradox DGP2-641/BL
Summary of Contents for Paradox DGP2-641/BL

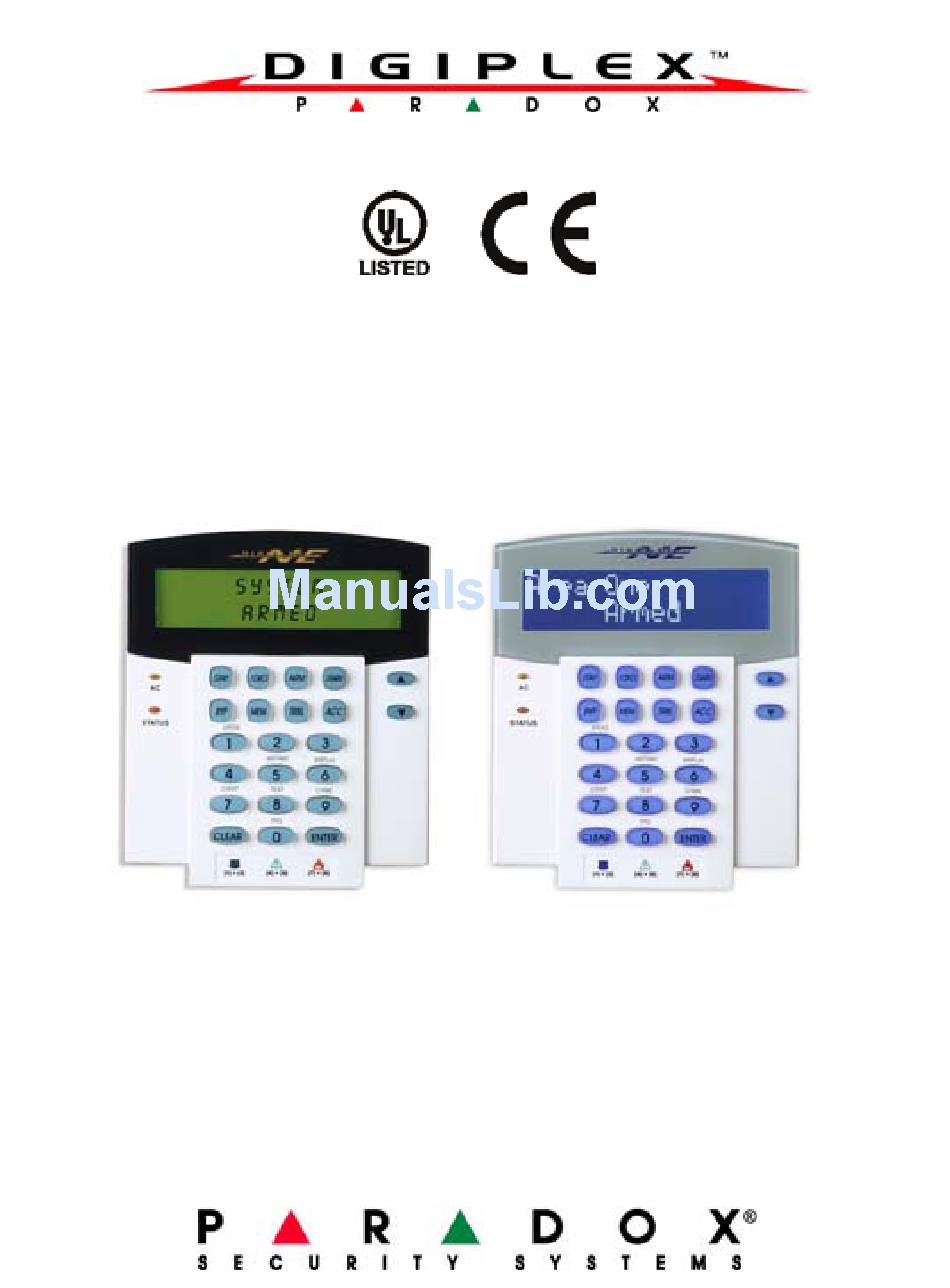

- Page 1 LCD Keypad V1.1 DGP2-641/BL Reference and Installation Manual...
-
Page 3: Table Of Contents
Table Of Contents Introduction............. 1 Specifications ............1 Installation............2 Connecting Keypad Zones ........2 Programmable Output ......... 3 Programming ..........4 Entering Module Programming Mode....4 Programming Methods ........5 Feature Select Programming........5 Decimal Programming ..........5 Module Broadcast ..........5 Memory Key ............ - Page 4 Confidential Mode Timer ........10 Time Display Option .......... 10 Muting..............11 Beep on Exit Delay ..........11 Chime on Zone Closure........11 Beep on Trouble ..........12 Keypad Tamper Enable........12 Combus Voltmeter..........13 Programmable Output Options ....14 PGM State ............
-
Page 5: Introduction
1.0 Introduction Thank you for choosing Paradox Security Systems. Digiplex security systems offer advanced technology and provide reliable security protection and powerful features that are easy to use. The elegant and user-friendly LCD Keypad allows easy access to the security system's functions and information at the touch of a button. -
Page 6: Installation
2.0 Installation The LCD keypad (DGP2-641) is connected to the control panel's combus in a star and/or daisy chain configuration. The 4-wire combus provides power and two-way communication between the control panel and all modules connected to it. Connect the four terminals labeled red, black, green and yellow of each keypad to the corresponding terminals on the control panel (refer to Figure 2.1 on page 3). -
Page 7: Programmable Output
Note: A keypad’s input must be EOL definition. assigned to a zone, keyswitch or The zone speed virtual input in the control panel. is set at 600mS and cannot be programmed. Digiplex LCD Keypad... -
Page 8: Programming
Mode and then enter the desired section followed by the required data. When programming the keypad, use the keypad’s programming sheets (found in the Digiplex Modules’ Programming Guide) to keep track of which sections were programmed and how. We strongly recommend you read this entire manual before you begin programming. -
Page 9: Programming Methods
#] of the source keypad. The source is SERIAL the programmed keypad whose data you want to copy to other keypads. 5. Enter the [ #] of the destination keypads. The SERIAL destination is the keypad(s) you want to program with the Digiplex LCD Keypad... -
Page 10: Memory Key
source’s data. If you want to program more than one keypad with the source’s data, enter the serial numbers of the keypads one at a time. 6. Once you have entered the serial numbers of the keypads you want to program, press the [ ] key. -
Page 11: Copy The Keypad Contents To The Memory Key
3. After the confirmation beep, wait 5 seconds and remove the memory key after the second confirmation beep. Set the memory key’s jumper to OFF if you do not wish to accidentally overwrite its contents (refer to Figure 3.1). Figure 3.1: PMC-3 Jumper Settings Digiplex LCD Keypad... -
Page 12: System Options
4.0 System Options 4.1 Partition Assignment Section [001]: Options [1] to [8] Each keypad in the system can be assigned to one or more partitions. In section [001], options [1] to [8] represent partitions 1 through 8 respectively. To assign the keypad to a partition, simply enable the option that corresponds to the desired partition. -
Page 13: Display Entry Delay Timer
Figure 4.1 on page 10. The status of the areas, the open zones for every area the keypad is assigned, the Alarm Memory Display (if necessary) and the Trouble Display (if necessary. See DGP-848 or DGP-NE96 User Manual) will also scroll on the LCD screen. Digiplex LCD Keypad... -
Page 14: Confidential Mode Timer
Option [4] OFF = Normal Mode (default) Option [4] ON = Confidential Mode Option [5] OFF = LCD screen activated by entering an access code (default) Option [5] ON = LCD screen activated by pressing a button Figure 4.1: LCD Screen 4.6 Confidential Mode Timer Section [007] Section [007] determines the amount of time without action... -
Page 15: Muting
Manual for details on Chime Zones). If the user does not set the Chime Zone Time Period and this option is enabled, the Chime Zones will always beep upon closure. Option [4] OFF = Chime on Zone Closure disabled (default) Option [4] ON = Chime on Zone Closure enabled Digiplex LCD Keypad... -
Page 16: Beep On Trouble
4.11 Beep on Trouble Section [005]: Options [1] to [4] Potential troubles have been sorted into groups. With these options enabled, the keypad will emit an intermittent beep tone whenever a trouble condition from the Trouble Groups occurs in the system. The intermittent beep will remain activated until the user enters the Trouble Display or if the trouble is resolved. -
Page 17: Combus Voltmeter
1. From Normal Mode press and hold the [0] key. 2. Enter the [ ] (Default: 000000). INSTALLER CODE 3. Press [ The voltage may drop during the control panel battery test. Digiplex LCD Keypad... -
Page 18: Programmable Output Options
5.0 Programmable Output Options 5.1 PGM State Section [006]: Option [1] The keypad's on-board PGM can be set as normally open or normally closed. When an open PGM is activated, it will close the circuit from ground and enable any devices connected to it. When a closed PGM is activated, it will open the circuit and disable any devices connected to it. -
Page 19: Pgm Base Time
To program the timer, enter a 3-digit decimal value (000 to 255) in section [008]. The 3-digit value will be multiplied by the PGM Base Time of 1 second or 1 minute (see section 5.3 above). Default: 5 seconds. Digiplex LCD Keypad... -
Page 20: Pgm Activation Event
Group identifies the source, and the Start # and End # sets the range within the Feature Group. Use the PGM Programming Table in the Digiplex Modules’ Programming Guide to program the keypad’s PGM Activation Event. Enter the sections that correspond to the Event Group, Feature Group, Start # and End # of the PGM and enter the required data. -
Page 21: Message Programming
Each section contains one message with a maximum of 16 characters. For more details and to record any changes, use the Digiplex Modules’ Programming Guide. The DGP-NE96 control panel has up to 8 partitions, 96 zones and up to 999 user codes. The LCD keypad only allows you to program the messages for up to 4 partitions, 48 zones and 96 user codes. -
Page 22: Special Function Keys
Table 6.1: Message Programming Keys Press Key Press Key Press Key Once Twice Three Times 6.1 Special Function Keys ] - Insert Space STAY Pressing the [ ] key inserts a blank space in the current STAY cursor position. ] - Delete FORCE Pressing the [ ] key will delete the character or blank space... - Page 23 ] - Special Characters After pressing the [ ] key, the cursor will turn into a flashing black square. Using Table 6.2 on page 20, enter the 3-digit number that represents the desired symbol. Digiplex LCD Keypad...
- Page 24 Table 6.2: Special Characters Catalog 20 Reference & Installation Manual...
- Page 25 5751803, 5721542, 5287111, 5119069, 5077549, 5920259 and 5886632. Canadian and international patents may also apply. WinLoad and Digiplex are trademarks or registered trademarks of Paradox Security Systems Ltd. or its affiliates in Canada, the United States and/or other countries. Digiplex LCD Keypad...
- Page 26 Notes...
- Page 28 For technical support in Canada or the U.S., call 1-800-791-1919 for English or 1-866-912-0600 for French, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.ca.
