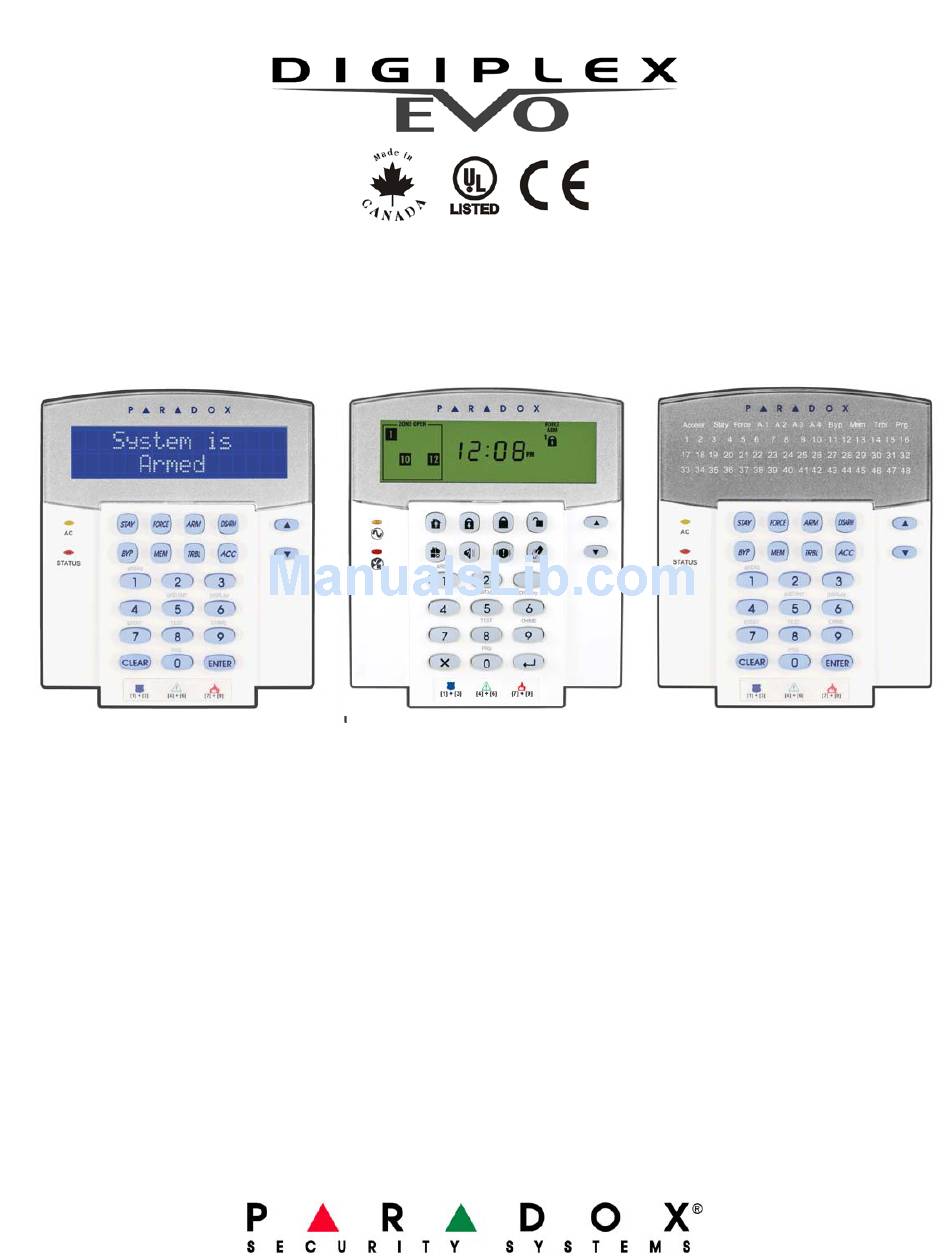

- Page 1 DGP2-648BL DGP2-641BL / DGP2-641RB DGP2-640 User Guide for the EVO96...
-
Page 3: Table Of Contents
Introduction ... 1 Legend ... 1 Basic Operation... 2 Auditory Feedback (Beep Tones) ... 2 Visual Feedback ... 3 Confidential Mode ... 4 Partitioned System... 5 Area Display... 5 Arming... 6 Exit Delay Timer... 6 Regular Arming ... 6 Stay Arming ... 6 Instant Arming... -
Page 4: Introduction
Your EVO96 System is an advanced technology security system that will provide you with reliable security protection and powerful features that are easy to use. The elegant and user-friendly keypads will allow you easy access to your security system's functions and information at the touch of a button. Depending on which keypad you have selected, the 32-character LCD screen will display messages and menus to guide you through the system’s operations on the DGP2-641BL/RB keypad, or the icons of the DGP2-640 and the DGP2-648BL LED display will let you assess the system status at a glance. -
Page 5: Basic Operation
The following sections will introduce you to the roles of the buttons, lights, and messages on your keypad. AC Light: = AC power = Power failure STATUS Light: When Green: = All zones are closed. = One or more zones are open. FLASH = Exit Delay in progress When Red:... -
Page 6: Visual Feedback
2.2 Visual Feedback ICON The icons on the keypad’s screen communicate your system’s status as outlined in Table 1. Table 1: Icon Display and Functionality Icon(s) Indicates numbers corresponding to zones and option numbers. If a zone or zones are open, their corresponding number(s) will appear. -
Page 7: Confidential Mode
2.3 Confidential Mode LCD ICON LED Your installer can program keypads to not display the status of your system automatically by changing the keypad to Confidential Mode. In Confidential Mode: • • • 4 EVO96 For all keypads, the [ ] or [ ENTER [ ] key will exit without saving. -
Page 8: Partitioned System
Front Door Open: if there is an open zone within that area. Trouble(s): (section 8.0 on page 19) if a trouble has occurred. -
Page 9: Arming
When your system is armed, it can respond to any breach in the protected zones by causing an alarm and sending a report to your monitoring station. 4.1 Exit Delay Timer LCD ICON LED When you arm your system, it will trigger the Exit Delay Timer to provide you with enough time to exit the protected area before the system is armed. -
Page 10: Bypass Programming
4.6 Bypass Programming LCD ICON LED You can bypass certain zones when you arm the protected area(s). When a zone is bypassed, it will be ignored the next time your system is armed. Once your area is disarmed, the system will unbypass the zone. To Bypass a zone: 1. -
Page 11: Auto-Arming
4.9 Auto-Arming LCD ICON LED If enabled by your installer, you can set the time that an area will arm itself automatically. 4.9.1 Timed Auto-Arming 4.9.2 No Movement Auto-Arming 8 EVO96 Your installer can set Timed Auto-Arming to function in either Force or Stay arming mode. -
Page 12: Disarming
5.1 Entry Delay Timer LCD ICON LED Your installer will program designated entry points (i.e. the front door) with an Entry Delay Timer. This delay gives you time to enter the armed premises and enter your code to disarm your system before the alarm is triggered. -
Page 13: Access Codes
Access Codes allow access to the system. Your system supports up to 999 user access codes. Codes are given a User Number between 002 and 999 (User Number 001 is the System Master Code). Your installer will program user access codes to be four, six, or variables of one to six digits in length. -
Page 14: User Labels
6. Enter a user code. If the user code is of variable length, press the [ 7. Press [ 6.4 User Labels User labels personalize user access codes and can be assigned by pressing [ any point after step 4 during the programming of user access codes (refer to section 6.6.1 on page 13). -
Page 15: Deleting User Access Codes
6.5 Deleting User Access Codes LCD ICON LED To delete user access codes, follow steps 1 to 5 in section 6.6.1 on page 13 or section 6.6.2 on page 14, but press the [ information is erased, press the [ 6.6 Programming User Access Codes LCD ICON LED The System Master and Users with the Master feature can program user access codes... - Page 16 If the keypad emits a rejection beep at any point during the programming procedure, you may have chosen an existing user code or you do not have access to certain User Options (section 6.7) and Area Assignments (step 7 in section 6.6.1 on page 13). Users with the Master feature can only assign User Options and Area Assignments that they are assigned to.
-
Page 17: User Options
6.6.2 Programming User Access Codes with the DGP2-648BL LCD ICON LED 6.7 User Options LCD ICON LED Options [1] and [2]: Master Feature When option [1] is OFF, the User cannot program other users into the system. When option [1] is ON and option [2] is OFF, the user can program and modify user access codes (P.I.N. -
Page 18: Access Control User Options
LCD ICON Option [1]: Access Control When option [1] is ON, the user can gain access to an access control door when Access Control is enabled in the system. A user that is not assigned to any partition, but has the Access Control option (Option [1]) enabled, can now gain access to an access control door by entering a code # (P.I.N.) and then pressing the [... - Page 19 Access Control card to unlock an armed Access Control door, however the user must enter a user access code to disarm the armed area. When option [8] is OFF, a user can gain access to an Access Control door only if the door’s area(s) is already disarmed.
-
Page 20: Using Access Control
Schedule (refer to step 8 in section 6.6.1 on page 13). • presented to a door within its assigned Access Level (refer to step 8 in section 6.6.1 on page 13). • programmed to allow arming (options [4] and [5] in section 6.8 on page 15). -
Page 21: How Access Control Works
Bonnie’s Access Control card is programmed with Access Level 01 and Schedule 01. If she presents her card to the reader or the DGP2-641RB keypad on Door 02 on Tuesday, August 3 at 3:00 p.m., she will gain access to the room. -
Page 22: Trouble Display
8.1 Trouble Display LCD ICON LED If your system experiences any problems, Trouble(s) [TRBL] to View or the trouble Trouble Display will only display the troubles that occur in the area(s) to which the keypad has been assigned. Potential troubles have been sorted into eight groups. Only the troubles which are relevant to you are listed and described below. -
Page 23: Event Record Display
8.1.5 Group 7: Zone Fault 8.1.6 Group 8: Clock Loss 8.2 Event Record Display The Event Record Display will record the user-initiated actions that occurred in your system as well as any alarms or troubles (i.e. “Access Granted”). You will only be able to view the events that occurred in the area(s) assigned to your user access code. -
Page 24: Additional Features
9.1 Programmable Outputs (PGMs) LCD ICON LED Your system includes Programmable Outputs (PGMs) that can be programmed by your installer. A PGM triggers when a predetermined event or series of events occurs in your system. The PGMs can be programmed to reset smoke alarms, turn on light switches, open or close garage doors and much more. -
Page 25: Set Time & Date
9.3 Set Time & Date LCD ICON To reset the time and date: 1. Enter your [ 2. Press the [8] button. 3. To change the time, place the cursor under the number you want to change by using 4. To change the date, place the cursor under the number you want to change and enter 5. -
Page 26: Quick Function Buttons
press and hold the button combinations displayed in Table 6 on page 23. Your installer can program the alarm to be either silent or audible. Emergency Panic Auxiliary Panic Fire Panic 9.6 Quick Function Buttons LCD ICON LED You will only need to use the Quick Function Buttons upon your installer’s or monitoring station's request. -
Page 27: Testing And Maintenance
10.1 Burglar Alarm Testing Two people are needed to complete this test. One person will watch the screen on the keypad while the other person walks around the protected areas and opens the zones (i.e. opens the doors and windows that are protected, walk in the path of the motion detectors, etc.). -
Page 28: Fire And Burglar Alarms
11.1 Standard Fire Zone LCD ICON LED During a fire alarm, the bell/siren emits an intermittent sound ( silenced or reset. If the zone is a Standard Fire Zone, your system can immediately send an alert to your monitoring station. To disarm a false alarm: 1. -
Page 29: Minimizing Home Fire Hazards
11.4 Minimizing Home Fire Hazards How can you avoid the three most common causes of fires at home? • • • 11.5 Home Fire Warning System Household fires are especially dangerous at night. Fires produce smoke and deadly gases that can overcome occupants while they sleep. To warn against fire, install smoke detectors outside each separate sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family living unit, including basements. -
Page 30: Appendix 1: Hebrew Special Characters
Appendix 1: Hebrew Special Characters Refer to the following tables when programming the user labels of a Hebrew LCD keypad. Instead of using Table 4 on page 11 and Table 5 on page 12, use Tables 9 and 10 below. Refer to section 6.4 on page 11 for information on programming user labels. -
Page 31: Appendix 2: Russian Special Characters
Appendix 2: Russian Special Characters Refer to the following tables when programming the user labels of a Russian LCD keypad. Instead of using Table 4 on page 11 and Table 5 on page 12, use Tables 11 and 12 below. Refer to section 6.4 on page 11 for information on programming user labels. -
Page 32: Appendix 3: Greek Special Characters
Appendix 3: Greek Special Characters Refer to the following tables when programming the user labels of a Greek LCD keypad. Instead of using Table 4 on page 11 and Table 5 on page 12, use Tables 13 and 14 below. Refer to section 6.4 on page 11 for information on programming user labels. -
Page 33: Index
Access Codes Deleting ... 12 Labelling ... 11 Programming ... 12 System Master ... 10 User ... 10 Access Control ... 15 Card Assignment ... 14 Entering & Exiting ... 17 Access Control User Options Access Control ... 15 Add Tolerance Window to Schedule ... 16 Arming with Card ... - Page 34 Ignoring Zones when Arming, see Bypass Programming Instant Arming ... 6 Keypad, LCD Buttons ... 2 Letter Assignment ... 11 Lights ... 2 Messages ... 2 Settings ... 21 Keyswitch Arming ... 7 Level, Access ... 13 Master Code ... 10 Master Feature, in User Options ...
- Page 35 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
- Page 36 For technical support in Canada or the U.S., call 1-800-791-1919 for English or 1-866-912-0600 for French, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at paradox.com. PRINTED IN CANADA - 08/2006 paradox.com EVO96-EU01...
