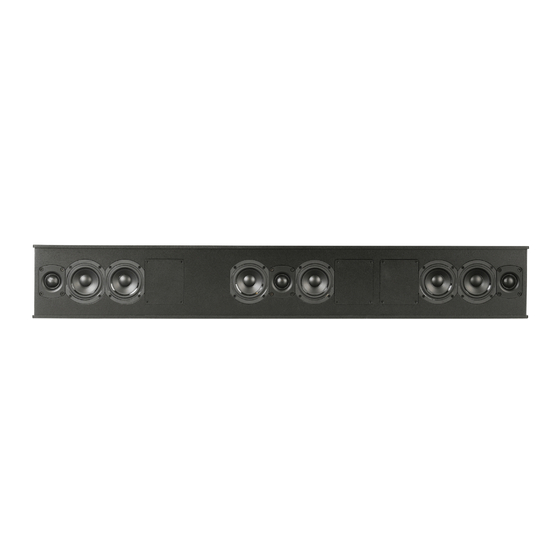

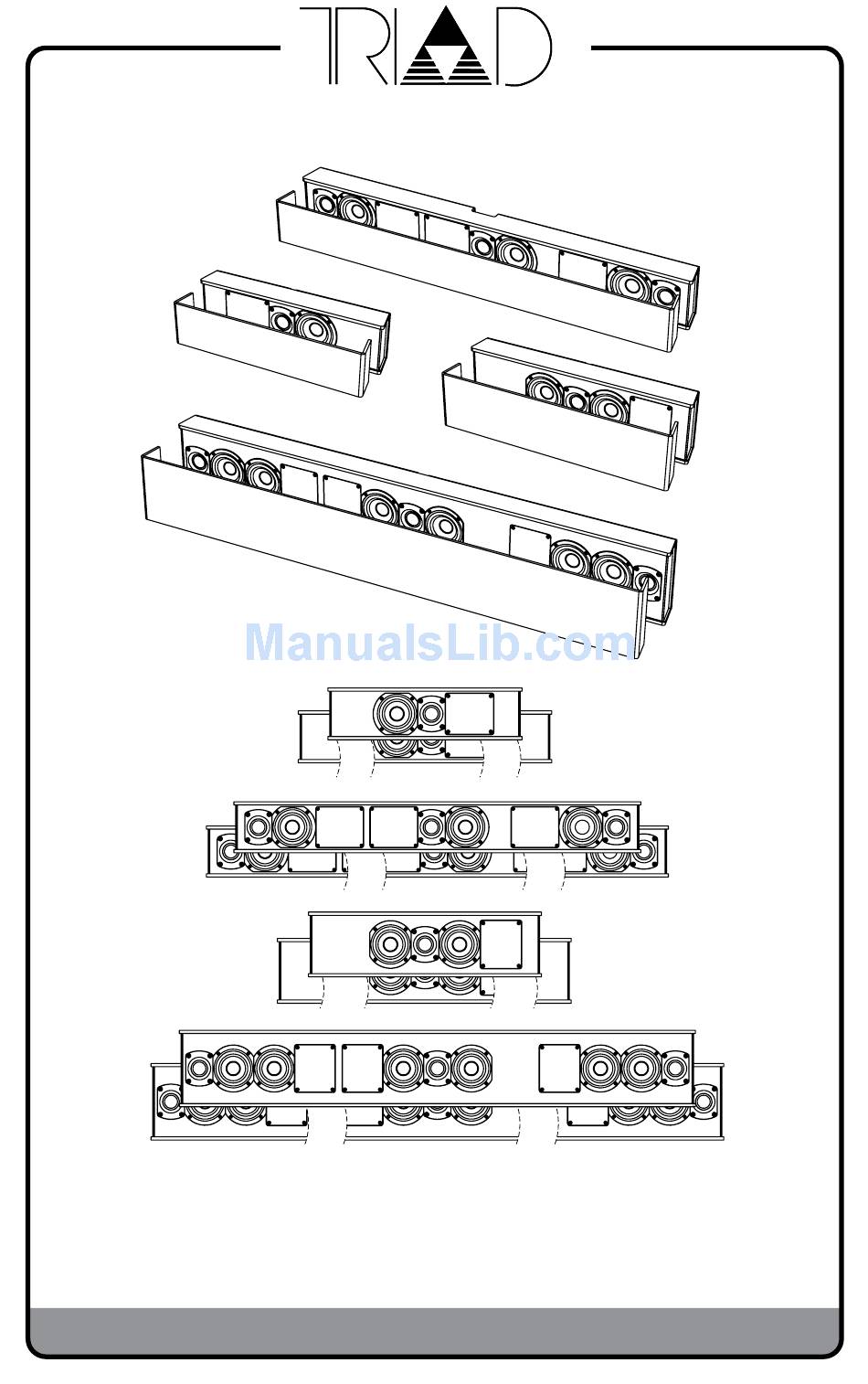

- Page 1 OnWall Micro Product Family OnWall MicroSat OnWall MicroSat 3.0 OnWall MicroLCR OnWall MicroLCR 3.0 Made in the USA and Canada Triad Speakers, Incorporated - Portland, Oregon www.triadspeakers.com OnWall Micro - Installation Manual 2010.12.15...
-
Page 2: Table Of Contents
The results will be superior, and you will also be supplied with a small bottle of touch-up paint. The cloth grill is available from Triad in black or white. It should not be painted. Packaging Triad OnWall Micro Installation Manual - pg. -
Page 3: Installation
Attach screws through mounting brackets directly to a wall stud if possible for increased strength. When stud is not available, attach screws into Sheetrock or Concrete using the included plastic ‘Moly’ Anchors. Triad OnWall Micro Installation Manual - pg. 5 pg. 4 - Triad OnWall Micro Installation Manual... - Page 4 These inserts will accept 1/2” of a 1/4-20 screw to the top of the insert. Triad OnWall Micro Installation Manual - pg. 7 pg. 6 - Triad OnWall Micro Installation Manual...
-
Page 5: Horizontal Mounting On Wall
Note: To eliminate this 1/2 inch clearance between the TV and speaker which is required to mount the speaker beneath the TV, install the speaker first. Triad OnWall Micro Installation Manual - pg. 9 pg. 8 - Triad OnWall Micro Installation Manual... -
Page 6: Wiring & Tuning
Drive Units: 128 Hz - 20 kHz (+/-3dB) (3) 1” (25mm) Fabric dome tweeter. Bass Extension (-6dB): 110 Hz (6) 3” (9cm) Polycone woofer. Triad OnWall Micro Installation Manual - pg. 11 pg. 10 - Triad OnWall Micro Installation Manual... - Page 7 This Limited Warranty Period Begins on the Date of Purchase This limited warranty is extended only to Triad products and is expressly in lieu of all other warranties expressed or implied. Should any defect in materials or workmanship occur within the limited warranty period, customers in the United States should contact Triad Customer Service at 1-877-264-6315, to obtain a Return Authorization (RA) Number.
