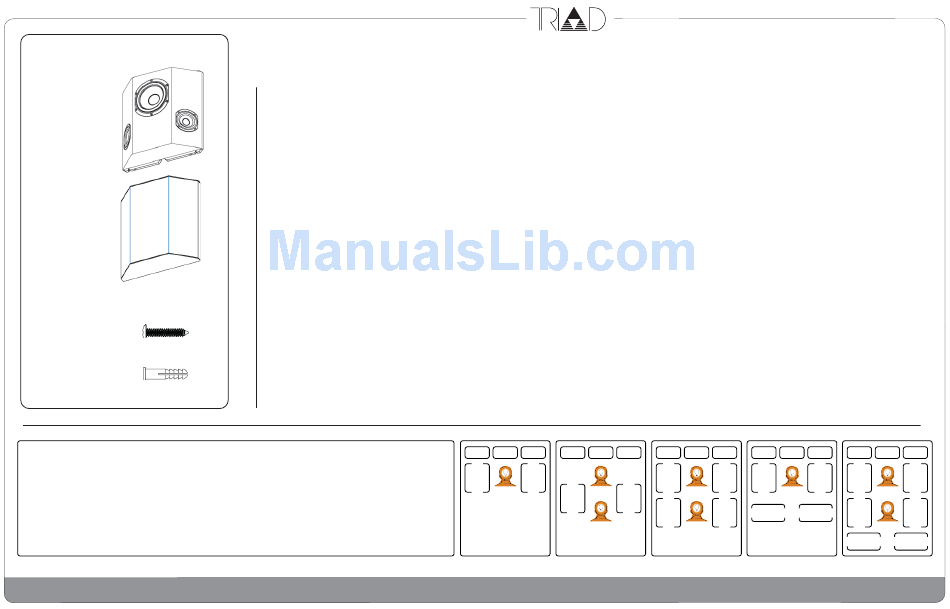

Triad OnWall Bronze Suround Installation Instructions

Unpacking / Contents

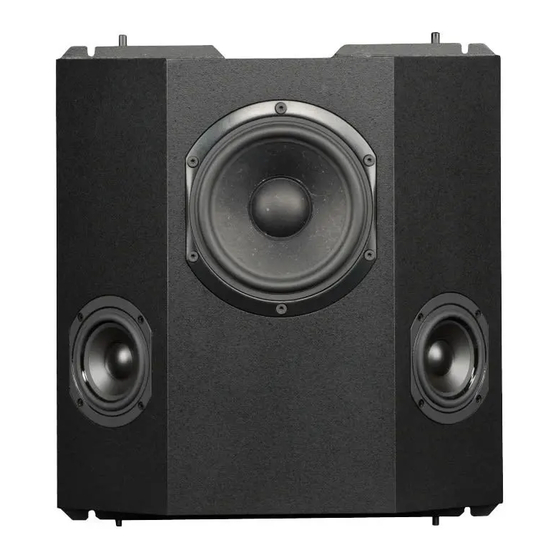

Surround Speaker
(Model Varies)
Surround Grill
(Model Varies)
Hardware Package
(anchors & screws)
(4) #8 x 1-1/2"
Pan Head
Phillips Screws
(4) #8-10-12
Ribbed Plastic
Wall Anchors.
Triad Surround Speaker Placement & Polarity:
Triad Surround Speakers are dipoles (center null with left & right sides out of phase) as standard with bipoles as an option.
Side Channels: A. Place at 90-110 degrees off axis of primary listener with + polarity toward screen or TV. B. If 1 pair
of sides is meant to cover 2 rows, place them between rows with + polarity toward screen or optimize for 1 row. C. If 2
pairs are used as sides, for front pair follow rule A.; for back pair reverse left & rights with – polarity toward screen.
Back Channels: D. With 1 pair of side speakers, place back pair with + polarity and arrow toward room center. E. With
2 pairs of side speakers, place back pair with + polarity and arrow toward corresponding side wall.
TriadSpeakers.com • Sales: 1800-666-6316

Specifications

Applicable Models Dimensions
Inches / cm
OnWall Bronze Surround 12.6x13.25x4; 32x33.7x9
OnWall Silver Surround 13.5x14.25x4; 34.3x36.2x9
OnWall Gold Surround 13.5x26x4; 34.3x66x9
Additional Info
Triad dipole Surround Speakers ship in left & right pairs with opposite polarity. Arrow on top of each speaker should point toward the TV or screen. See Triad Surround Speaker
Placement & Polarity below for details.
North American Limited Warranty
Triad speakers are warranted to be free from defects in manufacturing and workmanship (10) years when operated under normal conditions. Should any such defects occur within
the warranty period call Triad Service at 1-503-256-2600 for an RA (Return Authorization) number. Return the product in intact factory packaging with RA number clearly visible on
outside of box and proof & date of purchase inside to:
Triad Speakers Inc., 15835 NE Cameron Blvd., Portland, Oregon 97230 USA
Triad is not responsible for any shipping damage coming in to Triad. If you do not have intact factory packaging, contact your dealer or Triad Service for purchase. At our discretion
we will repair or replace the product and return it free of charge. International customers should contact their dealer for service. This limited warranty is extended only to Triad
products and is expressly in lieu of all other warranties expressed or implied.
Triad OnWall Surround Speaker Installation Instructions - Quick Start Guide
OnWall Surround
Frequency Response Sensitivity
+/-3dB 2.83v, 1m
100 Hz - 16 kHz 84 dB
80 Hz - 20 kHz 85 dB
70 Hz - 20 kHz 87 dB
LEFT CENTER RIGHT LEFT CENTER RIGHT
+ +
SIDE SIDE
SUR SUR
- -
+ +
A B
SIDE SIDE
SUR SUR
- -
Page 1
- Product Info & Warranty -
Rec Amp Pwr Impedance Weight lbs/kg
Per Channel Nominal
25-125 Watts 4 ohms 11 / 4.9
50-150 Watts 4 ohms 15 / 7
50-250 Watts 4 ohms 22 / 10
LEFT CENTER RIGHT LEFT CENTER RIGHT
+ + + +
SIDE SIDE SIDE SIDE
SUR SUR SUR SUR
- - - -
C D
- -
- -
SIDE SIDE
+ +
SIDE SUR SIDE SUR
SUR SUR
+ +
LEFT CENTER RIGHT
+ +
SIDE SIDE
SUR SUR
- -
E
- -
SIDE SIDE
SUR SUR
+ +
- -
+ +
SIDE SUR SIDE SUR
2014.28.2
