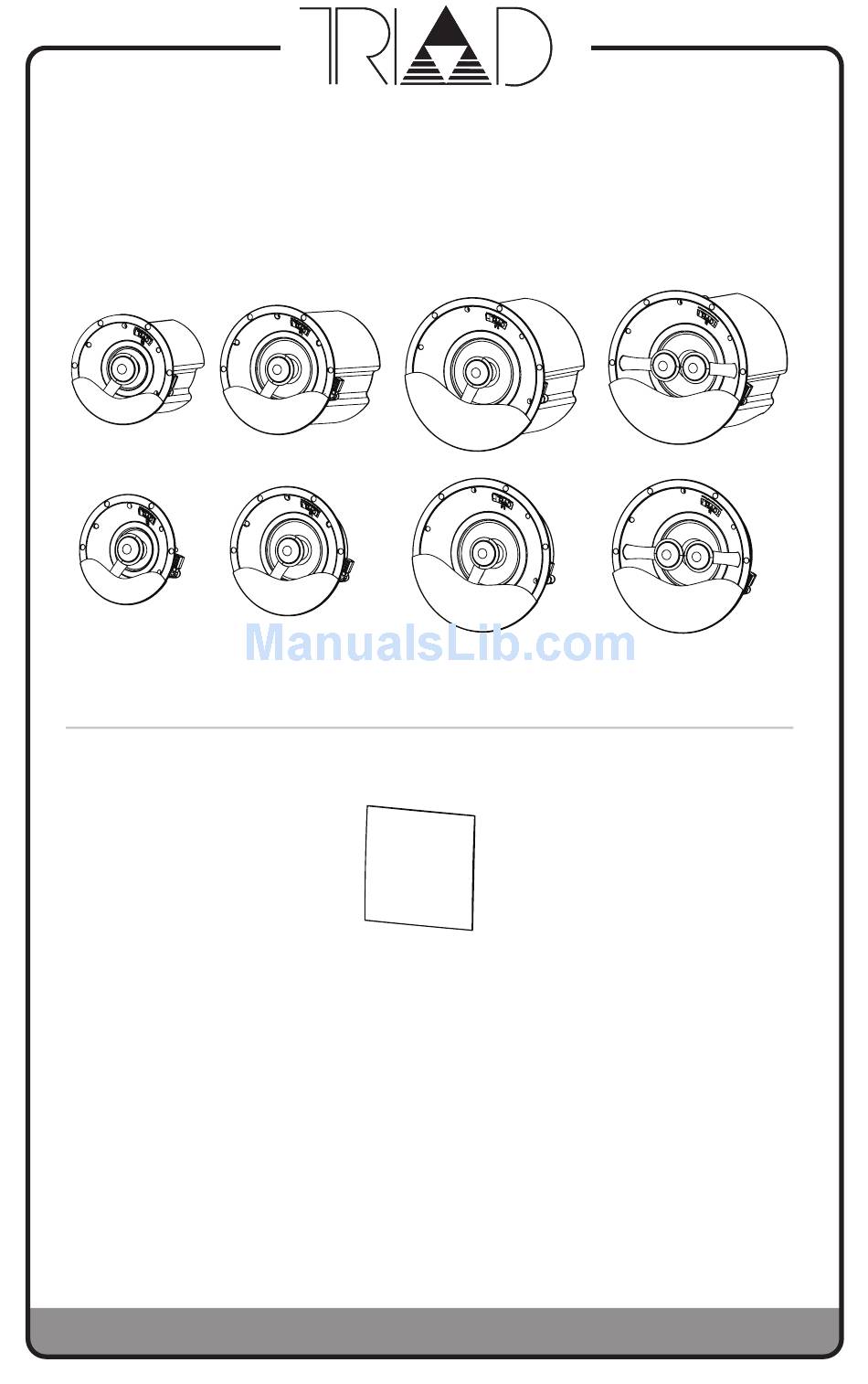

InCeiling SealedRounds & OpenRounds Product Family
Mini SealedRound
Bronze SealedRound
Silver DT SealedRound
Silver SealedRound

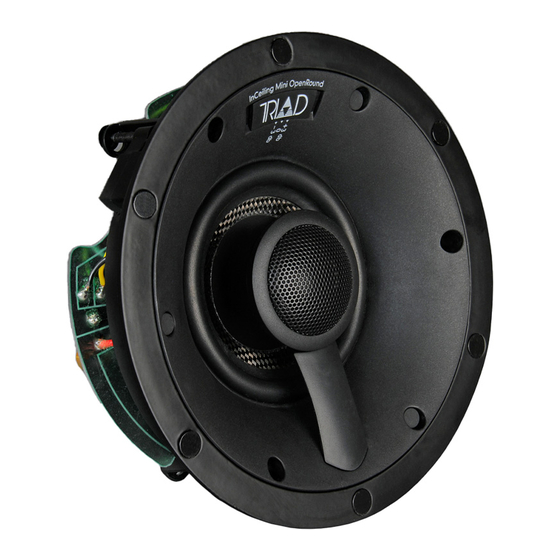

Mini OpenRound
Bronze OpenRound
Silver OpenRound
Silver DT OpenRound
Optional Square Grill Available
Made in the USA and Canada
Triad Speakers, Incorporated - Portland, Oregon
www.triadspeakers.com
InCeiling Rounds - Installation Manual
2010.12.15
Advertisement
Related Manuals for Triad Mini OpenRound
Summary of Contents for Triad Mini OpenRound
- Page 1 Mini SealedRound Bronze SealedRound Silver DT SealedRound Silver SealedRound Mini OpenRound Bronze OpenRound Silver OpenRound Silver DT OpenRound Optional Square Grill Available Made in the USA and Canada Triad Speakers, Incorporated - Portland, Oregon www.triadspeakers.com InCeiling Rounds - Installation Manual 2010.12.15...
-
Page 2: Message From The President
Triad’s Portland factory, these speakers blend perfectly into any interior design. All models are fully engineered to deliver the rich natural sound Triad is famous for. We offer two versions, each designed and engineered to perform best in its own acoustical environment: OpenRounds for installations lacking depth. - Page 3 Message from the President - About your new Triad InCeiling Rounds Finish Care & Custom Paint Installation New Construction & Retro-fi t Speaker Grill Installation & Removal Wiring Single Tweeter Models Dual Tweeter (DT) Models Specifi cations InCeiling OpenRounds InCeiling SealedRounds Appendix Warranty Triad InCeiling Rounds Installation Manual - pg. 3...
-
Page 4: New Construction Installation
New Construction Installation: After sheetrock, place speaker into large hole here Place Speaker into large hole here Attach NCB to studs or joists using screws through holes Retro-fi t & Wiring installation: pg. 4 - Triad InCeiling Rounds Installation Manual... - Page 5 SealedRound back can. Use cables secured through these tabs to either attach the speaker to building structure for earthquakes or to fl y the speaker from an open ceiling. Always check that this work is done to applicable codes. Triad InCeiling Rounds Installation Manual - pg. 5...
- Page 6 Attach the metal grill to the frame by placing the grill over the edge of the frame. Grill will self-center onto the magnet system. To remove the grill, grab the edge of the grill and gently pull away. pg. 6 - Triad InCeiling Rounds Installation Manual...
- Page 7 This is the default setting as the speaker is delivered to you from the factory. Both tweeters are in phase. Tweeter Orientation Bipole Switch Inputs/Stereo Switch to Bipole to Stereo Triad InCeiling Rounds Installation Manual - pg. 7...
- Page 8 Tweeters are in phase and typically aimed in opposite directions. Tweeter Orientation Bipole Switch Inputs/Mono Switch to Bipole to Mono Dipole Surround Mode Used for surround speaker applications where a very diffuse and enveloping soundfi eld is desired. Tweeters are out of phase and typically aimed in opposite directions. Tweeter Orientation Dipole Switch Inputs/Mono Switch to Dipole to Mono pg. 8 - Triad InCeiling Rounds Installation Manual...
- Page 9 Installed Frequency Response: 70 Hz - 20 kHz (+/-3dB) 60 Hz - 20 kHz (+/-3dB) Power Handling: Power Handling: Rec. amp. power 25 - 125 watts Rec. amp. power 25 - 125 watts Impedance: Impedance: Nominal impedance 8 ohms Nominal impedance 8 ohms Triad InCeiling Rounds Installation Manual - pg. 9...
- Page 10 Installed Frequency Response: 90 Hz - 20 kHz (+/-3dB) 80 Hz - 20 kHz (+/-3dB) Power Handling: Power Handling: Rec. amp. power 25 - 125 watts Rec. amp. power 25 - 125 watts Impedance: Impedance: Nominal impedance 8 ohms Nominal impedance 8 ohms pg. 10 - Triad InCeiling Rounds Installation Manual...
- Page 11 Notes: Triad InCeiling Rounds Installation Manual - pg. 11...
- Page 12 Please keep this manual and the sales receipt in a safe place. Model: ___________________ Serial #: __________________ Dealer Name: _______________________________________ Purchase Date:____________ Phone #: __________________ Triad North American Warranty Triad speakers are warranted to be free from defects in materials and workman- ship for a period of ten (10) years, when operated under normal conditions. This Limited Warranty Period Begins on the Date of Purchase This limited warranty is extended only to Triad products and is expressly in lieu of all other warranties expressed or implied.
