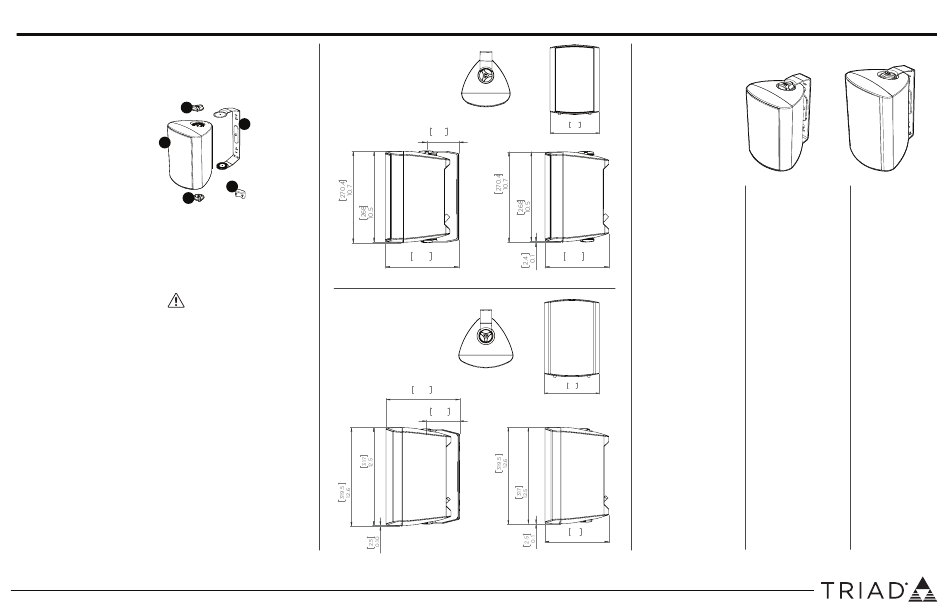

TRIAD QUICK START GUIDE - OUTDOOR OD25 & OD26

OVERVIEW

Triad outdoor speakers are attractive, weather-resistant speakers
engineered in the U.S. to have a rich and full sound. To help them better
integrate into their surroundings, Triad Outdoor Speakers are available
in custom colors directly from Triad. Thank you for purchasing this
product!
C

IN THE BOX

Two (2) Speaker Assemblies
A
including:
A - Enclosure
B - Bracket
C - Assembly knobs
D - Silicone binding post covers
C

PAINTING AT THE FACTORY

OD25 & OD26 outdoor speakers have already undergone an extensive
multi-step prep and painting process at the factory. Out of the box
they are painted either black or white. OD25 & OD26 speakers can also
be painted a custom color to match any environment. This paint is
applied at the Triad factory for a nominal charge. Custom colored
products are not returnable. Contact Triad Sales for custom painting
details.

PAINTING IN THE FIELD

If the Triad OD25 & OD26 speakers must be painted in the field, special
procedures MUST be followed. For details call the Triad Sales Depart-
ment at 1-800-666-6316.

WARRANTY

Triad Speakers warranty information
Limited Hardware Warranty—Triad Speakers warrants its hardware product
to be free from defects in material and workmanship during the warranty
period. If the hardware proves to be defective in material or workmanship
during the warranty period, Triad Speakers will, at its sole option, repair or
replace the product with a like product. The warranty extends only to
products purchased directly from Control4 Corporation or an Authorized
Control4 Dealer. For complete limited warranty information, including
details on purchaser legal rights as well as limited warranty exclusions, visit
www.triadspeakers.com/legal/warranty.
Return Merchandise Authorization (RMA) information
For Sales RMAs contact your Inside Sales Associate. Your ISA information
can be found in the My Account section of the Dealer Portal under
Control4 Contacts.
Technical Support information
Phone: 503-517-2668
Hours: 9:00 a.m. – 5:30 p.m. PST (Monday – Friday)
Email: service@triadspeakers.com
www.triadspeakers.com | 1-800-666-6316 | DOC-00285-B
DIMENSIONS - OD25
B
x 2
D
DIMENSIONS - OD26
190
94.8
7.5
3.7
216.2
190.2
8.5
7.5
224
238.2
8.8
9.4
107.2
4.2
210
8.3

SPECIFICATIONS

OD25
Enclosure size (H x W x D) in.
10
9
/
x 7
1
/
x 7
1
/
16
2
2
Enclosure WITH bracket
10
/
x 7
/
x 8
/
9
1
1
16
2
2
(H x W x D) in.
Enclosure size (H x W x D) mm
270 x 190 x 190
Enclosure WITH bracket
270 x 190 x 216
(H x W x D) mm
Product weight /each
7.5lb / 3.4kg
Shipping weight / pair
17lb / 7.7kg
Shipping weight
37lb / 16.8kg
Master pack (4 ea.)
Tweeter - size (in./mm)
1" / 25mm
Tweeter material
Titanium
Woofer - number & size
(1) 5.25" / 14cm
(in./cm)
Woofer material
Carbon fiber
Recommended
25-150
amplifier power (W)
Nominal Impedance (ohms)
6
Minimum Impedance (ohms)
4.8
Sensitivity (dB @ 2.83v, 1 m)
84
Frequency Response
75 - 20k
2 π +/- 3dB (Hz)
OD26
12
7
/
x 8
7
/
x 8
1
/
16
8
4
12
/
x 8
/
x 9
/
7
7
3
16
8
8
319 x 224 x 210
319 x 224 x 238
9lb / 4.1kg
21.5lb / 9.8kg
47lb / 21.4kg
1" / 25mm
Titanium
(1) 6.5" / 17cm
Carbon fiber
25-150
6
4.8
86
65 - 20k
