TRIAD QUICK START GUIDE - OUTDOOR OD25 & OD26

OVERVIEW

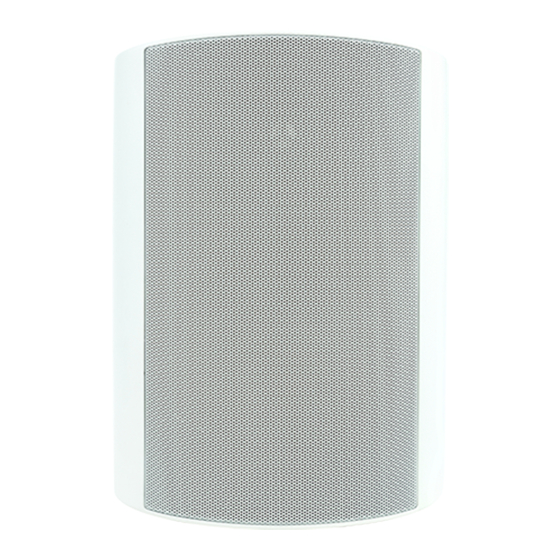

Triad outdoor speakers are attractive, weather-resistant speakers
engineered in the U.S. to have a rich and full sound. To help them better
integrate into their surroundings, Triad Outdoor Speakers are available
in custom colors directly from Triad. Thank you for purchasing this
product!
C

IN THE BOX

Two (2) Speaker Assemblies
A
including:
A - Enclosure
B - Bracket
C - Assembly knobs
D - Silicone binding post covers
C

WARRANTY

Triad Speakers warranty information
Find details of the product's Limited Warranty and other resources such as
regulatory notices and patent and safety information, at snapone.com/legal
or request a paper copy from Customer Service at 866.424.4489.
Return Merchandise Authorization (RMA) information
For Sales RMAs contact your Inside Sales Associate. Your ISA information
can be found in the My Account section of the Dealer Portal under
Control4 Contacts.
Technical Support information
For chat and telephone, visit ctrl4.co/techsupport
Email: TechSupport@SnapOne.com
Visit tech.control4.com/technician for discussions, instructional videos, news,
and more.
Copyright
Copyright ©2022, Snap One, LLC. All rights reserved. Snap One and its
respective logos are registered trademarks or trademarks of Snap One,
LLC, in the United States and/or other countries. Control4 and Strong are
also registered trademarks or trademarks of Snap One, LLC. Other names
and brands may be claimed as the property of their respective owners.
Snap One makes no claim that the information contained herein covers all
Installation scenarios and contingencies, or product use risks. Information
within this specification subject to change without notice.
Triad Outdoor OD25 & OD26 - Quick Start Guide
www.triadspeakers.com | 1-800-666-6316 | DOC-00285-C

DIMENSIONS - OD25

B
x 2
D

DIMENSIONS - OD26

ver 2016.4.12
190
94.8 7.5
3.7
216.2 190.2
8.5 7.5
224
238.2
8.8
9.4
107.2
4.2
210
8.3

SPECIFICATIONS

OD25
Enclosure size (H x W x D) in.
10 9 / x 7 1 / x 7 1 /
16 2 2
Enclosure WITH bracket
10 / x 7 / x 8 /
9 1 1
16 2 2
(H x W x D) in.
Enclosure size (H x W x D) mm
270 x 190 x 190
Enclosure WITH bracket
270 x 190 x 216
(H x W x D) mm
Product weight /each 7.5lb / 3.4kg
Shipping weight / pair
17lb / 7.7kg
Shipping weight
37lb / 16.8kg
Master pack (4 ea.)
Tweeter - size (in./mm) 1" / 25mm
Tweeter material
Titanium
Woofer - number & size
(1) 5.25" / 14cm
(in./cm)
Woofer material Carbon fiber
Recommended
25-150
amplifier power (W)
Nominal Impedance (ohms)
6
Minimum Impedance (ohms) 4.8
Sensitivity (dB @ 2.83v, 1 m)
84
Frequency Response
75 - 20k
2 π +/- 3dB (Hz)
TriadSpeakers.com • Sales: 1800-666-6316
OD26
12 7 / x 8 7 / x 8 1 /
16 8 4
12 / x 8 / x 9 /
7 7 3
16 8 8
319 x 224 x 210
319 x 224 x 238
9lb / 4.1kg
21.5lb / 9.8kg
47lb / 21.4kg
1" / 25mm
Titanium
(1) 6.5" / 17cm
Carbon fiber
25-150
6
4.8
86
65 - 20k
