Triad OnWall Micro LCR 2.0 Quick Start Manual

OVERVIEW

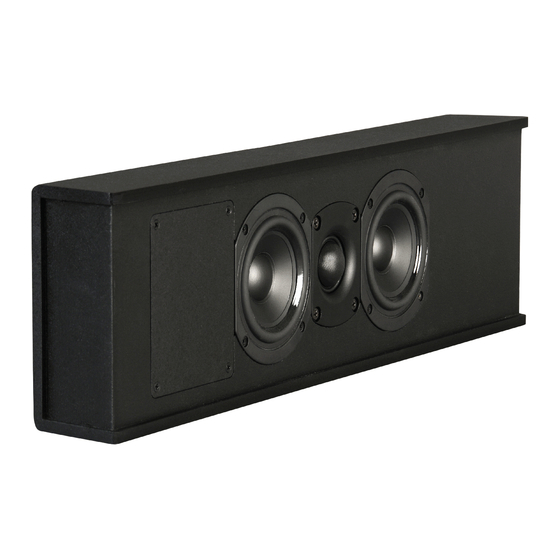

The OnWall Micro is the perfect solution for giving wall-mounted
plasma or LCD televisions excellent sound quality in a slim, handsome
package. Their accuracy makes them great for music applications, but
they especially excel at reproducing demanding movie soundtracks in
multichannel systems. Although the Micro can be used without a
subwoofer in smaller venues, it is a great choice for home theaters
when used with one or more Triad Subs giving you great sound
without big, bulky boxes!

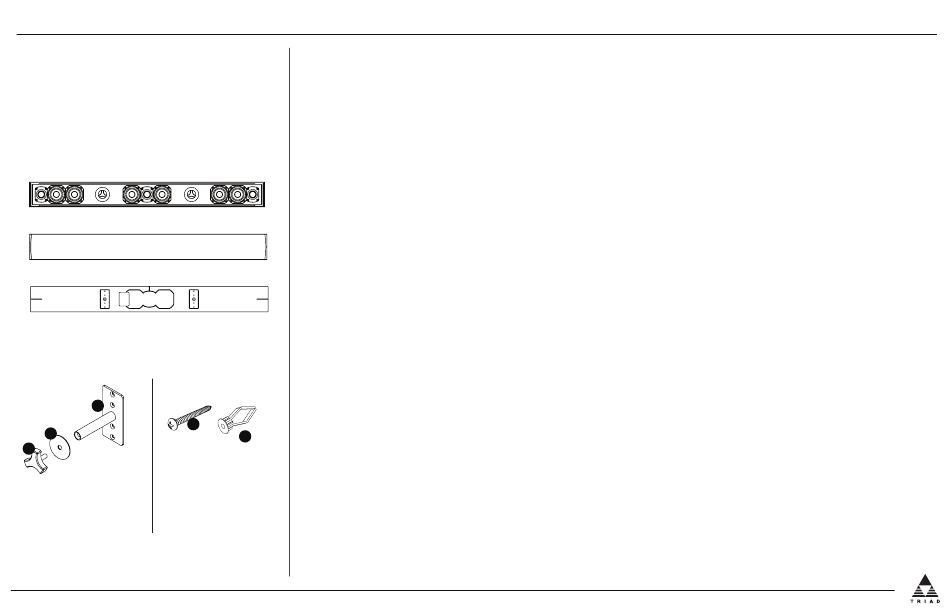

IN THE BOX
Soundbar
Grill
Mounting template
EZ Mount Bracket and Hardware
C
D
B
A
A - Threaded knob
B - Washer
D - Screw
C - Mounting post
E - Anchor
x2 ea x8 ea
NOTE: For safety, models longer than 66 inches (1676.4mm)
include 4 sets of EasyMount Brackets & Hardware. If your speaker
includes 4 sets, use them as per instructions.
www.triadspeakers.com | 1-800-666-6316 | ver. 2017.02.22
TRIAD QUICK START GUIDE - ONWALL MICRO LCR & SAT
SPECIFICATIONS
Applicable Models Dimensions (in)
OnWall Micro LCR 1.0 24"w x 4.5"h x 3.625"d
OnWall Micro LCR 2.0 40"w x 4.5"h x 3.625"d
OnWall Micro LCR 3.0 42"w x 4.5"h x 3.625"d
OnWall Micro Sat 1.0 24"w x 4.5"h x 2.75"d
OnWall Micro Sat 2.0 40"w x 4.5"h x 2.75"d
OnWall Micro Sat 3.0 40"w x 4.5"h x 2.75"d
** 2 pi Frequency Response specifications are measured with wall or other boundary reinforcement nearby.
NOTE: All Micro models use 1" Fabric Dome Tweeters and 3" Polycone Woofers.
WARRANTY
Triad speakers are warranted to be free from defects in manufacturing and workmanship (10) years when operated under normal conditions. Should any such defects occur within
the warranty period call Triad Service at 1-877-264-6315 for an RA (Return Authorization) number. Return the product in intact factory packaging with RA number clearly visible
on outside of box and proof & date of purchase inside to:
Triad Speakers Inc.
15835 NE Cameron Blvd.
Portland, Oregon 97230 USA
Triad is not responsible for any shipping damage coming in to Triad. If you do not have intact factory packaging, contact your dealer or Triad Service for purchase. At our discretion
we will repair or replace the product and return it free of charge. International customers should contact their dealer for service. This limited warranty is extended only to Triad
products and is expressly in lieu of all other warranties expressed or implied.
FINISH MAINTENANCE & CARE
The paint and veneer finish on all Triad speakers are designed to last a lifetime with minimal care. No polishing is necessary to maintain surface shine and luster. If cleaning the
surface becomes necessary gently wipe the speaker box with a soft cloth lightly dampened with a mild soap and water solution.
CUSTOM PAINT
E
If you wish to change a grill color, we suggest you order a new grill from your authorized Triad dealer, supplying your paint sample at that time. The results will be superior, and you
will also be supplied with a small bottle of touch-up paint.
ADDITIONAL INFO
Triad's EasyMount wall bracket, included with each speaker, is quick & easy to install, adds no depth, and allows up to .5 inch (12.7mm) horizontal and vertical adjustments for
leveling or aligning.
FOR MOUNTING WITH BRACKETS (e.g. Cheif) that use 1/4-20 inserts:
OnWall Micro Sat 1.0. 2.0, 3.0 & OnWall Micro LCR 1.0. 2.0, 3.0 replace their previous rear panel 1/4-20 inserts with EZ Mount Posts tapped for 1/4-20 bolts.
Simply attach the EZ Brackets to the enclosure as shown in Page 2, but do not attach them to the wall. Screw the 1/4-20 bolts into the backs of the posts.
EZ Mount Rec. Amp Power
Weight
Post per channel
lbs./kg
7.2 lbs. / 3.26 kg 2.75" 75-125 watts
11.8 lbs. / 5.3kg 2.75" 75-125 watts
13.3 lbs. / 6kg 2.75" 75-125 watts
6.2 lbs. / 2.8 kg 2" 50-125 watts
10.3 lbs. / 4.7 kg 2" 50-125 watts
11.2 lbs. / 5.1 kg 2" 50-125 watts
Rec. Sub Xover
<3" from wall/ Sensitivity Freq Response
> 3" from wall 2.83v, 1m +/- 3dB, 2pi**
85 dB 128 Hz - 20 kHz
140/150 Hz
85 dB 128 Hz - 20 kHz
140/150 Hz
85 dB 128 Hz - 20 kHz
140/150 Hz
89 dB 128 Hz - 20 kHz
140/150 Hz
89 dB 128 Hz - 20 kHz
140/150 Hz
89 dB 128 Hz - 20 kHz
140/150 Hz
Nominal
Impedance
4 ohms
4 ohms
4 ohms
8 ohms
8 ohms
8 ohms
