Summary of Contents for Triad PDX Series

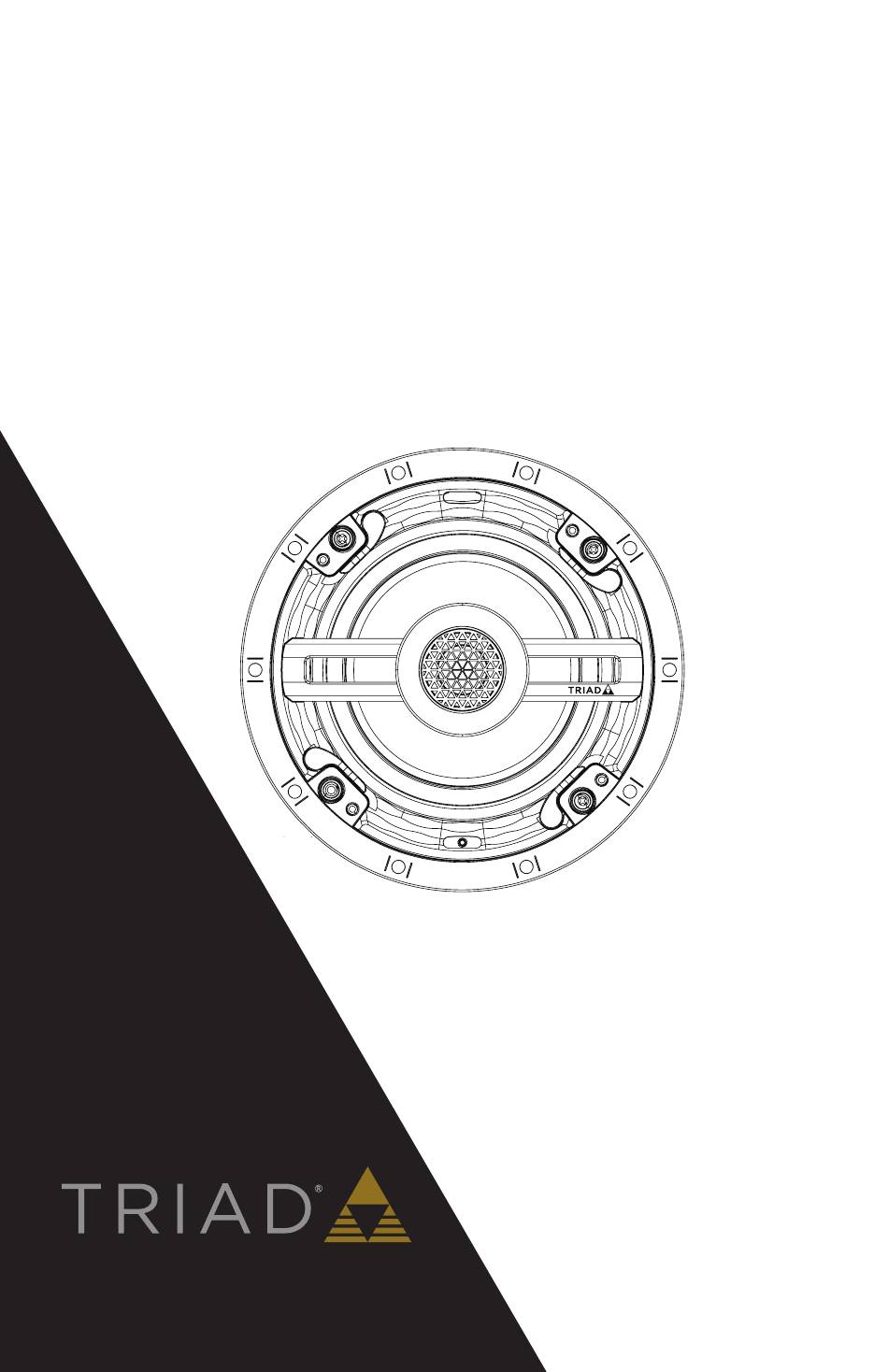

- Page 1 PDX Series Architectural Speakers Install Guide...
- Page 2 Message From Triad Thank you for purchasing a Triad loudspeaker. We design and engineer each loudspeaker with pride in the United States of America with the utmost attention to quality, décor-friendly design, and high-performance sound—eliminating costly frills and features that add nothing to sound quality. We trust that you will hear the benefits of this engineering each time you play them.
-
Page 3: Cutout Dimensions
Cutout Dimensions Refer to the chart below to verify the correct dimensions prior to cutting drywall. Mounting Mounting Finished Model Cutout Dimension Depth Without Depth With Dimension Enclosure Enclosure IC-6* 9.26" 8.3" 4.97" 6.2" IC-8 10.64"* 9.7" 5.2" 6.6" Mounting Mounting Finished Model... - Page 4 Connect Strip the insulation on each conductor approximately ¼" and insert into the speaker terminals. Ensure no strands of wire protrude from the connectors. Observe proper polarity for each speaker to the amplifier (+ to + R Input / SURR L Input and –...
- Page 5 Back Box and Grille Installation with Cradle The Triad cradle allows for optional installs with Triad back boxes and grilles. Both of these options can be done with or without the speaker installed in the cradle.
-
Page 6: Fine Tuning
Inserting and Removing the Speaker from the Cradle Triad PDX speakers can be installed as a one or two piece system, but are shipped as a single, assembled unit for easy one-step installs. If needed, the speaker can be separated from the cradle before the install. - Page 7 Sound / Dual Voice Coil Switch (DTS Models Only): Select SURR or DVC on the rear of the speaker. DTS models can be configured as a Surround speaker or DVC (Dual Voice Coil Speaker). To use as a Surround speaker set the switch to SURR and to use as a DVC Speaker set the switch to DVC.
- Page 8 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, and Triad are also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the property of their respective owners.
