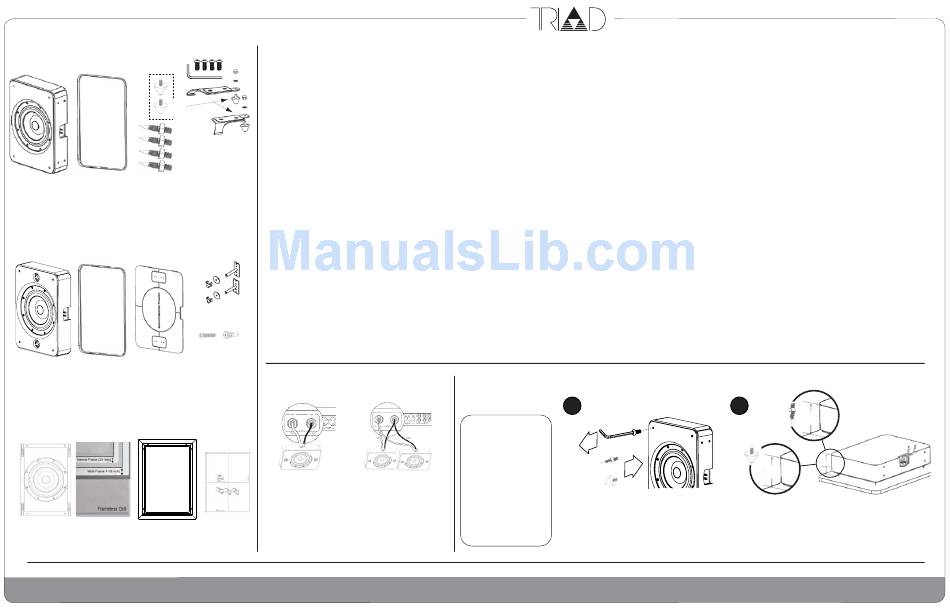

Triad InRoom Bronze SlimSub Product Info & Warranty

Unpacking / Contents - 3 models
InRoom Bronze SlimSub
+ 2
(4) 25 - 20 x .625 button screws
(2) Acorn nuts
(2) .265 x .562 x .048 washers
(2) Rubber cone/standing feet
(1) 5/32" Allen key
Enclosure Face Down
Grill
Parts
OnWall Bronze SlimSub
Enclosure Grill Template
InWall Bronze/4 SlimSub
Enclosure Grill Grill Frame
TriadSpeakers.com • Sales: 1800-666-6316

Bronze SlimSub Family

Triad offers 3 versions of our critically acclaimed high-performance Slim Sub subwoofer to fit virtually any application, room & location. Driven by the RackAmp 350 DSP, each version
delivers the same exceptional power and deep bass from its remarkably compact enclosure. You can match any decor with our Custom Color option or hide the sub from view completely.
Taking up little to no floor space, it is easy to find space for the 4 corner-subwoofer configuration recommended by industry experts* as the easiest and best way to get deep, powerful, and
accurate bass over the largest listening area. With this setup SlimSubs can fill large rooms better than a single bigger subwoofer. To make multi-subs easier, SlimSubs can be ordered with
two 8 ohm enclosures driven in parallel by a single amp, giving performance halfway between 1 sub/ 1 amp and 2 subs/ 2 amps.
*CEA/CEDIA Bulletin CEB22: Home Theater Recommended Practice: Audio Design.

Specifications

Applicable Models

InRoom Bronze SlimSub Encl
Upright
OnWall Bronze SlimSub Encl
Parts
InWall Bronze/4 SlimSub Encl
**InRoom Bronze SlimSub is 15.0 inches (38.1cm) tall when upright on feet and requires 5.9 inches (15.0cm) depth for the standing feet. Enclosure is 4.0 inches (10.2cm) deep without grill.

North American Limited Warranty

4 Bumpers
Triad speakers are warranted to be free from defects in manufacturing and workmanship
(10) years when operated under normal conditions. Should any such defects occur within the warranty period call Triad Service at 1-503-256-2600 for an RA (Return Authorization) number.
Return the product in intact factory packaging with RA number clearly visible on outside of box and proof & date of purchase inside to:
Triad Speakers Inc., 15835 NE Cameron Blvd.,
Portland, Oregon 97230 USA
(2 ea) 3 in EZ Brackets,
knobs, & washers.
Triad is not responsible for any shipping damage coming in to Triad. If you do not have intact factory packaging, contact your dealer or Triad Service for purchase. At our discretion we will
repair or replace the product and return it free of charge. International customers should contact their dealer for service. This limited warranty is extended only to Triad products and
is expressly in lieu of all other warranties expressed or implied.
(8) #10 x 1.25" oval
screws & anchors.
Parts
RackAmp Connections & Set Up
(1) 4 ohm sub (2) 8 ohm subs
wired in parallel
RackAmp Settings:
Pick Sub: IW Bronze DSP
Boundary: Midwall within 2 feet of single boundary
InRoom farther than 2 feet from boundary
Template
Corner within 2 feet of corner.
Dimensions Woofer Size/Material
Inches / cm
14.0x19.5x4.3**/ 35.6x49.5x10.9 10"/26cm aluminum
14.0x19.5x4.3 / 35.6x49.5x10.9 10"/26cm aluminum
13.5x19.0x3.9 / 34.3x48.3x9.9 10"/26cm aluminum

InRoom Bronze SlimSub - Face Down (Flat) Installation

A
Note:
Placing InRoom
Bronze SlimSub face
down under furniture
(bed, couch, cabinet,
etc.) requires a
minimum height
clearance of 5-1/8
With grill off, remove all 4 button screws from
inches plus 14-1/8 x
enclosure face with Allen key; replace with included
19-5/8 inches of clear
spikes or cone feet. Adjust so that all 4 feet make
space.
solid contact with floor or carpet without rocking or
tipping. With spikes, remember to tighten the lock nuts.
Triad Bronze Slimsub - Quick Start Guide
Bronze SlimSub
- Product Info & Warranty -
F3 (-3dB) Max Output Impedance
Midwall Nominal
28 Hz 108dB 4 ohms
28 Hz 108dB 4 ohms
28 Hz 108dB 4 ohms
B
Spike or Cone 4.8 inch
12.2 cm
Securely connect speaker wires (min 14
gauge AWG) through push-in binding posts.
Be sure to preserve correct polarity with amp
(red to red); Place sub in position face down,
connect RackAmp and set up as shown.
Page 1
Weight Amplifier
lbs/kg
19.0/8.6 RackAmp 350 DSP
19.0/8.6 RackAmp 350 DSP
24.5/11.1 RackAmp 350 DSP
5.1 inch
12.9 cm
2014.5.19
