Triad GA10 Quick Start Manual

TRIAD QUICK START GUIDE - GA10 SUB UNDERGROUND KIT
OVERVIEW
The Triad Garden Array is a family of premium, all-weather landscape
speakers that are the perfect combination of elegance, sound, and
durability. This family includes the unique GA4 Satellite and the powerful
GA10 Subwoofer speakers, and are designed to be placed throughout
flowerbeds or around the yard blanketing outdoor spaces with rich,

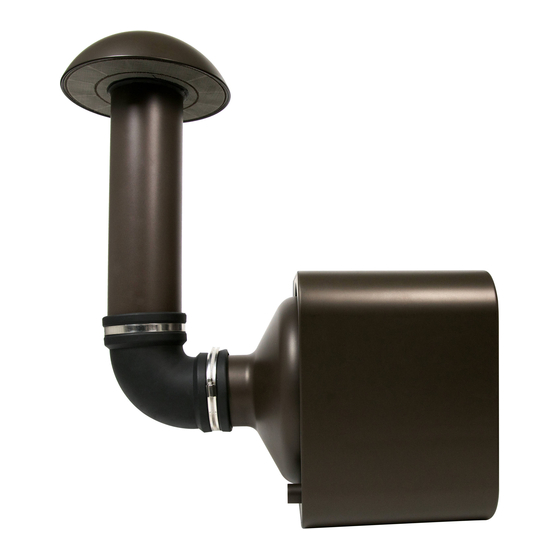

beautiful audio. With this optional Underground Kit, the GA10
Subwoofer can be buried in the landscaping with only a discreet,
mushroom-like sound port visible.

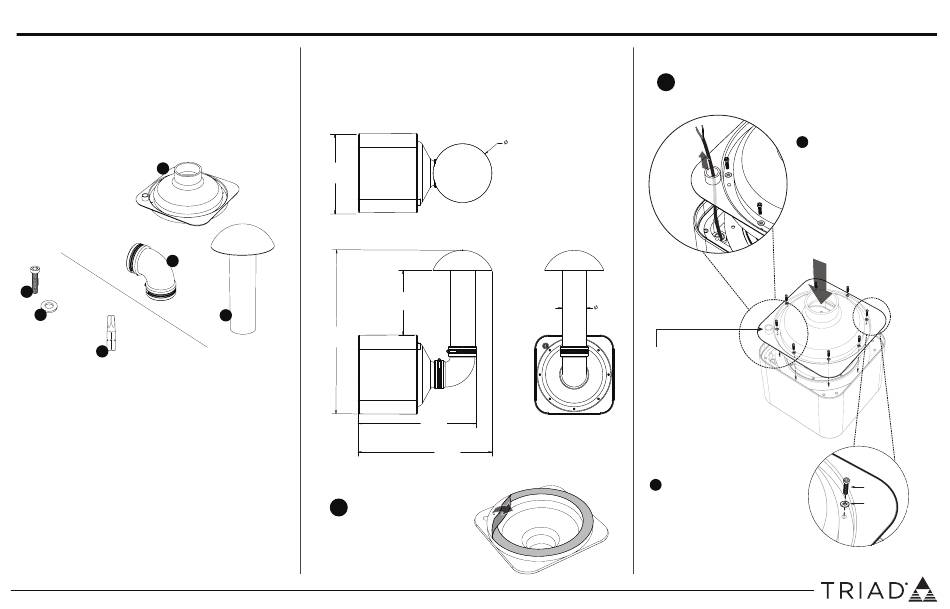

IN THE BOX
A
A - Pipe adapter (x1)
B - Elbow (x1)
C - Port assembly (x1)
D - M5-0.70 x 14 mm
torx head bolt (x8)
E - Washer (x8)
F - T15 torx bit (x1)
B
x 8
D
E
x 1
F
WARRANTY
Triad Speakers warranty information
Limited Hardware Warranty—Triad Speakers warrants its hardware product
to be free from defects in material and workmanship during the warranty
period. If the hardware proves to be defective in material or workmanship
during the warranty period, Triad Speakers will, at its sole option, repair or
replace the product with a like product. The warranty extends only to
products purchased directly from Control4 Corporation or an Authorized
Control4 Dealer. For complete limited warranty information, including
details on purchaser legal rights as well as limited warranty exclusions, visit
www.triadspeakers.com/legal/warranty.
Return Merchandise Authorization (RMA) information
For Sales RMAs contact your Inside Sales Associate. Your ISA information
can be found in the My Account section of the Dealer Portal under
Control4 Contacts.
Technical Support information
Phone: 503-517-2668
Hours: 9:00 a.m. – 5:30 p.m. PST (Monday – Friday)
Email: service@triadspeakers.com
www.triadspeakers.com | 1-800-666-6316 | DOC-00284-A

TOOLS NEEDED

In addition to typical installation tools, Triad recommends the following items:
- 7 mm (9/32") socket wrench
DIMENSIONS -
GA10 SUB UNDERGROUND KIT (WITH SUB)
13 3 "
/
4
[35 cm]
x 1
11 1
[28. 5 cm]
C
28 1 "
/
2
[72.5 cm]
ASSEMBLY
Remove paper cover from
1
gasket on underside of pipe
adapter.
10 1 / "
4
[26 cm]
/ "
4
20 5 / "
8
[52.3 cm]
23 3 "
/
8
[59.2 cm]
ASSEMBLY cont.
2
Assemble pipe adapter to base.
4 3 "
/
8
[11 cm]
Note: Conduit connection
is 3/4" nominal size that
will mate with standard
3/4" (21 mm) conduit
components.
Screw pipe adapter to base. Ensure
B
proper alignment and firmly screw
in 8 bolts and washers around
perimeter of pipe adapter. Do not
overtighten to break plastic.
A
Ensure conduit connection on pipe
adapter is lined up with wire exit from
enclosure.
Run wires through hole in conduit
connection.
bolt
washer
